Flexible Solution for Efficient Cable and Equipment Testing.
Regular testing of electrical equipment is often time-consuming. All the better if you have a reliable colleague to assist you – or even better, a "Pat Testing Mate". The clever PTM™ boxes from INDU-ELECTRIC provide a flexible and efficient solution for a wide range of testing requirements.
The simplest version of our PTM™ series is the practical adapter box, which can be seamlessly connected to the testing device of your choice. This allows you to quickly and legally test cables without the need to invest in expensive special systems. With manual switching, targeted single-core testing and insulation measurements can be carried out.
But the PTM™ boxes can do much more: depending on the version, they offer solutions up to highly complex and fully automated testing procedures – not only for cables, but also for power distribution units and active devices.
Our PTM™ boxes can be individually configured for a wide variety of connections, ranging from simple Schuko cables and CEE extensions to multi-core special cables. Your specific requirements are in the best hands with us.
Discover the versatility of the PTM™ boxes and optimize your testing processes – whether for simple cable testing or complex equipment testing.
Get in touch with us to find the right PTM™ solution for your needs!

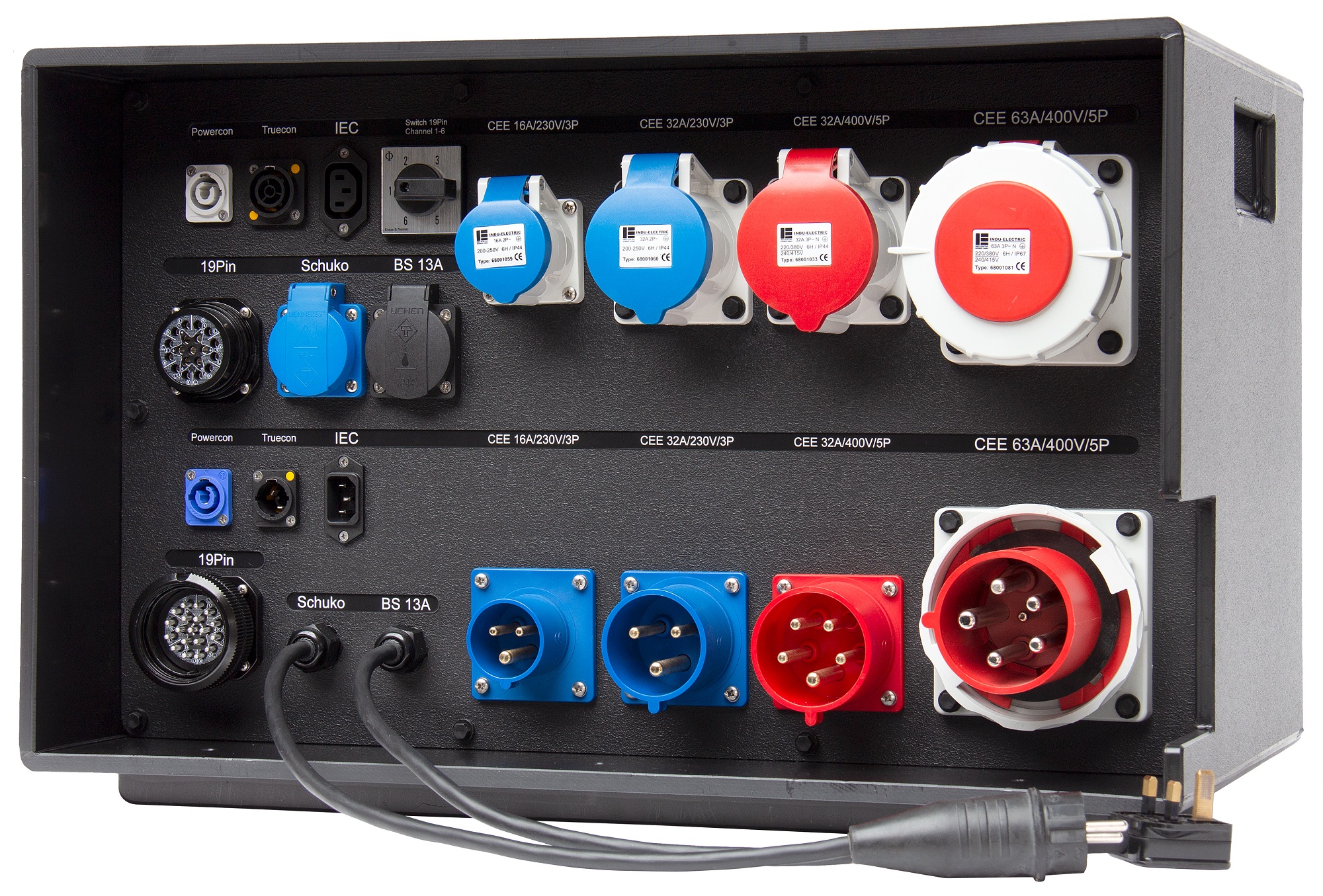

Input / Output:
Depending on the test device used, e.g. Schuko / C13
1x 6-step rotary switch for individual 19-pin channels
Plug / Socket:
1x Powercon / 1x Powercon --- 1x True1 / 1x Tue1 --- 1x IEC C13 / 1x IEC C14 --- 1x Schuko / 1x Schuko --- 1x BS13 / 1x BS13 --- 1x 19 Pin / 1x 19Pin --- 1x CEE 16A 230V 3P / 1x CEE 16A 230V 3P --- 1x CEE 32A 230V 3P / 1x CEE 32A 230V 3P --- 1x CEE 32A 400V 5P / 1x CEE 32A 400V 5P --- 1x CEE 63A 400V 5P / 1x CEE 63A 400V 5P
Item no.:
11412439

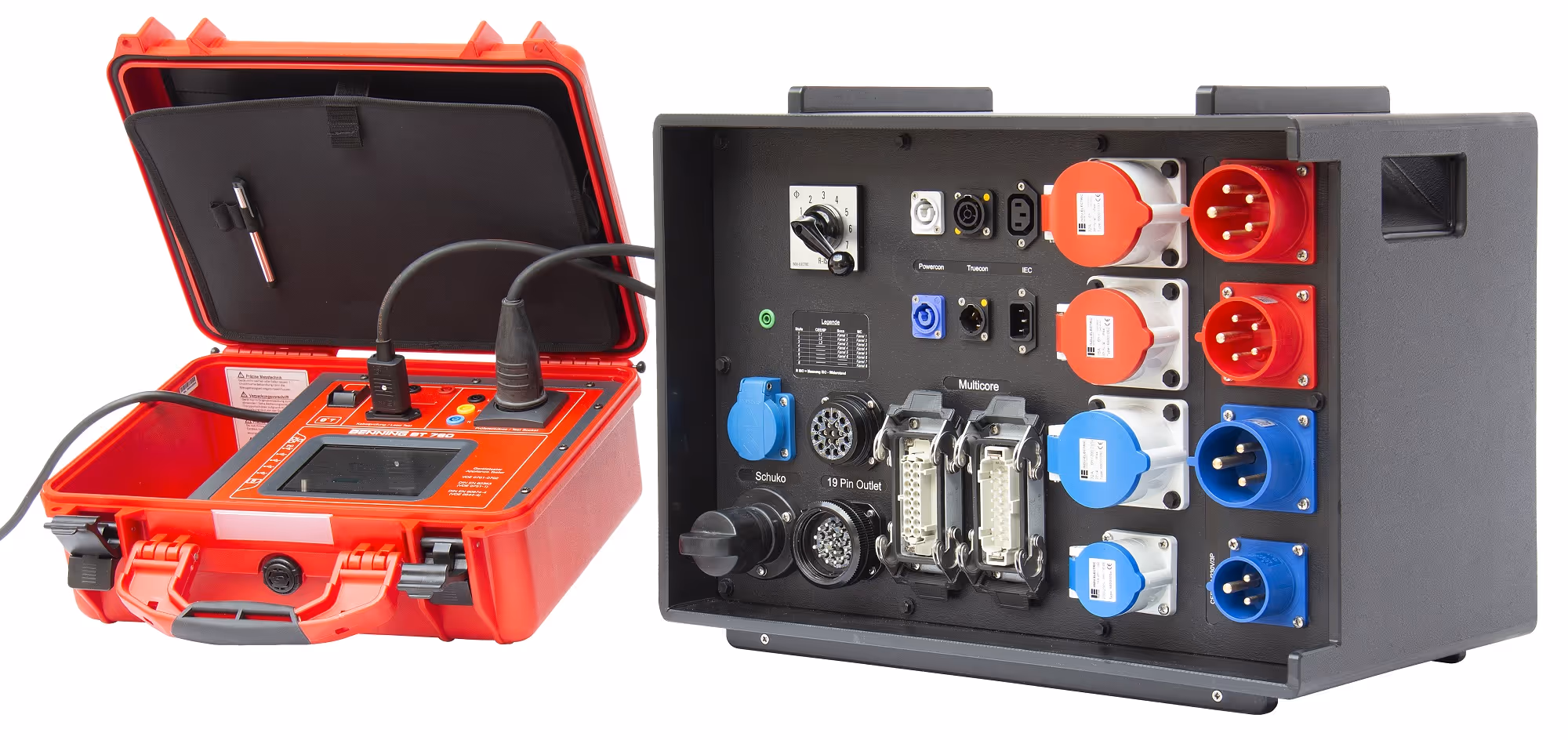

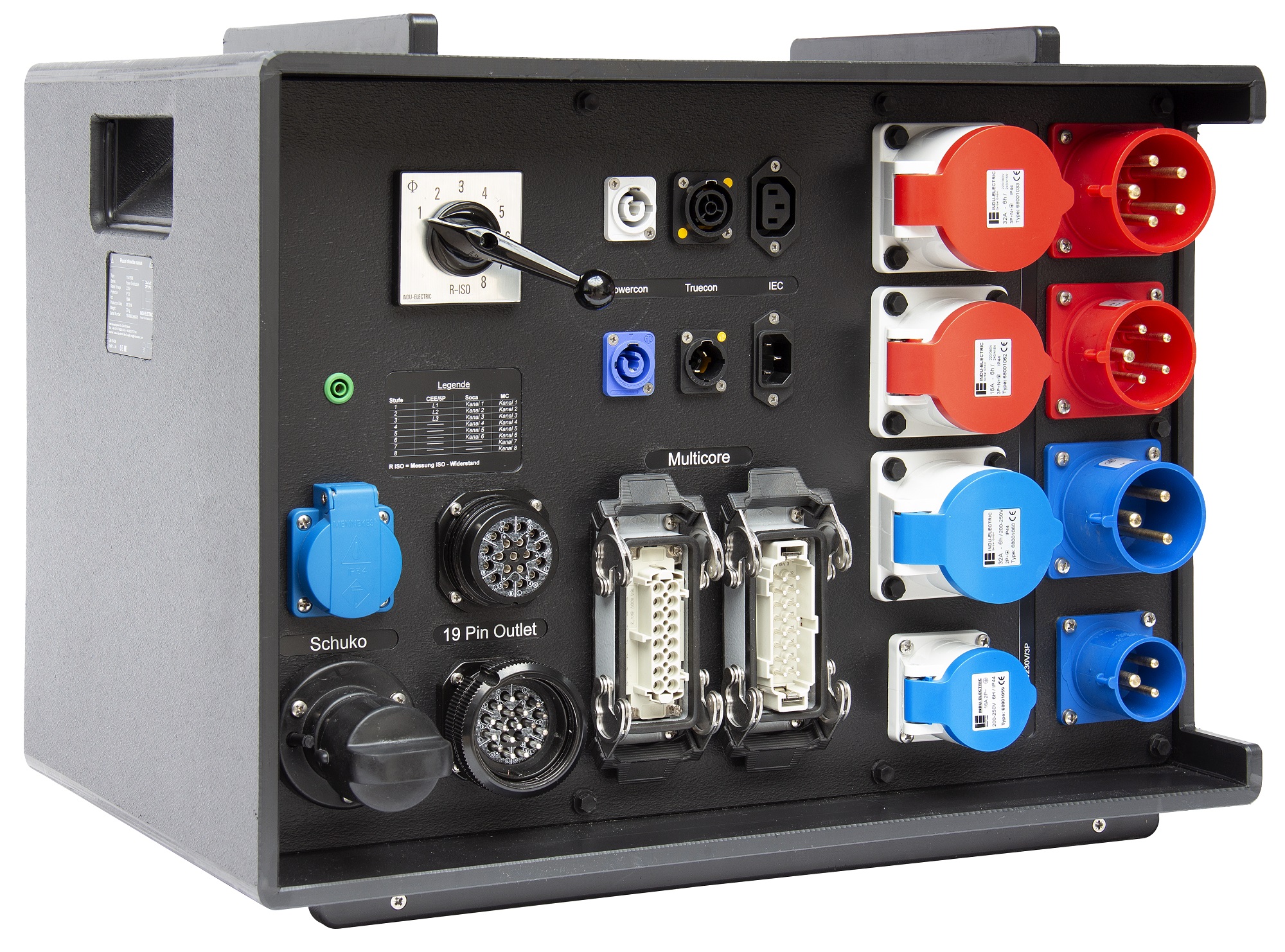

Input / Output:
Depending on the test device used, e.g. Schuko / C13
1x 12-step rotary switch: #1 to #12 + R-ISO
Measurement socket for PE probe
Plug / Socket:
1x Powercon / 1x Powercon --- 1x True1 / 1x Tue1 --- 1x IEC C13 / 1x IEC C14 --- 1x Schuko / 1x Schuko --- 1x 19 Pin / 1x 9Pin --- 1x Multicore H-B16 / 1x Multicore H-B16 --- 1x CEE 16A 230V 3P / 1x CEE 16A 230V 3P --- 1x CEE 32A 230V 3P / 1x CEE 32A 230V 3P --- 1x CEE 16A 400V 5P / 1x CEE 16A 400V 5P --- 1x CEE 32A 400V 5P / 1x CEE 32A 400V 5P
Item no.:
11412686
Input / Output:
Depending on the test device used, e.g. Schuko / C13
1x CEE 32A 400V 5P / 1x CEE 32A 400V 5P
1x input selector switch (Schuko ↔ CEE)
1x 12-step rotary switch: #1 to #12 + R-ISO
1x measurement socket for PE probe
1x M8 grounding screw

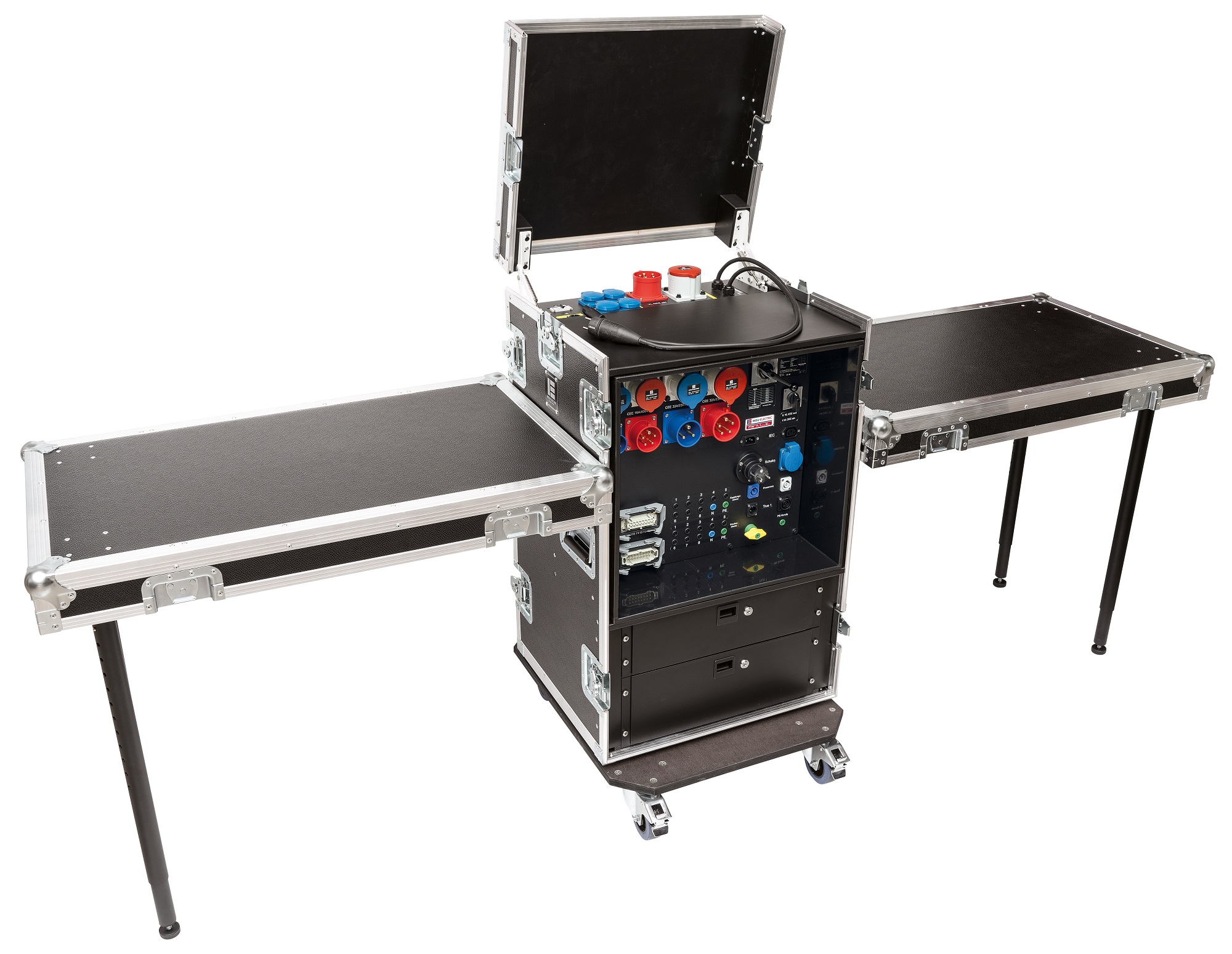

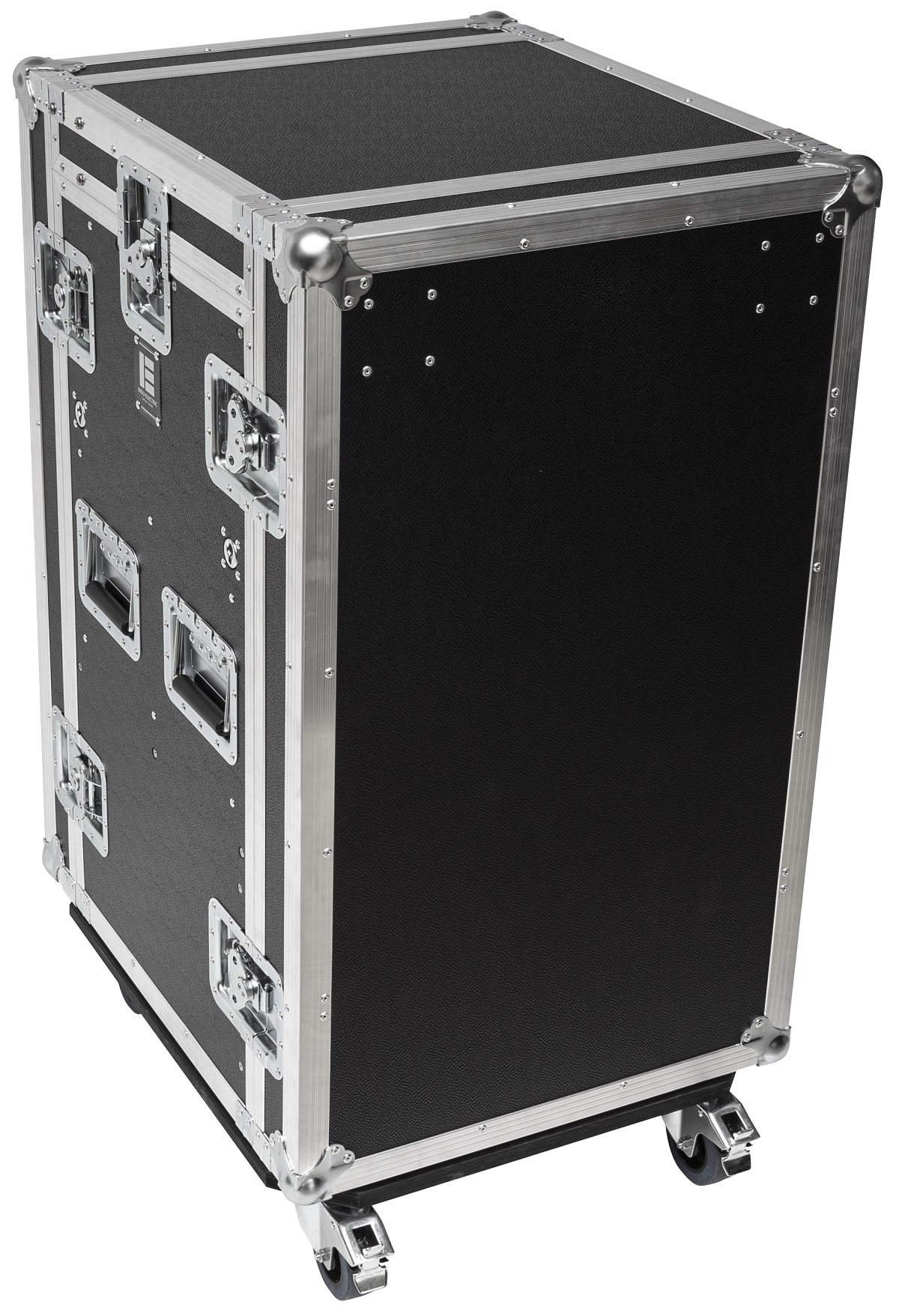

Includes flight case with foldable lid, lockable drawers, and front/rear lids usable as a table.
Plug / Socket:
1x Powercon / 1x Powercon --- 1x True1 / 1x Tue1 --- 1x IEC C13 / 1x IEC C14 --- 1x Schuko / 1x Schuko --- 1x 19 Pin / 1x 19Pin --- 1x Multicore H-B16 / 1x Multicore H-B16 --- 1x CEE 16A 230V 3P / 1x CEE 16A 230V 3P --- 1x CEE 32A 230V 3P / 1x CEE 32A 230V 3P --- 1x CEE 16A 400V 5P / 1x CEE 16A 400V 5P --- 1x CEE 32A 400V 5P / 1x CEE 32A 400V 5P --- 1x measurement sockets L1-L2-L3-#4-#5-#6-#7-#8-N-PE / 1x measurement sockets L1-L2-L3-#4-#5-#6-#7-#8-N-PE
Item no.:
11503437

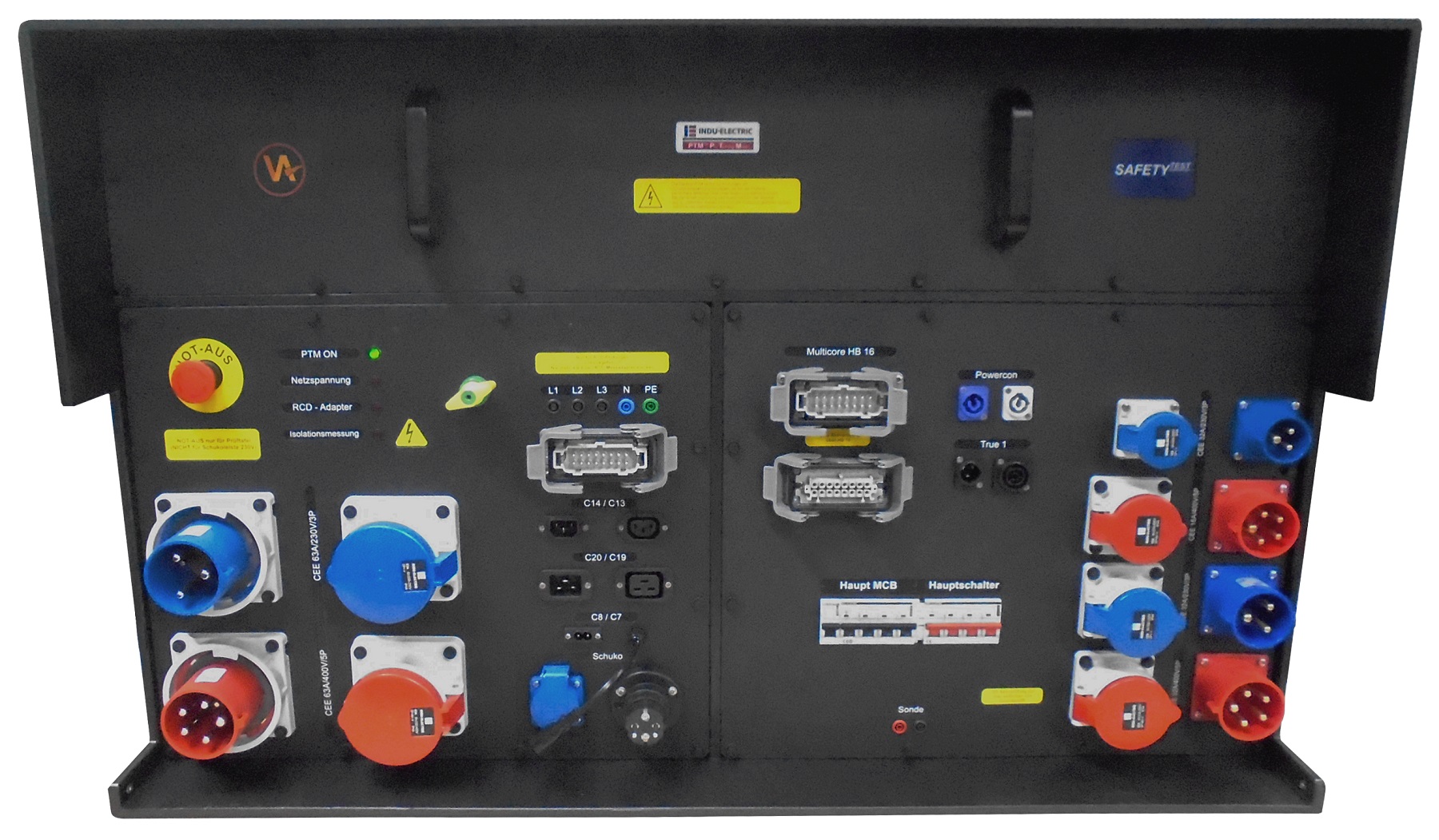

Input:
1x CEE 32A 400V 5P plug with 1.5m H07-RN-F 5G6mm² cable
1x measuring socket for PE2 In
Output:
1x C13 with 1.5m H07-RN-F 2.5mm² cable
1x measuring socket for PE2 Out
Loop-through:
1x CEE 32A/400V/5P
1x IEC inlet connector C14
1x XLR 4P panel socket
2x measuring sockets for PE2
Additional:
1x emergency stop button
1x MCB 16A/C/3P+N + undervoltage release (for emergency stop)
1x main switch
1x USB B input for control of the circuit boards
4x measuring sockets for probe (2x red, 2x black)
1x grounding screw M8
1x LED 24V DC green "PTM ON"
1x LED 24V DC red "Mains voltage"
1x LED 24V DC red "RCD adapter"
1x LED 24V DC red "Insulation test"
All test procedures are controlled via control boards in combination with a test system from SafetyTest. Wiring is done using the "four-wire measurement technique".
Connectors / Sockets:
1x Schuko / 1x Schuko --- 1x IEC C14 / 1x IEC C13 --- 1x IEC C20 / 1x IEC C19 --- 1x IEC C8 / 1x IEC C7 with 0,1m 2x0,75mm² --- 1x Powercon / 1x Powercon --- 1x True1 / 1x True1 --- 1x CEE 16A 230V 3P / 1x CEE 16A 230V 3P --- 1x CEE 32A 230V 3P / 1x CEE 32A 230V 3P --- 1x CEE 63A 230V 3P / 1x CEE 63A 230V 3P --- 1x CEE 16A 400V 5P / 1x CEE 16A 400V 5P --- 1x CEE 32A 400V 5P / 1x CEE 32A 400V 5P --- 1x CEE 63A 400V 5P / 1x CEE 63A 400V 5P --- 1x MC H-B 16 / 1x MC H-B 16
Active measurement up to 16A (Active measurement up to 32A only via loop-through)

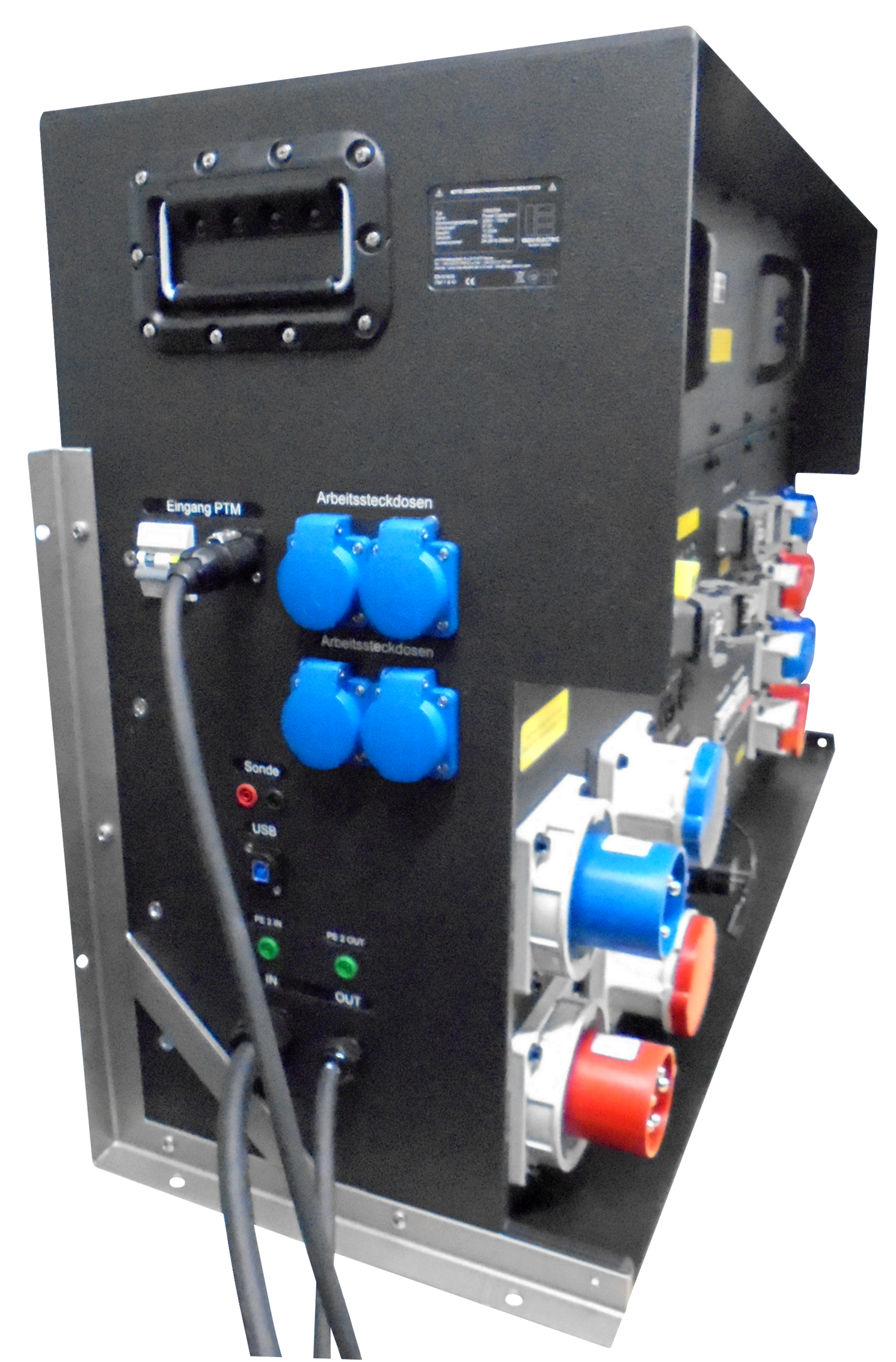

Separate power supply on the test board (left side panel):
IN: Powercon plug True1
OUT: 4x Schuko, protected by 1x RCBO 16A C 30mA 2P
separate for RCD testing:
5x measuring sockets L1-L2-L3-N-PE - 400V -
1x H-B16 plug
Item no.:
11602504
