High-quality transformers for professional use.
At INDU-ELECTRIC, you receive inspection distributors and isolation transformers custom-built to your specifications. Depending on your needs, these units can be configured with various primary-side voltages, making them suitable for use worldwide. They are deployed not only in industrial environments and on large construction sites, but also at major events and film productions.
The housing and design are tailored precisely to the required components and application. Large inspection carts and isolation transformers are often built into stainless steel frames. Due to their weight, robust transport features such as heavy-duty wheels, forklift pockets, and lifting eyes are essential for safe handling.

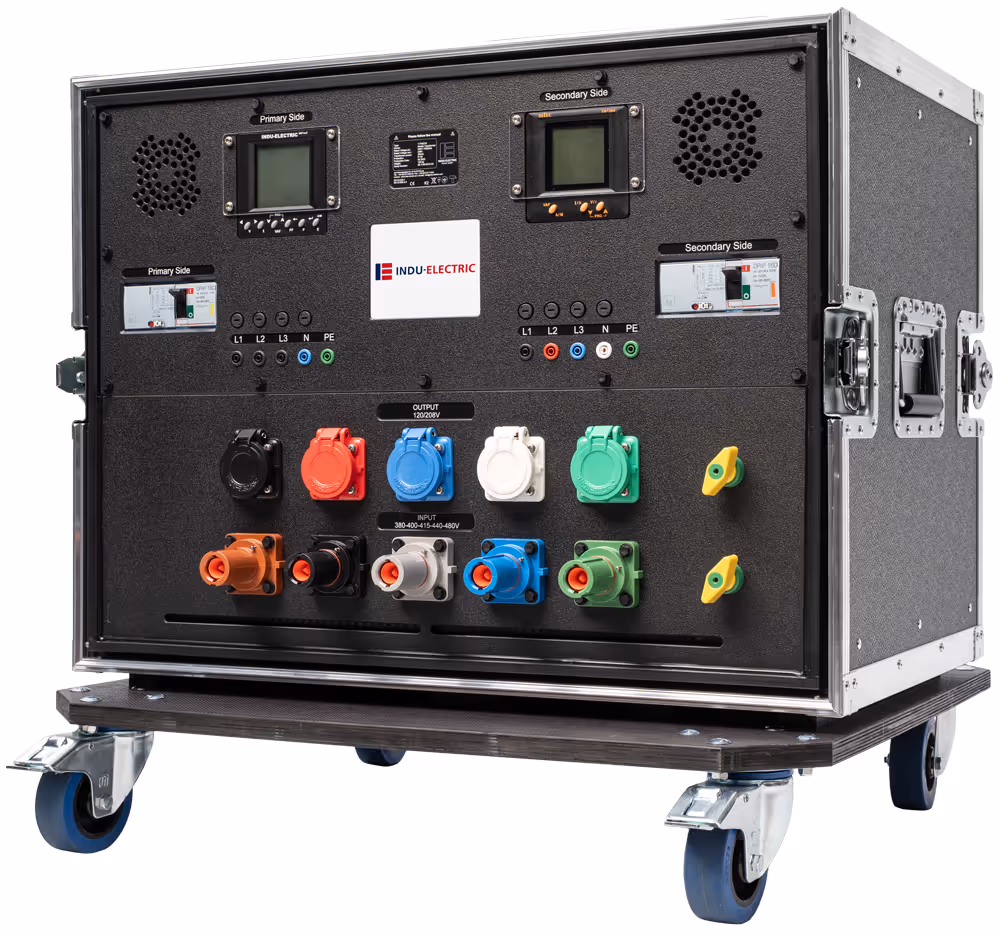

Input:
230/400V 3-phase + N + PE, Powerlock connectors (EU color code)
Transformer:
Output:
120/208V ±5% 3-phase + N + PE, Camlock connectors (US color code, mirrored ground) + cover
Item no.:
11700310
Input:
3-phase + PE 500V, cable entry for 4×50mm², to 4x terminals 50mm² (3x phase + 1x PE)
2x CEE 32A 500V 4P
Output:
1x transformer 80kVA DYN5 (100%N)
1x transformer 5kVA DYN5 (100%N)
Output side 400V:
1x voltmeter 400V + ammeter 150A, each with selector switch
4x fans
2x CEE 63A 400V 5P
3x CEE 32A 400V 5P
4x CEE 16A 400V 5P
6x Schuko
3x CEE 16A 230V 3P
Output side 42V:
1x voltmeter 60V + ammeter 75A, each with selector switch
6x CEE 16A 42V 3P
V2A stainless steel frame including wheels and forklift pockets.
Item No.:
11700244
