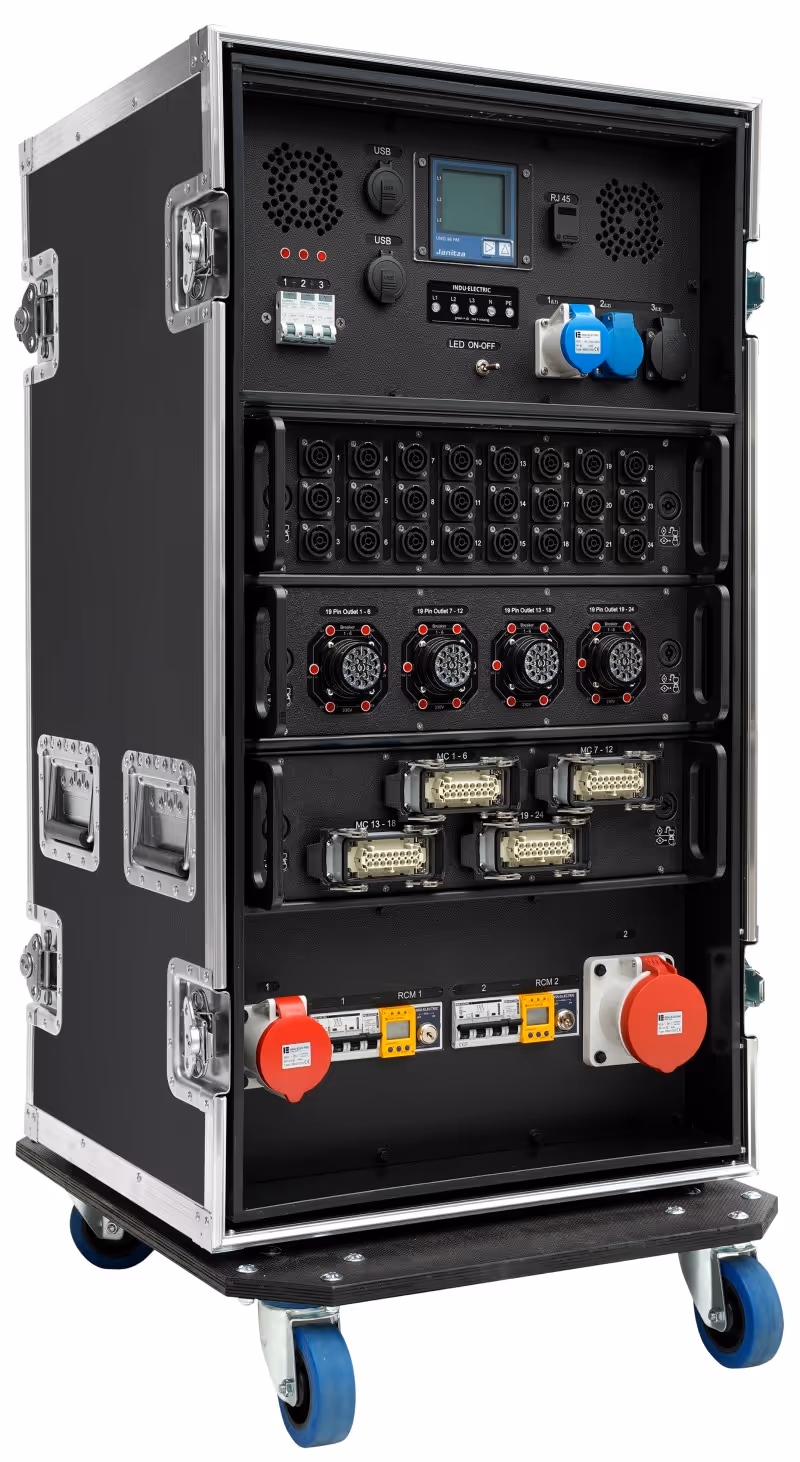

INDU-ELECTRIC FlexDistro™
Power Distribution Units

FlexDistro™

Maximum flexibility for your Power Distribution.

Our FlexDistro™ rack was specifically developed to meet the diverse requirements of the event and touring industry. It offers maximum flexibility, easy handling, and a professional, cost-efficient system. Depending on your needs, you can configure your INDU-ELECTRIC FlexDistro™ rack yourself using easily interchangeable modules. Each module supports up to 24 channels, with every channel protected by its own 30mA RCBO (FI/LS).

With the INDU-ELECTRIC FlexDistro™ rack, you’re equipped to respond to specific requirements anytime, anywhere – within minutes and with the right modules.

Individual modules can be quickly and affordably reordered without the need to invest in an entirely new power distribution system. Get in touch with us – we’ll plan your custom INDU-ELECTRIC FlexDistro™ rack together: modular, versatile, smart!

INDU-ELECTRIC FlexDistro™ - Quick-Swap Capability

Our FlexDistro™ system ensures maximum flexibility. Depending on the application, you can equip the FlexDistro™ with the required output modules.

INDU-ELECTRIC FlexDistro™ - Diverse Module Options

Whether 19Pin, Multicore, True1, or switching from Schuko to BS13 – the configuration of each module is tailored to your specific requirements.

INDU-ELECTRIC FlexDistro™ - Individual Channel Protection

Each module supports up to 24 channels, with every channel individually protected by a 30mA RCBO.

Discover Our Products.

Here you’ll find examples of our diverse product solutions and detailed article information.

FlexDistro™: Choose the Right Size for Your Power Distribution

No items found.

The FlexDistro™ system offers flexible and powerful solutions tailored to various requirements. Choose the size that best fits your basic needs:

  • 96-Way FlexDistro™:
    • Size: 120
    • Input: Powerlock 630A
    • Number of modules: 4
  • 72-Way FlexDistro™:
    • Size: 100
    • Input: Powerlock 400A
    • Number of modules: 3
  • 48-Way FlexDistro™:
    • Size: 80
    • Input: Powerlock 250A
    • Number of modules: 2

Custom Output Modules for your FlexDistro™

No items found.

We offer a wide range of modular output modules that can be flexibly adapted to your specific needs.

You can choose from our standard configurations:

  • 24x True1
  • 4x 19 Pin
  • 4x Multicore H-B16

We’re also happy to design custom output modules based on your requirements. For example, if you need a special combination like 6x Schuko and 2x CEE 16A 3P, we’ll make it happen. This ensures a tailored and efficient power distribution for every project.

Single Channel Protection

No items found.

Our single-channel protection relies on the proven electronic and thermal-magnetic RCBO technology, which has been successfully used in the mobile sector for decades. Compared to hydraulic-magnetic RCBOs, it offers decisive advantages:

  • Sensitivity: Hydraulic-magnetic RCBOs have lower sensitivity to small leakage currents. This can result in slower response to certain types of fault currents compared to electronic and thermal-magnetic RCBOs.
  • Switching speed: Hydraulic-magnetic RCBOs switch more slowly than electronic and thermal-magnetic ones.
  • Size and weight: Hydraulic-magnetic RCBOs are generally larger and heavier than electronic and thermal-magnetic RCBOs.
  • Durability: Hydraulic-magnetic RCBOs are more prone to faults caused by vibrations and shocks than electronic and thermal-magnetic RCBOs—such as those that occur during transport of power distribution units. This increases maintenance requirements.
