Compact solutions for final power distribution.
Our Small Power Distribution Units offer a wide range of combination options thanks to their modular design and are ideal as final distribution units placed directly at the point of use. They are typically equipped with three-pole outputs such as Schuko, Powercon, True1, or CEE 3P, and can be installed with or without integrated protection depending on your needs. For maximum safety, additional protective devices such as RCD/FI, MCB/LS, or RCBO can be integrated.
The housing designs are compact and space-saving, always optimized for the best possible configuration. Whether as a standard solution or a custom setup – our Small Power Distribution Units offer maximum flexibility for your application.
Versatile Connection Options
Small power distribution units are available with various input and output connectors (CEE, multicore, 19-pin, Schuko, True1, etc.) and can be configured individually – including customer-specific setups.
Enhanced Safety Options
The enclosures offer numerous possibilities for integrating safety features – from simple holes for safety ropes to screw mounts (e.g. Doughty) and ring lugs. This allows each unit to be mounted flexibly and securely in a wide range of environments.
Variety of Housing Designs – Customizable to Your Needs

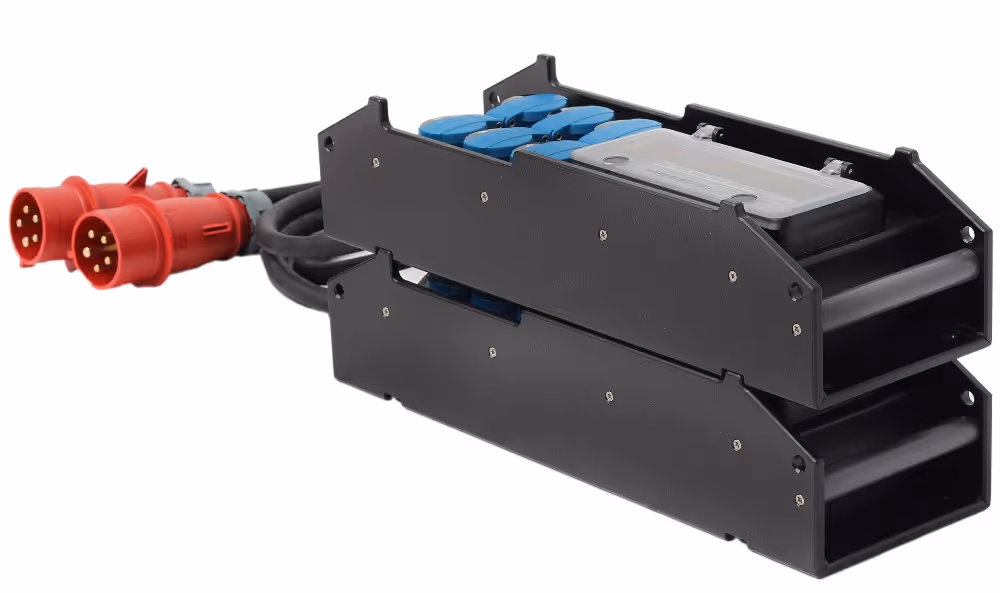

Whether ultra-compact, stackable, or equipped with carrying handles – our small power distribution units are available in many different designs. This ensures they can be tailored precisely to your requirements in terms of location, handling, and storage.

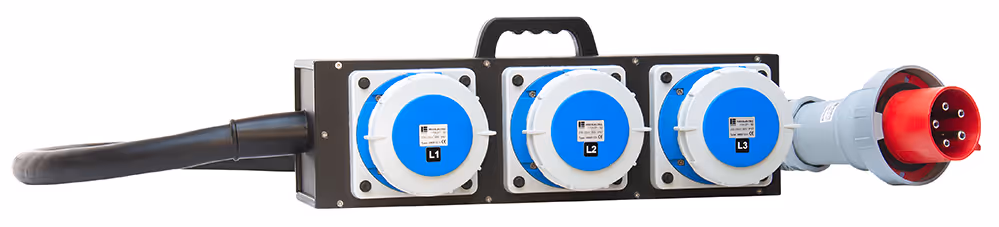

Input:
CEE 125A 400V 5P with 1,5m 5G35mm² H07RN-F
Output:
3x CEE 125A 230V 3P
Item no.:
11101219

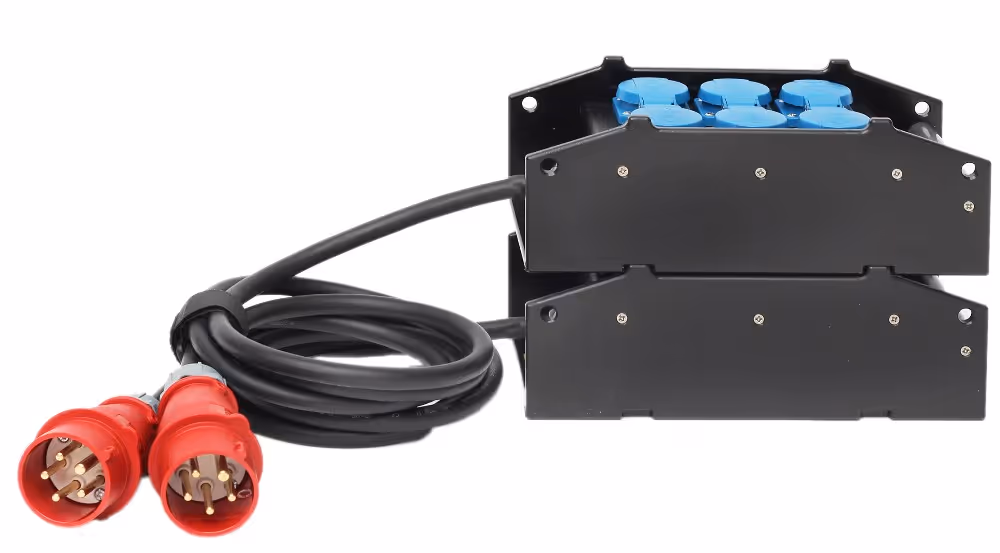

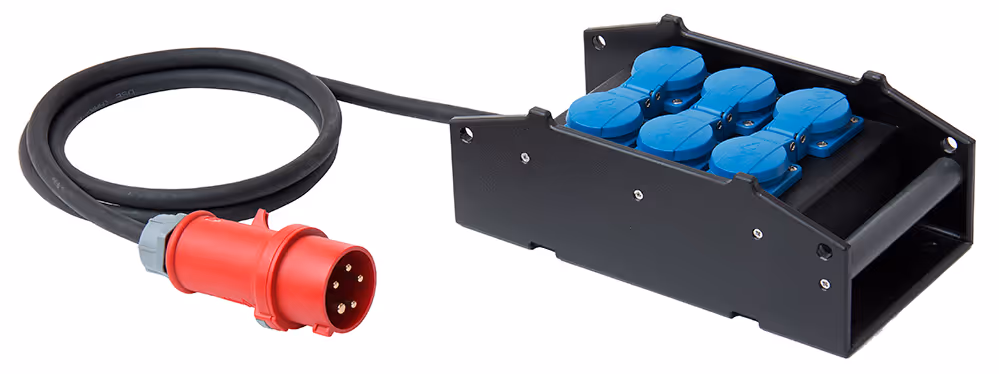

Input:
CEE 16A 400V 5P with 2m 5G2,5mm² H07RN-F
Output:
6x Schuko
Item no.:
11103704

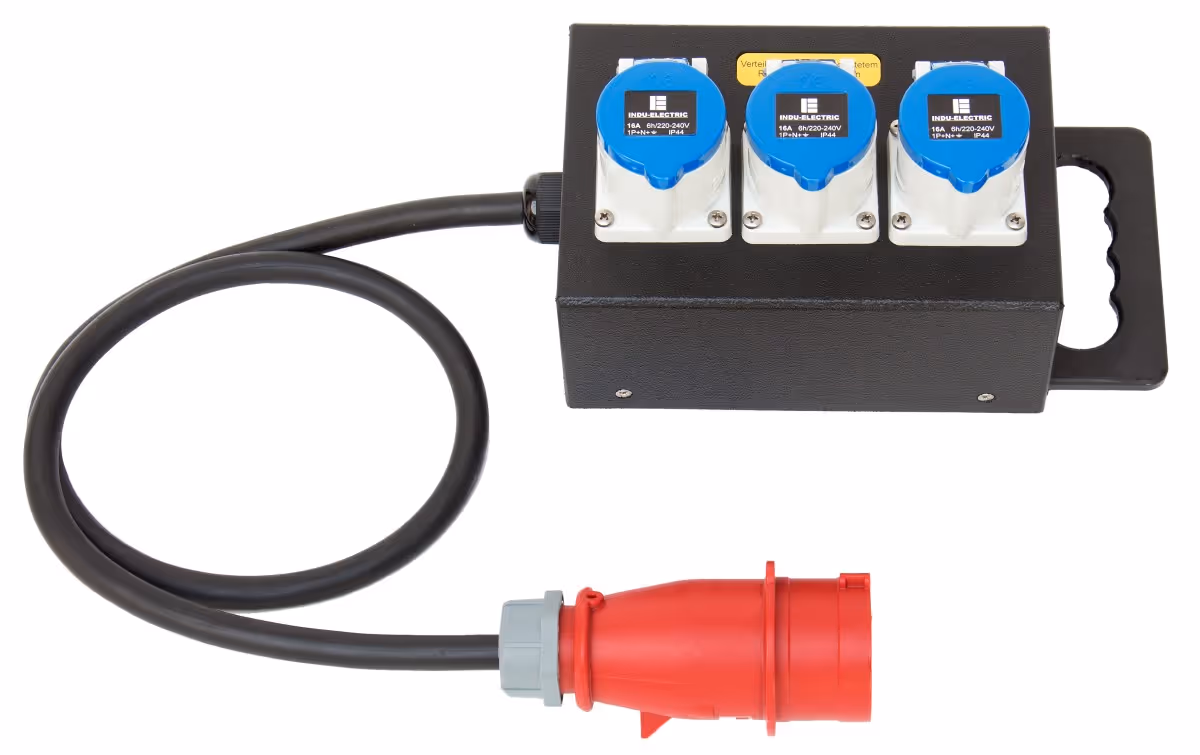

Input:
CEE 16A 400V 5P with 1m 5G2,5mm² H07RN-F
Output:
3x CEE 16A 230V 3P
Item no.:
11103818

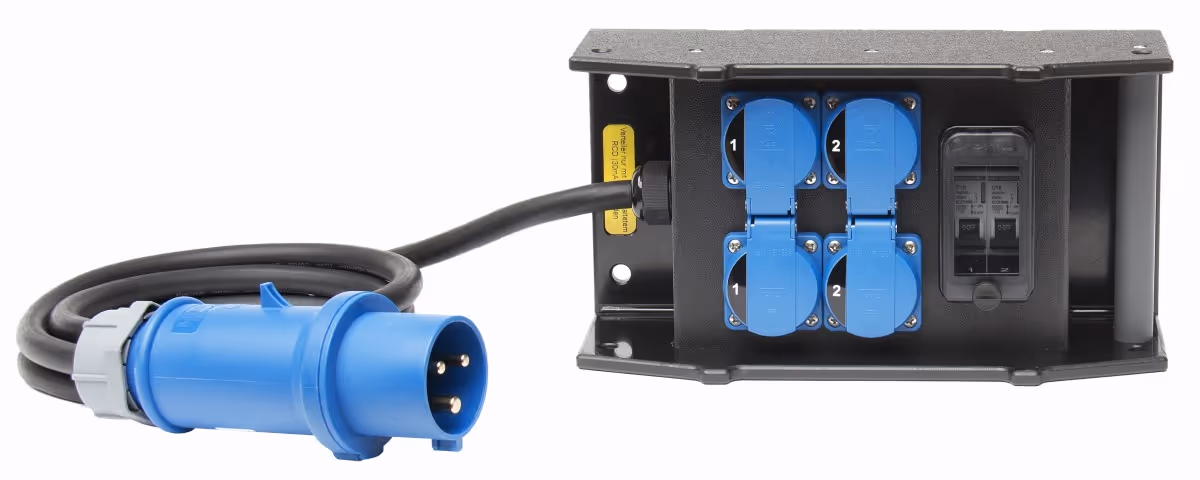

Input:
CEE 32A 230V 3P with 2m 3G6mm² H07RN-F
Output:
4x Schuko
Item no.:
11104057

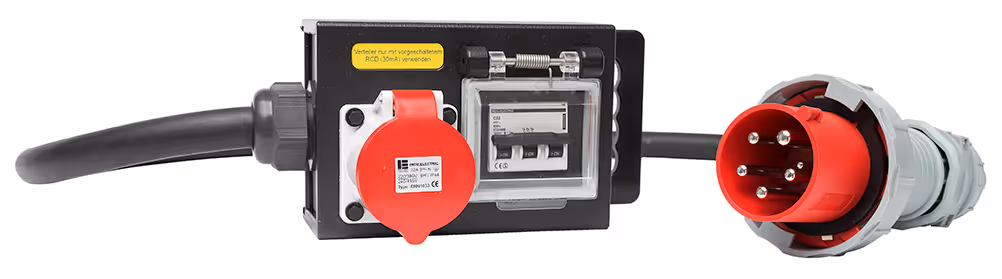

Input:
CEE 63A 400V 5P with 1,5m 5G16mm² H07RN-F
Output:
1x CEE 32A 400V 5P
Item no.:
11100399
Input:
19-pin
Output:
1x 19-pin
6x True1
Item no.:
11104163

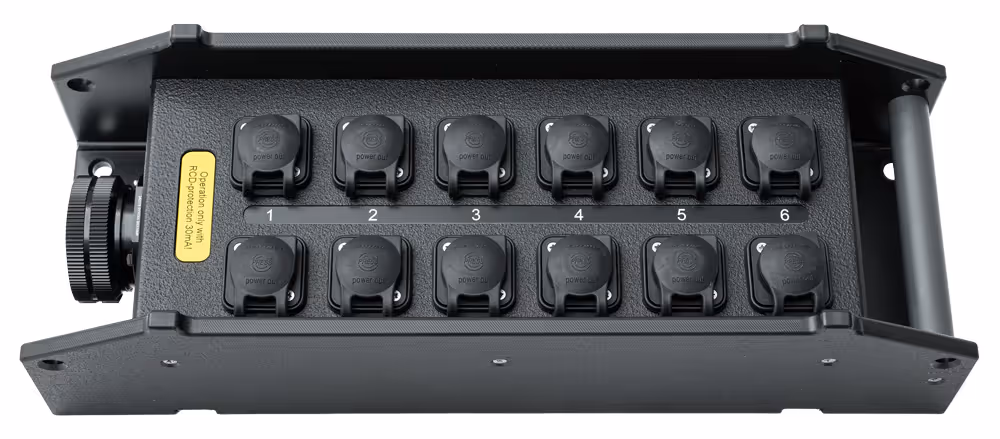

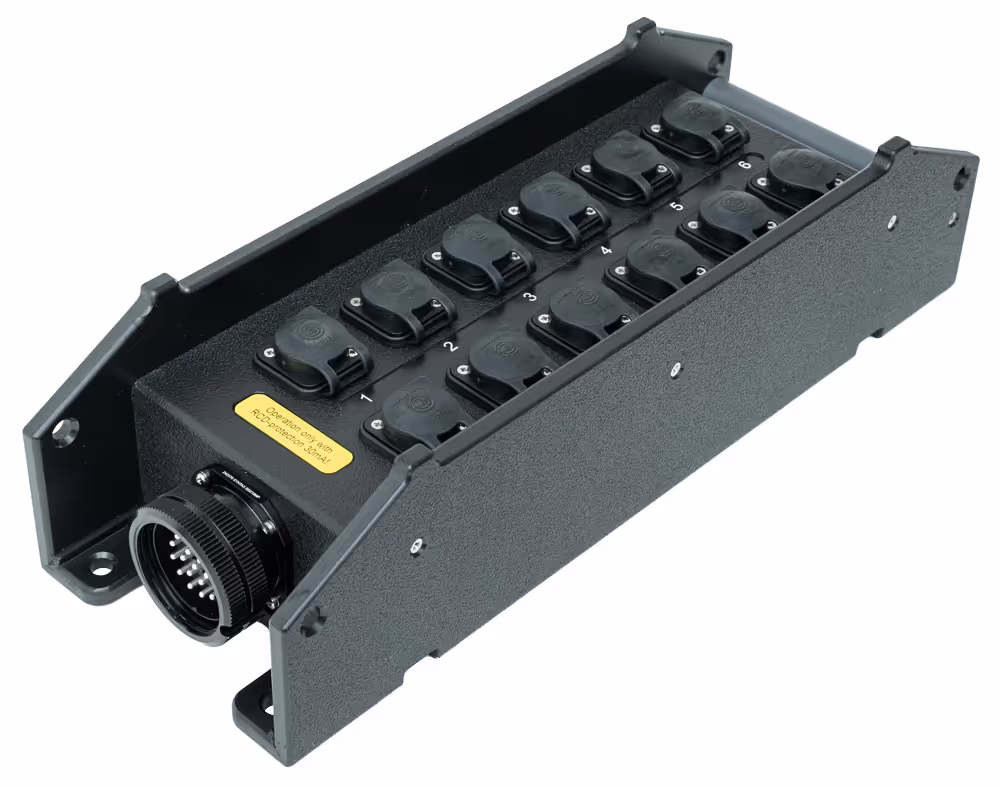

Input:
19-pin
Output:
12x True1 with rubber protective caps
Item no.:
11105290
Input:
Multicore H-B16
Output:
1x Multicore H-B16
6x True1
Item no.:
11102991

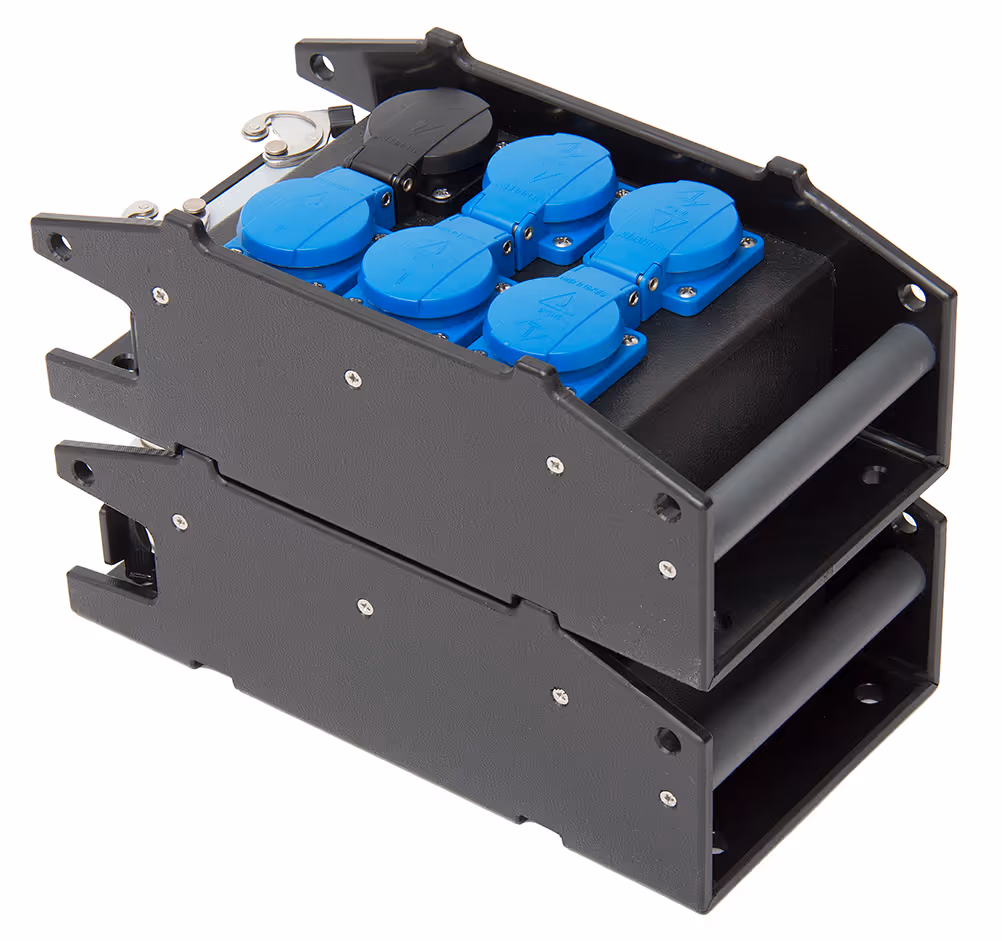

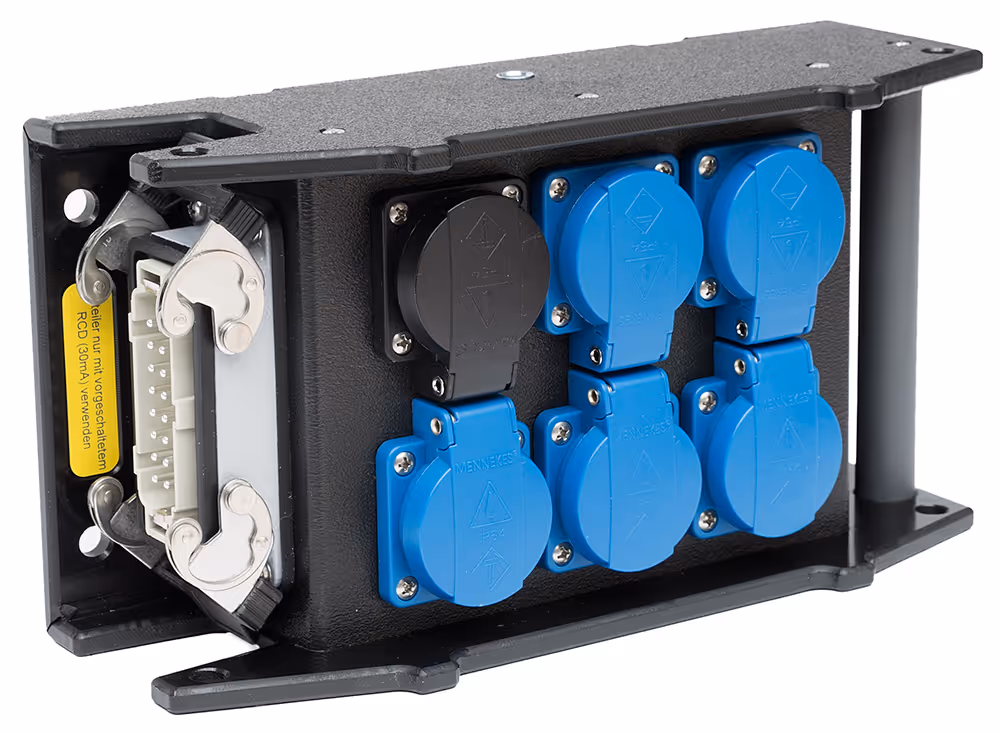

Input:
Multicore H-B16
Output:
6x Schuko
Item no.:
11103705

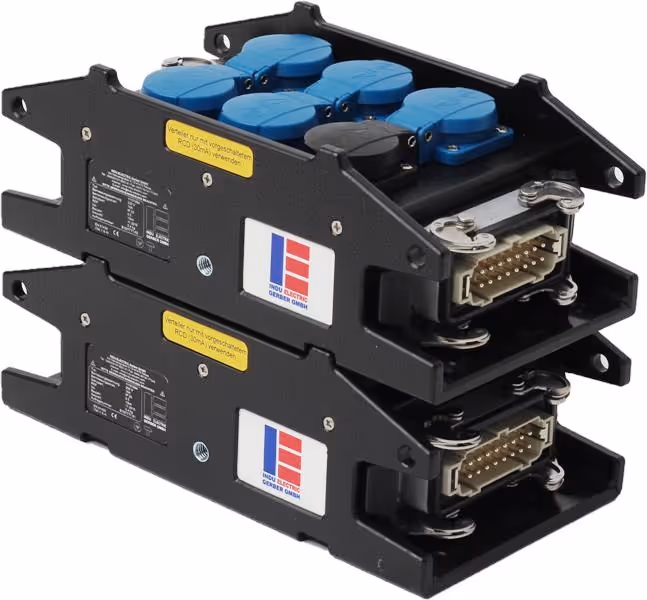

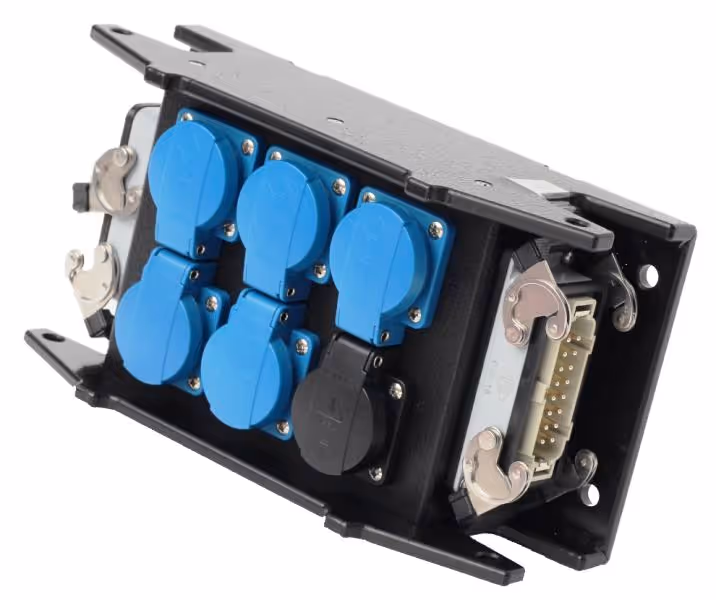

Input:
Multicore H-B16
Output:
1x Multicore H-B16
6x Schuko
Item no.:
11103714

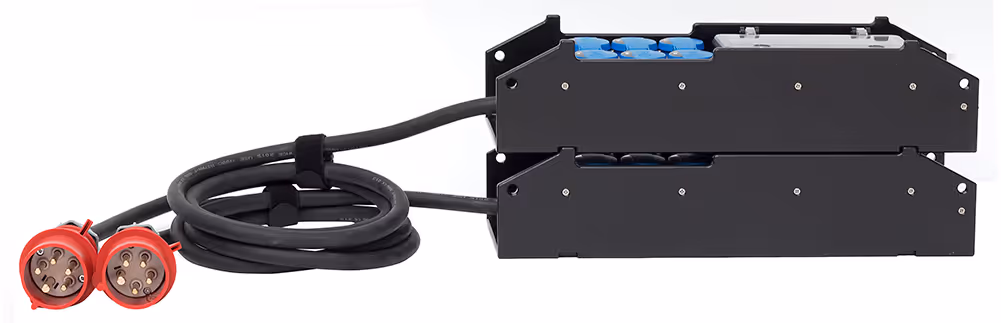

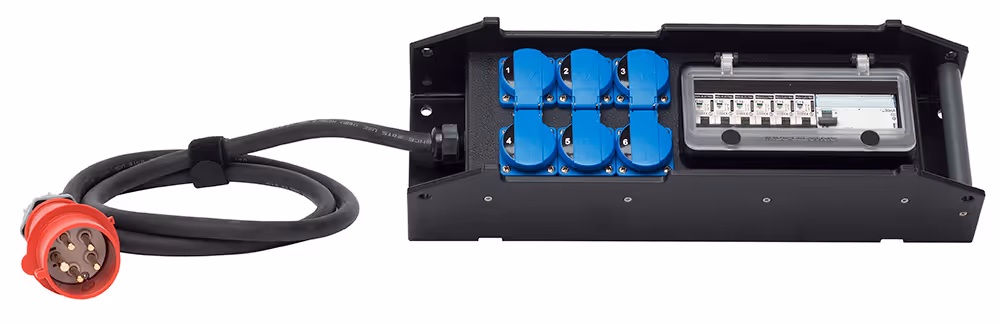

Input:
CEE 16A 400V 5P with 2m 5G2,5mm² H07RN-F
Output:
6x Schuko
Item no.:
11103764
Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
6x Schuko
Item no.:
11103880

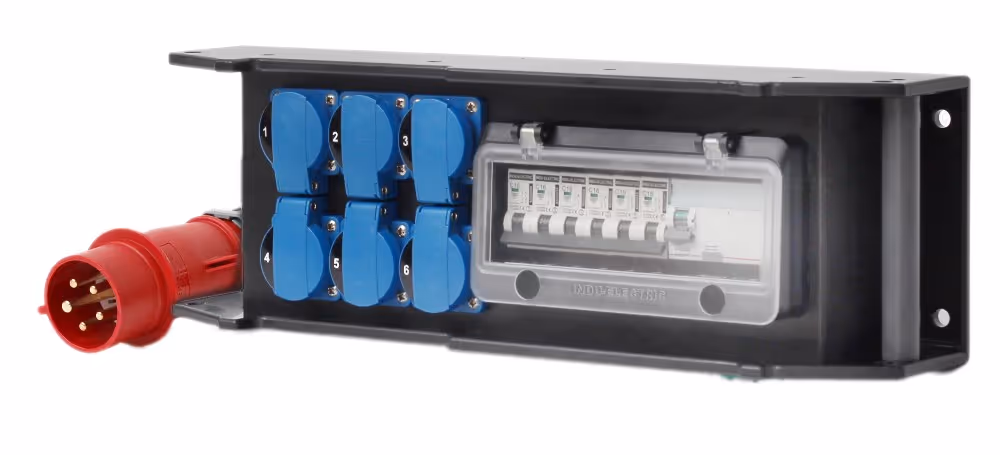

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Ouput:
6x Schuko
Item no.:
11103718

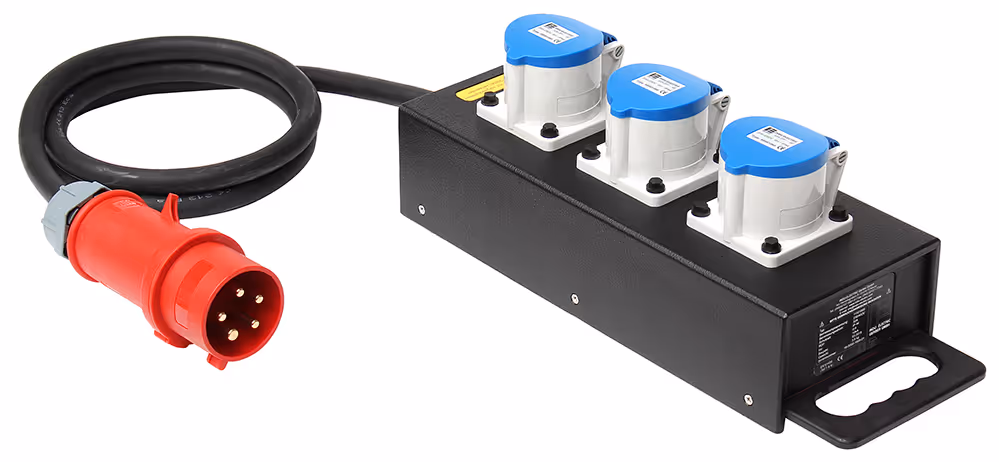

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
3x CEE 32A 230V 3P
Item no.:
11101865

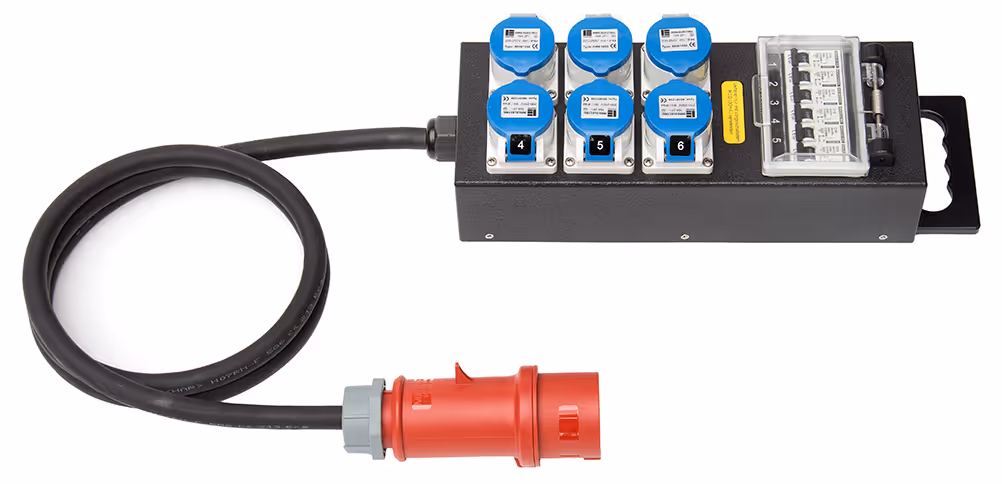

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
6x CEE 16A 230V 3P
Item no.:
11102144

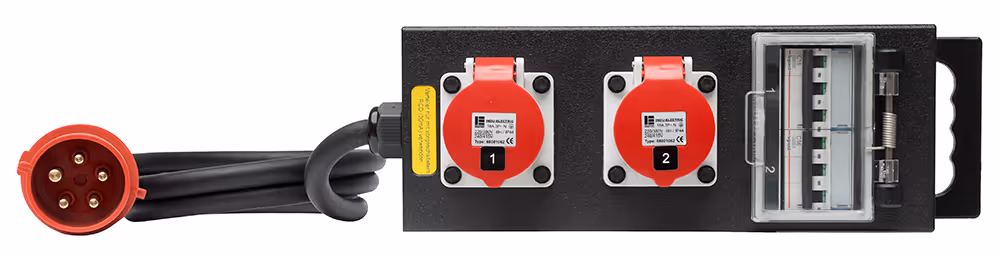

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
2x CEE 16A 400V 5P
Item no.:
11102158

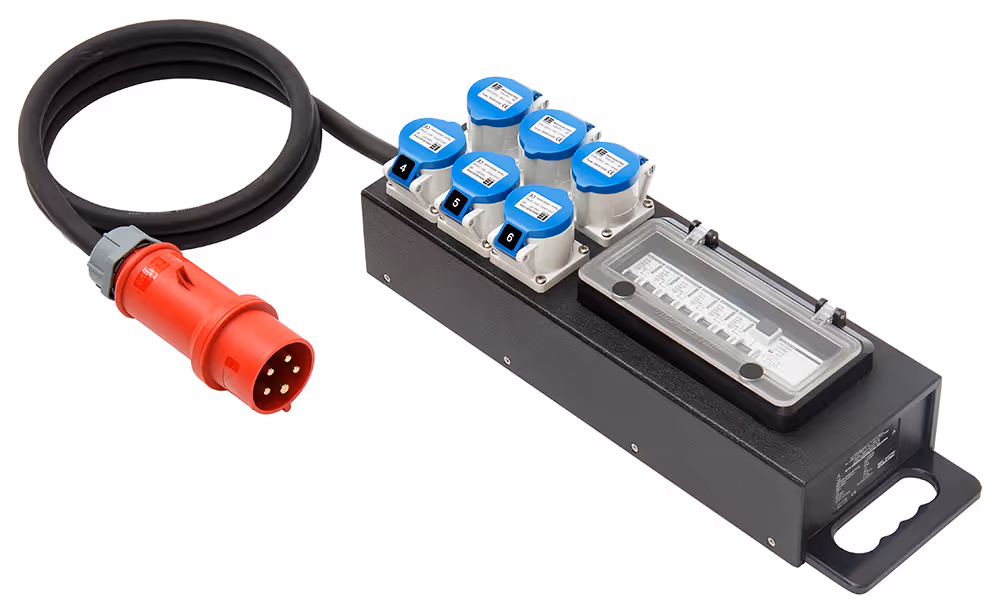

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
6x CEE 16A 230V 3P
Item no.:
11102232

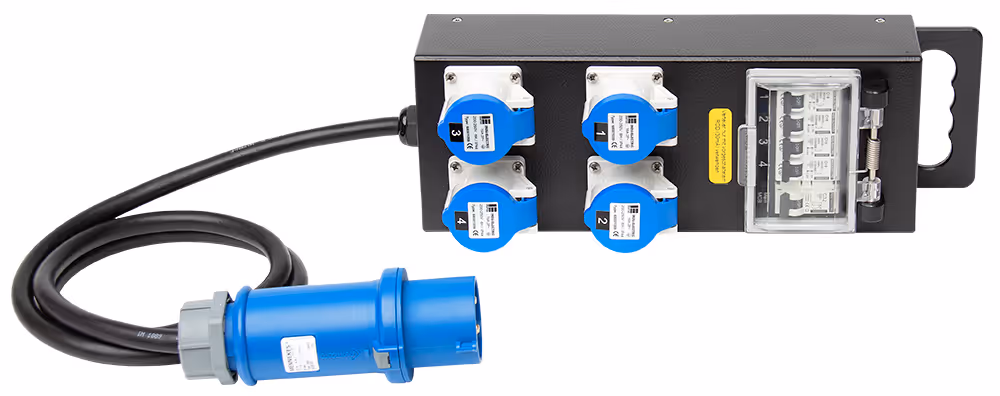

Input:
CEE 32A 230V 3P with 1,5m 3G6mm² H07RN-F
Output:
4x CEE 16A 230V 3P
Item no.:
11102289

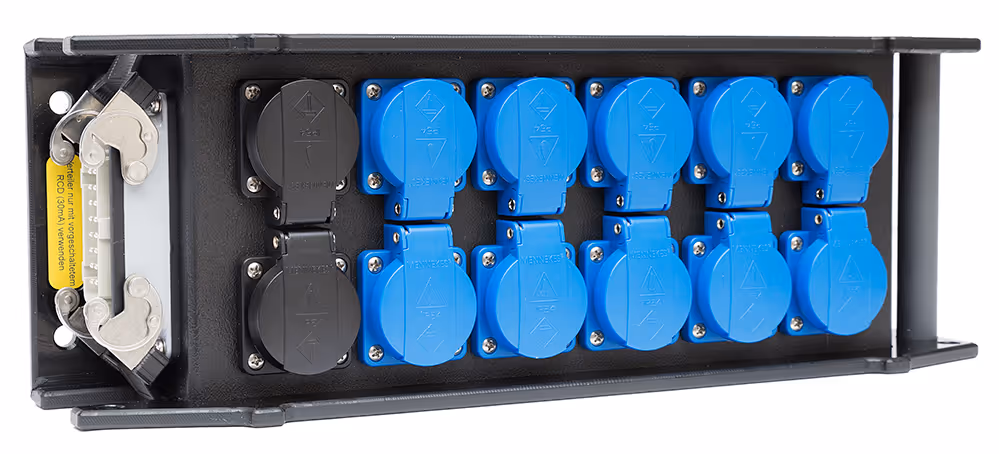

Input:
Multicore H-B16
Output:
12x Schuko
Item no.:
11103715

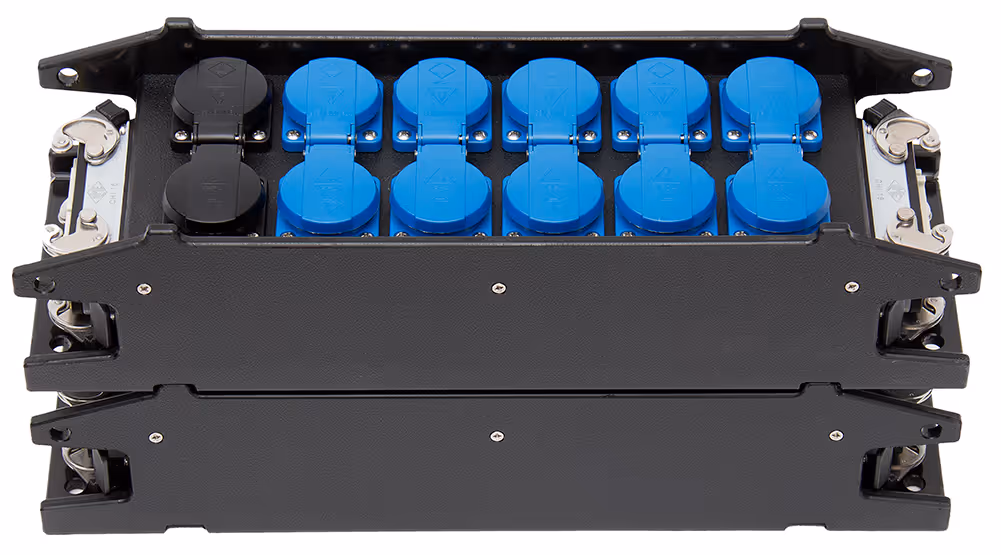

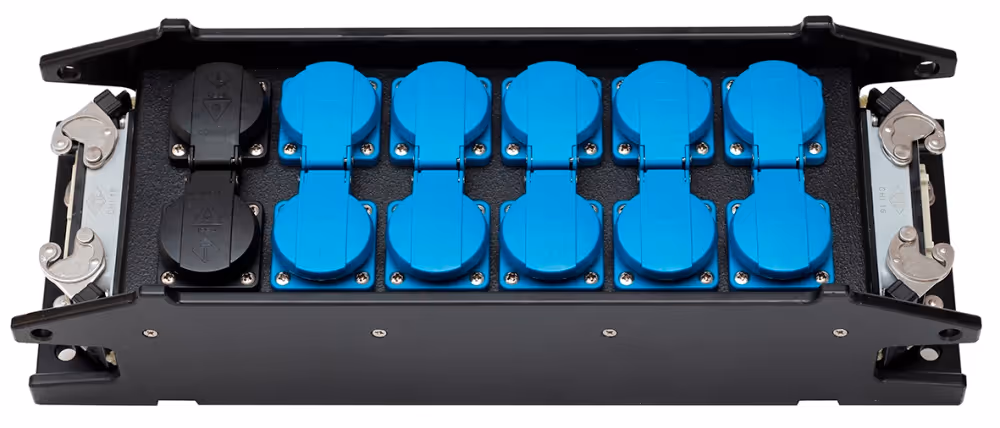

Input:
Multicore H-B16
Output:
1x Multicore H-B16
12x Schuko
Item no.:
11103716

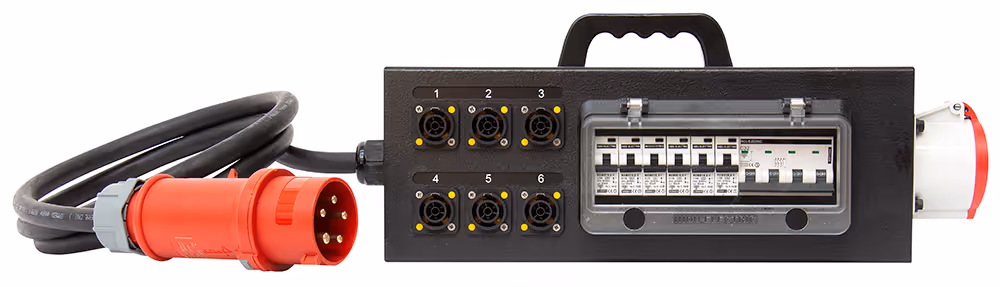

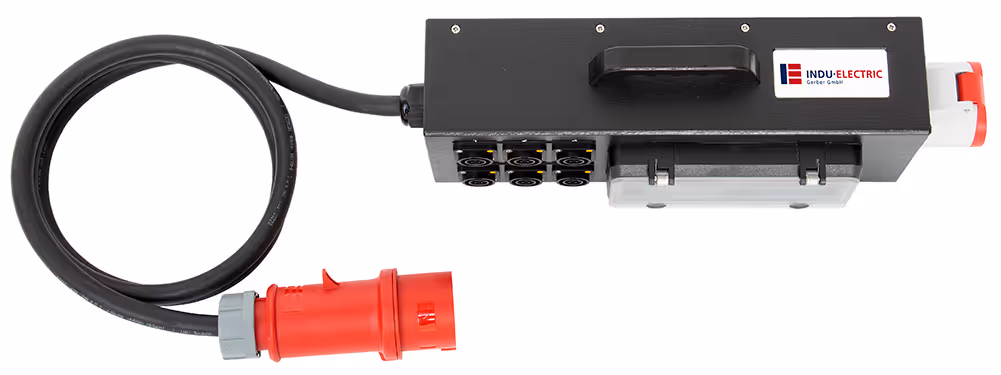

Input:
CEE 32A 400V 5P with 2m 5G6mm² H07RN-F
Output:
1x CEE 32A 400V 5P
6x True1
Item no.:
11103820
Input:
True1
Output:
1x True1
14x BS13
Item no.:
11104128
Input:
BAC .1 150A L-N-PE 150A
Output:
BAC .1 L-N-PE 150A
3x 19-pin
2x BS13
2x USB
Item no.:
11409803
