Tourpack Series
12 WAY 50A TOURPACK
| Input Device: | 400A 3Ø Locking Cam | 1 Pass Through |
| Output Device: | 12- 50A 120/240V 3P 4W CS6369 Twistlocks | 3- 20A 120V GFCI Duplex Outlets |
| Protected By: | 12- 50A 2P Breaker | 3- 20A 1P Breaker |
| 1- 400A 3P Main Breaker | ||
| Model-Nr.: | 12 Way 50A Tourpack | |
| Dimensions: | 24´´L x 24´´ W x 34´´H |
12 WAY L21-30 SYSTEMS TOURPACK
| Input Device: | 400A 3Ø Locking Cam | 1 Pass Through |
| Output Device: | 12- 30A 120/208V L21-30 Twistlocks | 3- 23A 120V GFCI Duplex Outlets |
| Protected By: | 12- 30A 3P Breaker | 3- 20A 1P Breaker |
| 1- 400A 3P Main Breaker | ||
| Model-Nr.: | 12 Way L21-30 Systems Tourpack | |
| Dimensions: | 24´´L x 24´´ W x 34´´H |
4 WAY 100A PIN & SLEEVE
| Input Device: | 400A 3Ø Locking Cam | 1 Pass Through |
| Output Device: | 4- 100A 120/208V 4P 5W Pin & Sleeve | 2- 60A 120/208V 4P 5W Pin & Sleeve |
| Protected By: | 4- 100A 3P Breaker | 2- 60A 3P Breaker |
| 1- 400A 3P Main Breaker | ||
| Model-Nr.: | 4 Way 100A Pin & Sleeve | |
| Dimensions: | 24"L x 24"W x 28"H |
4 WAY 100A CAM DISCONNECT
| Input Device: | 400A 3Ø Locking Cam | 1 Pass Through |
| Output Device: | 4- 100A 3Ø Locking Cam | |
| Protected By: | 4- 100A 3P Breaker | 1- 400A 3P Main Breaker |
| Model-Nr.: | 4 Way 100A Cam Disconnect | |
| Dimensions: | 24"L x 24"W x 28"H |

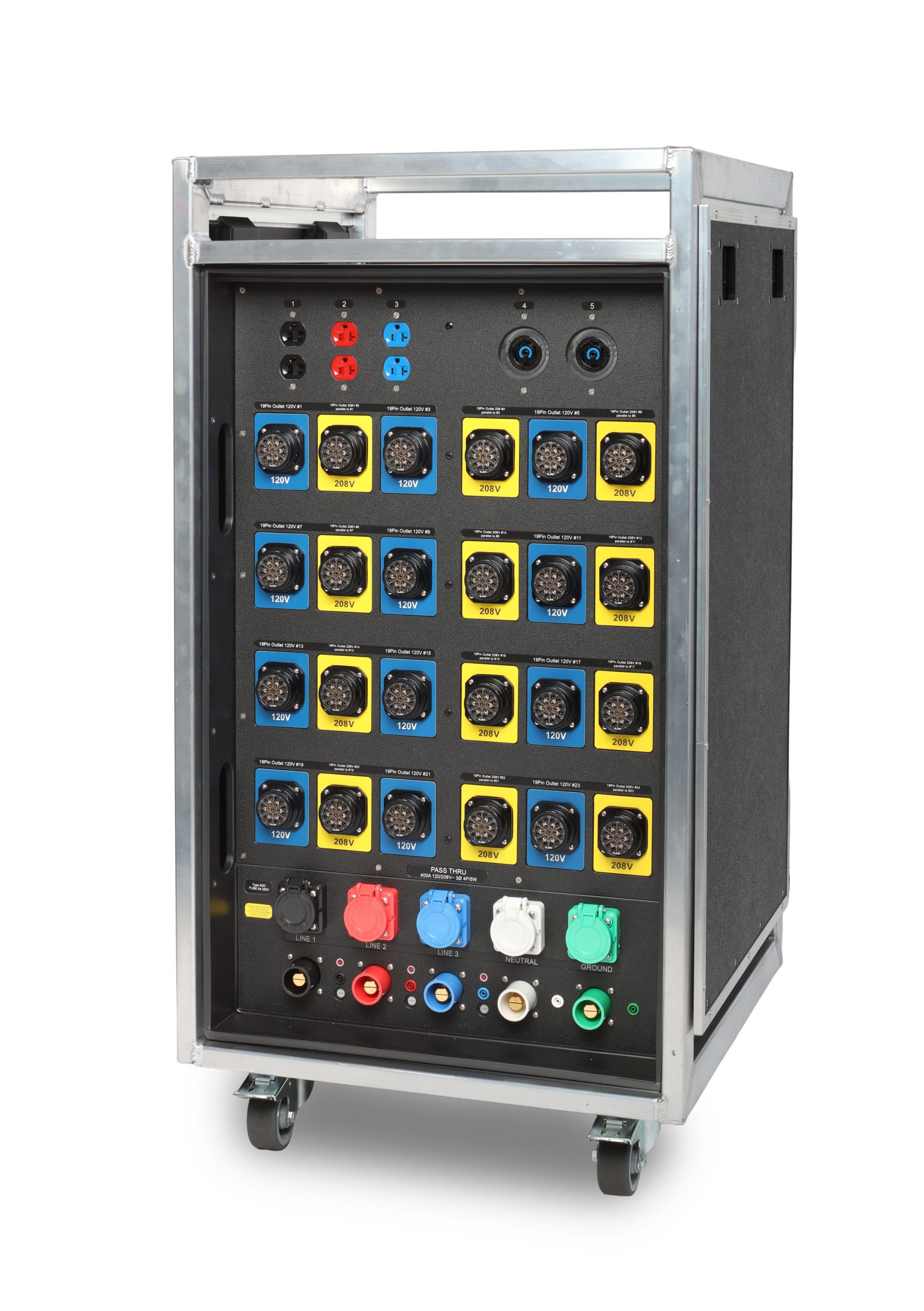

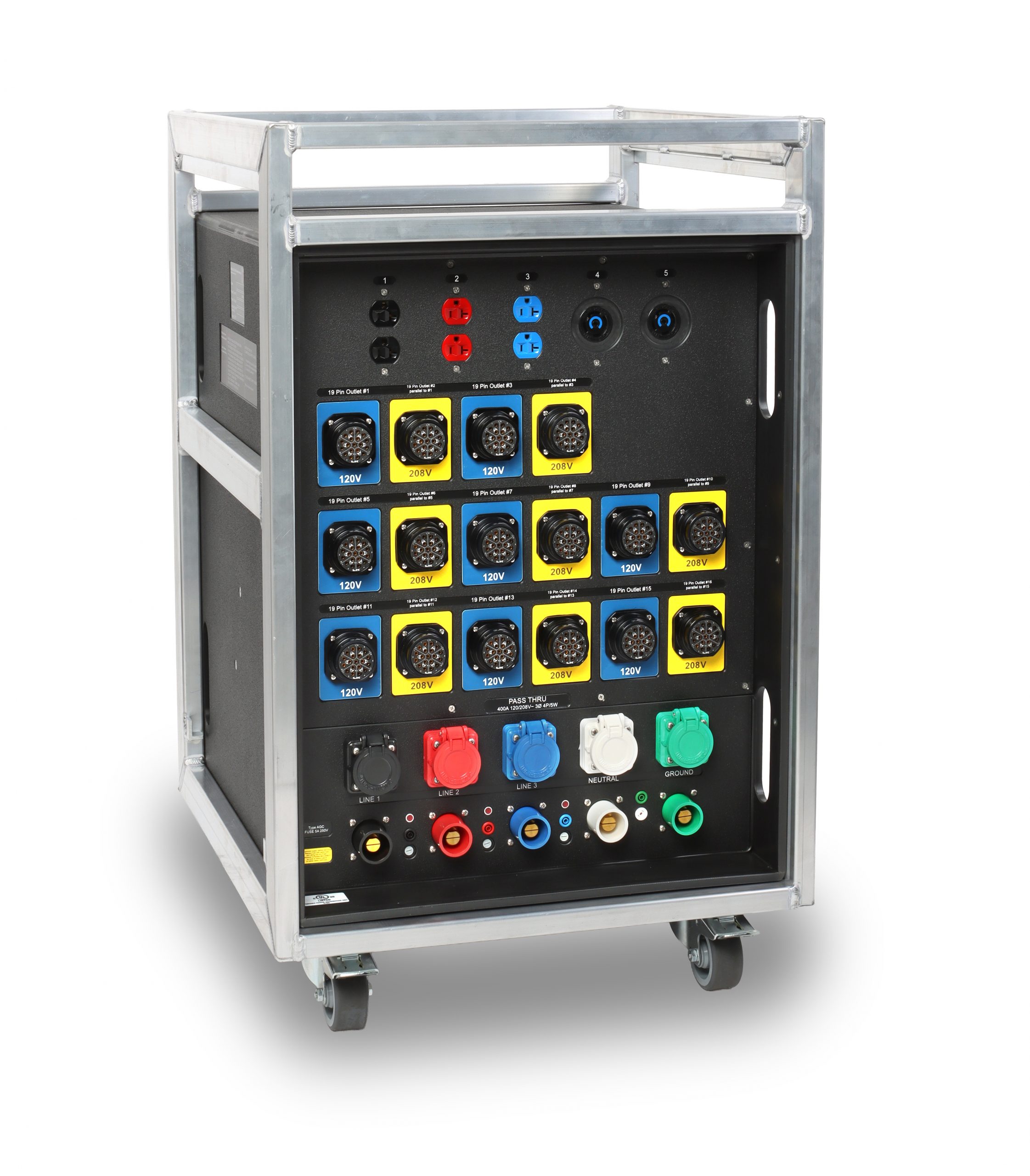

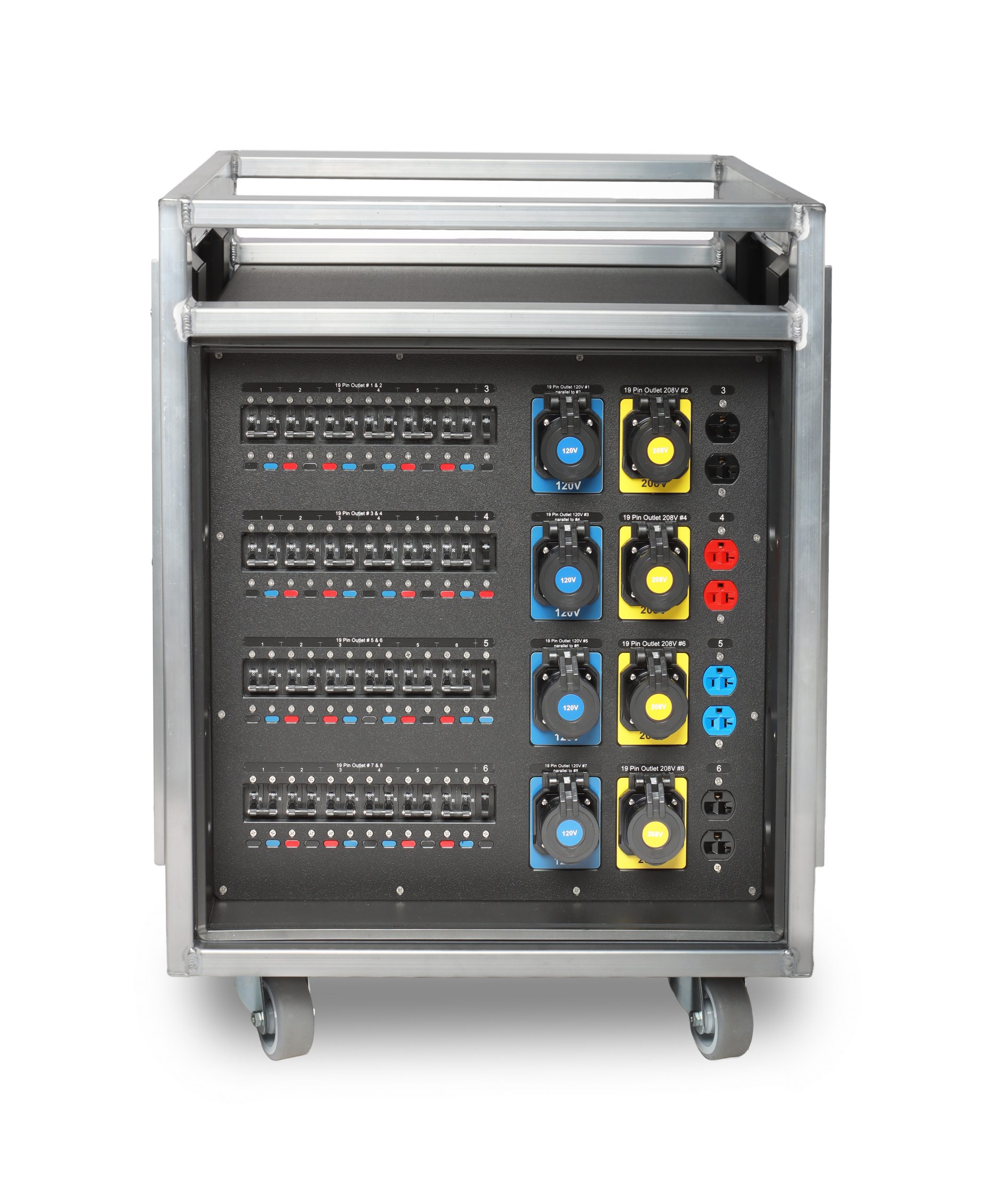

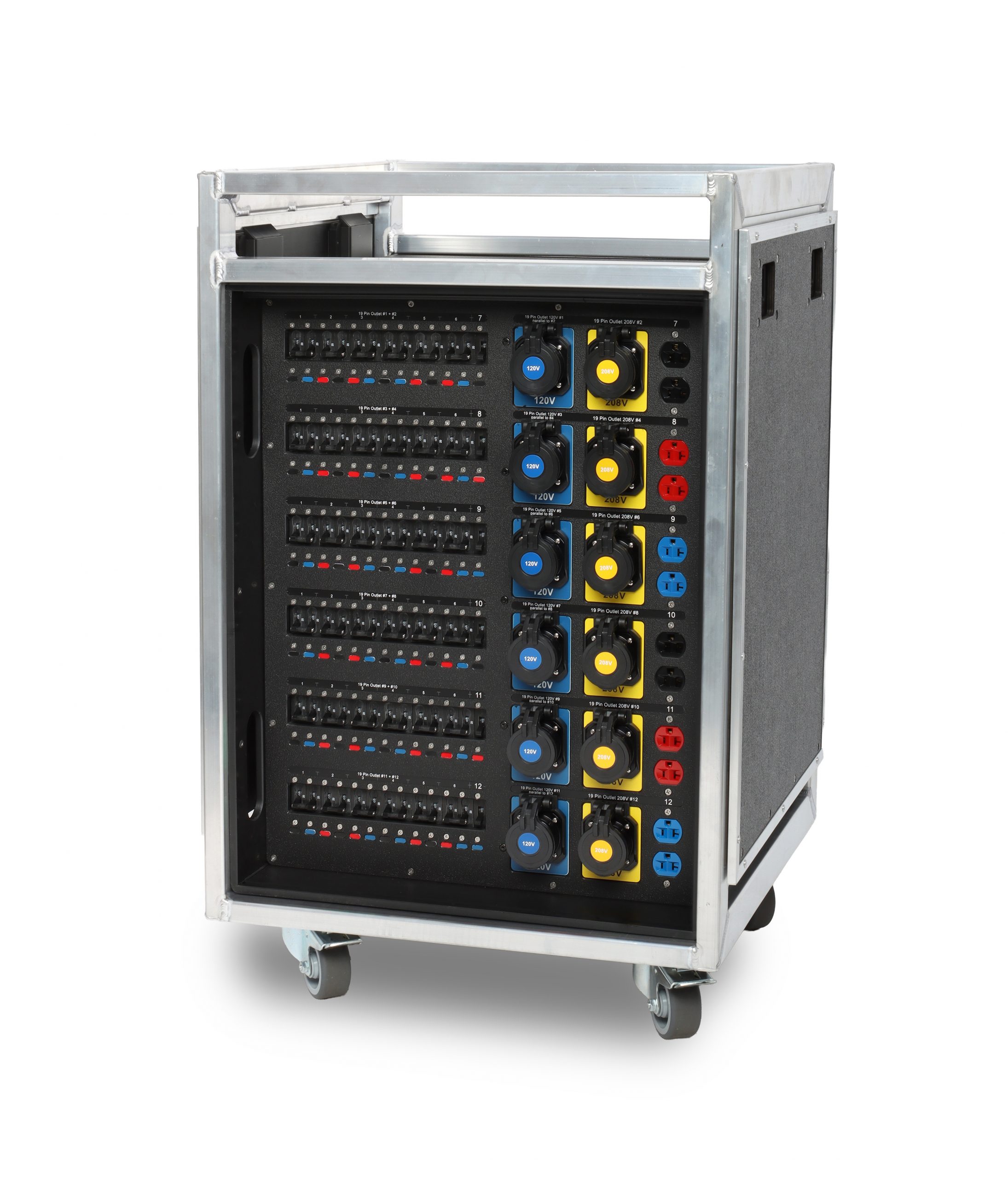

12 WAY 19 PIN TOURPACK
| Input Device: | 400A 3Ø Locking Cam (Double Neutral) | 1 Pass Through |
| Output Device: | 6- 20A 208V 6 Circuit 19Pin | 6- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits) |
| 12- 20A 120V Duplex Outlets | ||
| Protected By: | 36-20A 2P Breaker | 12-20A 1P Breaker |
| Model-Nr.: | 12 Way 19 Pin Tourpack | |
| Dimensions: | 24“L x 24“W x 34“H |
