Compact. Powerful. Built for the Road.
INDU-ELECTRIC’s Tourpack / Flightcase / Custom Touring Racks are engineered for high-performance mobile applications in the event and touring industry. With a compact footprint of just 24″ × 24″ × 28″, it fits seamlessly into standard truck and trailer setups—without compromising on power or functionality.

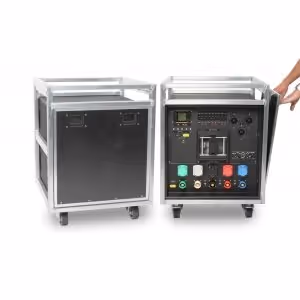

The front panel features an 8-way 19-Pin 208V output, housed in a rugged aluminum frame with stacking pockets for safe transport and storage. Removable front and rear doors ensure easy access during setup and servicing.

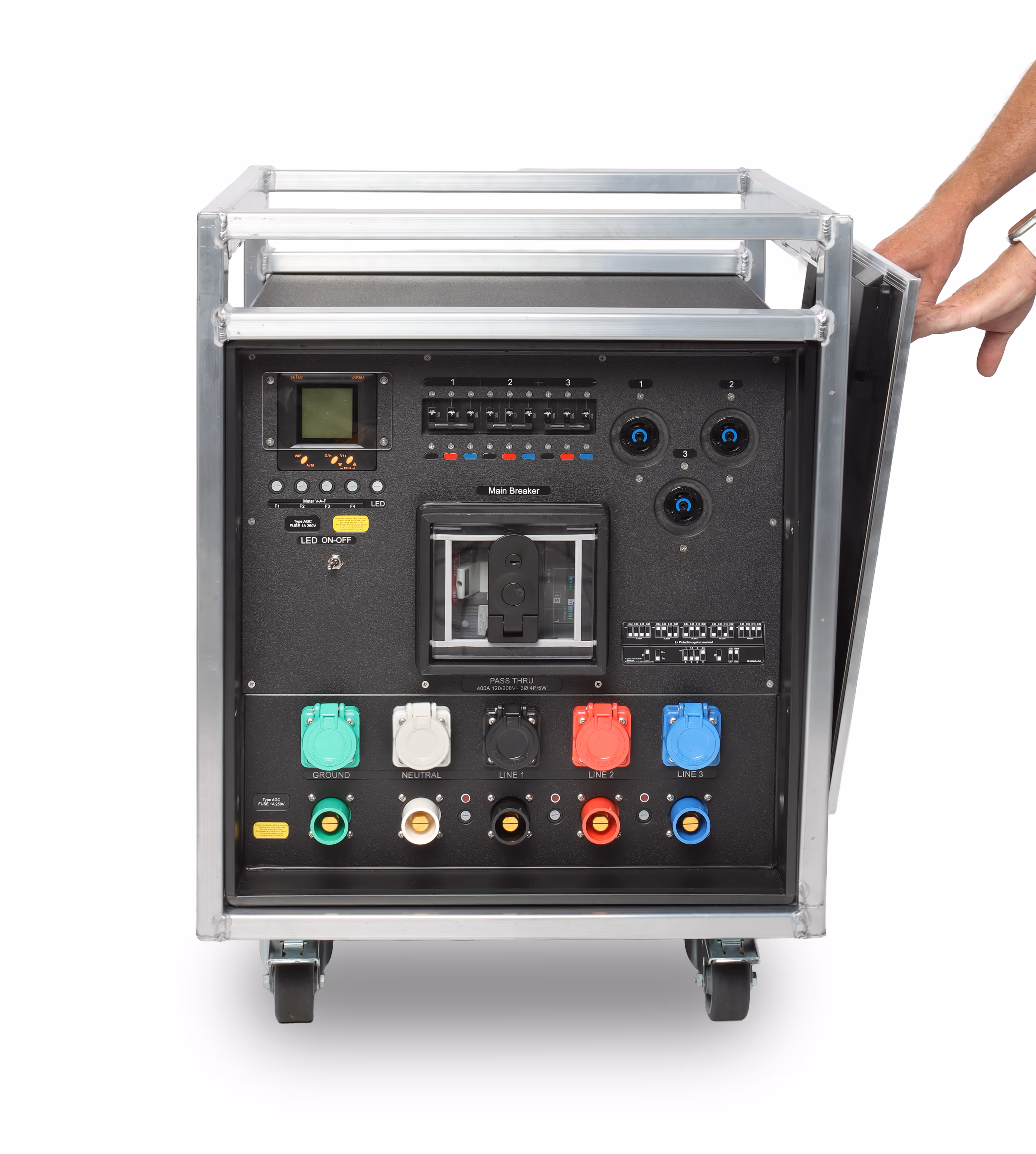

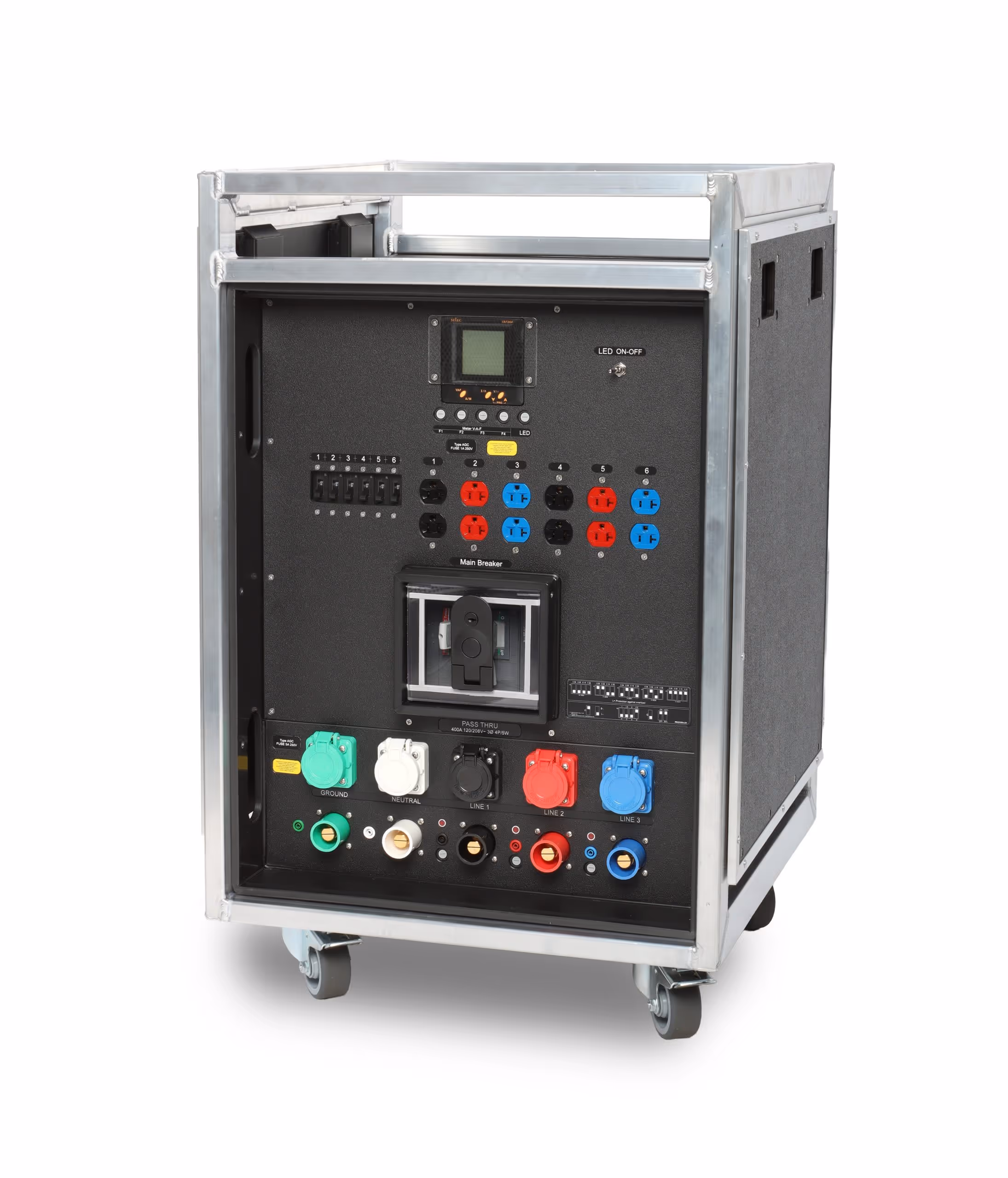

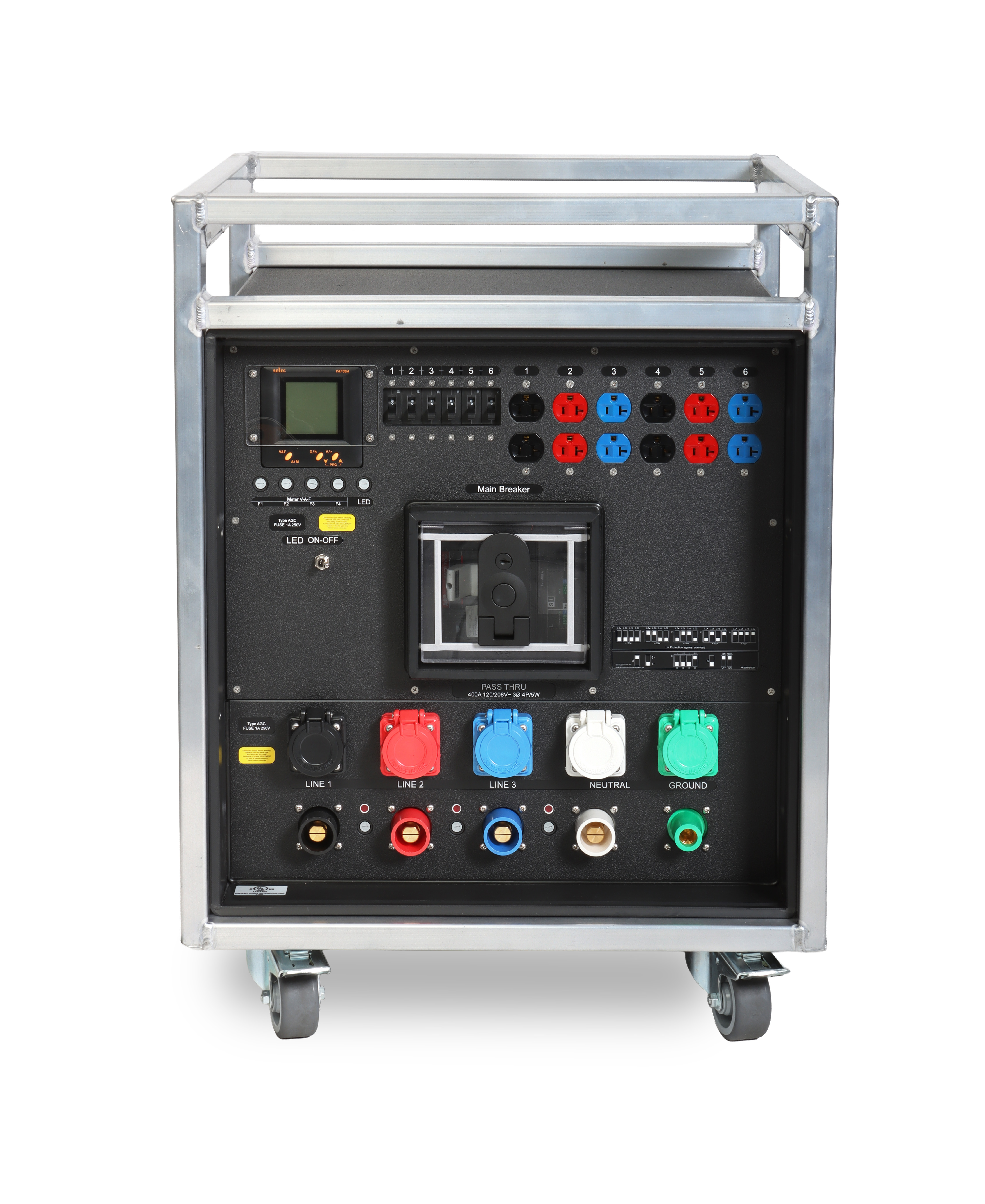

On the rear, the unit offers color-coded CAM-Lok connectors for 400A per leg with dual neutral capability, three 20A courtesy Edison outlets, a digital 3-phase multimeter, and a 400–160A adjustable MCCB main breaker secured behind a public lock-out door. All branch circuits are protected by 100% rated hydraulic-magnetic breakers, ensuring reliable performance under continuous load.

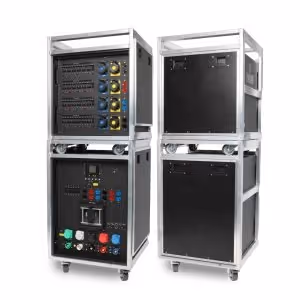

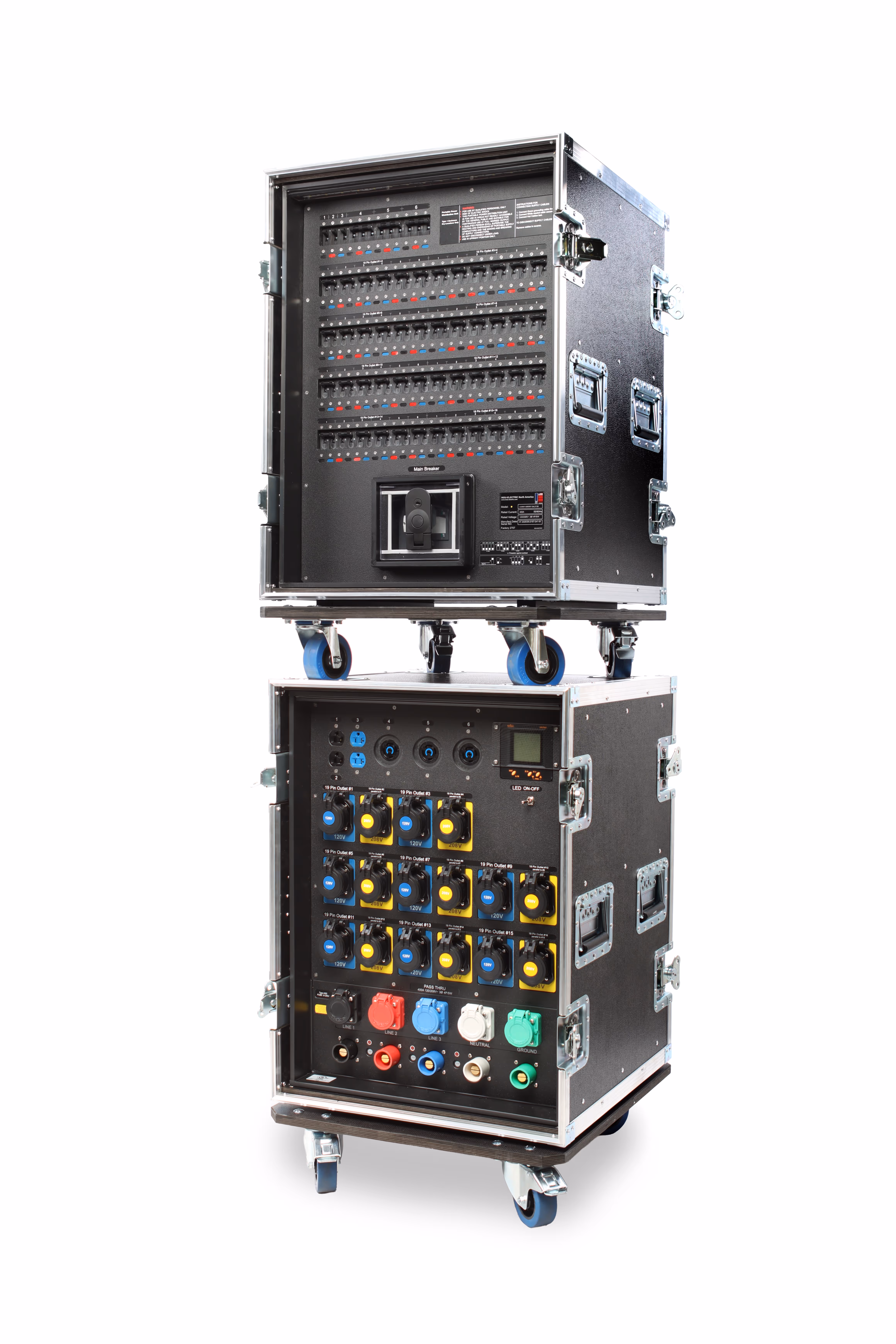

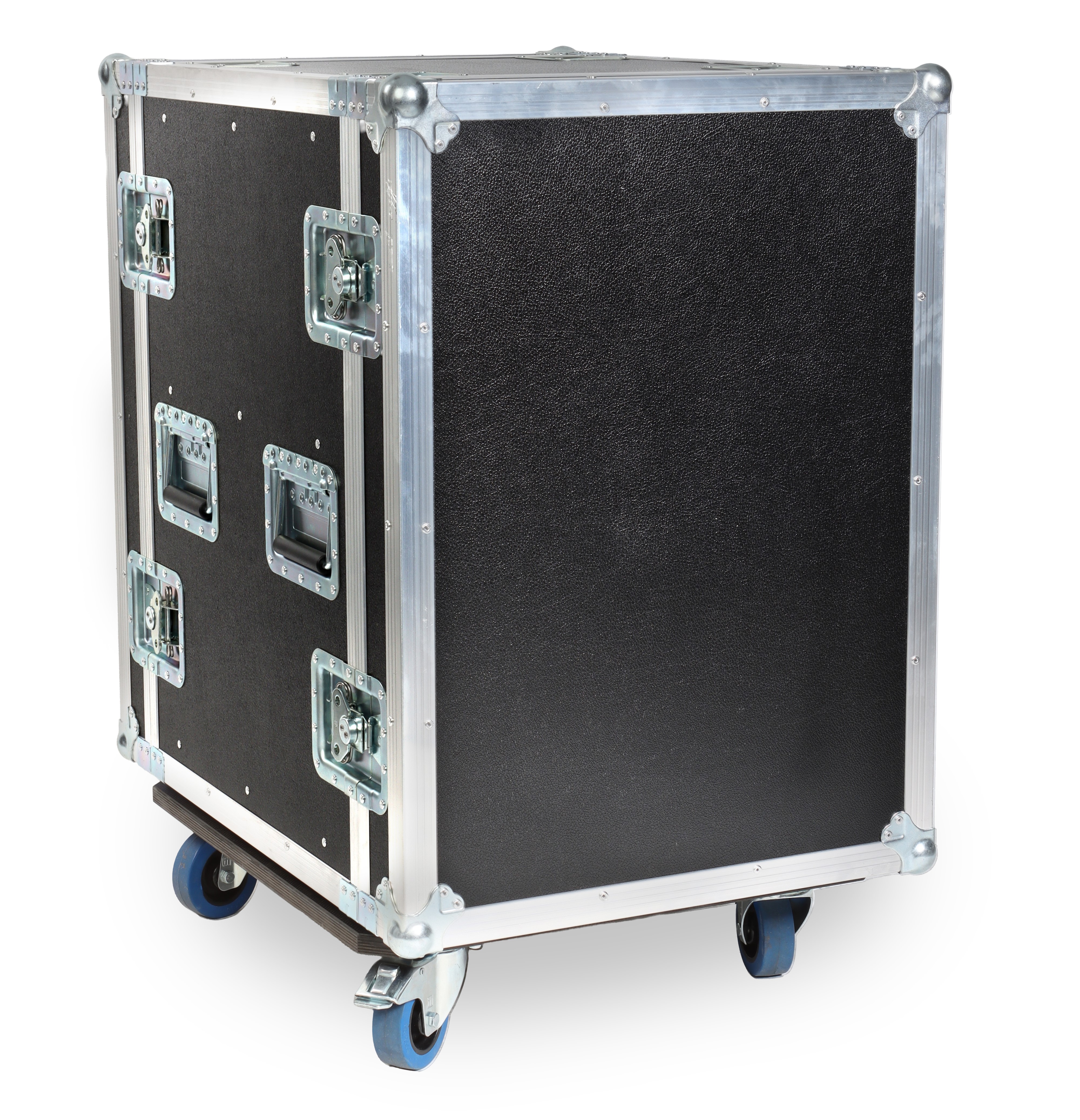

Enables safe and space-efficient storage and transport—ideal for modular setups.
Personalize your units with branded or project-specific door logos upon request.

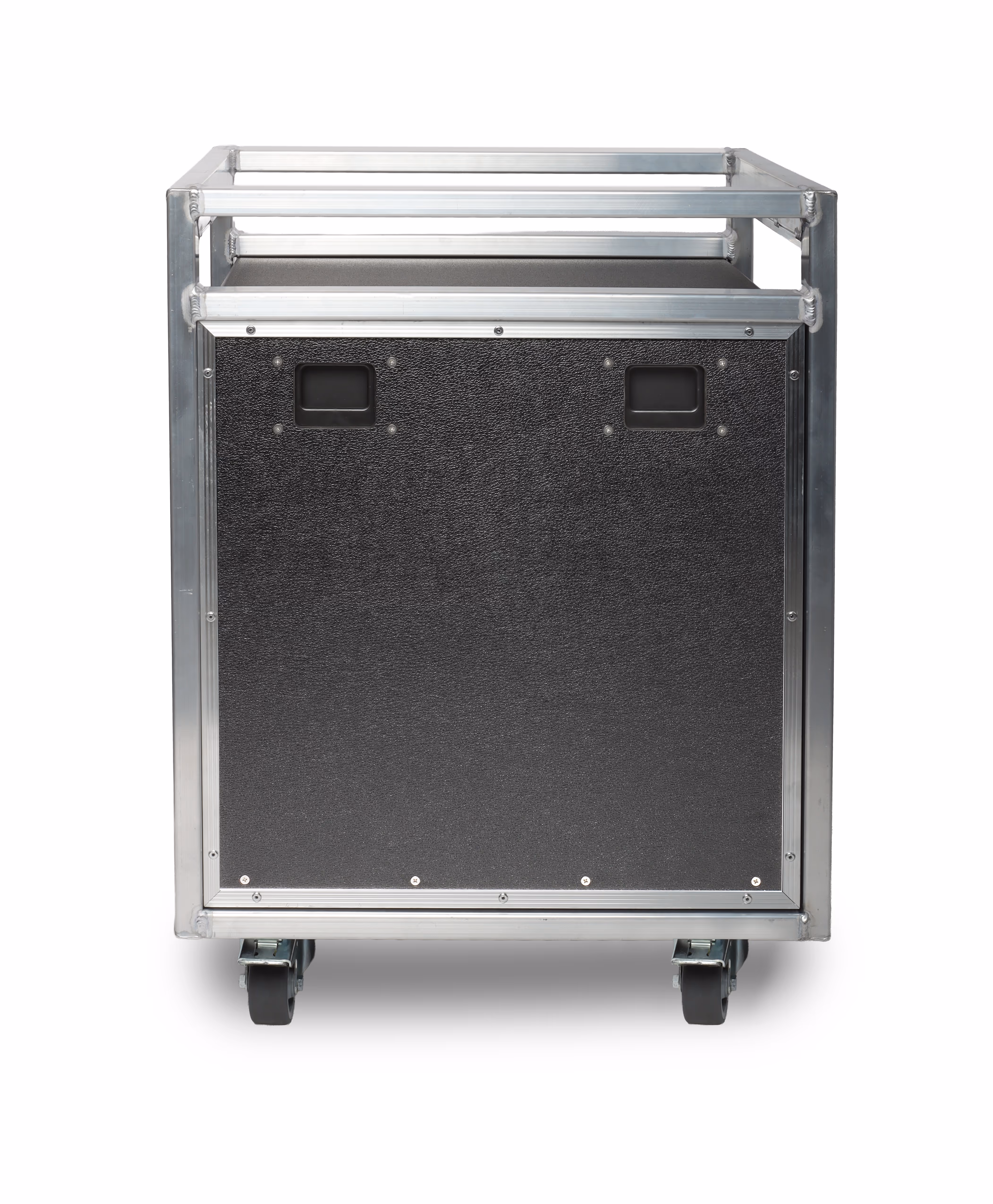

Front door features recessed latches for a clean look and secure closure; side compartment offers practical storage space.
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
6- 20A 208V 6 Circuit 19Pin
6- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits)
12- 20A 120V Duplex Outlets
Protected By:
1- 400A 3P Main Breaker
36-20A 2P Breaker
12-20A 1P Breaker
Spec #
18001148-C
Dimensions:
24“L x 24“W x 34“H
Input Device:
-
Output Device:
-
Protected By:
-
Model-Nr.:
-
Dimensions:
-

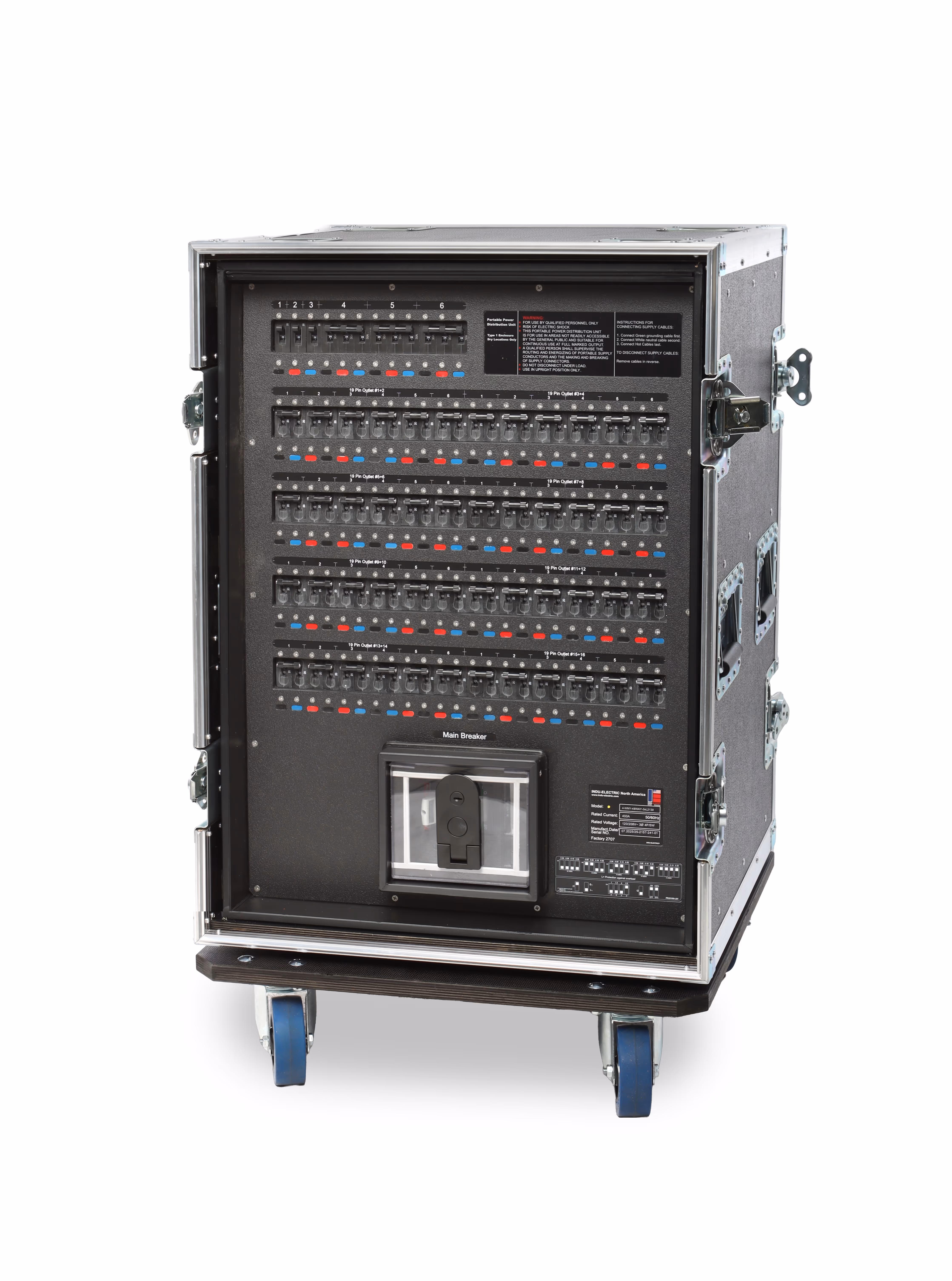

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
8- 20A 208V 6 Circuit 19Pin
3- 20A 120V Duplex Outlets
3- 30A 120/208V L2130 Twist-Locks
Protected By:
1- 400A 3P Main Breaker
48-20A 2P Breaker
3-20A 1P Breaker
3-30A 3P Breaker
Spec #
18001803
Dimensions:
24´´L x 24´´ W x 28´´H
.jpg)
.avif)
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:

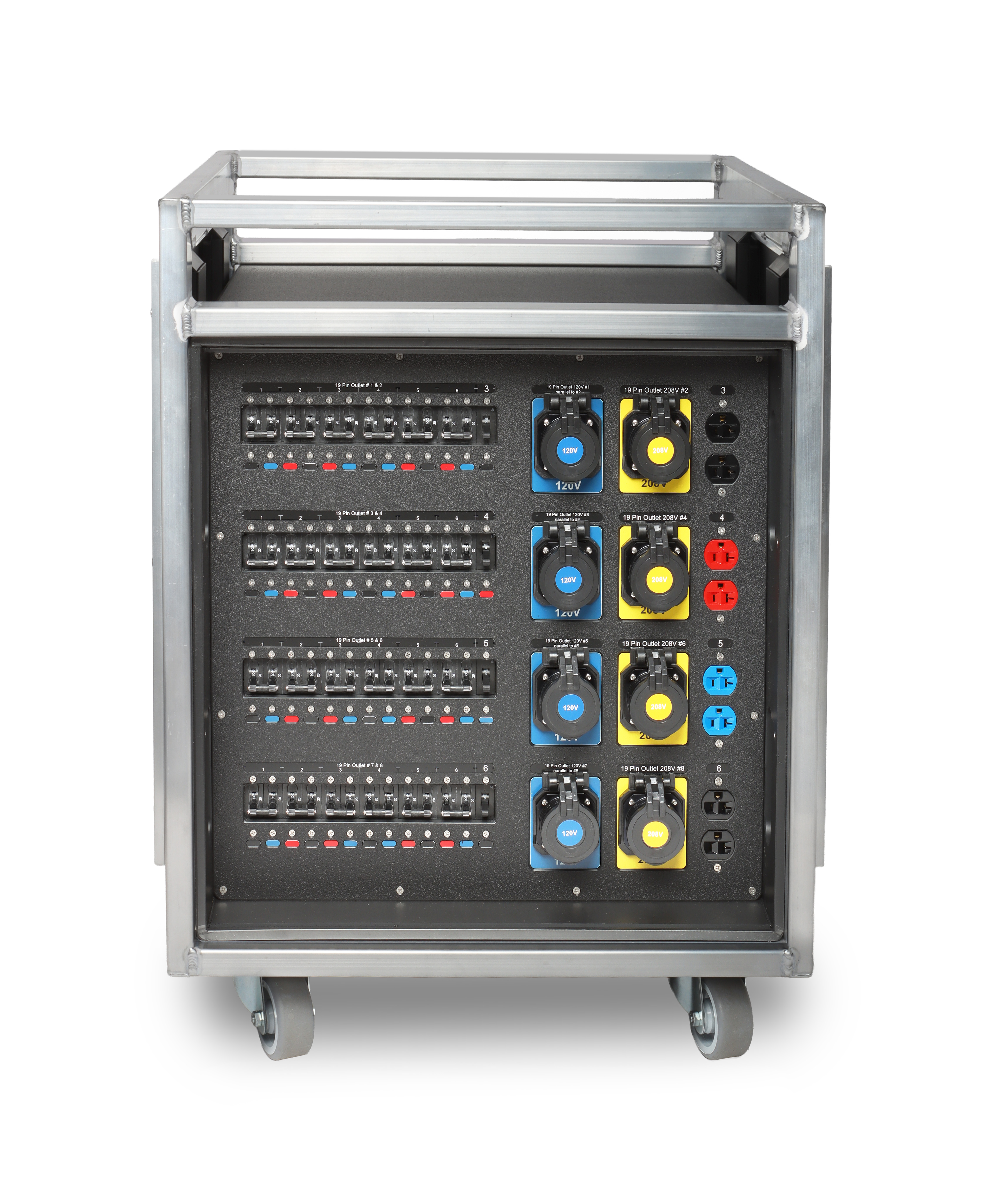

4- 20A 208V 6 Circuit 19Pin
4- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits)
4- 20A 120V Duplex Outlets
2- 30A 120/208V L2130 Twist-Locks
Protected By:
1- 400A 3P Main Breaker
24-20A 2P Breaker
4-20A 1P Breaker
2-30A 3P Breaker
Spec #
18002802
Dimensions:
24´´L x 24´´ W x 28´´H

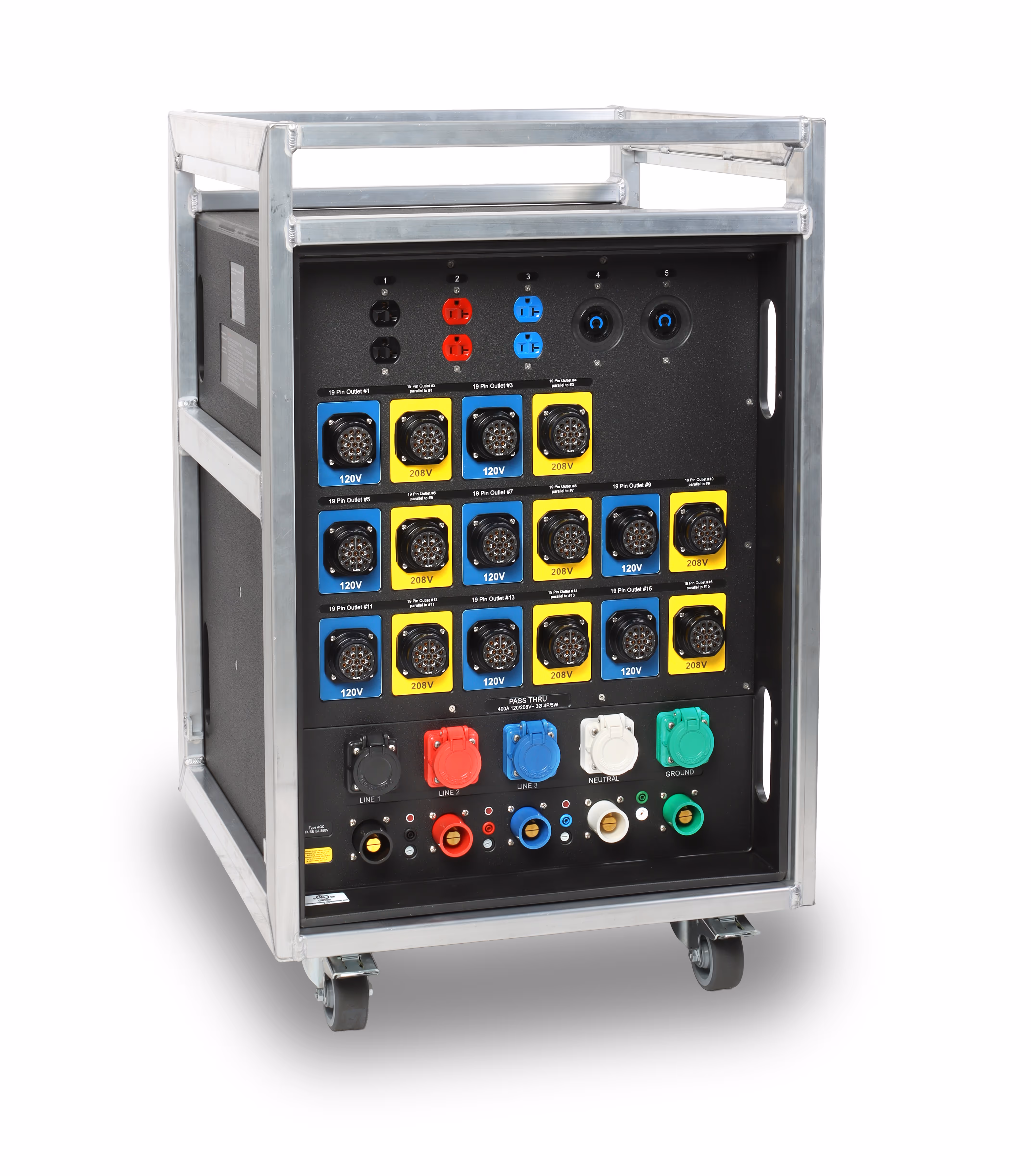

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:

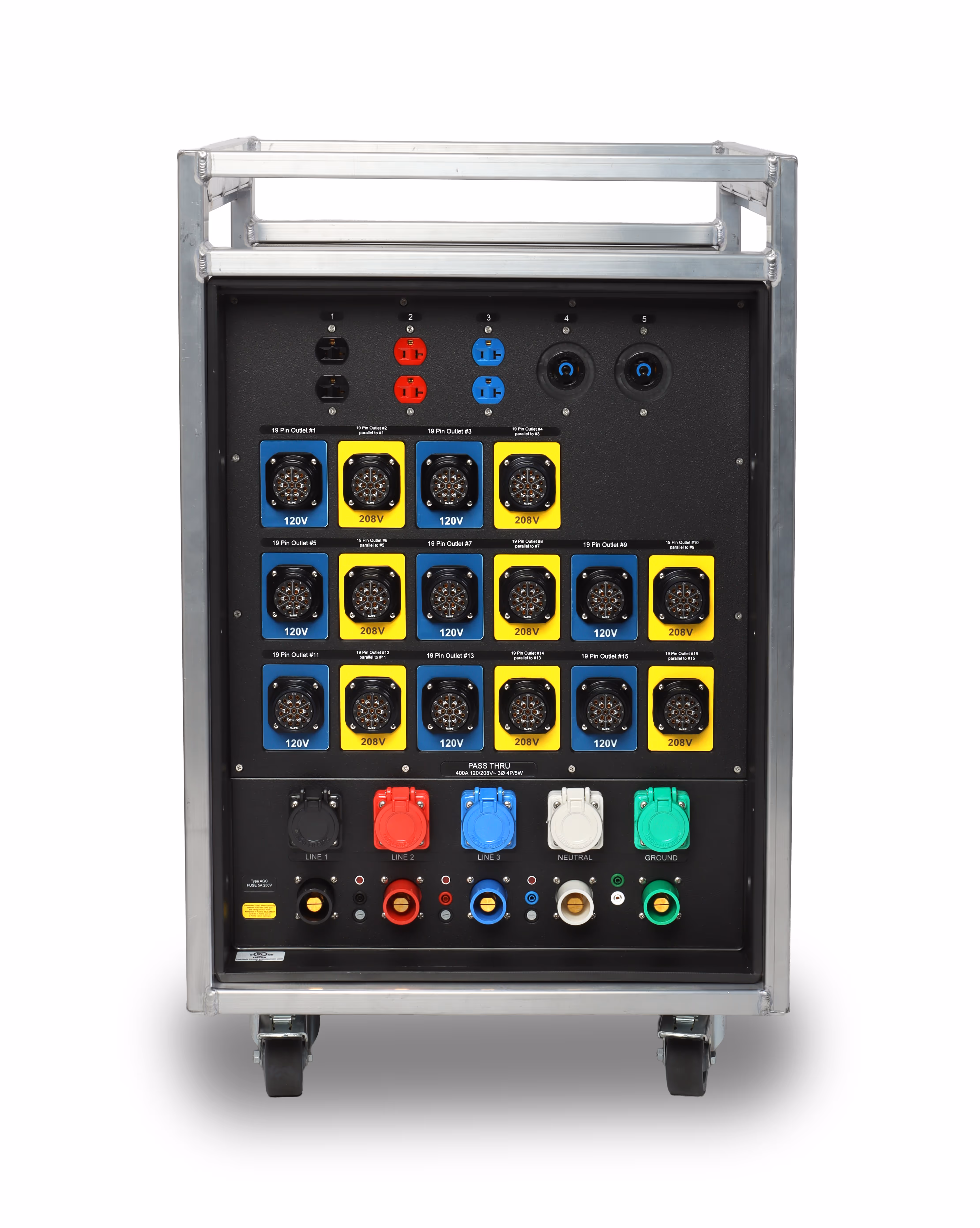

8- 20A 208V 6 Circuit 19Pin
8- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits)
3- 20A 120V Duplex Outlets
2- 30A 120/208V L2130 Twist-Locks
Protected By:
1- 400A 3P Main Breaker
48-20A 2P Breaker
3-20A 1P Breaker
2-30A 3P Breaker
Spec #
18002345-A
Dimensions:
24“L x 24“W x 34“H

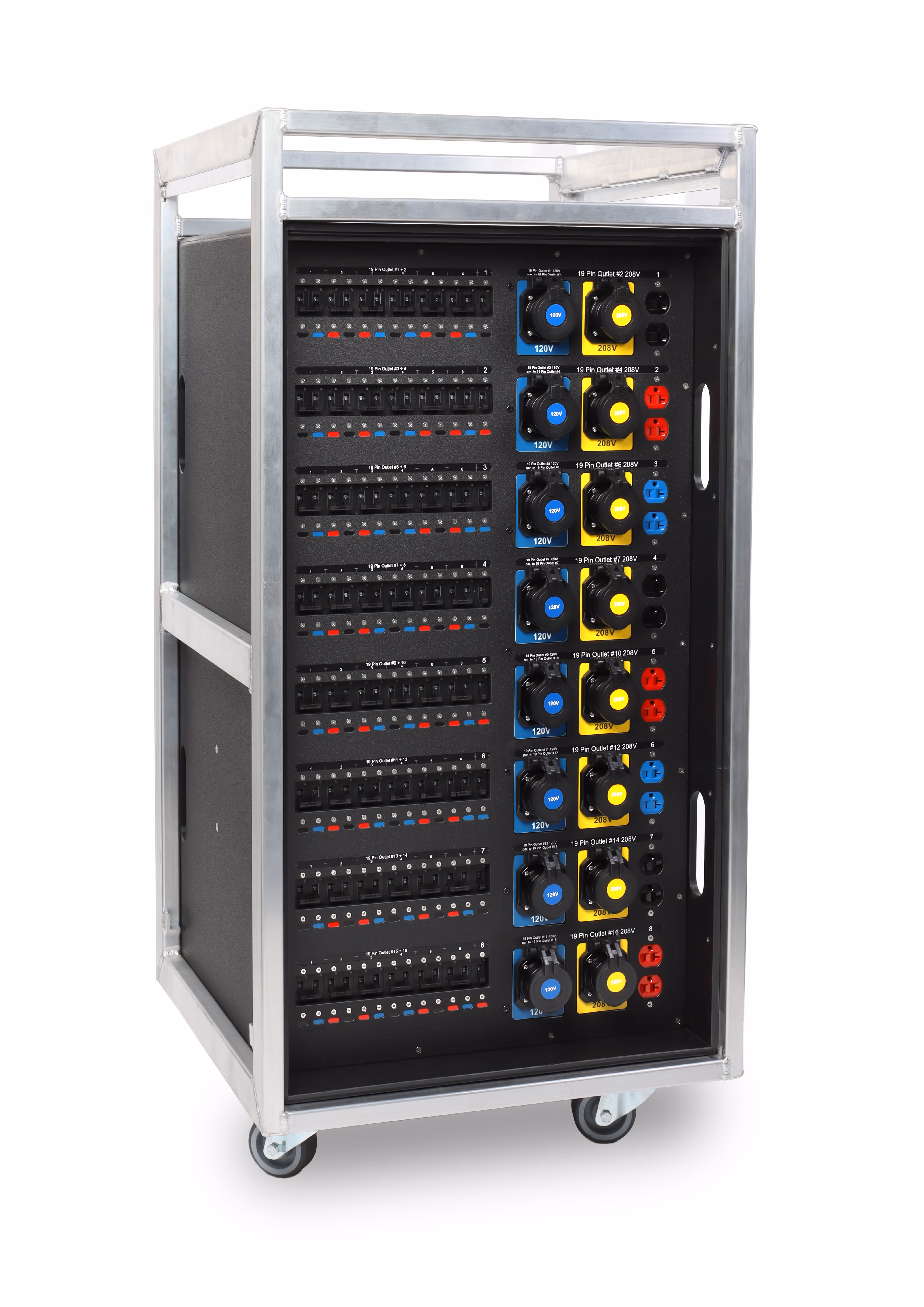

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:

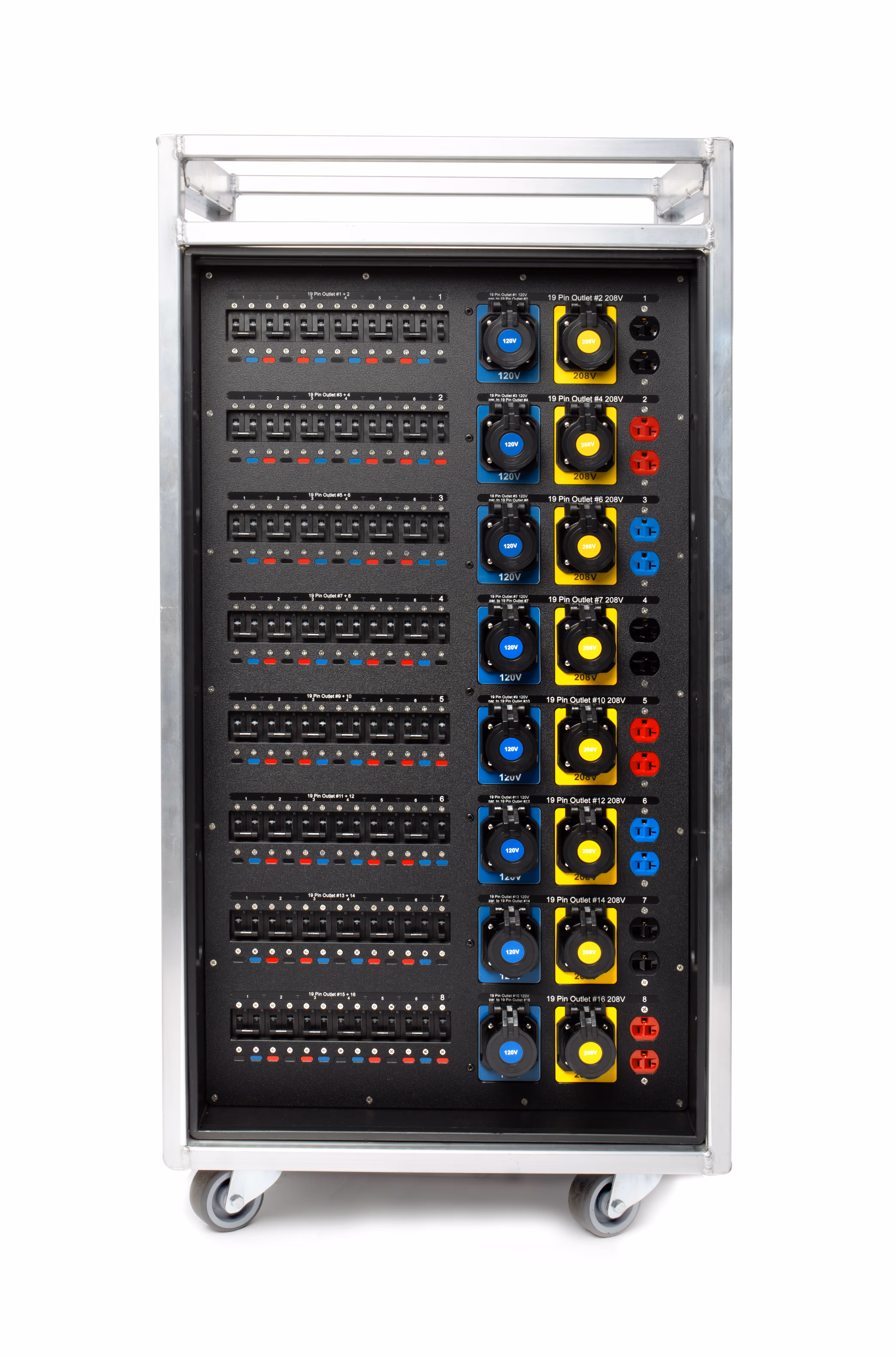

8- 20A 208V 6 Circuit 19Pin
8- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits)
8- 20A 120V Duplex Outlets
6- 30A 120/208V L2130 Twist-Locks
Protected By:
1- 400A 3P Main Breaker
48- 20A 2P Breaker
8- 20A 1P Breaker
6- 30A 3P Breaker
Spec #
18002583-B
Dimensions:
24"L x 24"W x 45-1/4"H
_3200x4538.avif)
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 20A 208V 6 Circuit 19Pin
12- 20A 120V 6 Circuit 19Pin (parallel to 208V circuits)
3- 20A 120V Duplex Outlets
2- 30A 120/208V L2130 Twist-Locks
Protected By:
1- 400A 3P Main Breaker
72- 20A 2P Breaker
3- 20A 1P Breaker
2- 30A 3P Breaker
Spec #
18002609
Dimensions:
24“L x 24“W x 41-1/2“H

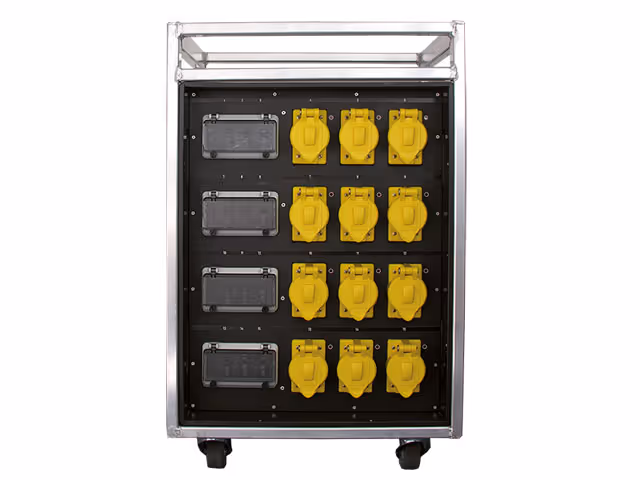

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 50A 120/240V 3P 4W CS6369 Twistlocks
3- 20A 120V GFCI Duplex Outlets
Protected By:
1- 400A 3P Main Breaker
12- 50A 2P Breaker
3- 20A 1P Breaker
Model-Nr.:
12 Way 50A Tourpack
Dimensions:
24"L x 24" W x 34"H

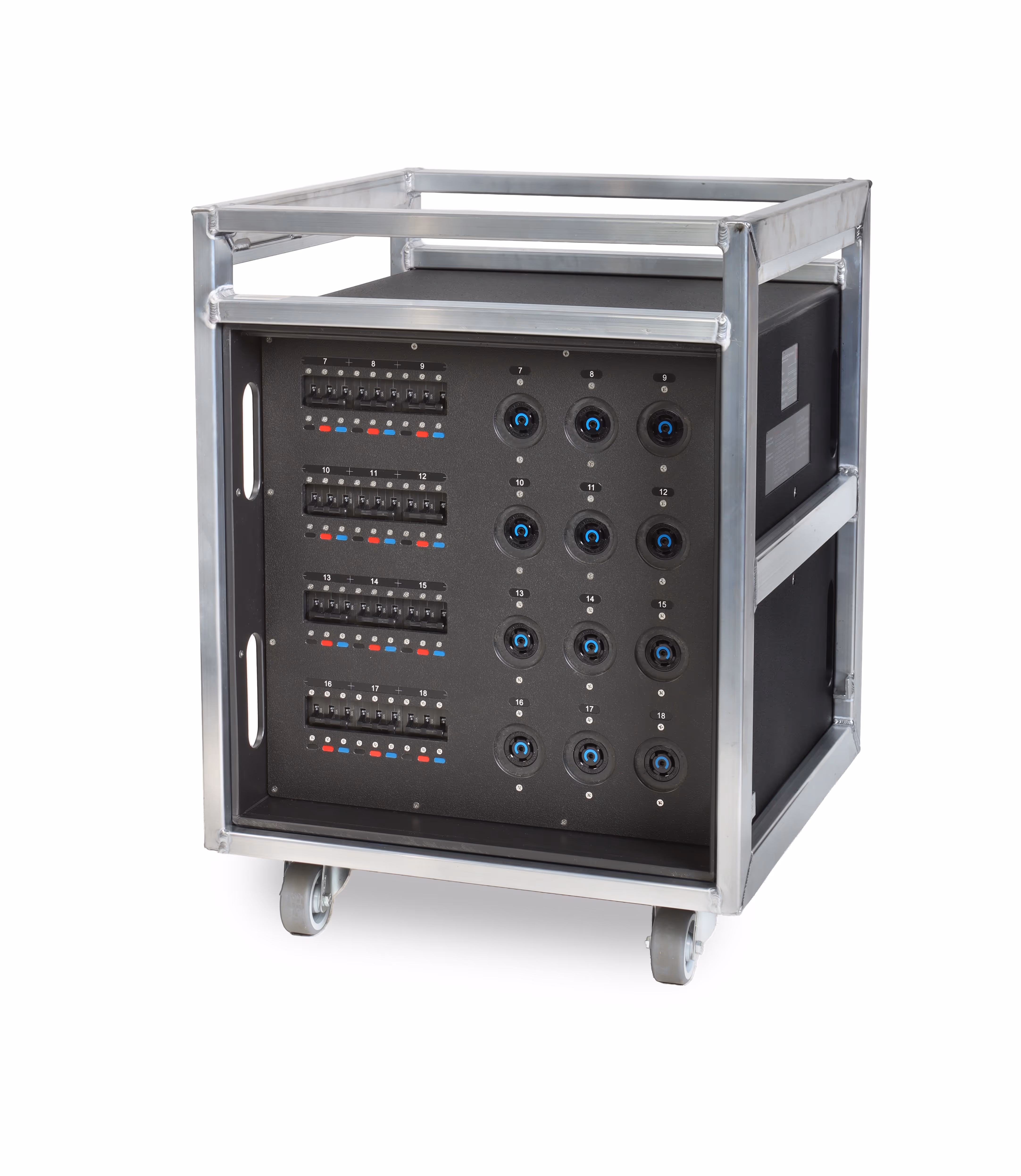

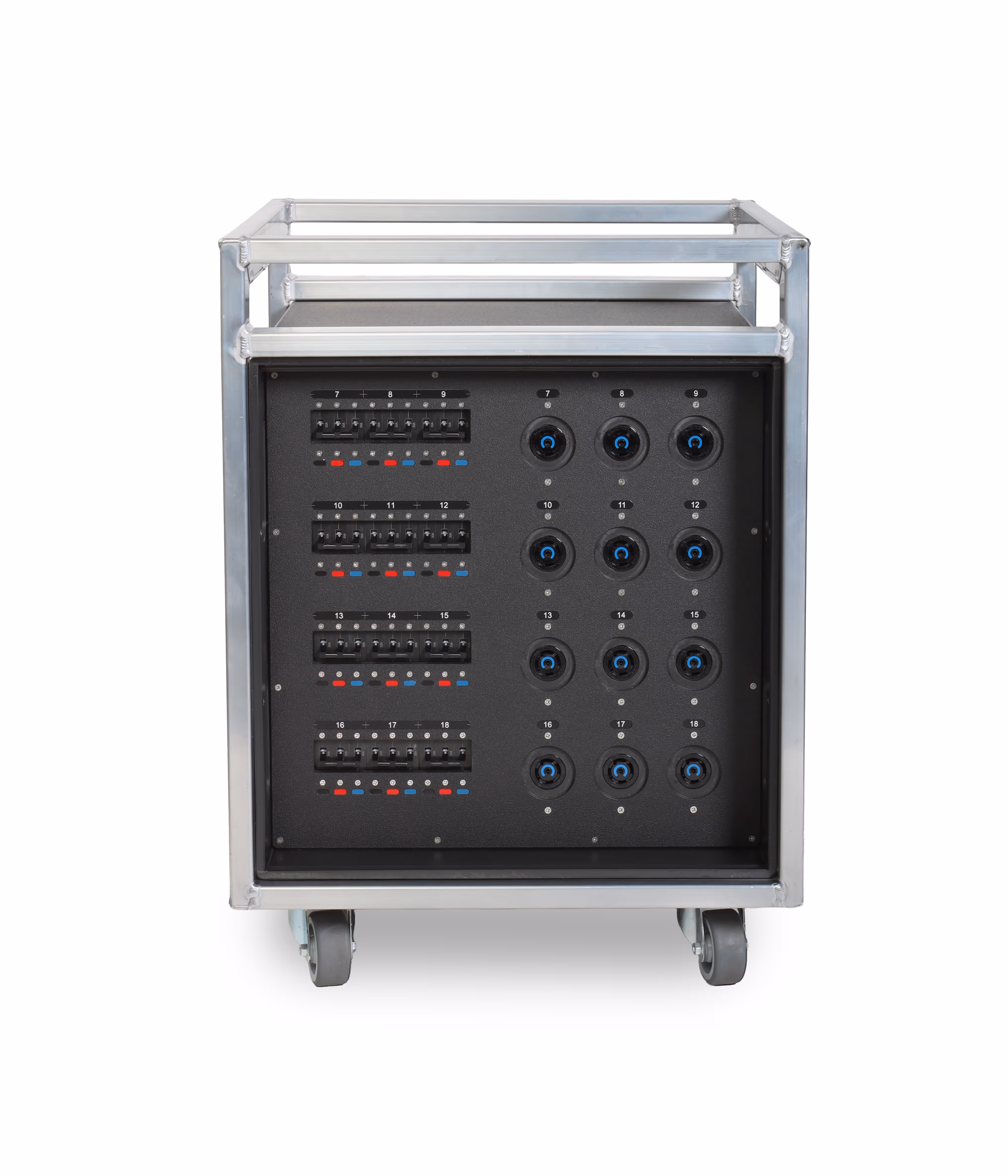

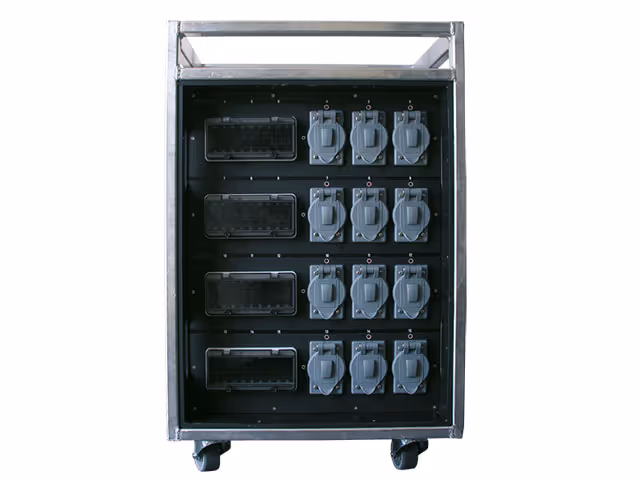

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 30A 120/208V L21-30 Twistlocks
3- 23A 120V GFCI Duplex Outlets
Protected By:
1- 400A 3P Main Breaker
12- 30A 3P Breaker
3- 20A 1P Breaker
Model-Nr.:
12 Way L21-30 Systems Tourpack
Dimensions:
24"L x 24" W x 34"H
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 100A 120/208V 4P 5W Pin & Sleeve
2- 60A 120/208V 4P 5W Pin & Sleeve
Protected By:
1- 400A 3P Main Breaker
4- 100A 3P Breaker
2- 60A 3P Breaker
Model-Nr.:
4 Way 100A Pin & Sleeve
Dimensions:
24"L x 24"W x 28"H
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 100A 3Ø Locking Cam
Protected By:
1- 400A 3P Main Breaker
4- 100A 3P Breaker
Model-Nr.:
4 Way 100A Cam Disconnect
Dimensions:
24"L x 24"W x 28"H

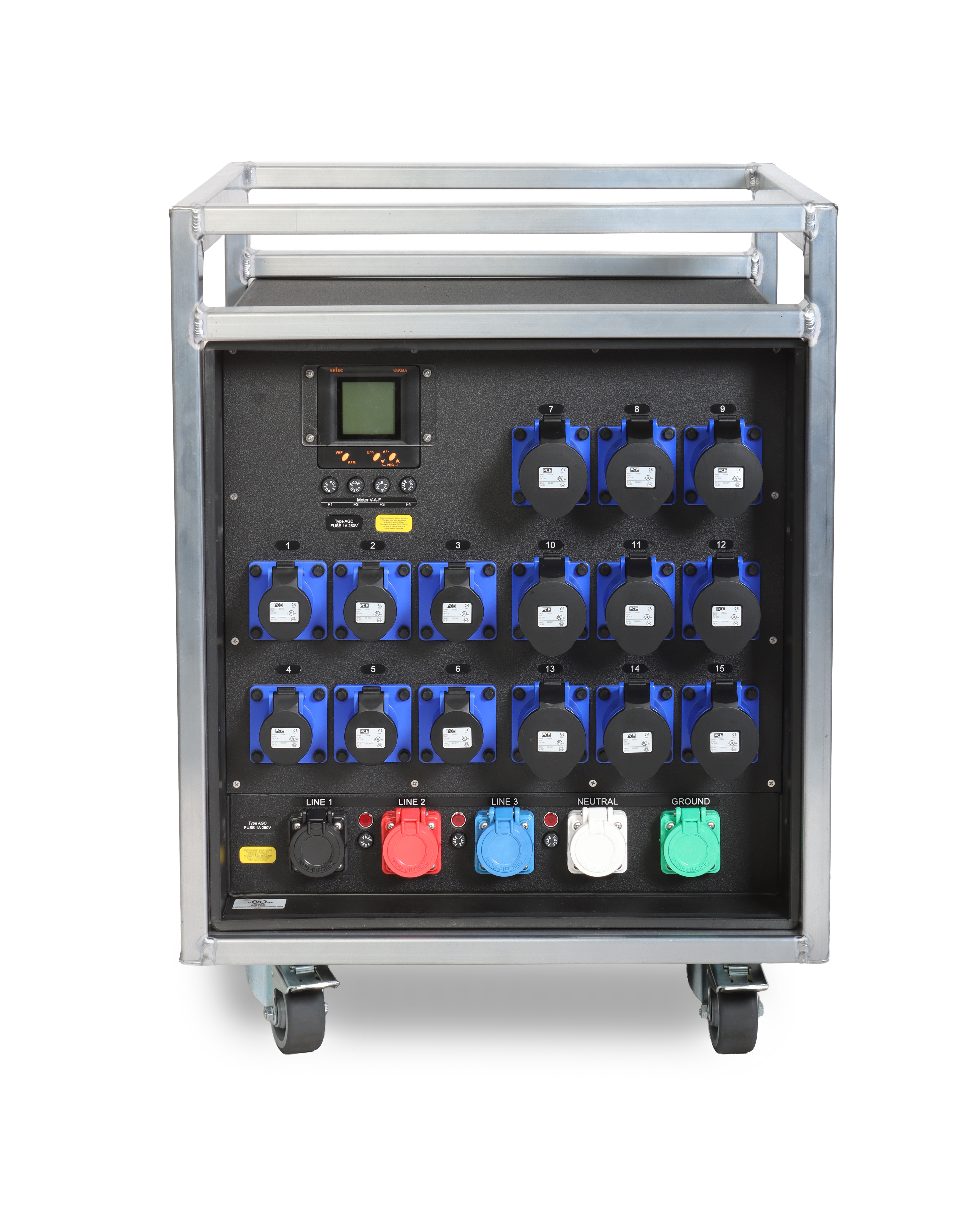

Input Device:
250A 3ØLocking Cam
Output Device:
9- 30A 208V 2P 3W IEC Pin & Sleeve
6- 20A 208A 2P 3W IEC Pin & Sleeve
Protected By:
9- 30A 2P Breaker
9- 30A 2P Breaker
1- 250A Main Breaker
Model-Nr.:
Custom- fully customizable
Spec #
18003075
Dimensions:
24“L x24“W x 28“H
Input Device:
400A 3ØLocking Cam 1 Pass-through
Output Device:
12- 30A 208V 4P 5W L21-30 Twist-locks
6- 20A 120V Duplex Outlets
Protected By:
12- 30A 3P Breaker
6- 20A 1P Breaker
1- 400A 3P Main Breaker
Model-Nr.:
TP-5WPT-12xL2130-6x520
Spec #
18001841
Dimensions:
24“L x 24“W x 28“H

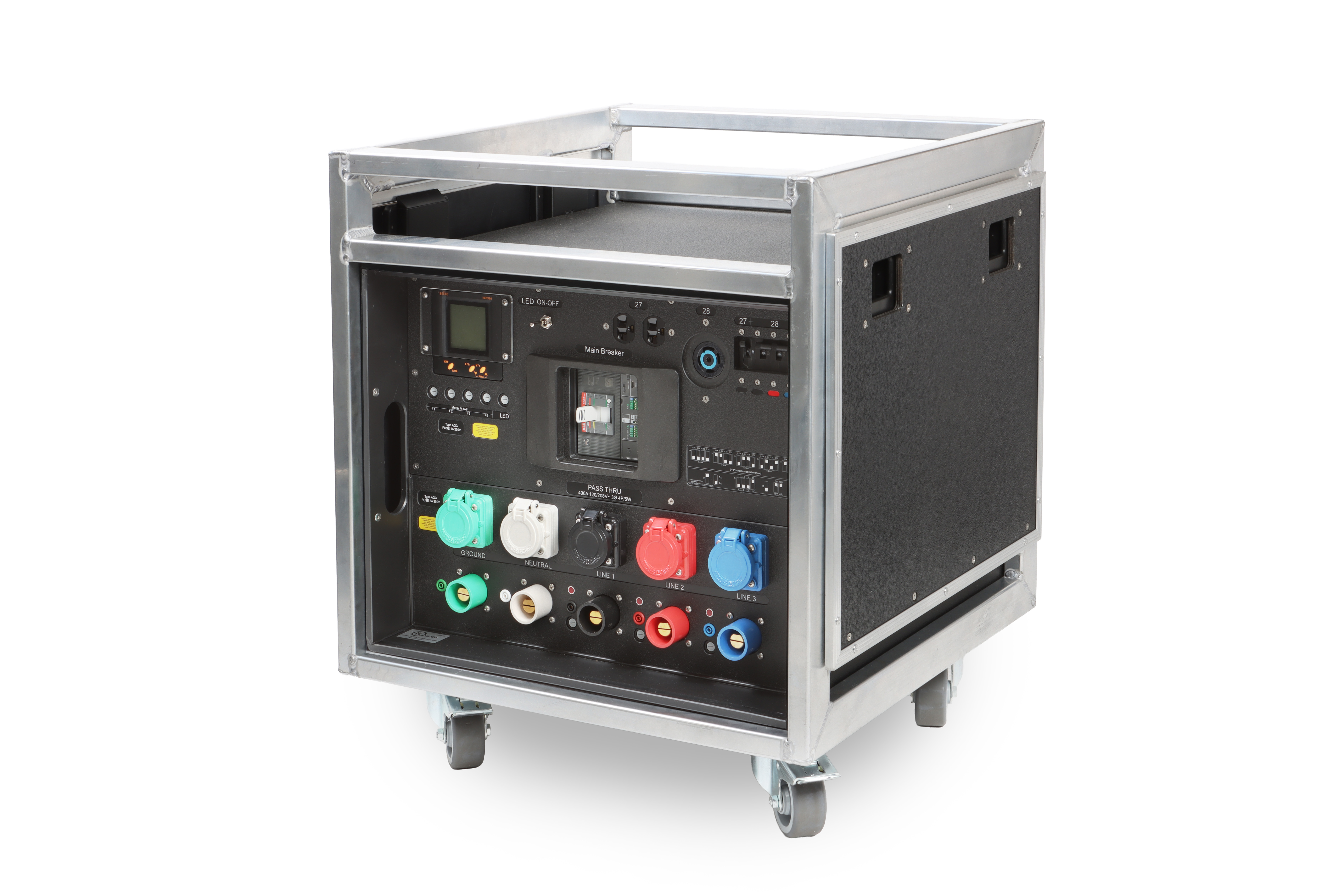

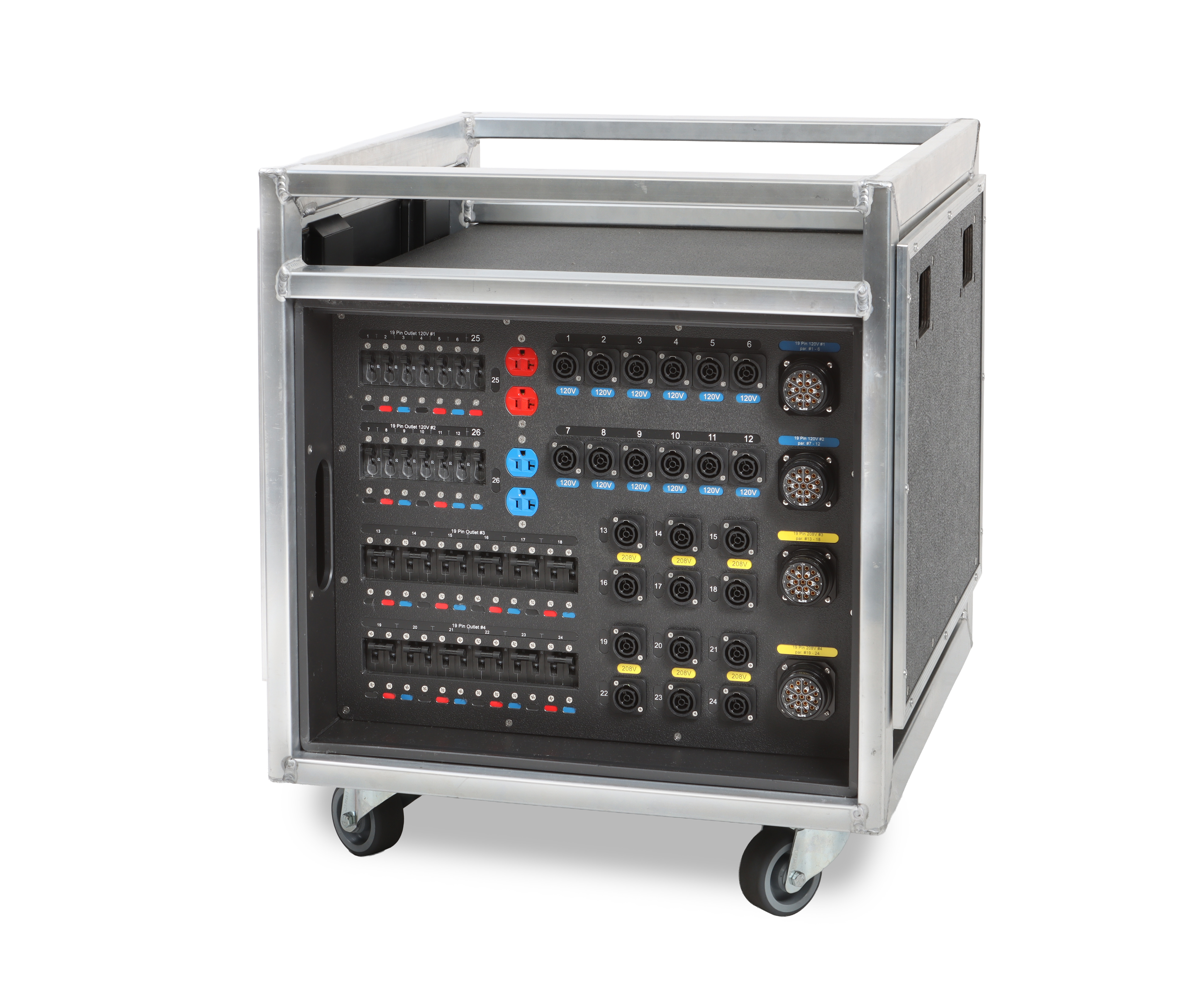

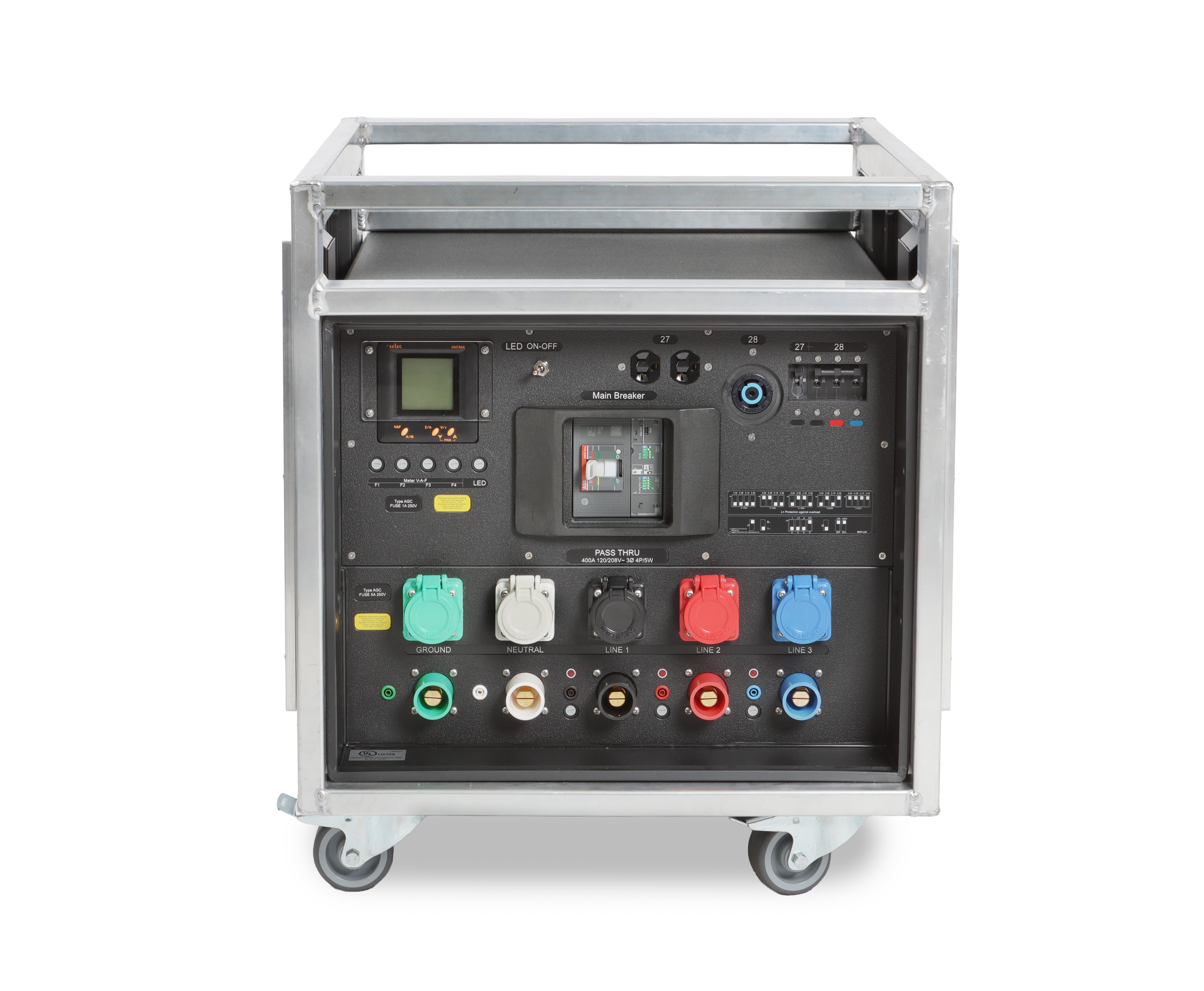

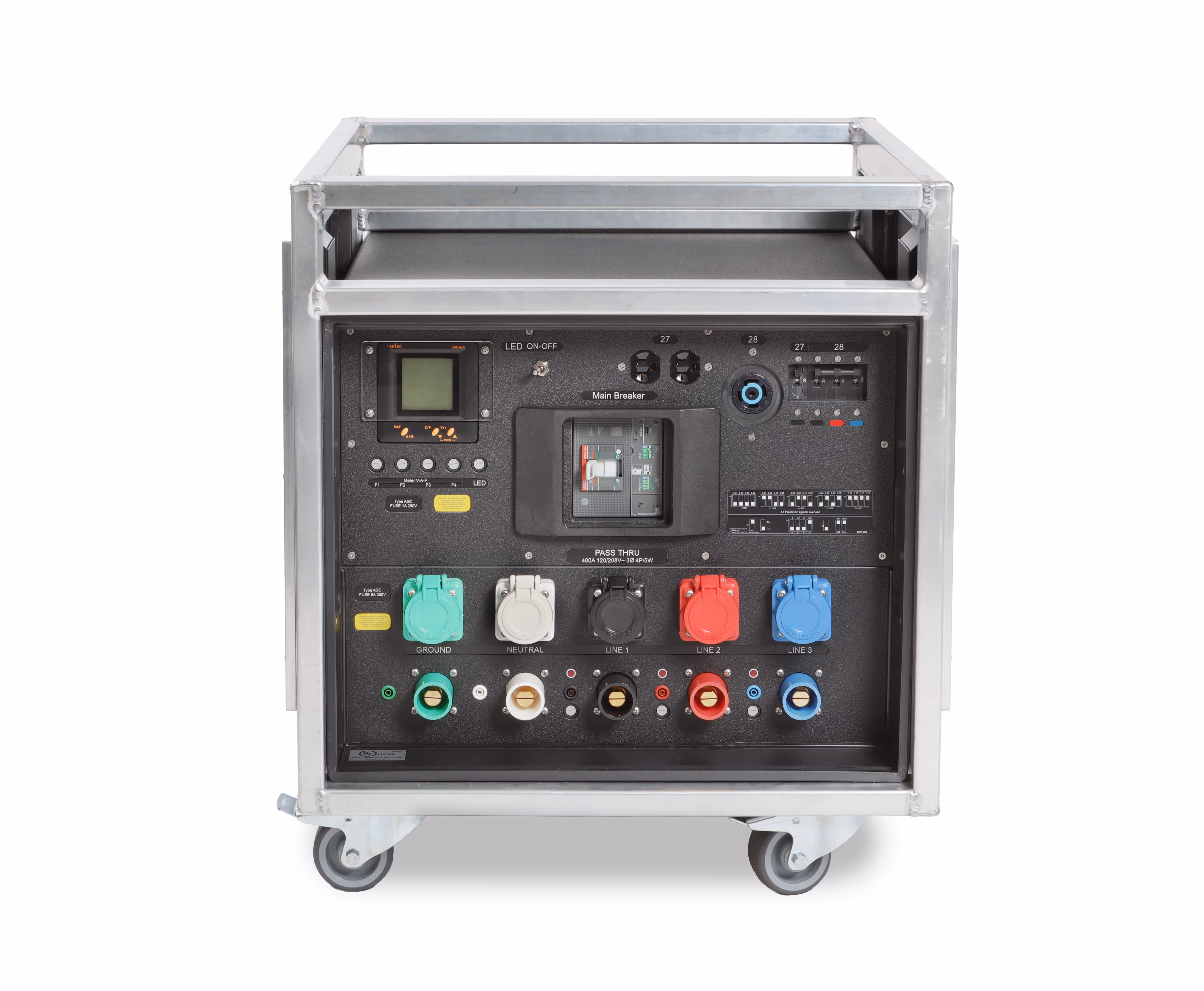

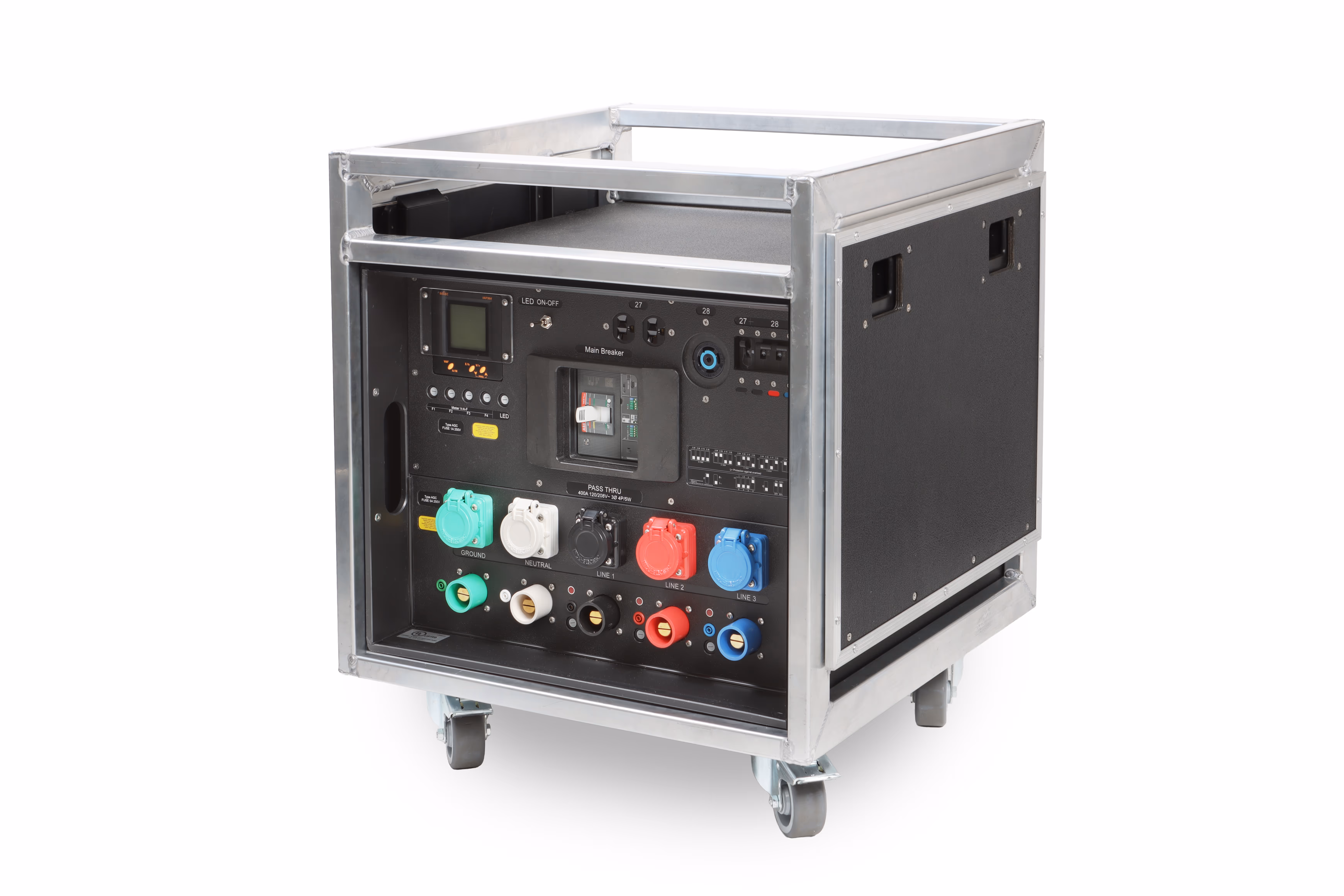

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
12- 20A 208VpowerCON® True1
parallel to 2- 208V 19 Pin (12 circuits)
12- 20A 120V powerCON® True1
parallel to 2- 120V 19 Pin (12 circuits)
1- 30A 4P 5W L21-30 Twist-lock
3- 20A 120V Duplex Outlets
Protected By:
1- 250A 3P Main Breaker
12- 20A 2P Breaker
12- 20A 1P Breaker
1- 30A 3P Breaker
1- 20A 1P Breaker
Model-Nr.:
TP-5WPT-2x19P2-2x19P1-24xTR
Spec #
18003131
Dimensions:
24“L x 24“W x 23.75“H

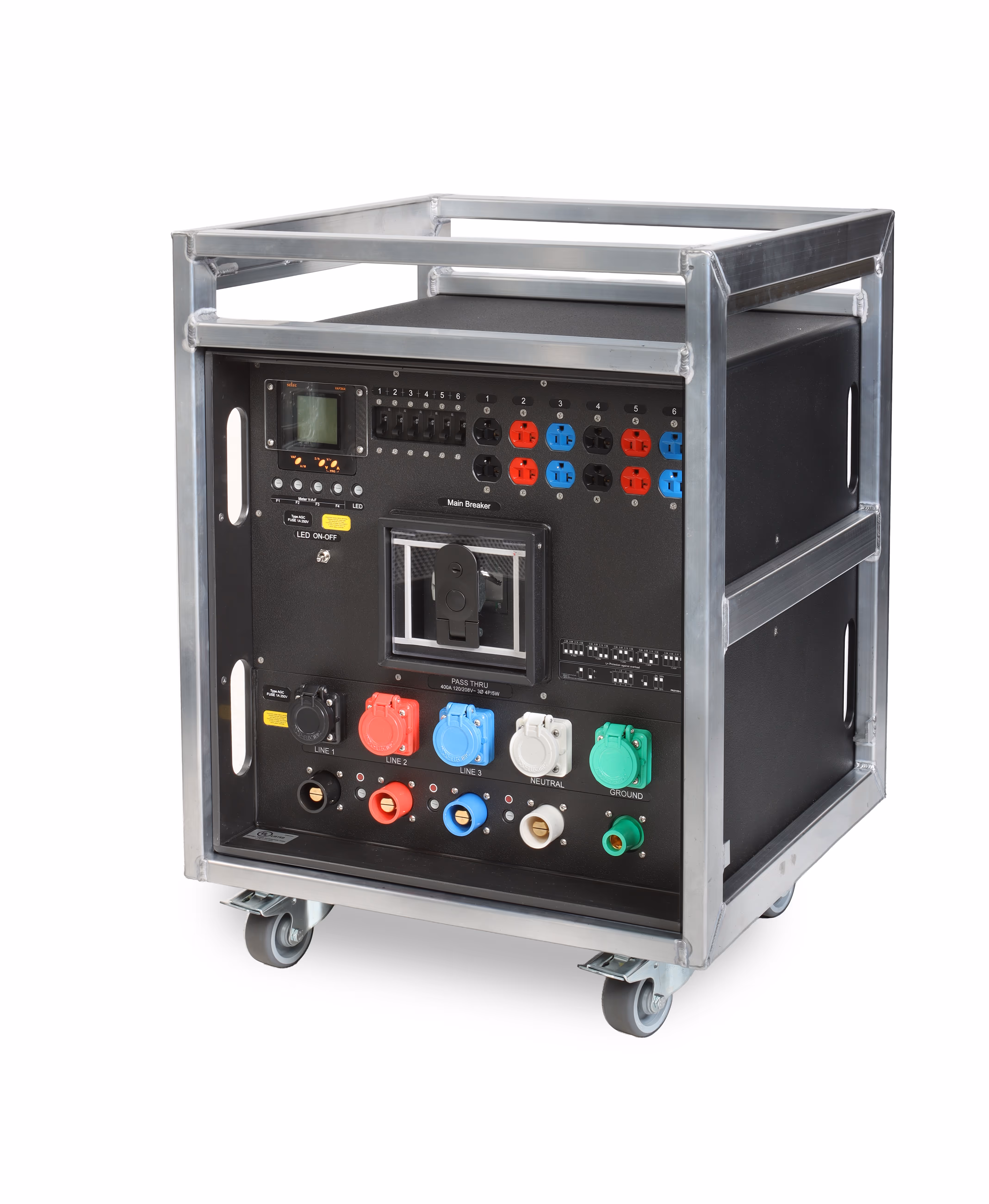

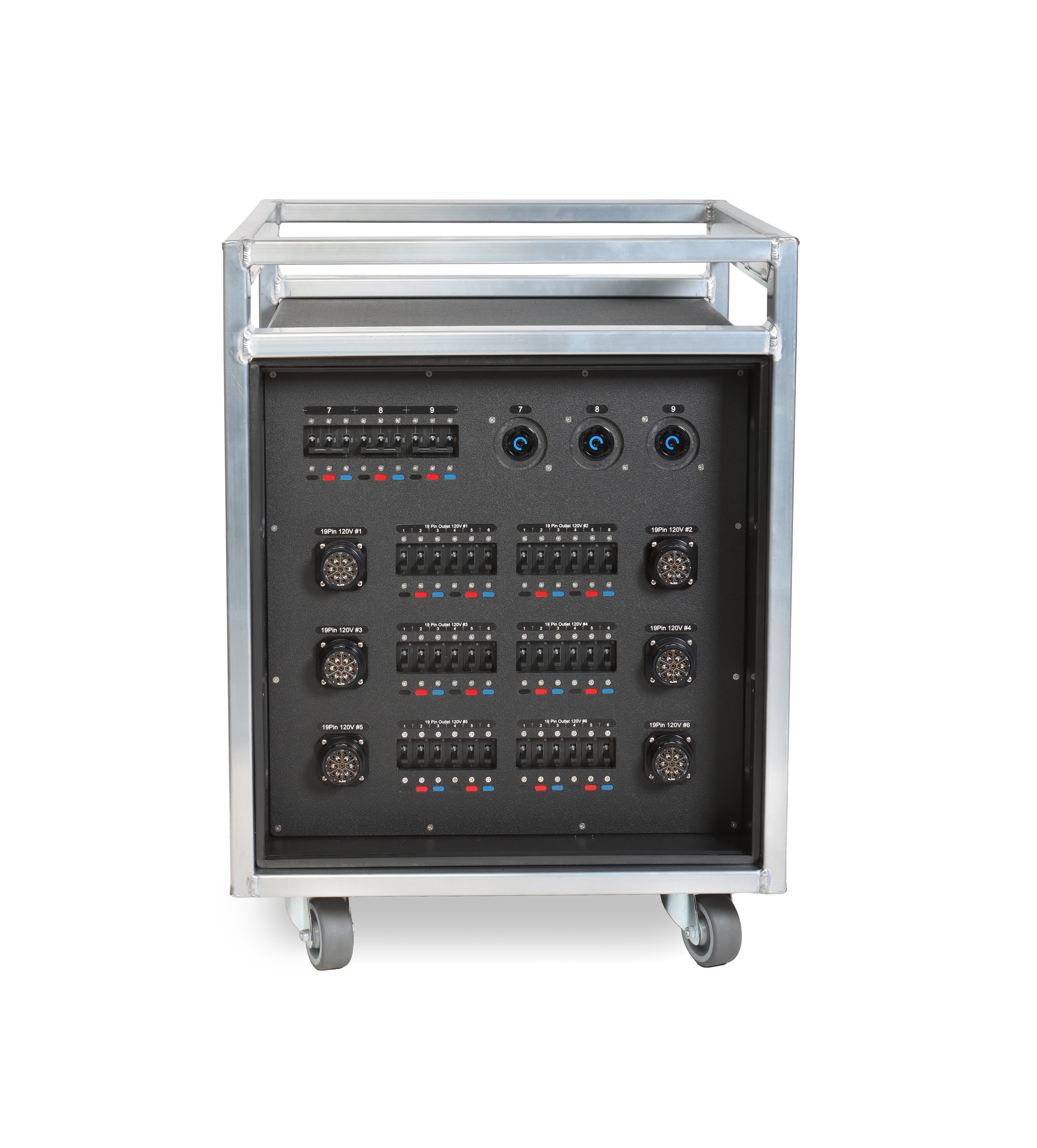

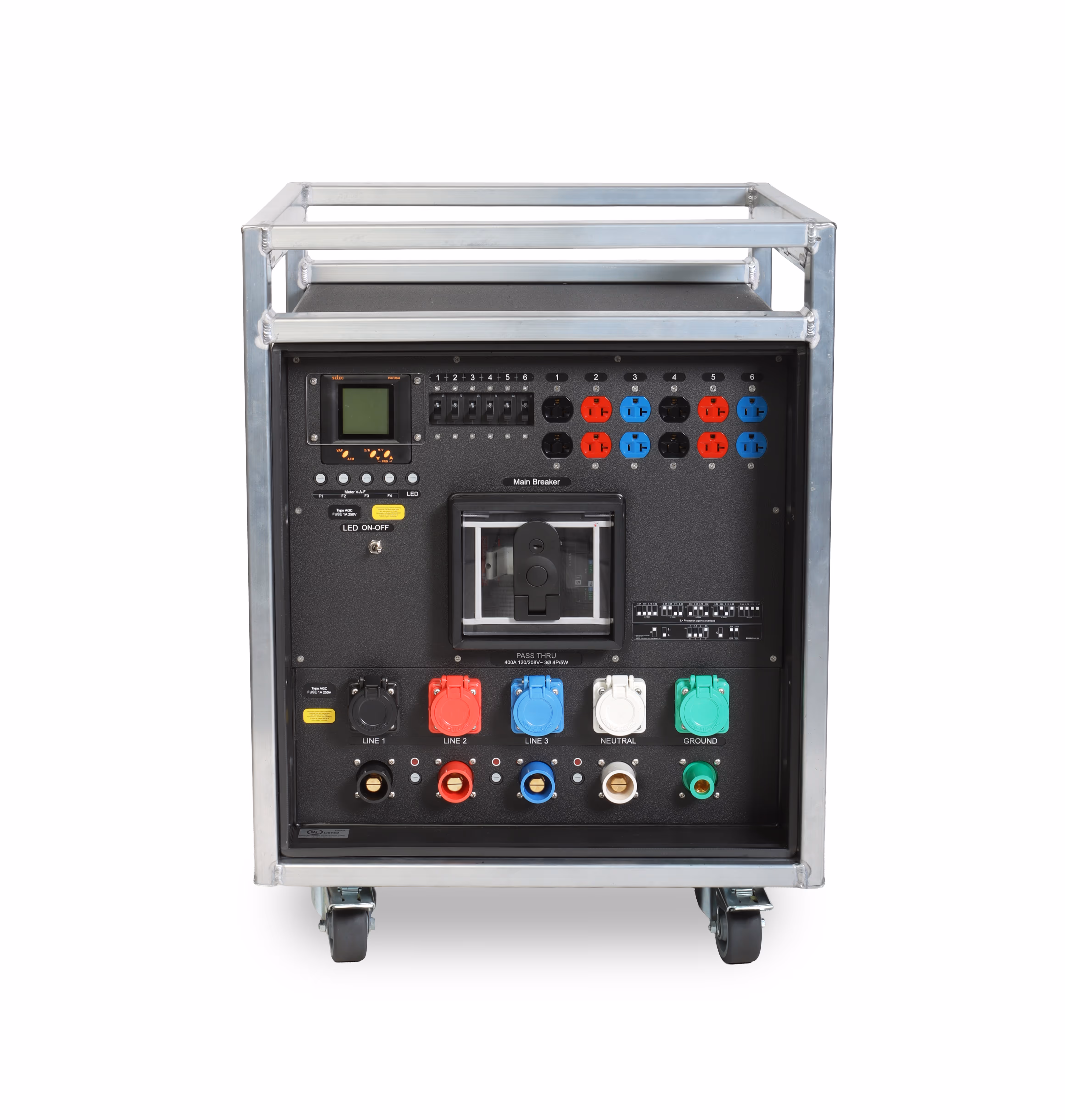

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
6- 20A 120V 6 Circuit 19Pin (36 Circuits)
3- 30A 4P 5W L21-30 Twist-locks
6- 20A 120V Duplex Outlet
Protected By:
36- 20A 1P Breaker
3- 30A 3P Breaker
6- 20A 1P Breaker
1- 400A 3P Main Breaker
Model-Nr.:
TP-5WPT-6x19P1-3xL2130-6x520
Spec #
18002562
Dimensions:
24“L x 24“W x 28“H

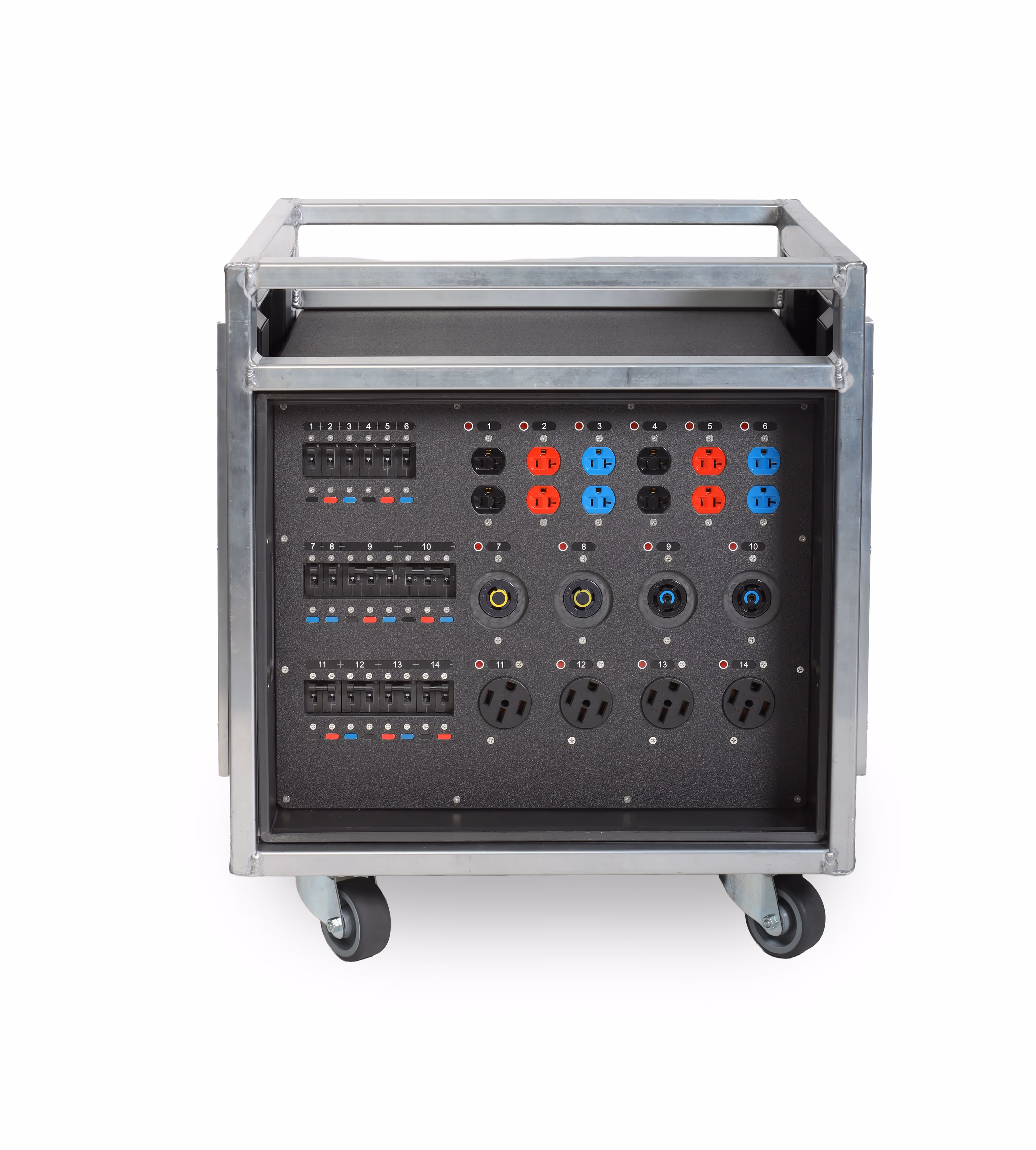

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
2- 30A 208V 4P 5W L21-30 Twist-locks
2- 20A 120V 2P 3W L5-20 Twist-locks
4- 50A NEMA 1450 RV Outlets
6- 20A 120V Duplex Outlets
Protected By:
2- 30A 3P Breaker
2- 20A2P Breaker
4- 50A 2P Breaker
6- 20A 1P Breaker
1- 200A Main Breaker
Model-Nr.:
Custom- fully customizable
Spec #
18003092
Dimensions:
24“L x 24“W x 23.5“H

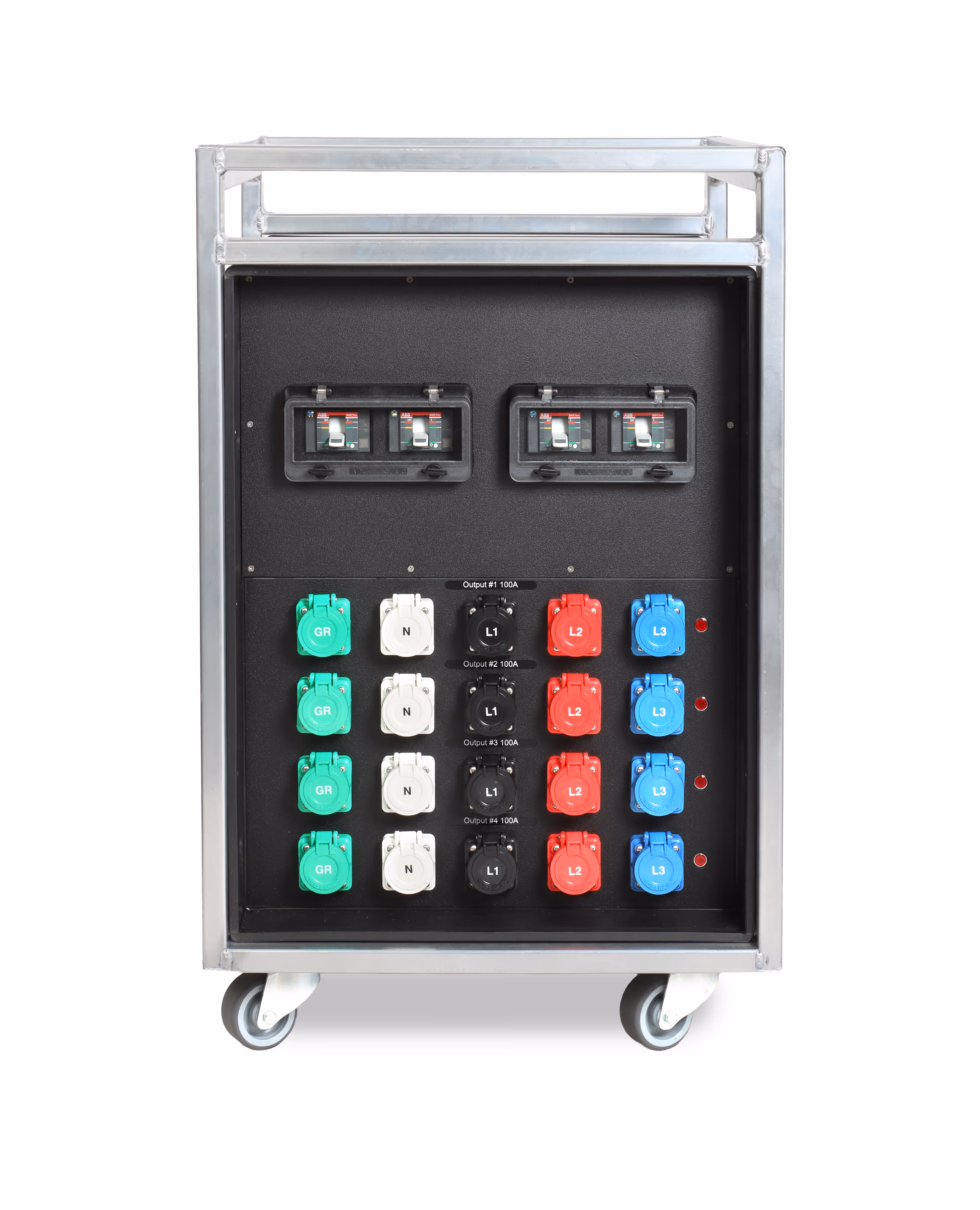

Input Device:

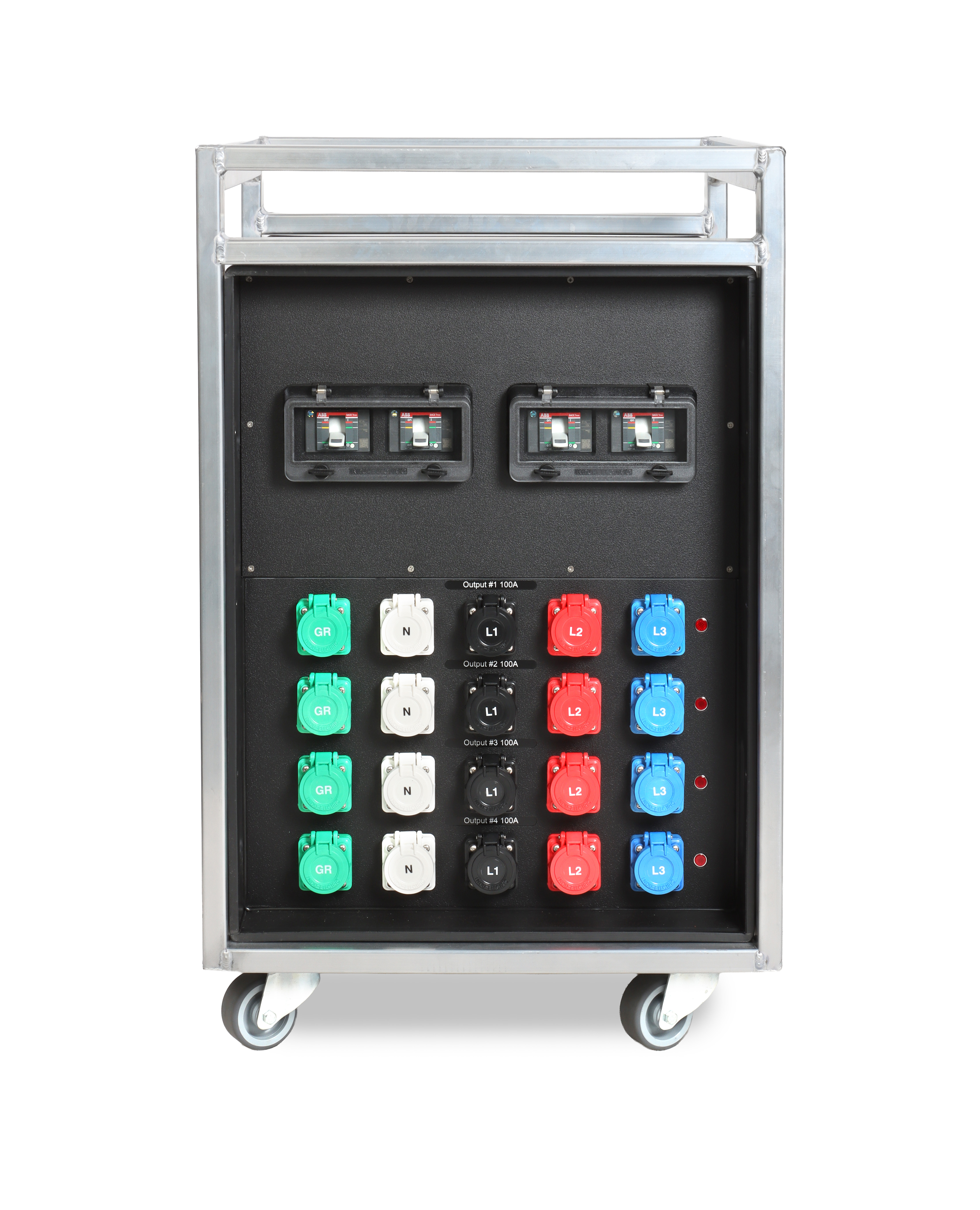

400A 3Ø Locking Cam 1 Pass-through
Output Device:
4- 100A 3ØLocking Cam
4- 20A 208V 4P 5W L21-20 Twist-locks
3- 20A GFCI 5mA CLASS A protected NEMA 520
Protected By:
4- 100A 3P Breaker
4- 20A 3P Breaker
3- 20A 1P Breaker with 3-20AGFMST20A GFCI Modules
Model-Nr.:
TP-5WPT-4x100-4xL2120-3x520
Spec #
18003135
Dimensions:
24“L x 24“W x 34H
