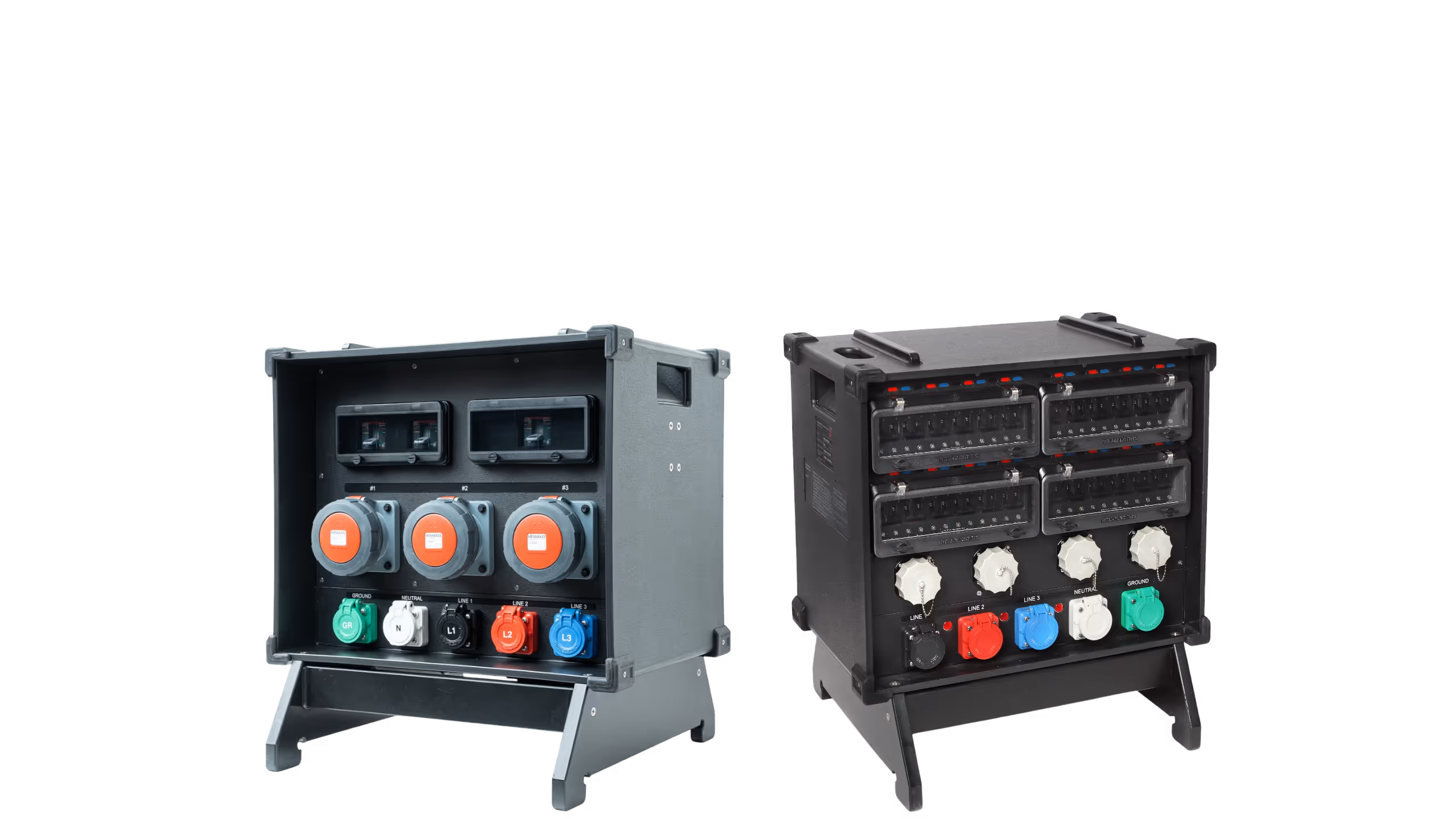

The ultimate rugged enclosure system designed for hard usage.
Built for the toughest environments, INDU-ELECTRIC’s Armor-Tech Series delivers unmatched durability and serviceability. Featuring integrated handles, stacking rails, and shock-absorbing molded rubber corners, these power distribution units are ready for heavy-duty use in demanding applications.
The rugged, non-conductive enclosure ensures safe operation, while recessed branch devices and clear labeling provide intuitive handling. Easy panel access makes servicing straightforward, and fully enclosed color-coded Cam covers enhance safety and organization.
With a 6″ ground clearance stand and support for multiple connector types—including Cam, Pin & Sleeve, 19-Pin, Stage Pin, Straight Blade, Twistlock, and GFCI—the Armor-Tech Series is as versatile as it is robust.
Need a custom configuration? We’ll quote it by the next business day—call us today!

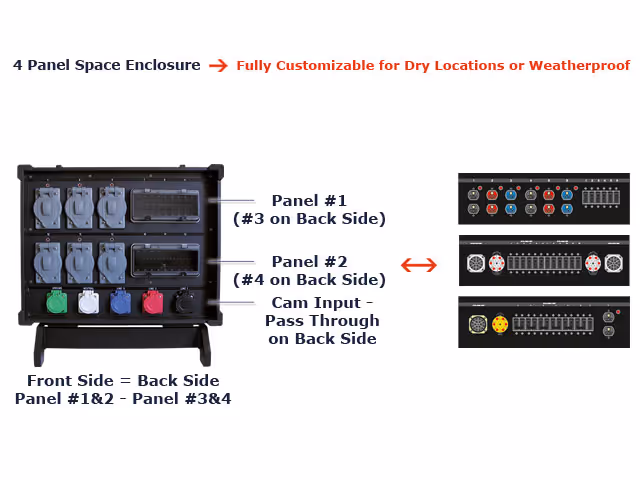

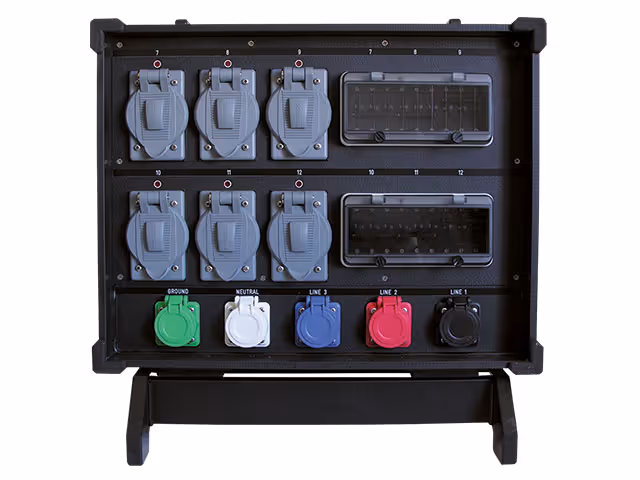

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 30A 120/208V L21-30
Protected By:
12- 30A 3P Breaker
Model-Nr.:
12 Way L21-30 NEMA 3R
Dimensions:
21.75“L x 11.75“W x 17“H

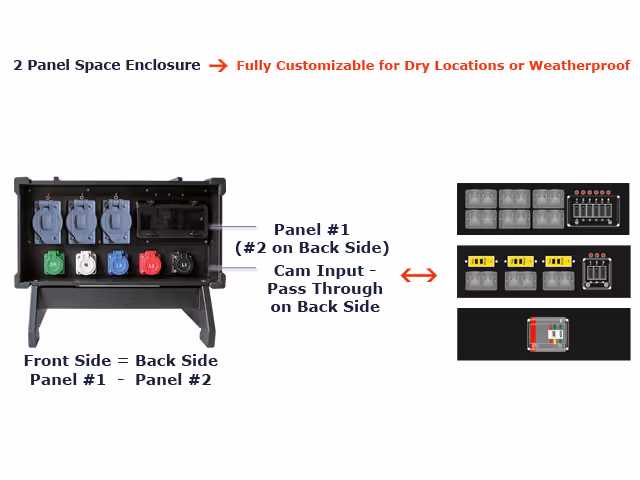

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
6- L21-30
6- 30A 120/208V L21-30
Protected By:
6- 30A 3P Breaker
Model-Nr.:
6 Way L21-30 NEMA 3R
Dimensions:
21.75“L x 11.75“W x 10.75“H
Multiple configurations such as Cam, Pin & Sleeve, 19 Pin, Stage Pin, Straight Blade, Twistlock and GFCI are available in standard or custom configurations

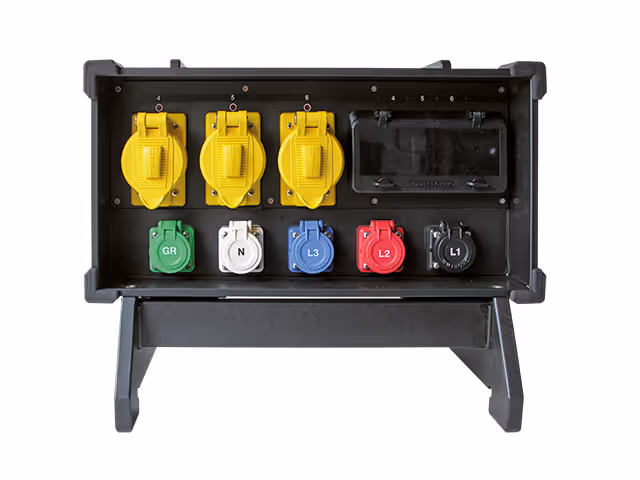

Input Device:
400A 1Ø Locking Cam
1 Pass Through
Output Device:
6- 50A 120/240V 3P 4W
CS6369 Twist-Locks
Protected By:
6- 50A 2P Breaker
Model-Nr.:
AT-2SP-4WPT-3R-246-246
Dimensions:
21.75“L x 11.75“W x 10.75“H
Also available with 4 Wire Cam In/Out

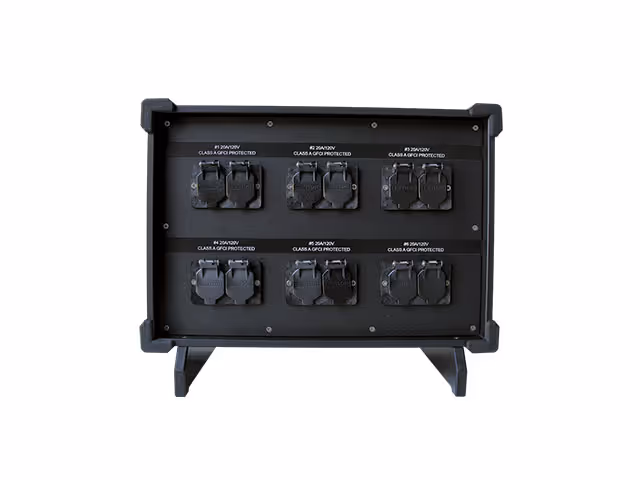

Input Device:
50A 125/250V 3Pole 4Wire
1 Pass Through
Output Device:
6- 20A 120V Duplex Outlets
6- 20A 5mA GFCI Reset Modules
Protected By:
6- 20A 1P Breaker
Model-Nr.:
FB-F5-PT-03-3R
Dimensions:
17.75“L x 10“W x 11.75“H

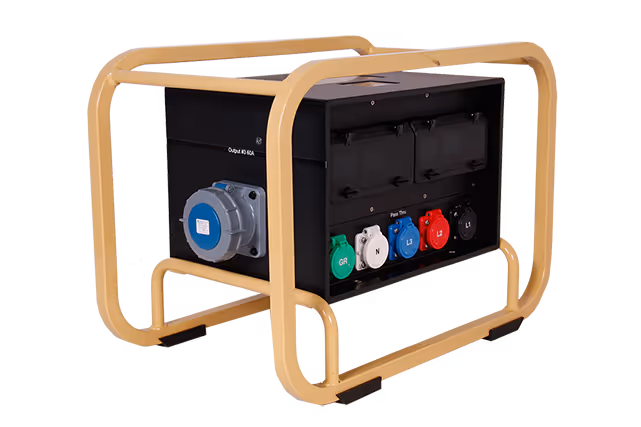

Input Device:
400A 3Ø Locking Cam 1 Pass Through
Output Device:
2- 60A 120/208V 4P 5W Pin & Sleeve
2- 20A 120/208V L21-20 Twistlocks
Protected By:
2- 60A 3P Breaker
2- 20A 3P Breaker
Model-Nr.:
PDP Panel
Dimensions:
27.25“L x 15.75“H x 19“W

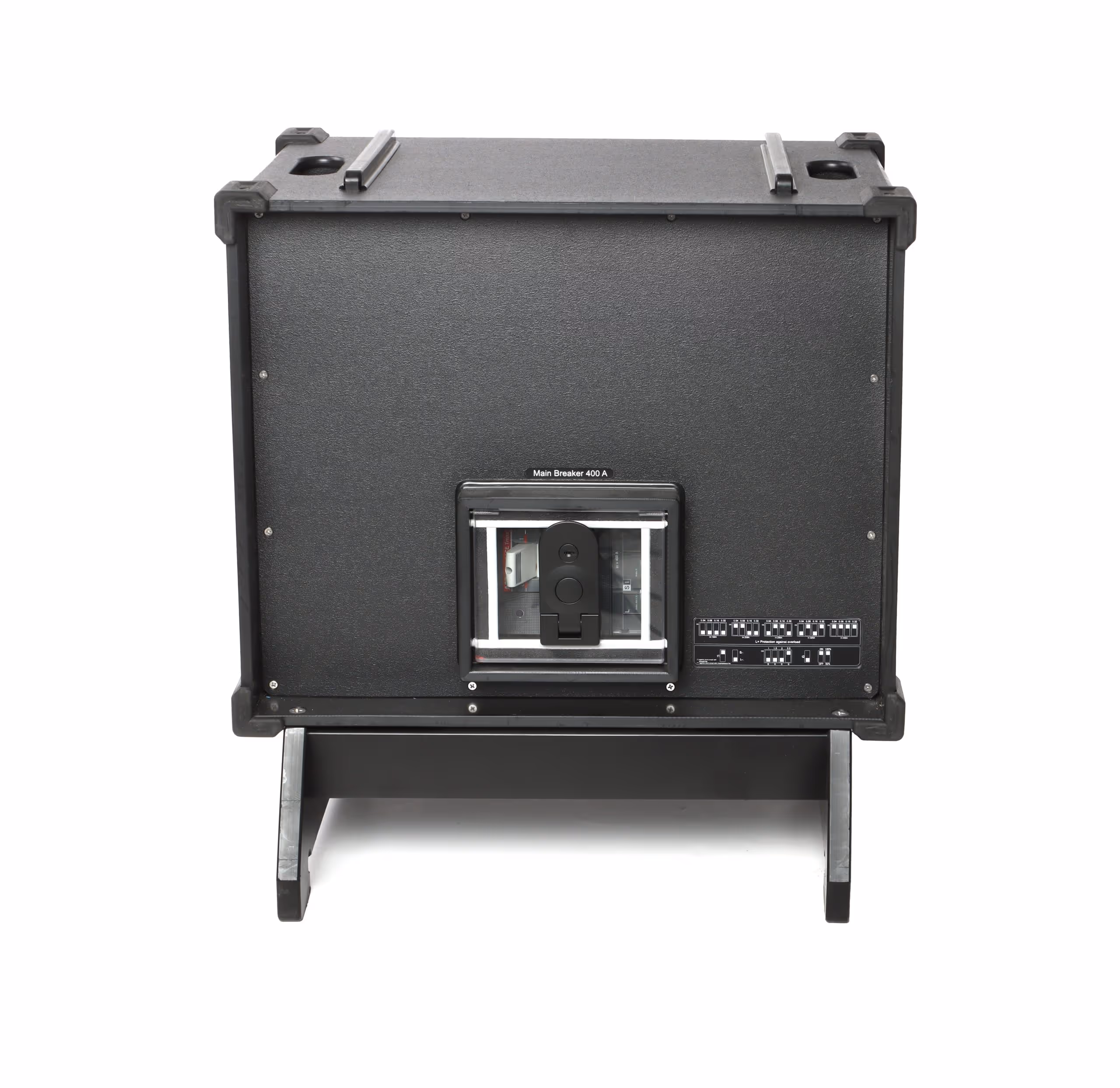

Input Device:
400A 3Ø Locking Cam
Output Device:
4- 20A 208V 6 Circuit 19Pin
Protected By:
1- 400A 3P Main Breaker
24-20A 2P Breaker
Spec #
18002421
Dimensions:
21-3/4“L x 11-3/4“W x 17-3/4“H

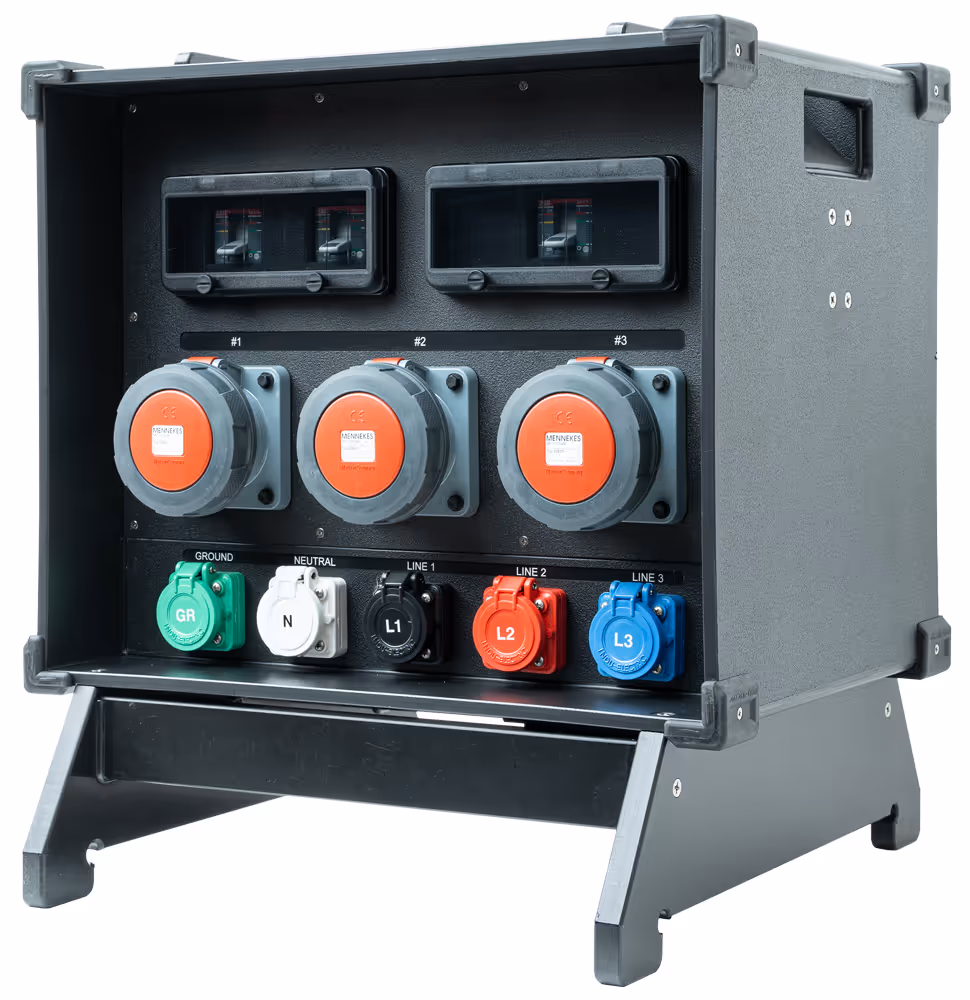

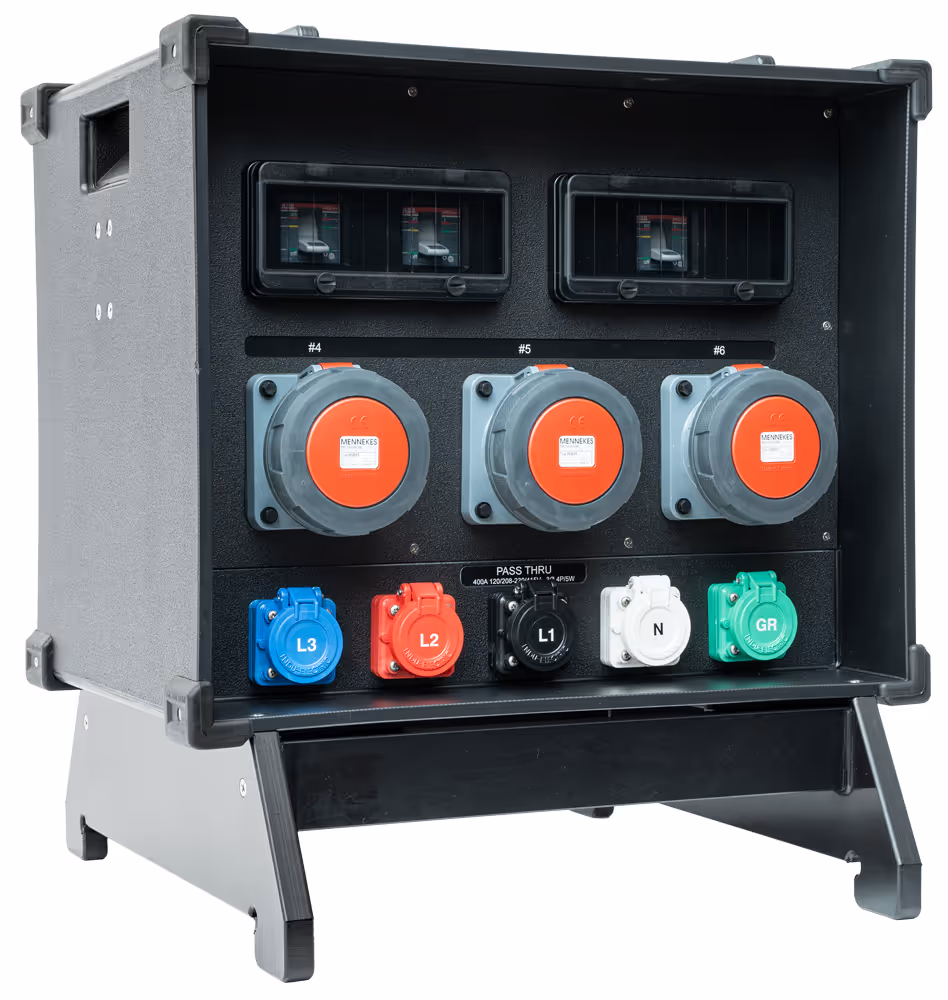

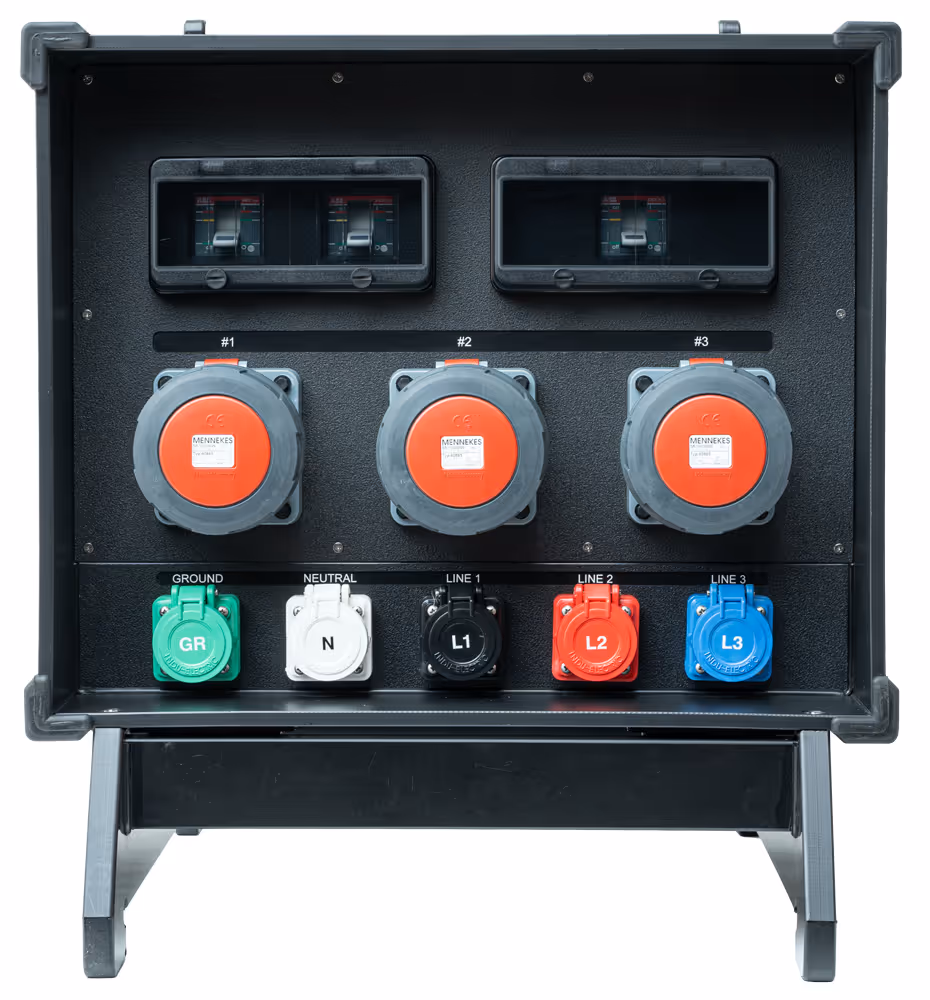

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
6- 60A 120/208V 560R6W Pin&Sleeve
Protected By:
6- 60A 3P MCCB
Spec #
18000100
Dimensions:
21-2/3“L x 14“W x 17-3/4“H

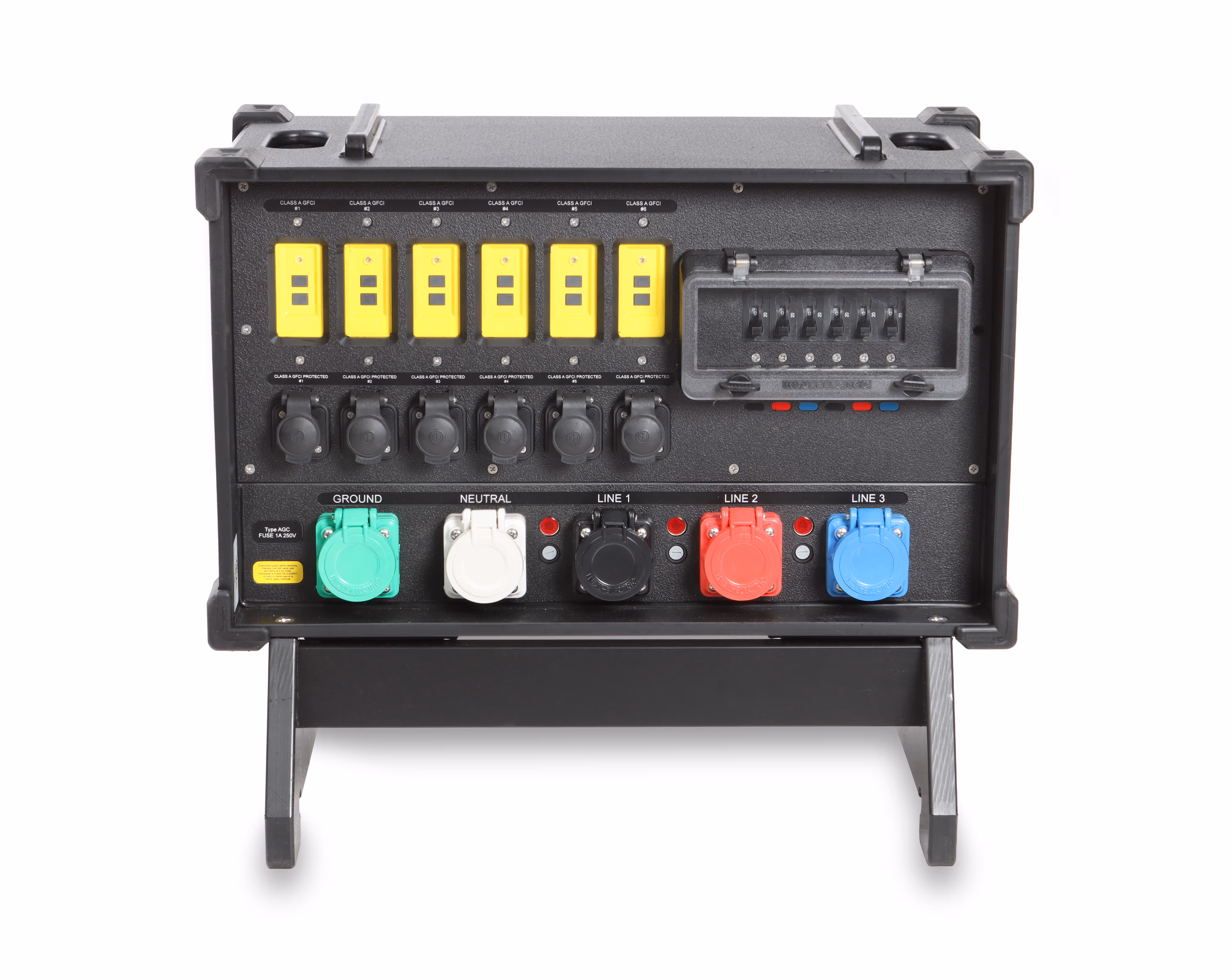

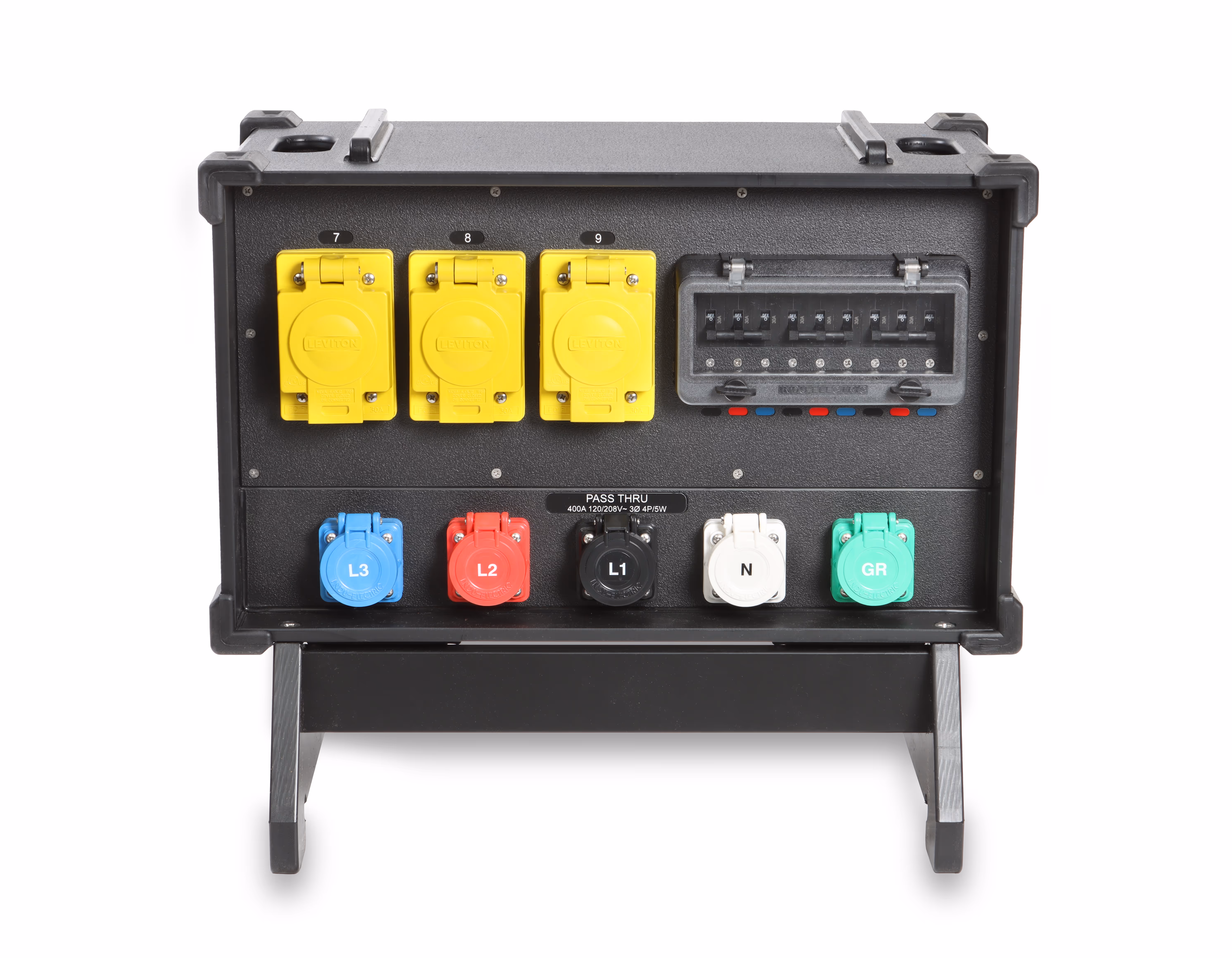

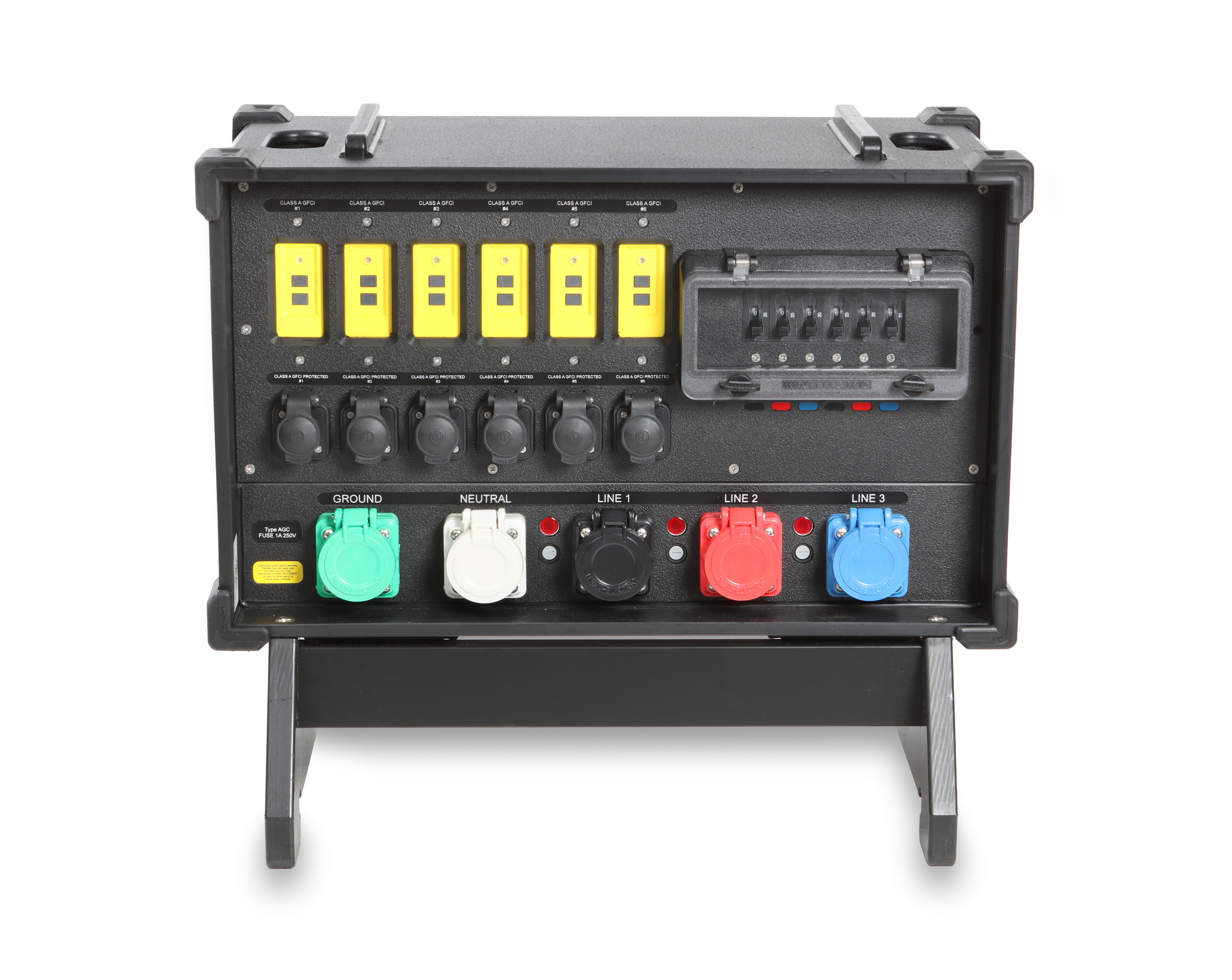

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
6- 20A GFCI 5mA CLASS A
protected powerCON® True1
3- 30A 4P5W L21-30 Twist-locks
Protected By:
6- 20A 1P Breaker with6-20A GFMST 20A GFCI Modules
3- 30A 3P Breaker
Model-Nr.:
IND-5WPT-2SP-183-211-211 (UL 3R)
Spec #
18003132
Dimensions:
21.75“L x 11.75“W x 13“H
