Compact power distribution for demanding environments.

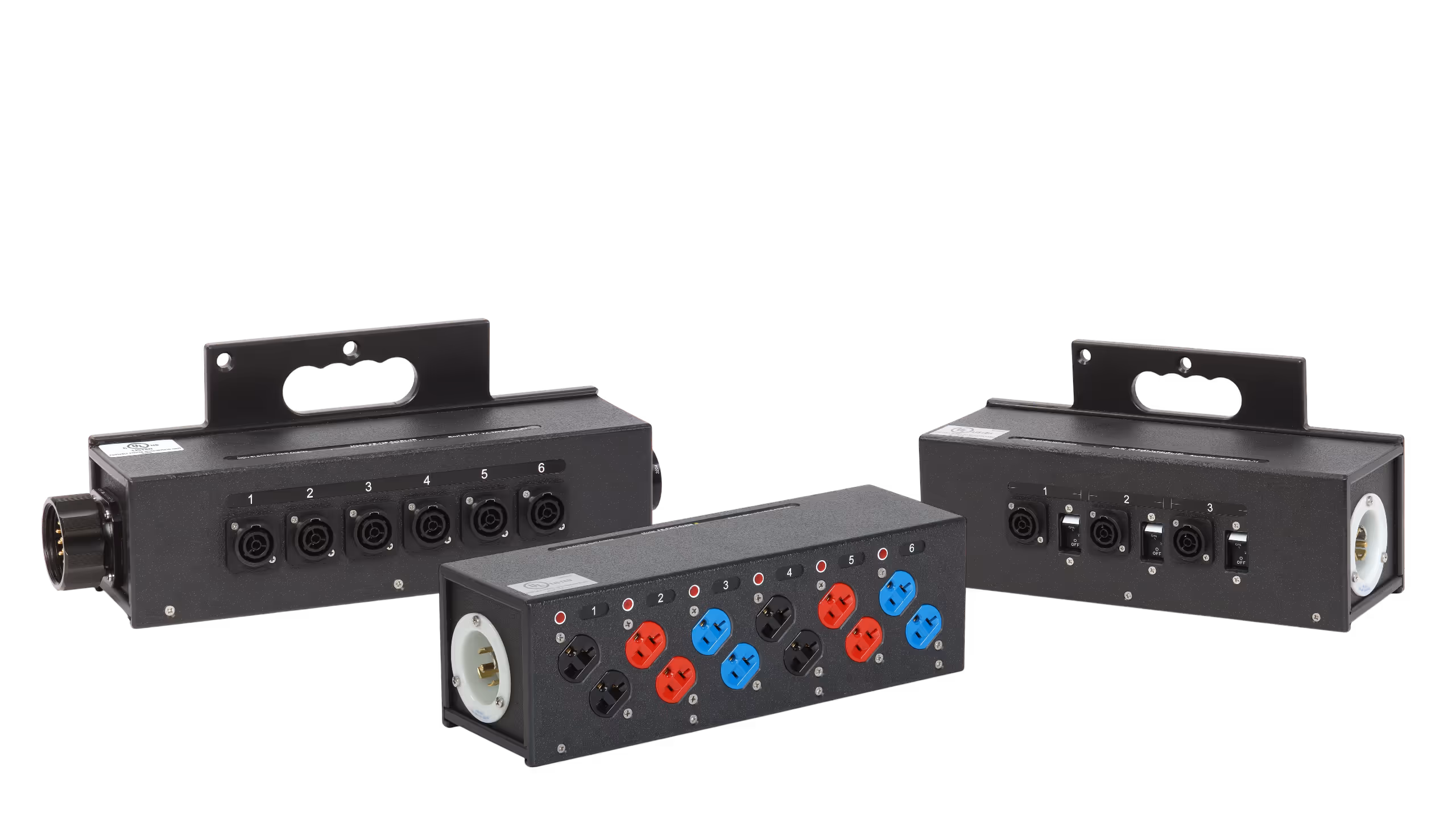

The Floor Boxes from INDU-ELECTRIC are the ideal solution when reliable and flexible power distribution is required in the smallest of spaces. Their compact design allows for discreet integration into stages, exhibition stands or event areas – while still delivering full performance. Durable housings made of robust materials ensure lasting reliability, even under the toughest conditions. With various connection options, integrated circuit breakers and customized configurations, each Floor Box can be perfectly tailored to specific requirements. This way, Floor Boxes combine maximum safety and flexibility in a minimal footprint.

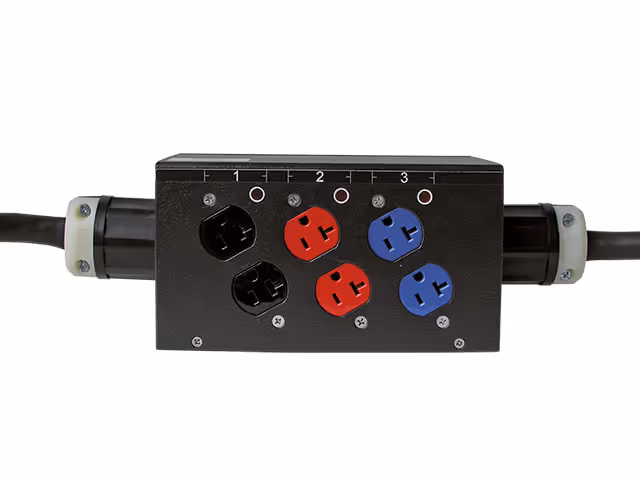

Input Device:
30A 3Ø L21-30 Twistlock
1 Pass Through
Output Device:
3- 20A 120V Duplex Outlets
Protected By:
3- 20A 1P Breaker
Model-Nr.:
FB-F3PT-01
Dimensions:
8.25“L x 4.5“W x 4.75“H

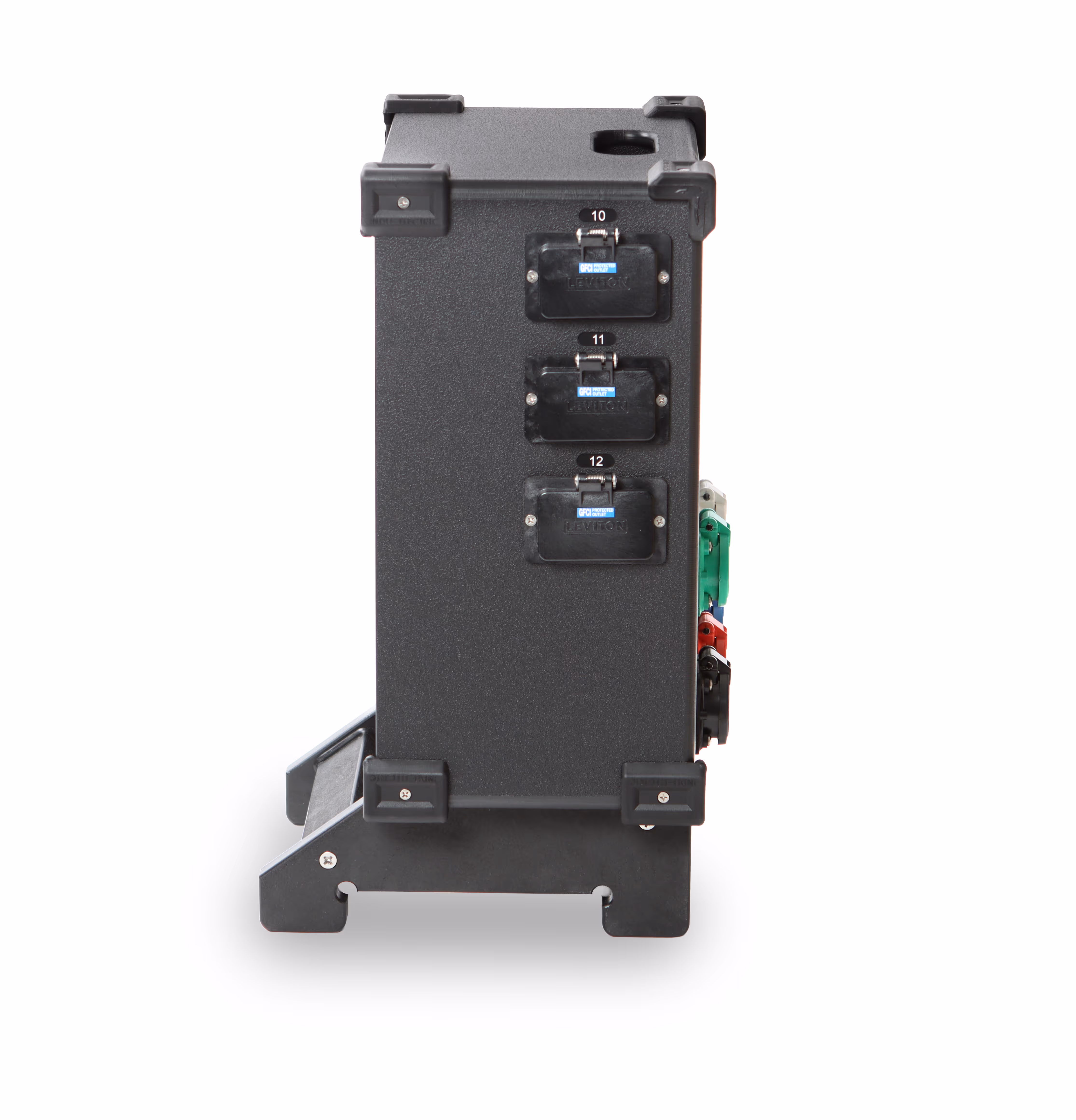

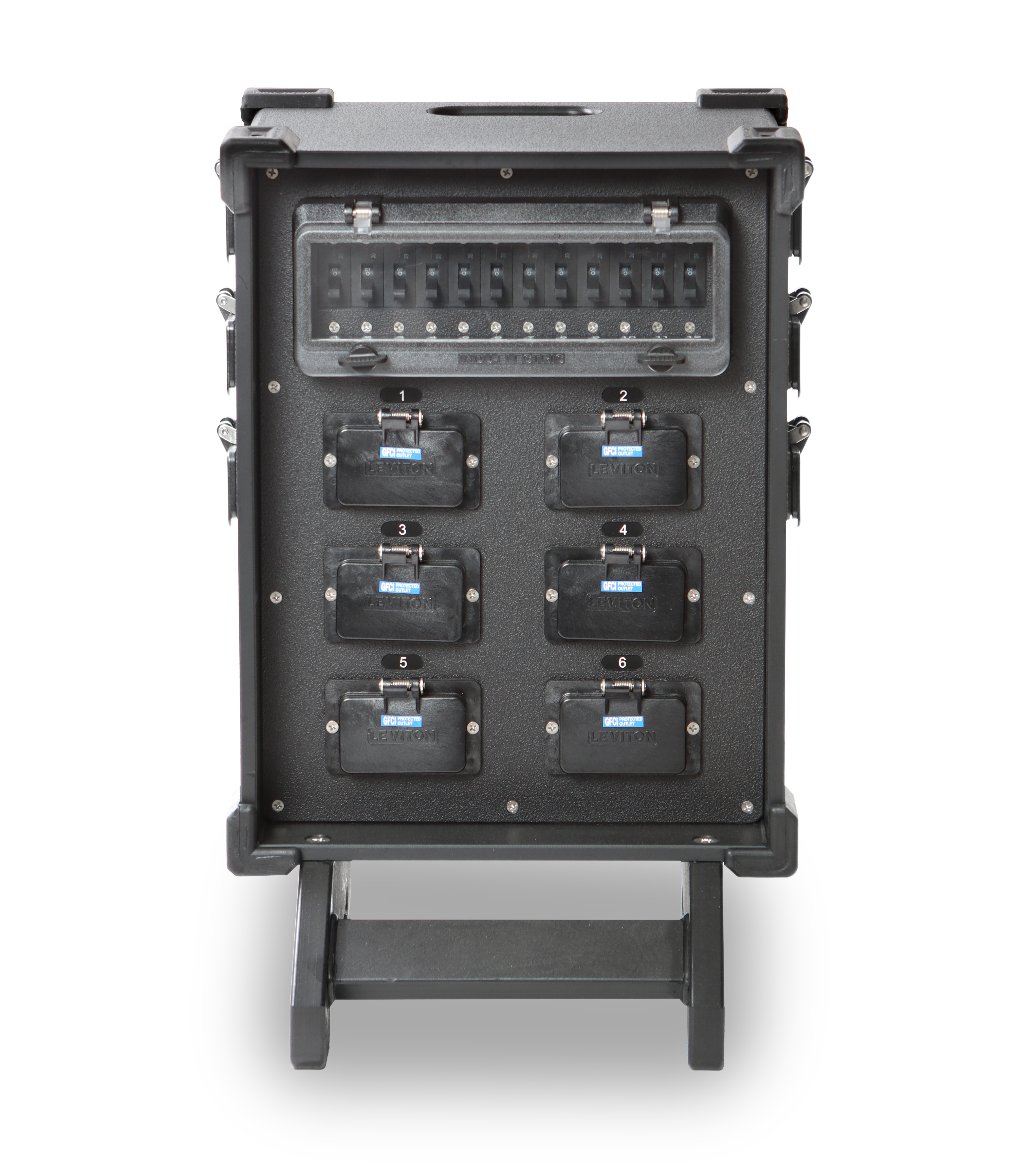

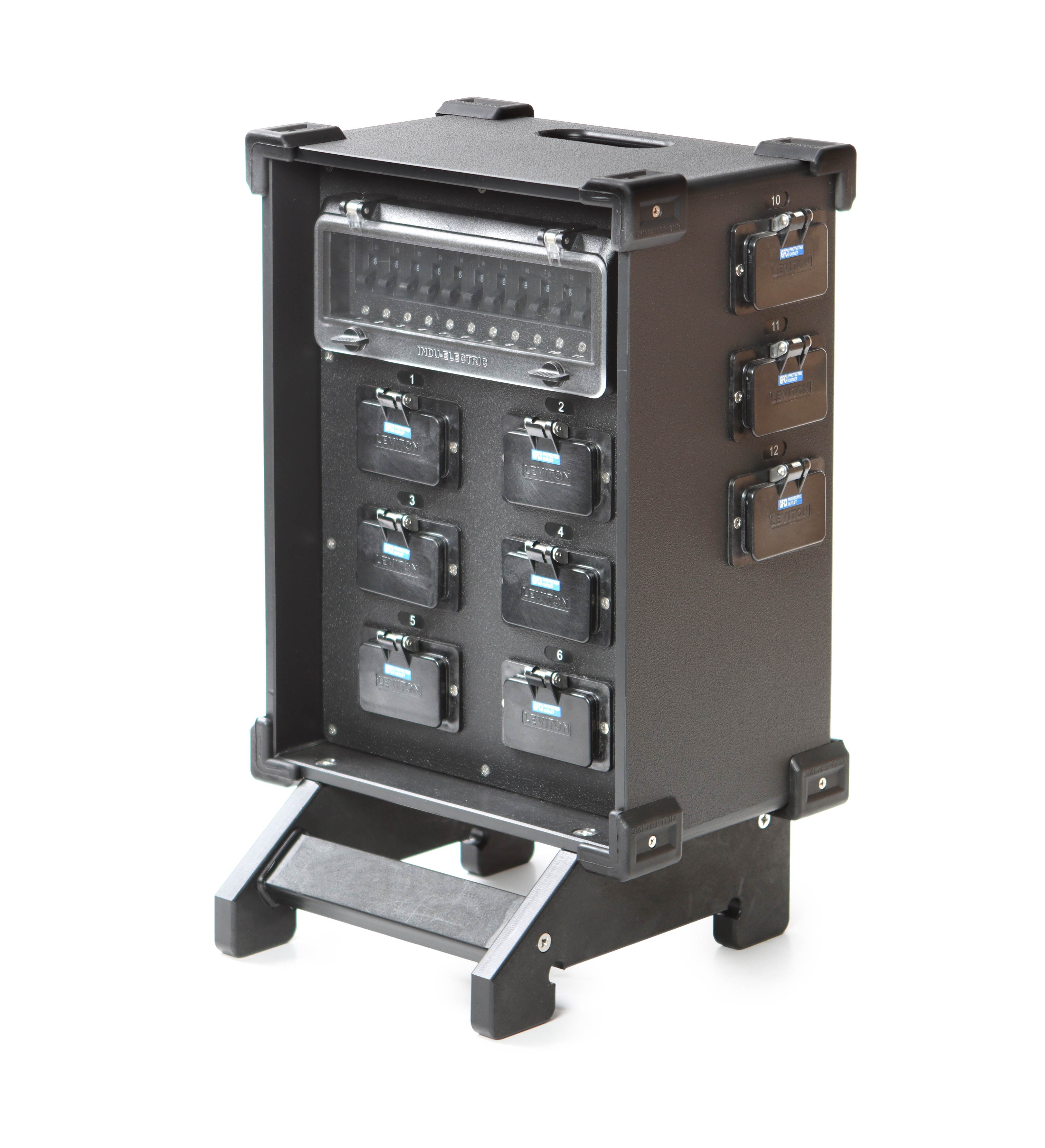

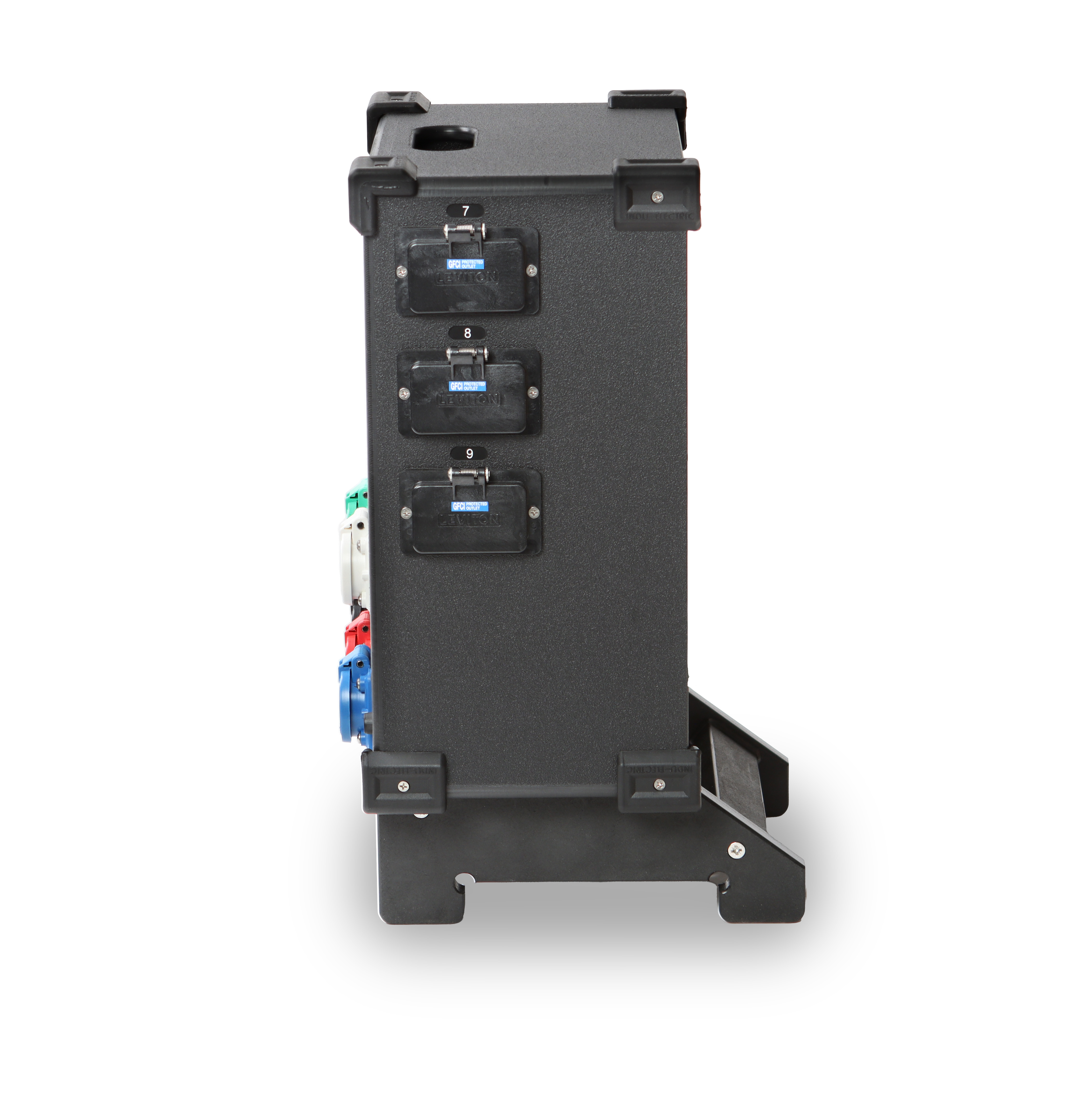

Input Device:
80A 3ØLocking Cam
Output Device:
12-20A 120V GFCI DuplexOutlets
Protected By:
12-20A 1P Breaker
Model-Nr.:
FB-5W-12x520GFCI
Spec #
18003158
Dimensions:
12 2/3“Lx 8 1/3“W x 16 2/3“H

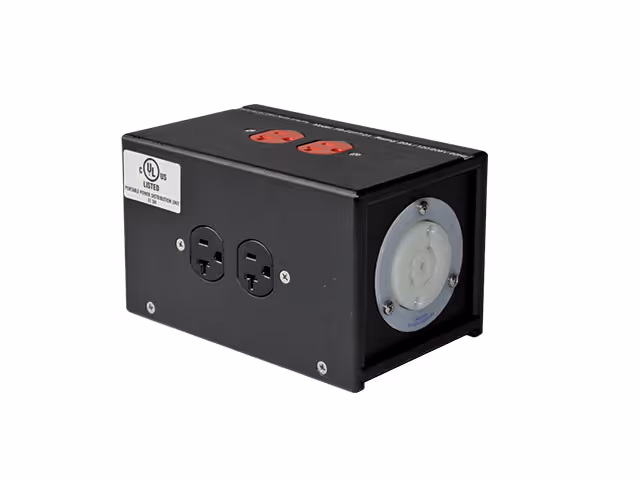

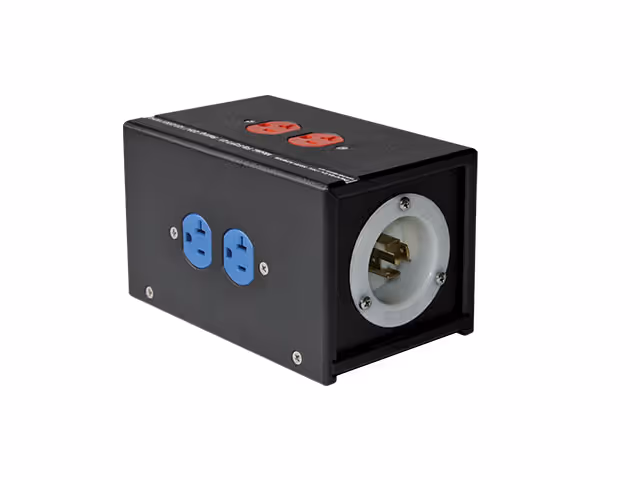

Input Device:
30A 3Ø L21-20 Twistlock
1 Pass Through
Output Device:
3- 20A 120V Duplex Outlets
Protected By:
No Breaker
Model-Nr.:
L21-20 Doghouse
Dimensions:
7.5“L x 4.5“W x 4.75“H

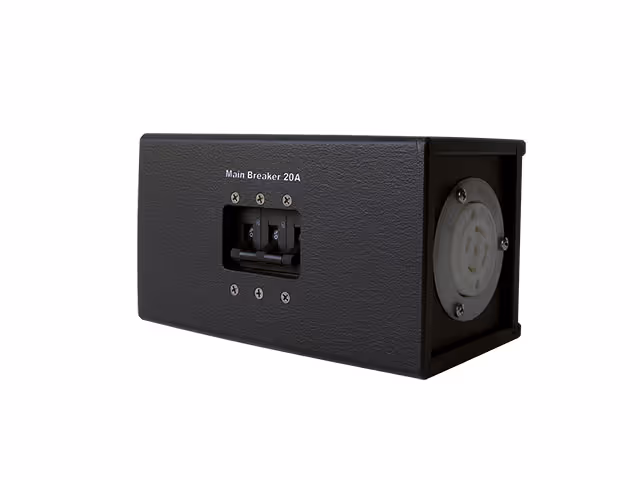

Also available as L21-30 to L21-20 Breakered Disconnect Doghouse.

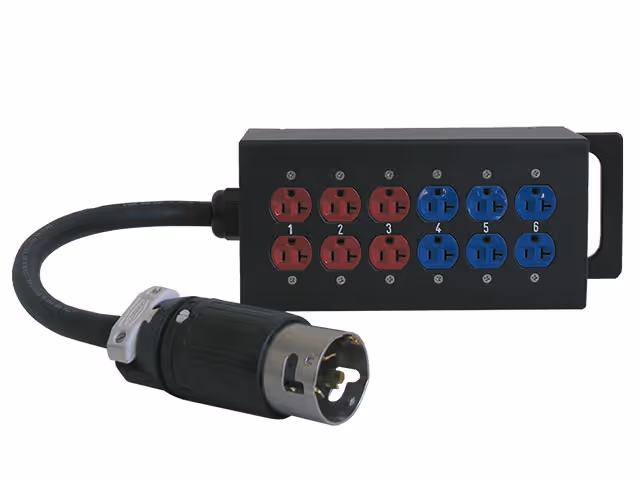

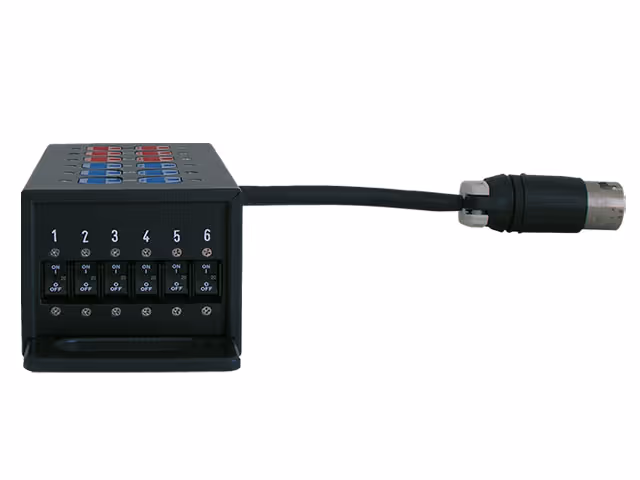

Input Device:
50A 3 Pole 4 Wire Twist-Lock
Output Device:
6- 20A 120V Duplex Outlets
Protected By:
6- 20A 1P Breaker
Model-Nr.:
FB-F5-PT-03 Tail
Dimensions:
11.5“L x 5.5“W x 4.75“H

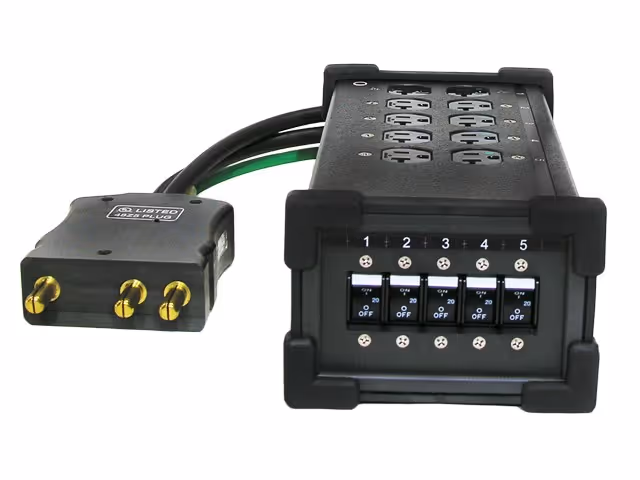

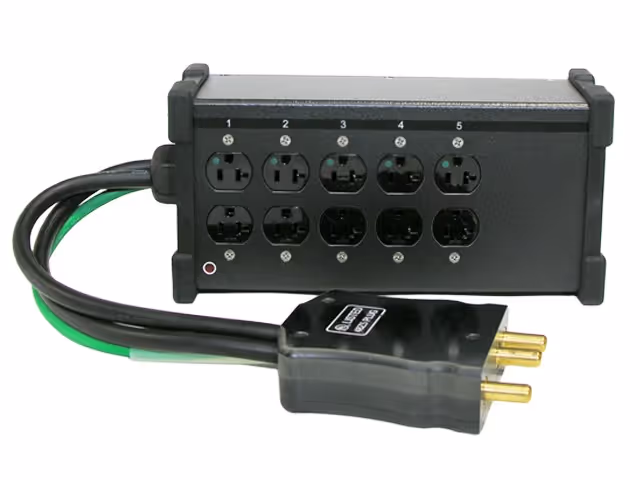

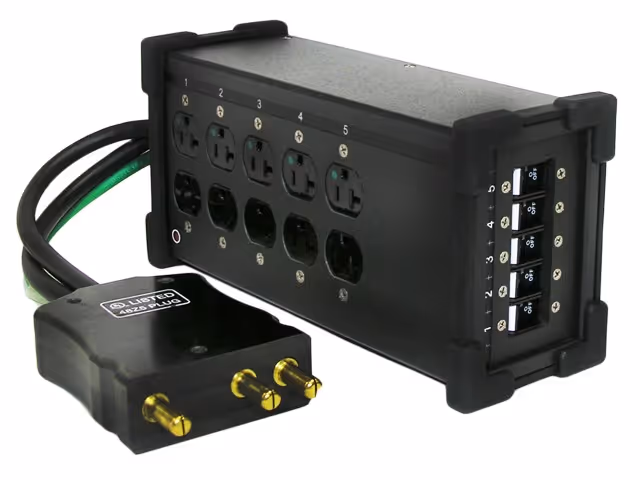

Input Device:
100A 120V Stage Pin
Output Device:
5- 20A 120V Duplex Outlet
Protected By:
5- 20A 1P Breaker
Model-Nr.:
Gangbox 100A
Dimensions:
13.75“L x 5.5“W x 4“H
Also available as 60A Stage Pin 3 Way 20A Duplex Version (Gangbox 60A).

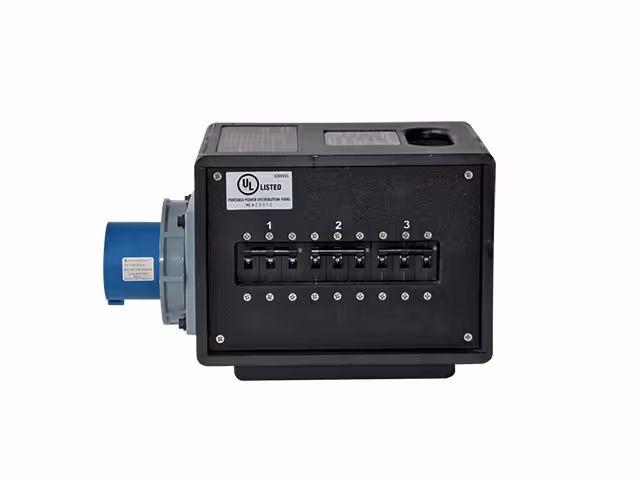

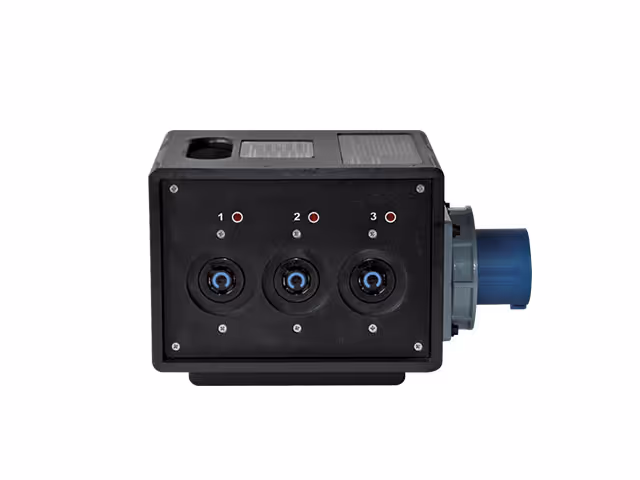

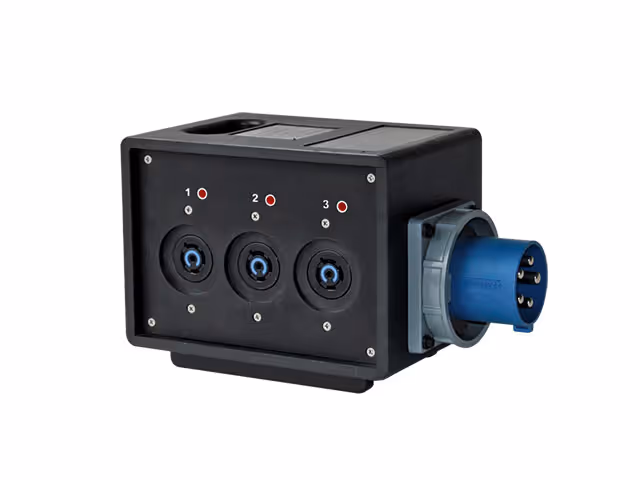

Input Device:
60A 120/208V 4 Pole 5 Wire Pin & Sleeve
Output Device:
3- 20A 120/208V L21-20
Protected By:
3- 20A 3P Breaker
Model-Nr.:
FB-60A 3 Way L21-20
Dimensions:
10“L x 7“W x 7“H

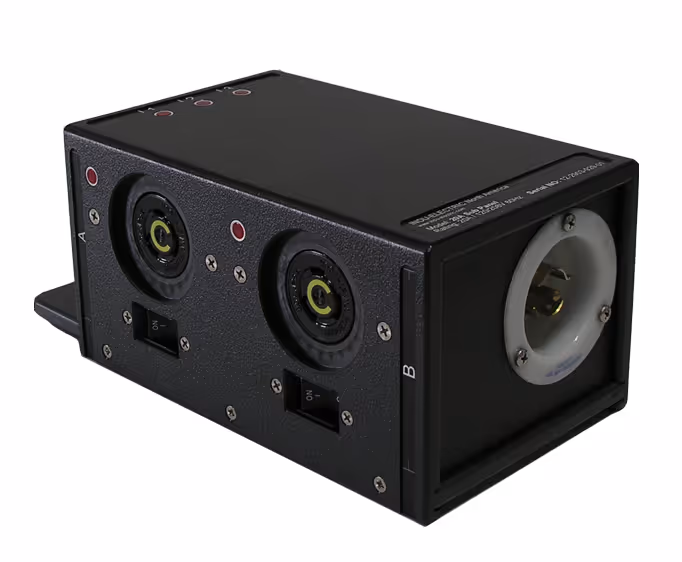

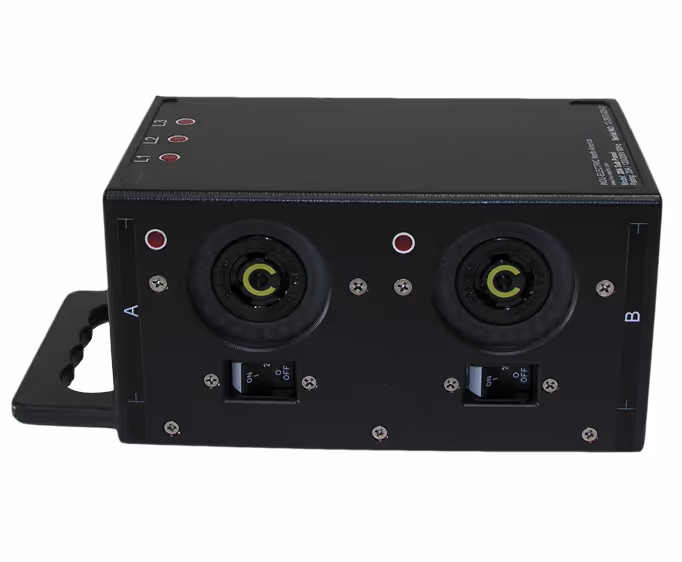

Input Device:
20A 3Ø L21-20 Twist-Lock
Output Device:
1- 20A 120V GFCI Duplex Outlet
2- 20A 120V L5-20
Protected By:
3- 20A 1P Breaker
Model-Nr.:
20A Sub Panel
Dimensions:
11“L x 4.75“W x 5.5“H

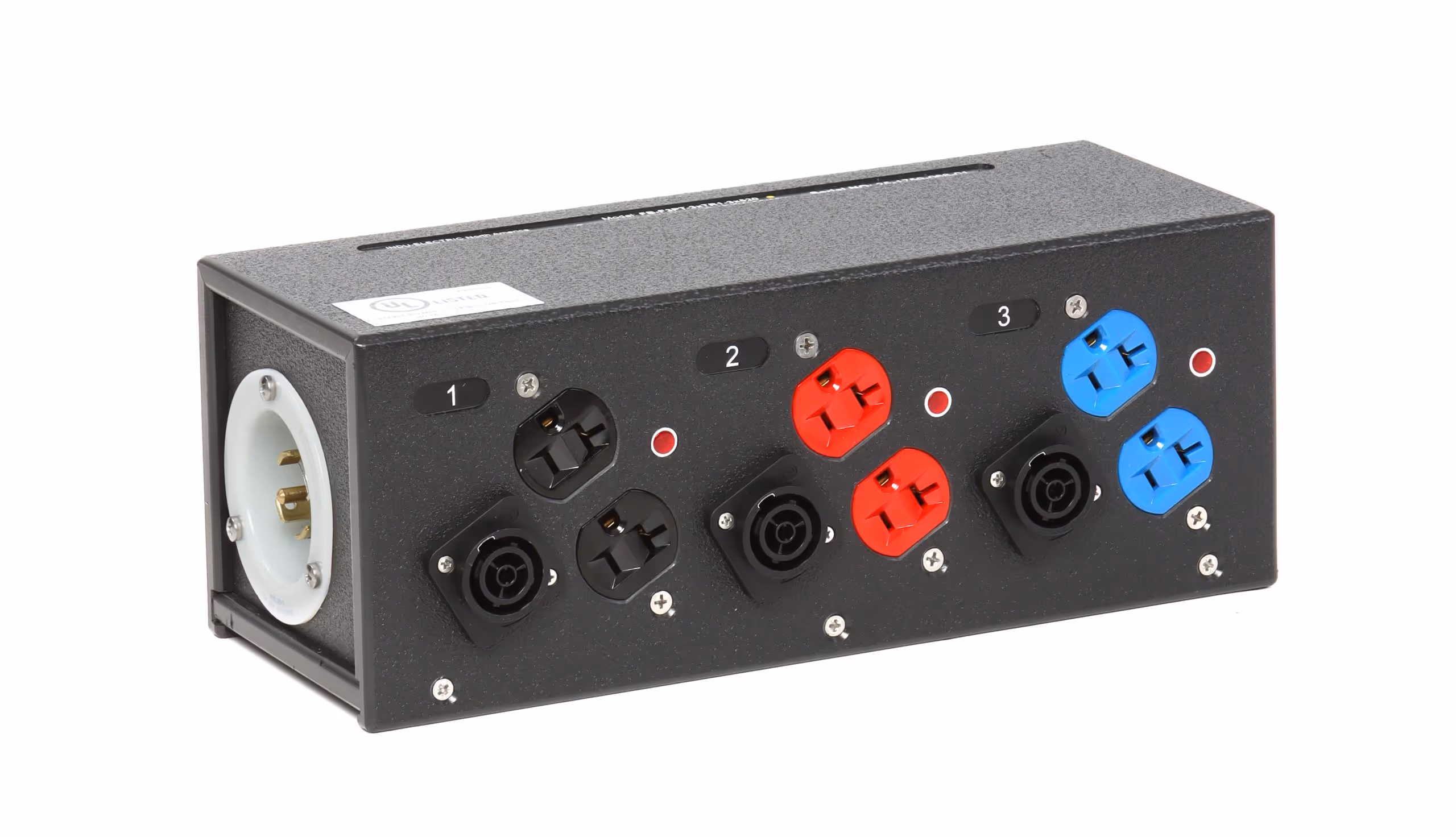

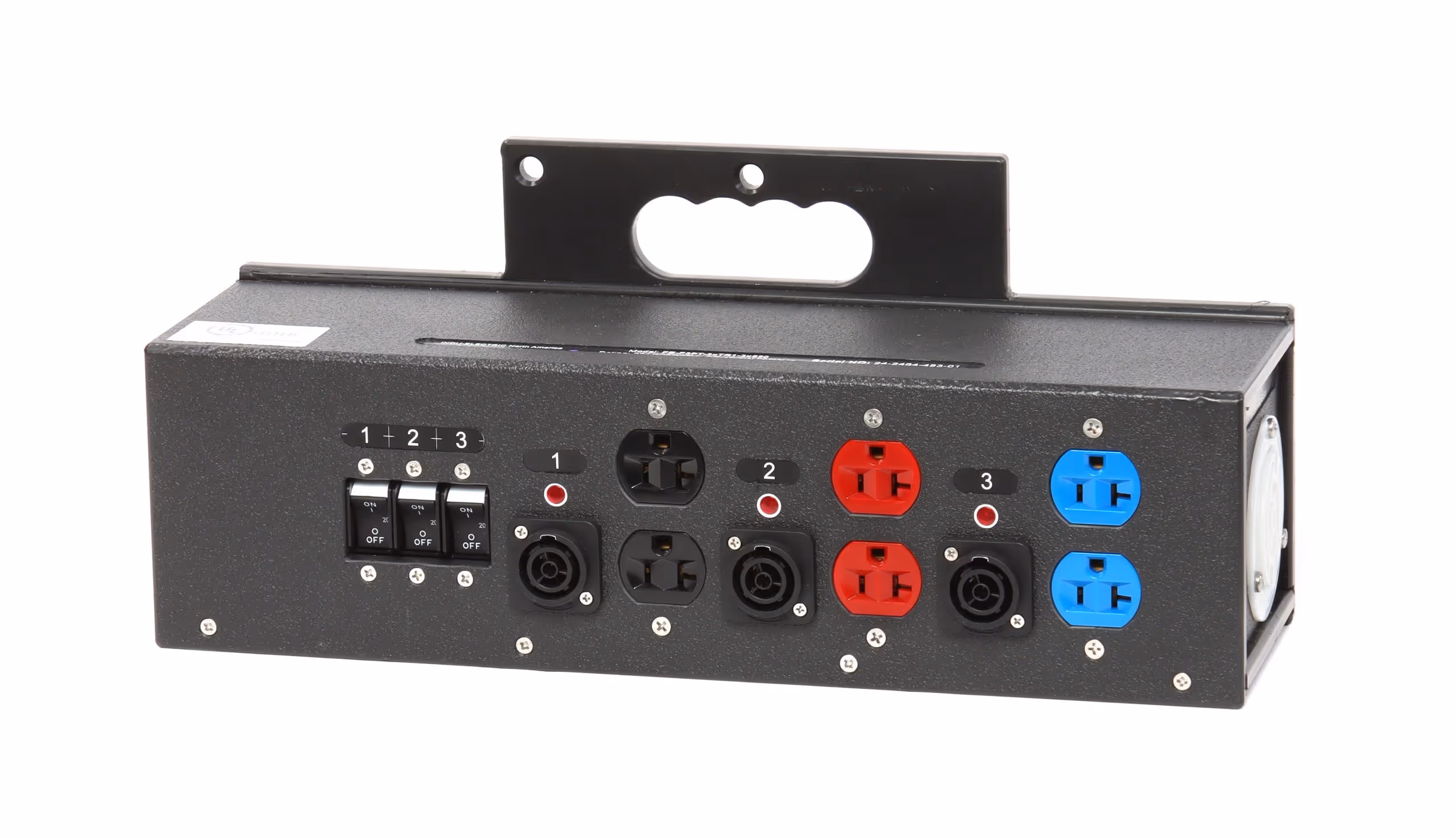

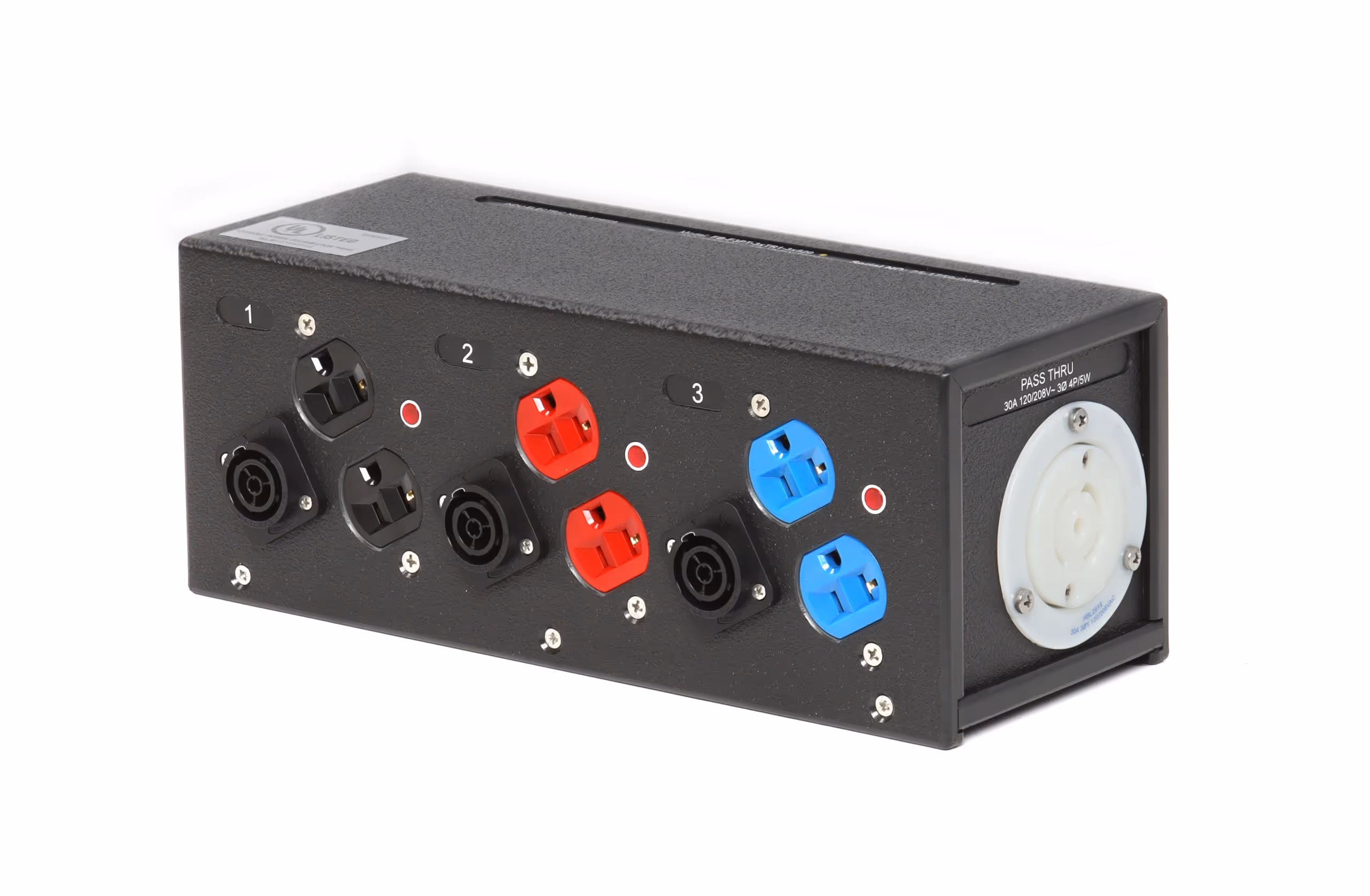

Input Device:
30A 3Ø L21-30 Twist-Lock
1 Pass Through
Output Device:
3- 20A 120V Duplex Outlets
3- 20A 120V powerCON® True1 (parallel)
Protected By:
3- 20A 1P Breaker
Model-Nr.:
FB-F3PT-3xTR1-3x520
Spec #
18002483
Dimensions:
12-3/16“L x 4-3/4“W x 4-3/4“H

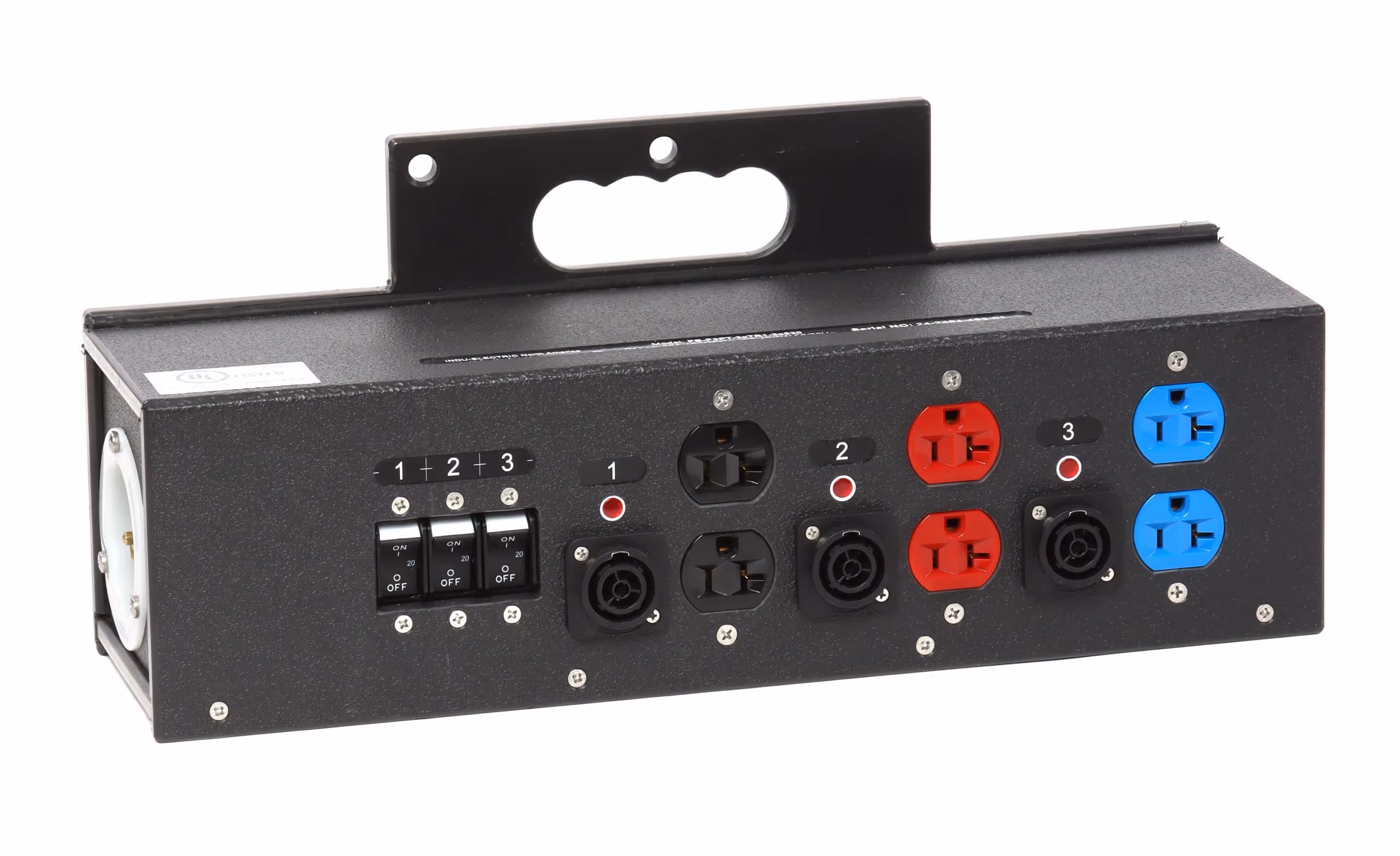

Input Device:
30A 3Ø L21-30 Twist-Lock
1 Pass Through
Output Device:
3- 20A 120V Duplex Outlets
3- 20A 120V powerCON® True1 (parallel)
Protected By:
3- 20A 1P Breaker
Model-Nr.:
FB-F3PT-3xTR1-3x520-C
Spec #
18002483-C
Dimensions:
16-1/2“L x 4-3/4“W x 7“H

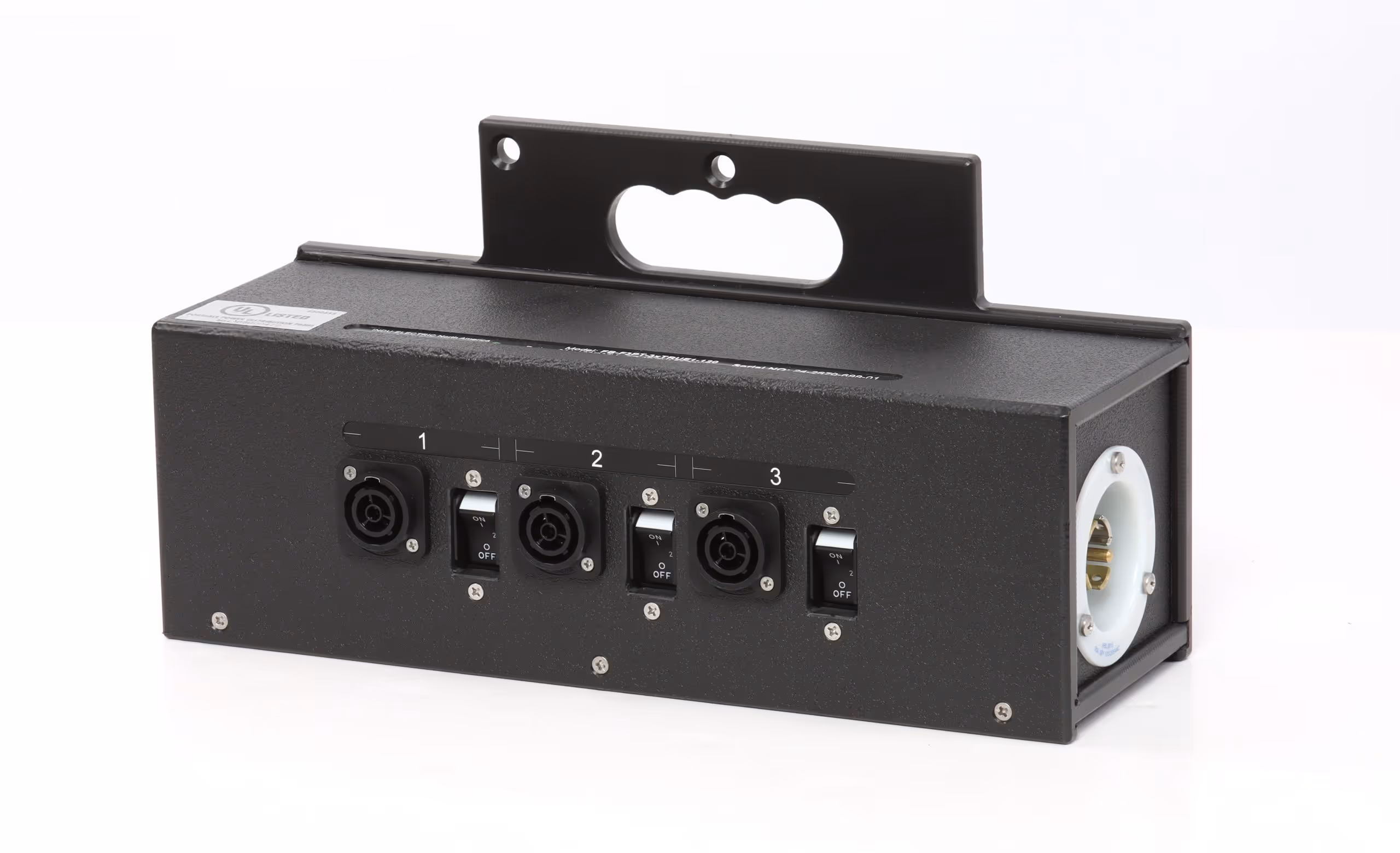

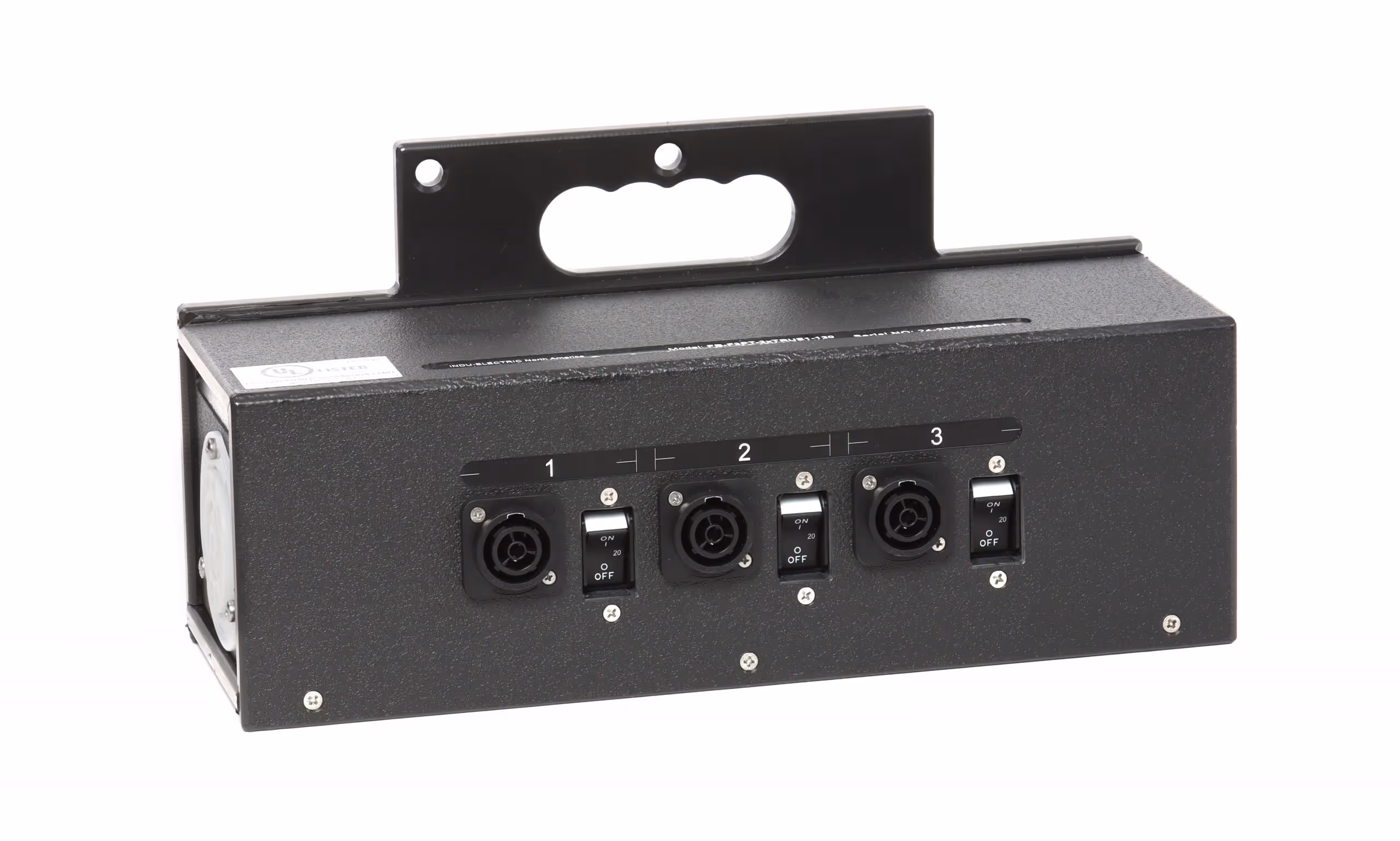

Input Device:
30A 3Ø L21-30 Twist-Lock
1 Pass Through
Output Device:
3- 20A 120V powerCON® True1
Protected By:
3- 20A 1P Breaker
Model-Nr.:
FB-F3PT-3xTRUE1-120
Spec #
18002699
Dimensions:
14“L x 4-3/4“W x 7“H
Input Device:
1- 20A 120V 6 Circuit 19Pin
Output Device:
6- 20A 120V powerCON® True1
Protected By:
N.A.
Model-Nr.:
FB-S19-6xPC
Spec #
18001798
Dimensions:
7-1/2“L x 4-3/4“W x 4-1/2“H

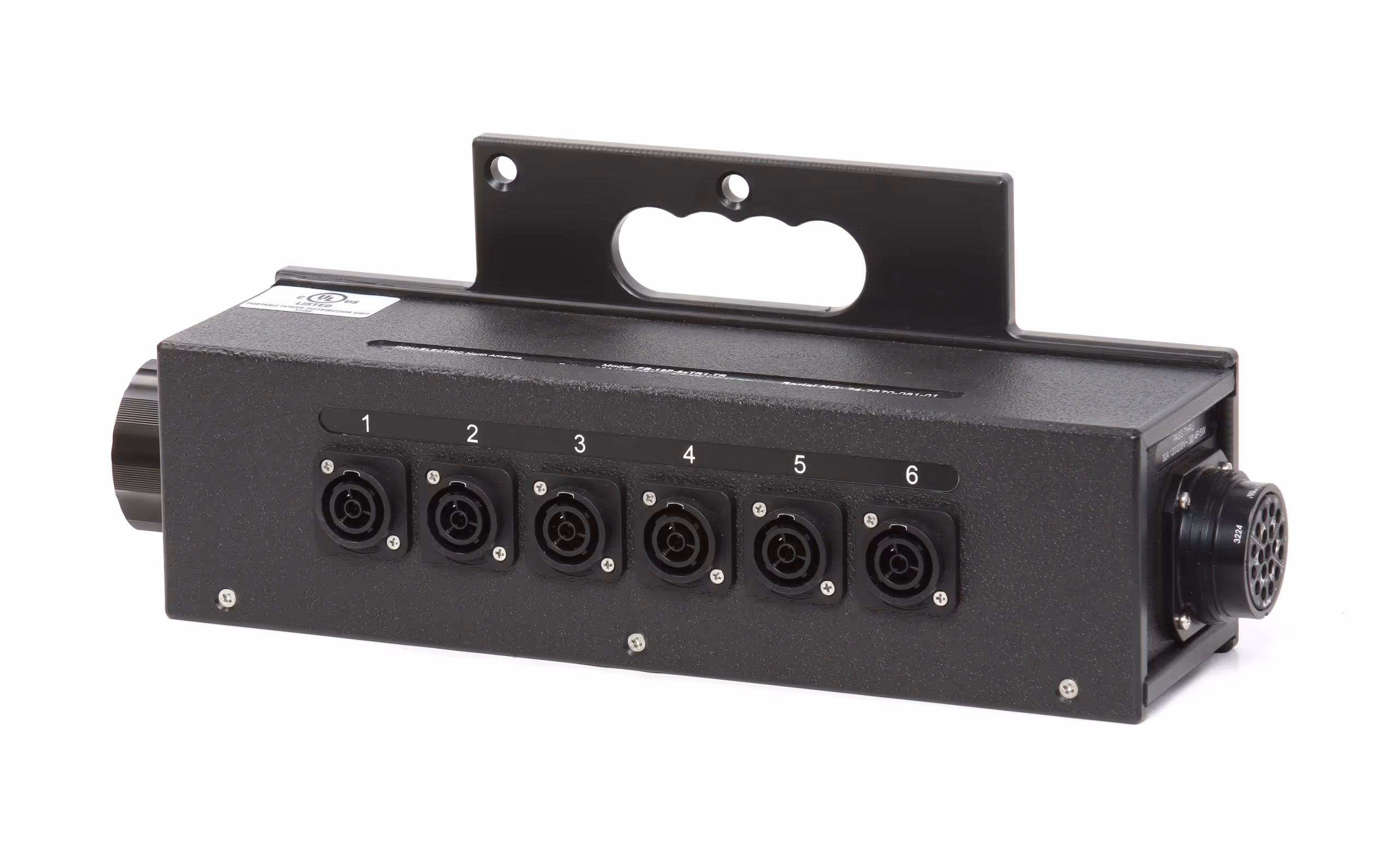

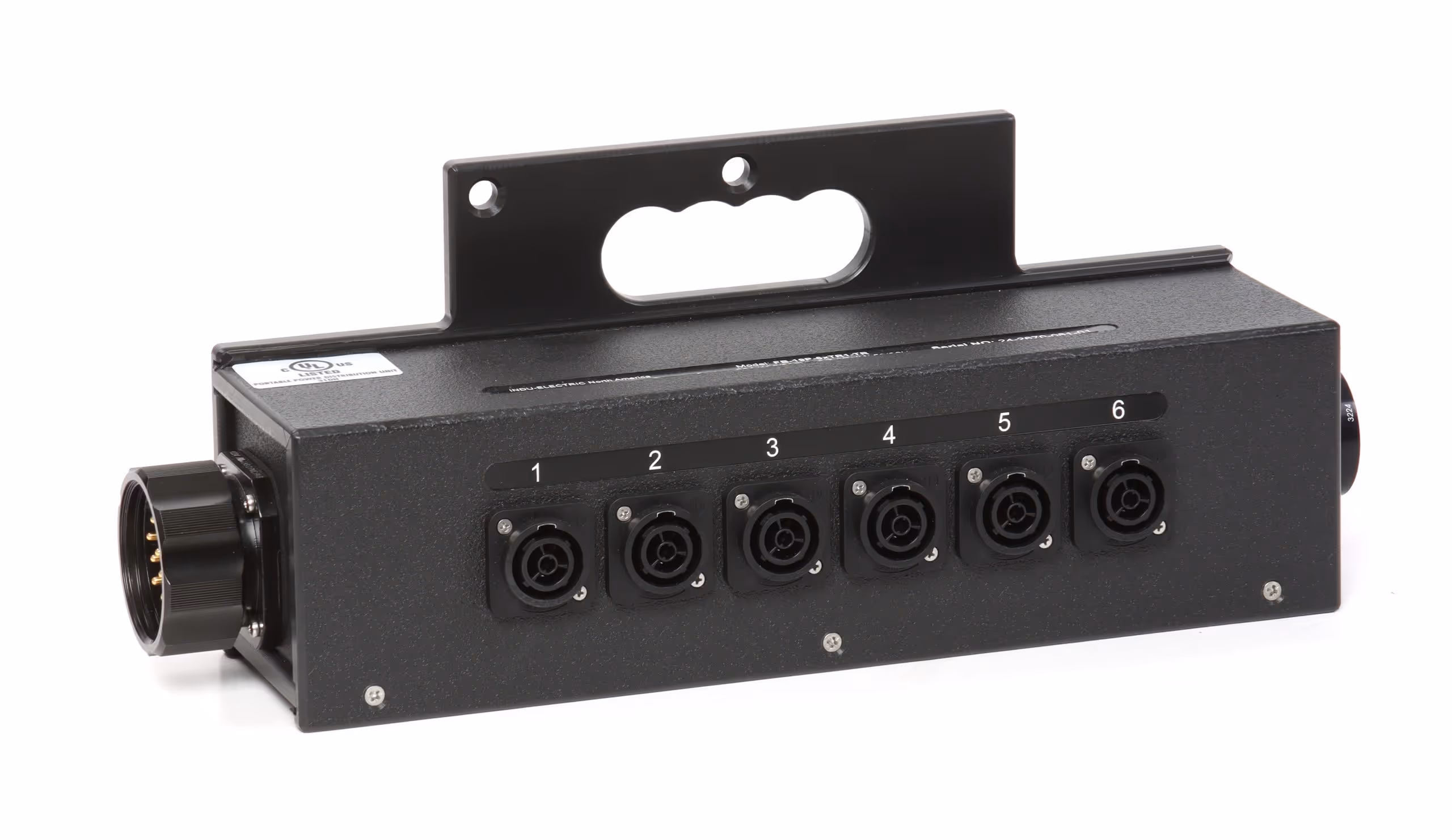

Input Device:
1- 20A 120V 6 Circuit 19Pin
1 Pass Through
Output Device:
6- 20A 120V powerCON® True1
Protected By:
N.A.
Model-Nr.:
FB-19P-6xTR1-TR
Spec #
18002081
Dimensions:
14-1/4“L x 4“W x 6-1/4“H

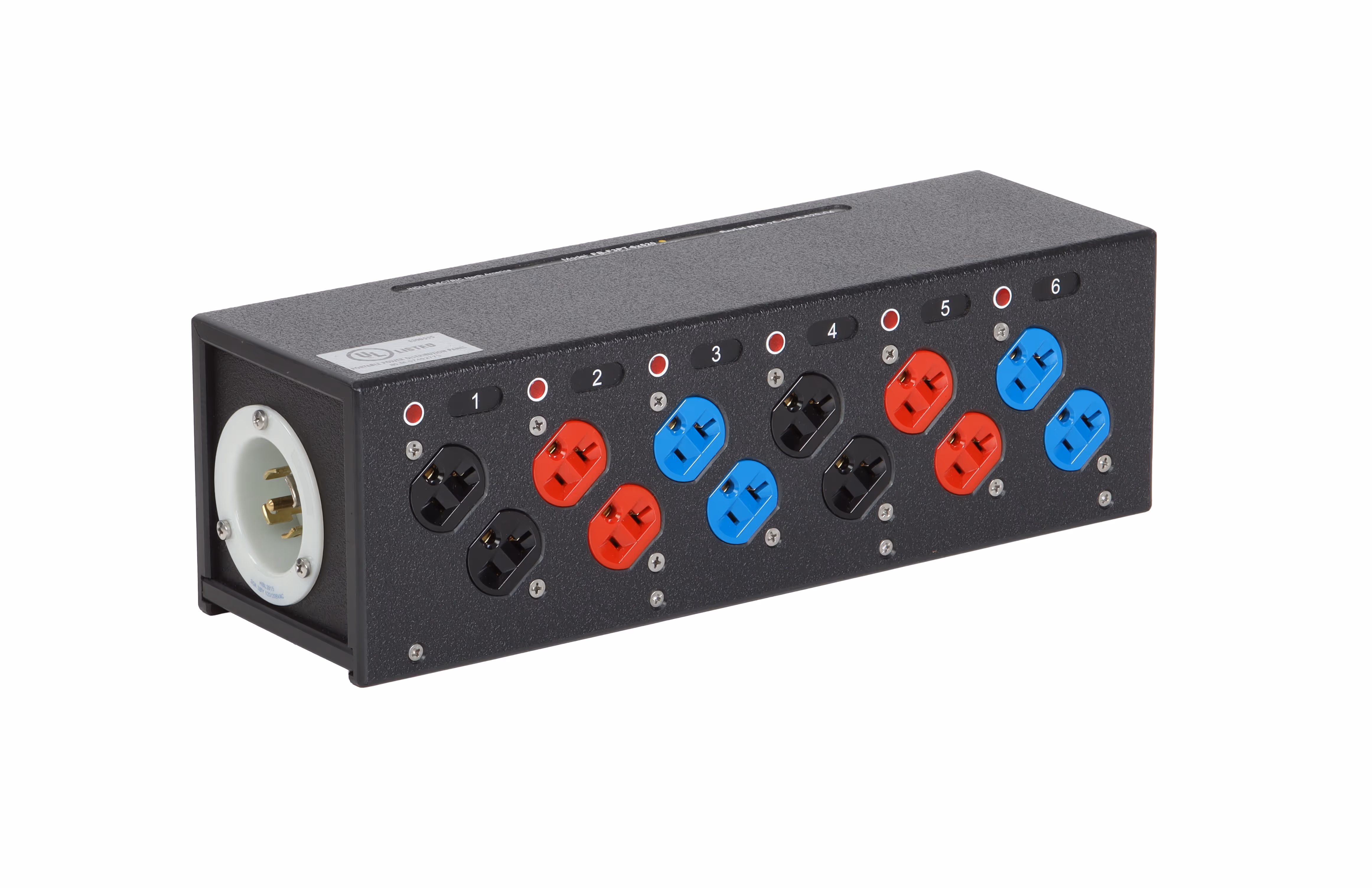

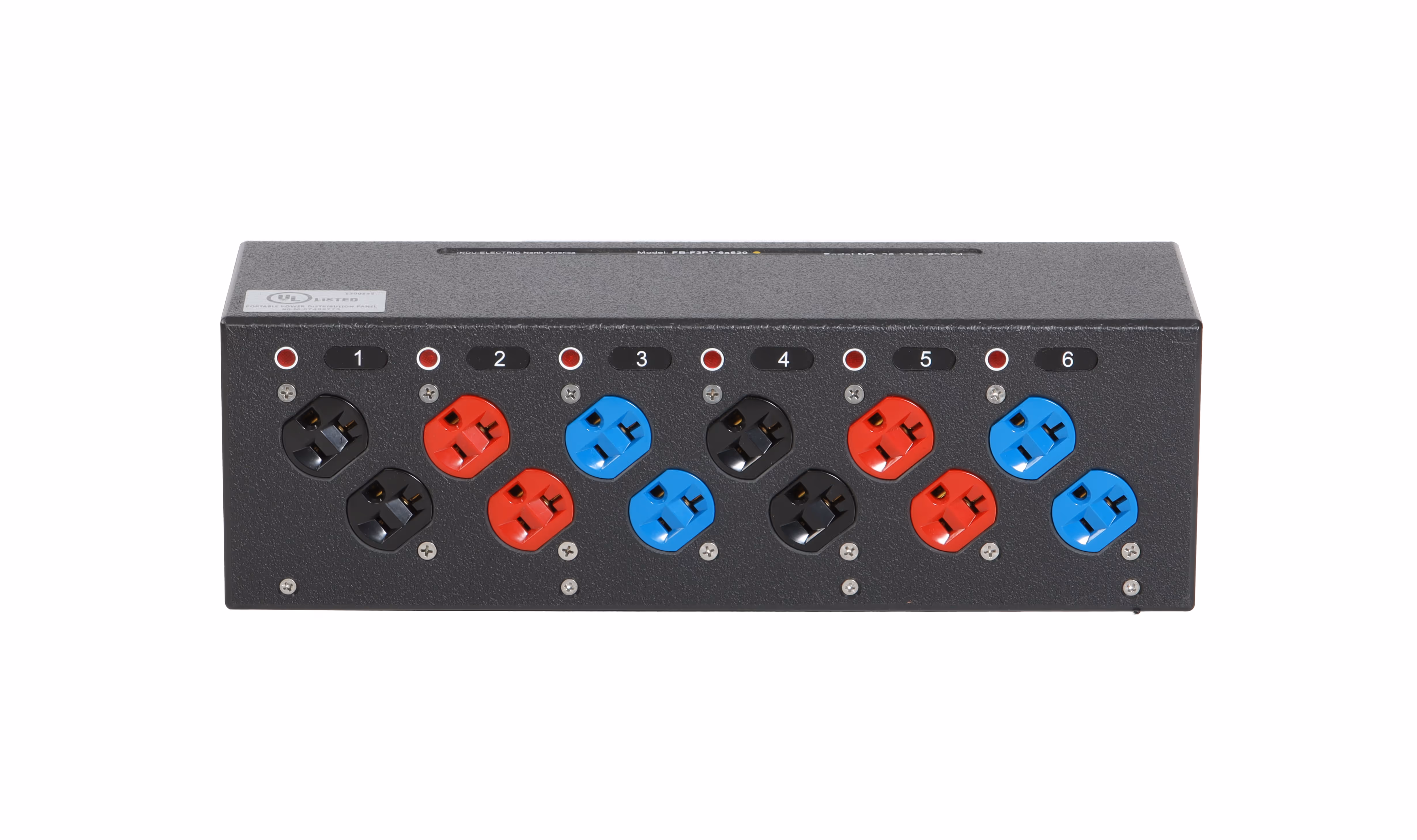

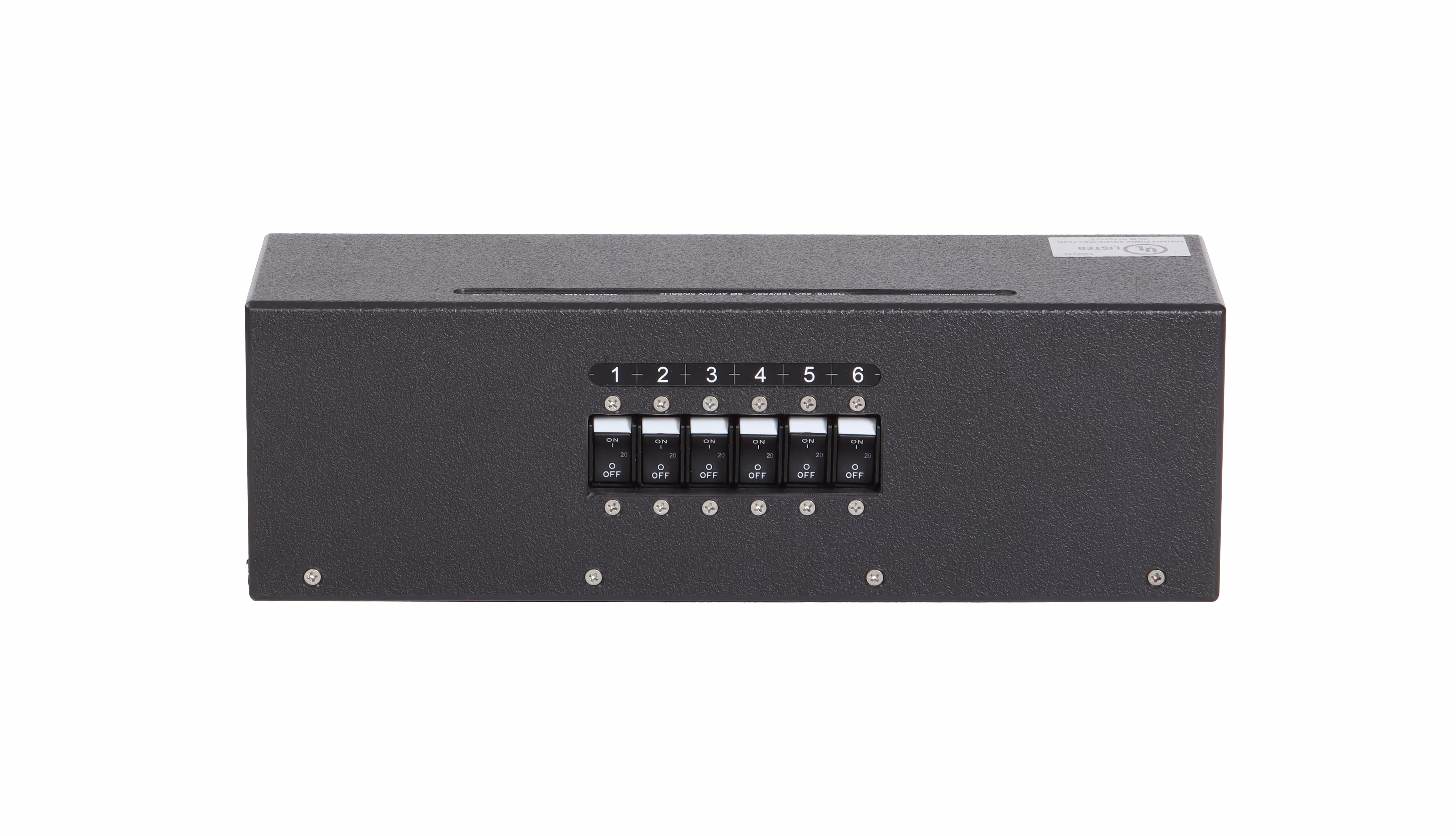

Input Device:
30A 4P 5W L2130 Inlet, 1-Pass-through
Output Device:
6- 20A 120V Duplex Outlets
Protected By:
6- 20A 1P Breaker
Model-Nr.:
FB-F3PT-6x520
Spec #
18001629
Dimensions:
15“L x 6“W x 6“H

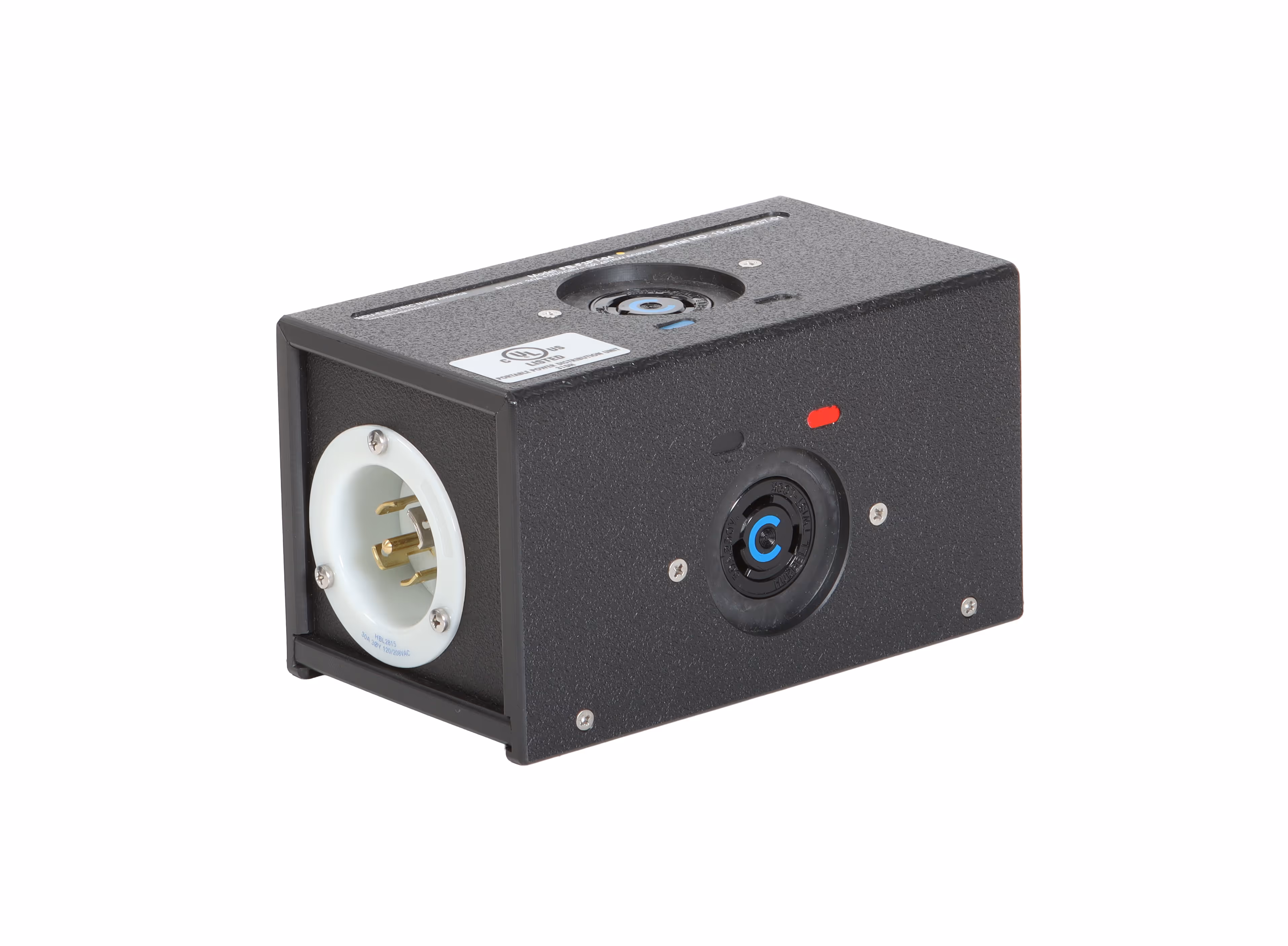

Input Device:
30A 4P 5W L21-30 Inlet, 1-Pass-through
Output Device:
3- 30A 208V 2P 3W L6-30 Twist-locks
Protected By:
NA
Model-Nr.:
FB-F3PT-04
Spec #
18001537
Dimensions:
7.5“L x4.5“W x 4.75“H

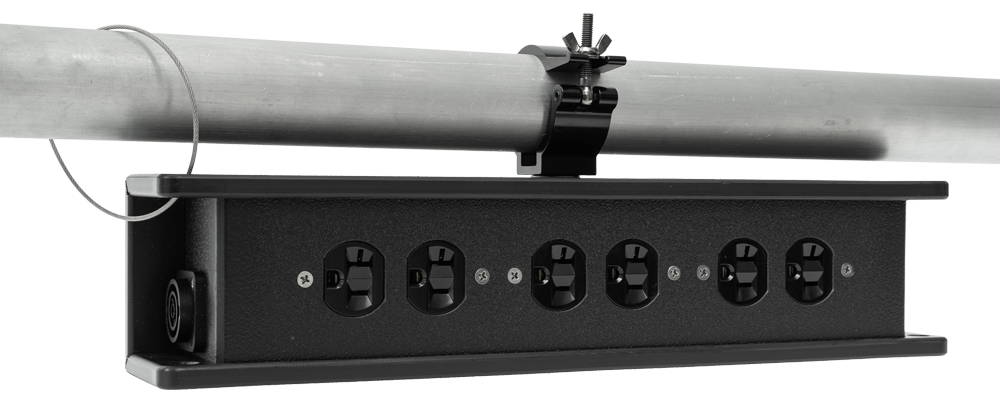

Input Device:
20A 120V powerCON® True1
1- Pass-through
Output Device:
3- 20A 120V Duplex Outlets
Protected By:
NA
Model-Nr.:
C-303-US
Spec #
18003115
Dimensions:
16“L x3.5“W x 3“H

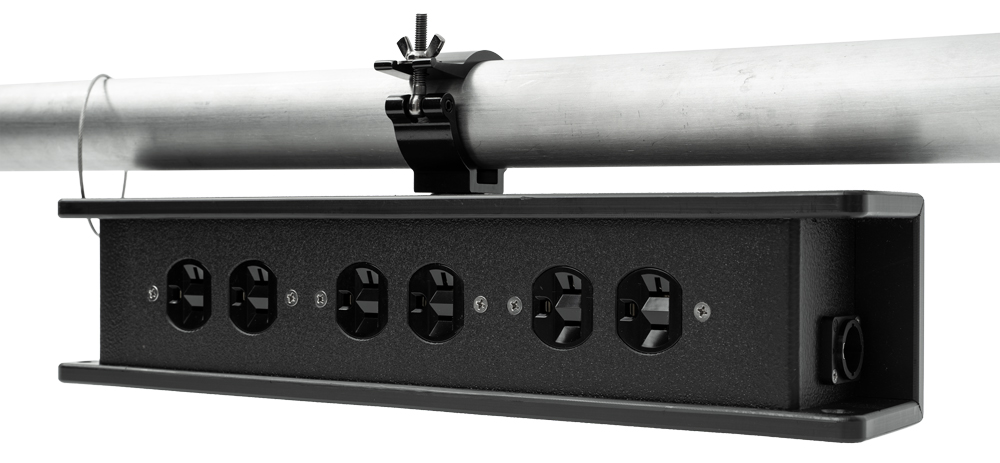

Input Device:
20A 120V powerCON® True1
1- Pass-through
Output Device:
6- 20A 120V Duplex Outlets
Protected By:
NA
Model-Nr.:
C-306-US
Spec #
18003116
Dimensions:
16“L x3.5“W x 4.25“H

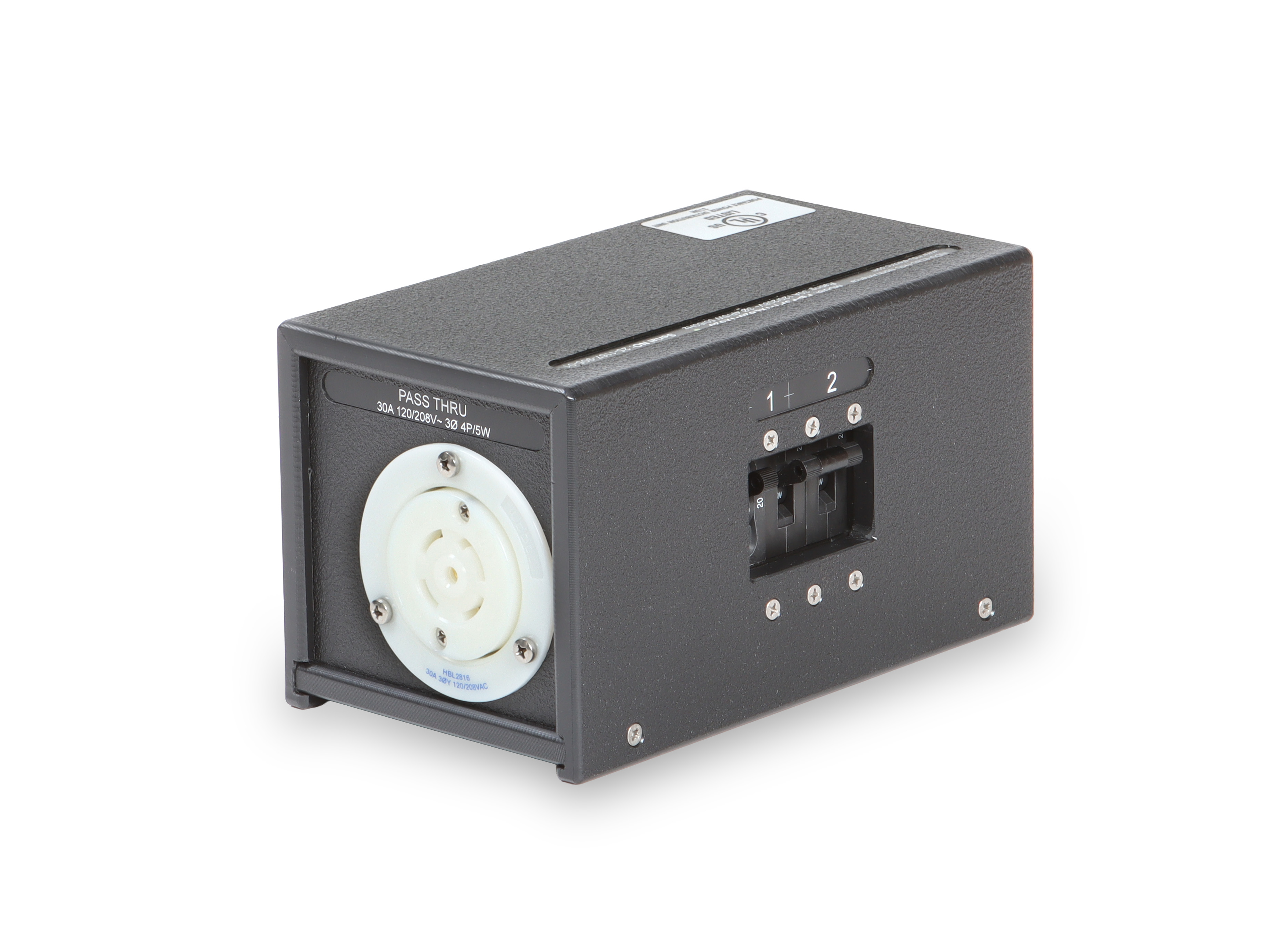

Input Device:
30A 4P 5W L21-30 Inlet, 1-Pass-through
Output Device:
1- 20A 208V 2P 3W L6-20 Twist-lock
1- 20A 120V Duplex Outlet
Protected By:
1- 20A 2P Breaker,
1- 20A 1P Breaker
Model-Nr.:
FB-F3PT-1xL620-1x520
Spec #
18002905
Dimensions:
7.5“L x4.5“W x 4.75“H

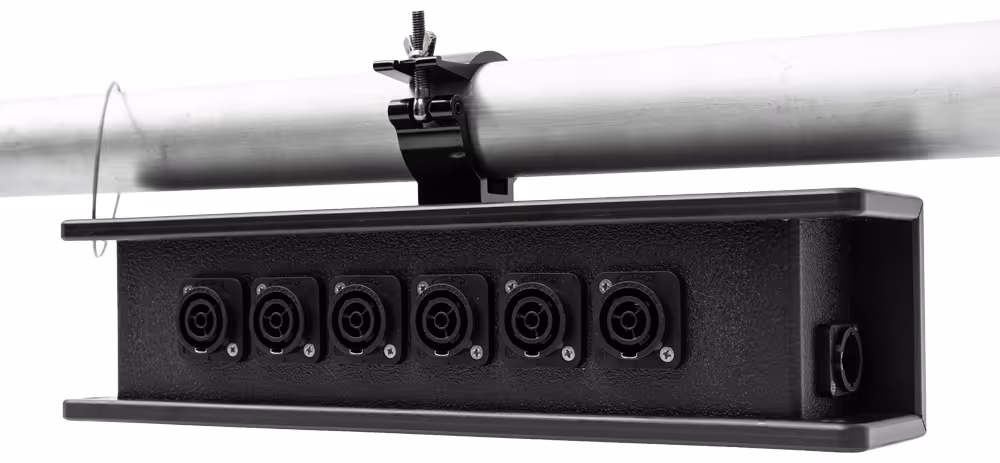

Input Device:
20A 120V powerCON® True1
1- Pass-through
Output Device:
6- 20A 120V powerCON® True1
Protected By:
NA
Model-Nr.:
C306-TR1-TR1
Spec #
18003117
Dimensions:
14.25“L x3.5“W x 3“H

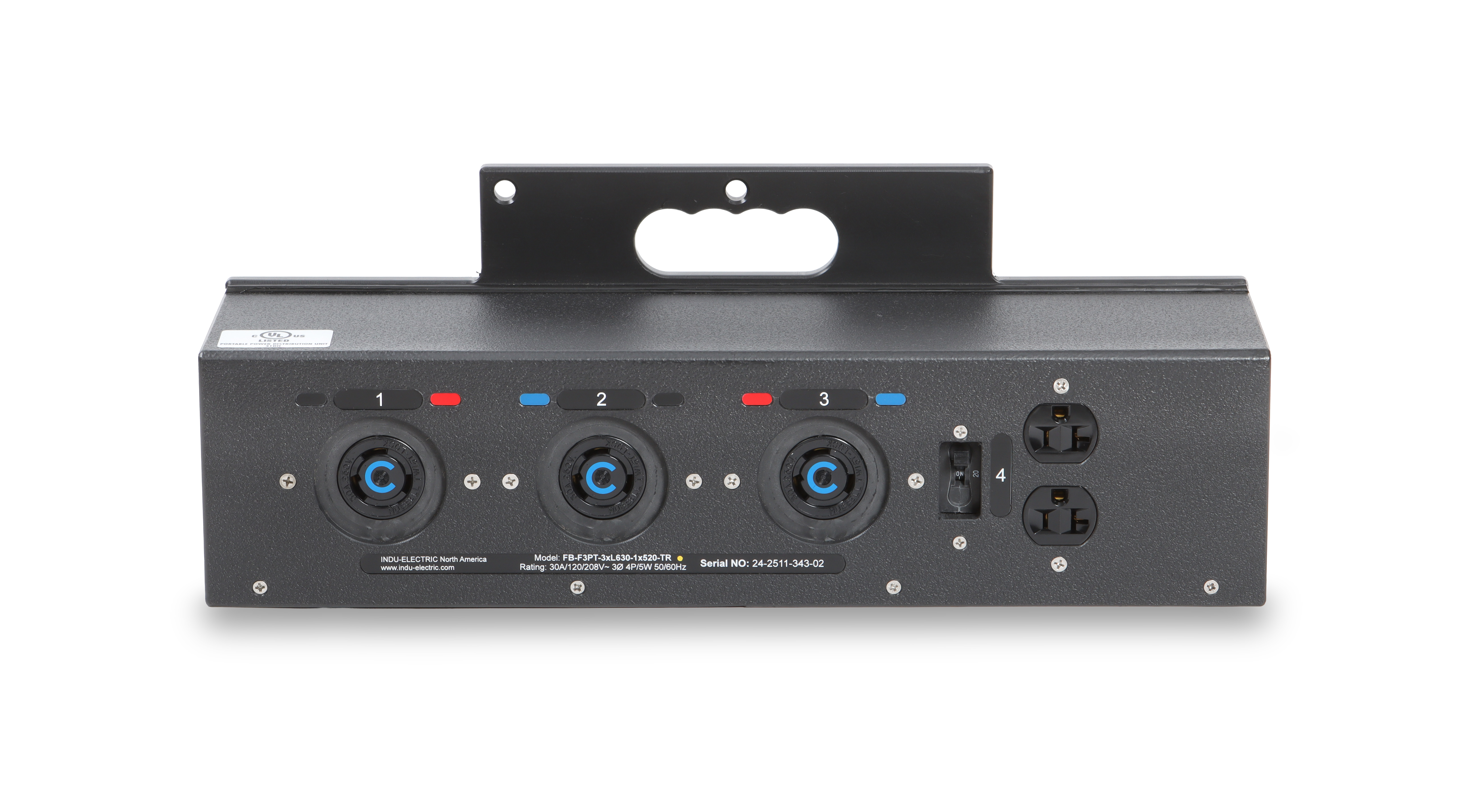

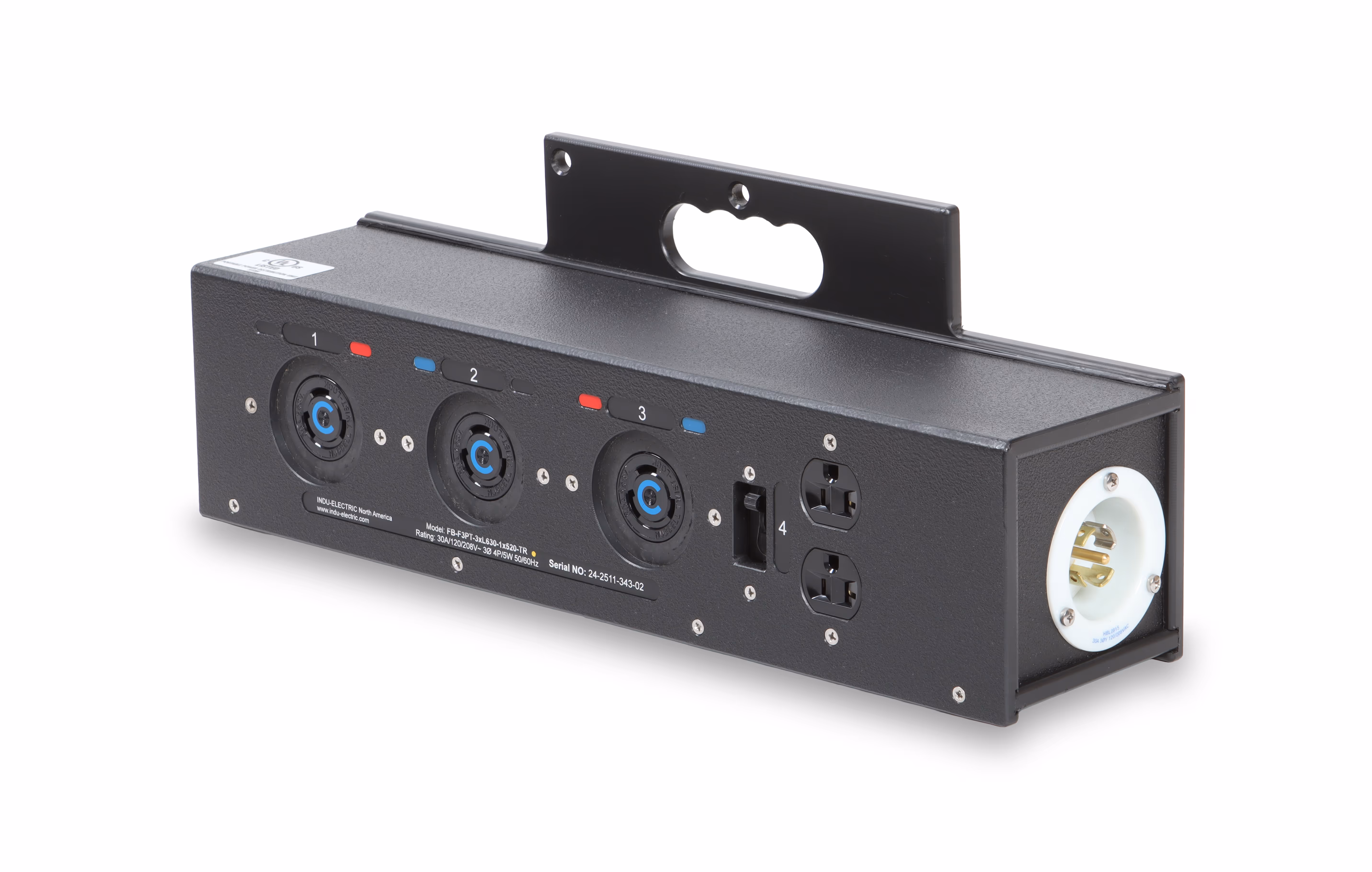

Input Device:
30A 4P 5W L21-30 Inlet, 1-Pass-through
Output Device:
3- 30A 208V 2P 3W L6-30 Twist-locks,
1- 20A 120V Duplex Outlet
Protected By:
1- 20A 1P Breaker
Model-Nr.:
F3PT-3xL630-1xt20-TR
Spec #
18002343
Dimensions:
19“L x 4.75“W x 7“H

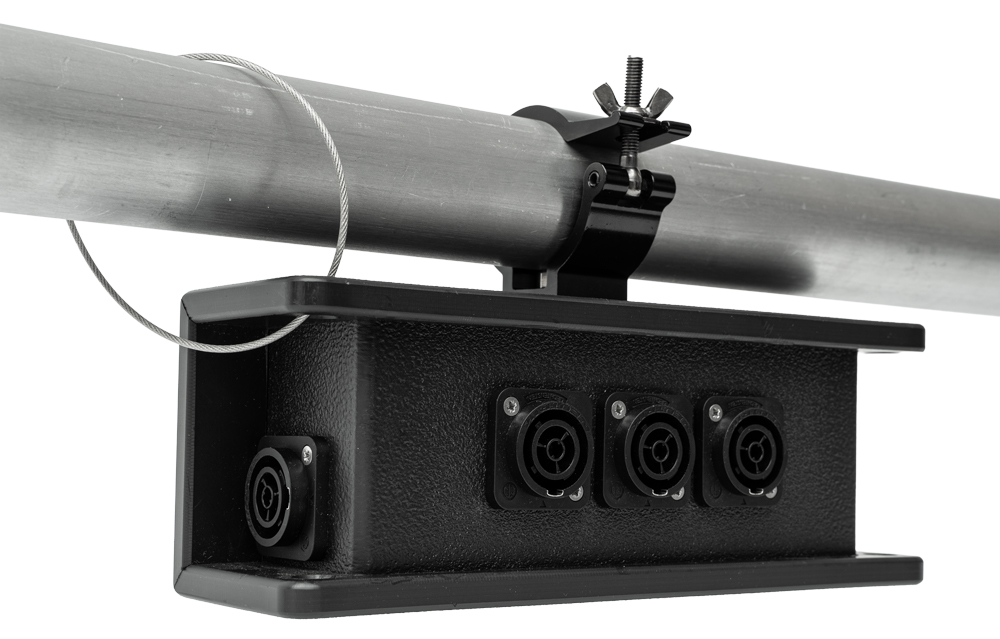

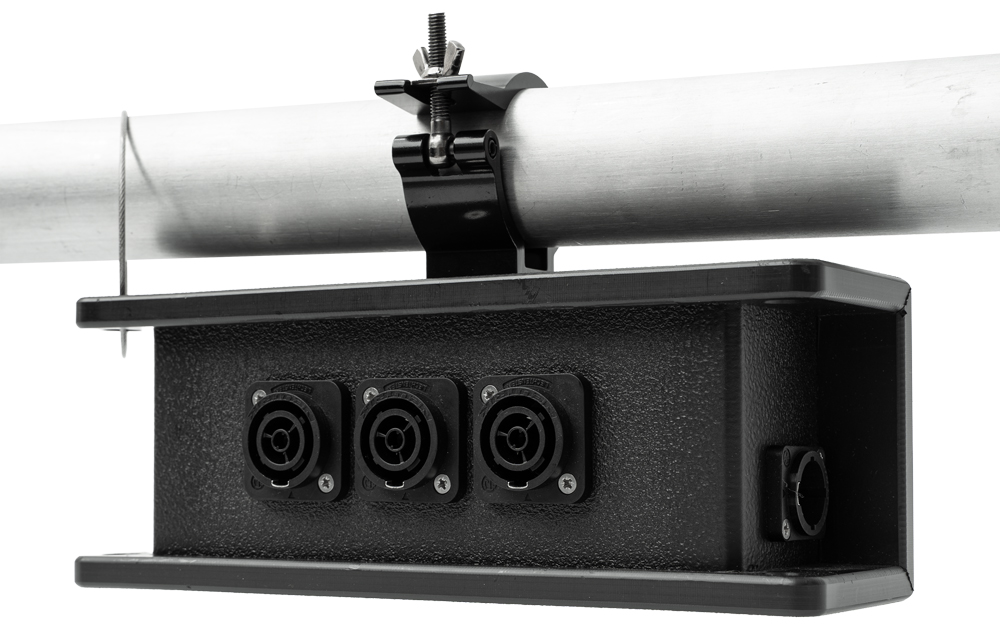

Input Device:
20A 120V powerCON® True1
1- Pass-through
Output Device:
3- 20A 120V powerCON® True1
Protected By:
NA
Model-Nr.:
C-303-TR1-TR1
Spec #
18003118
Dimensions:
13.25“L x3.5“W x 3“H

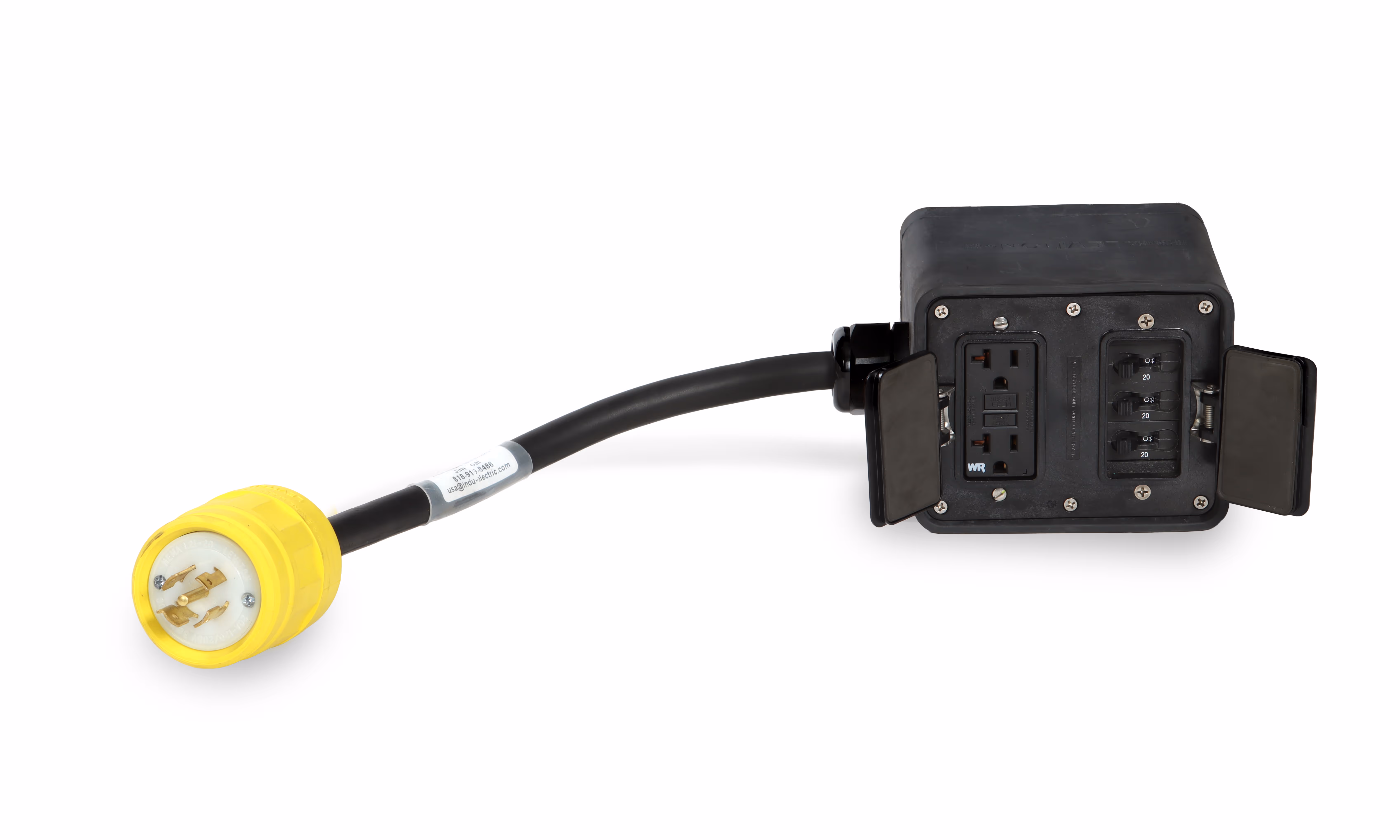

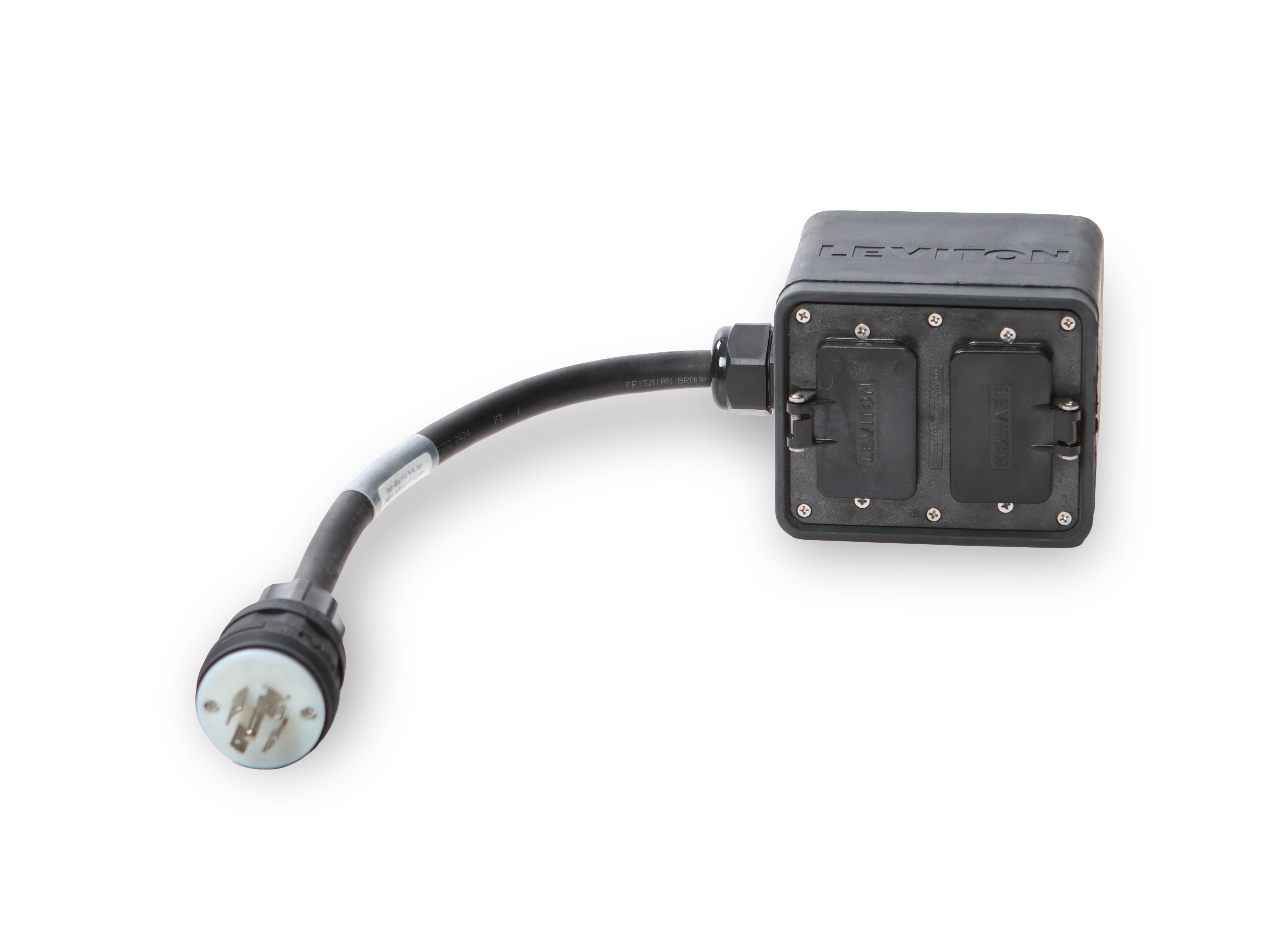

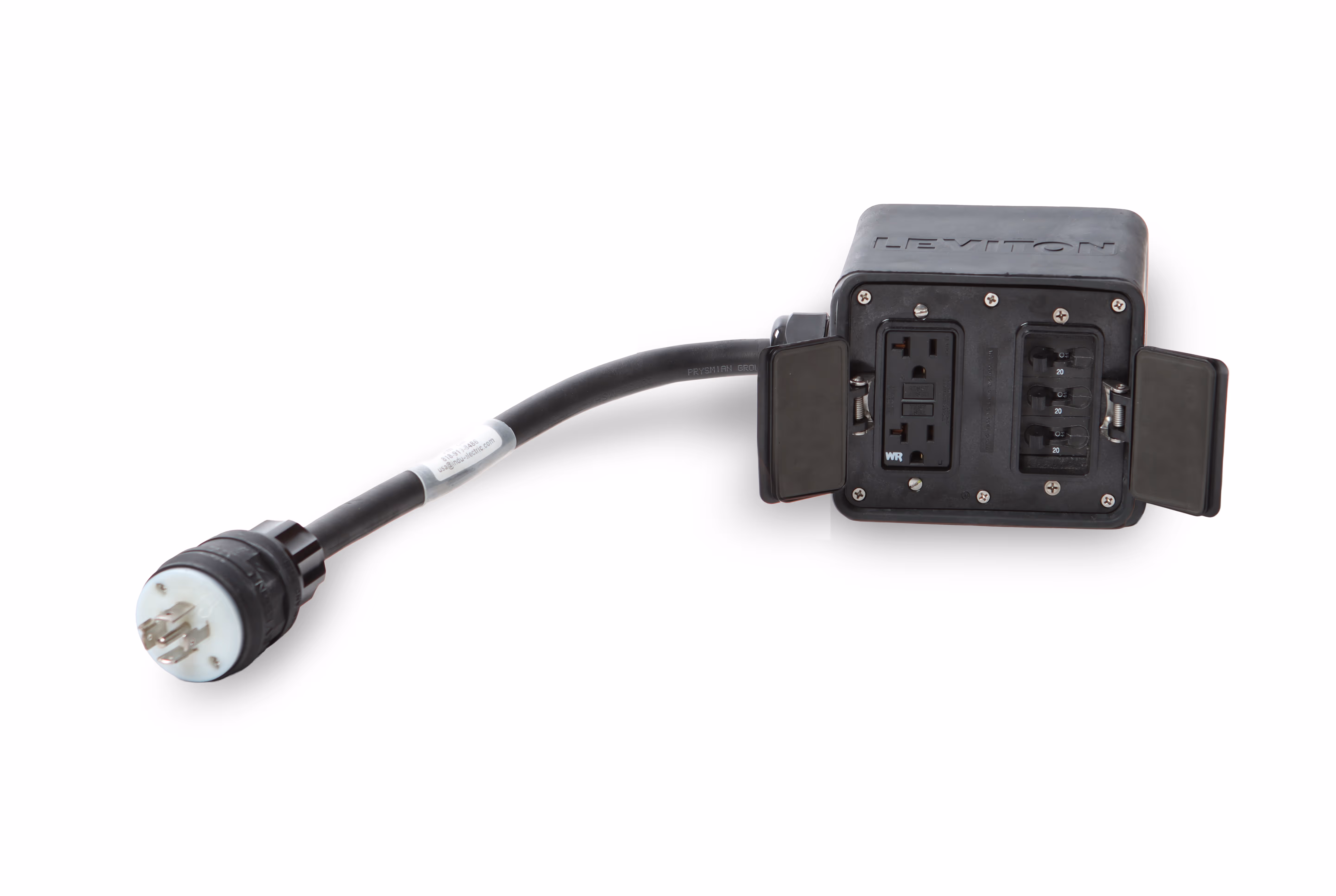

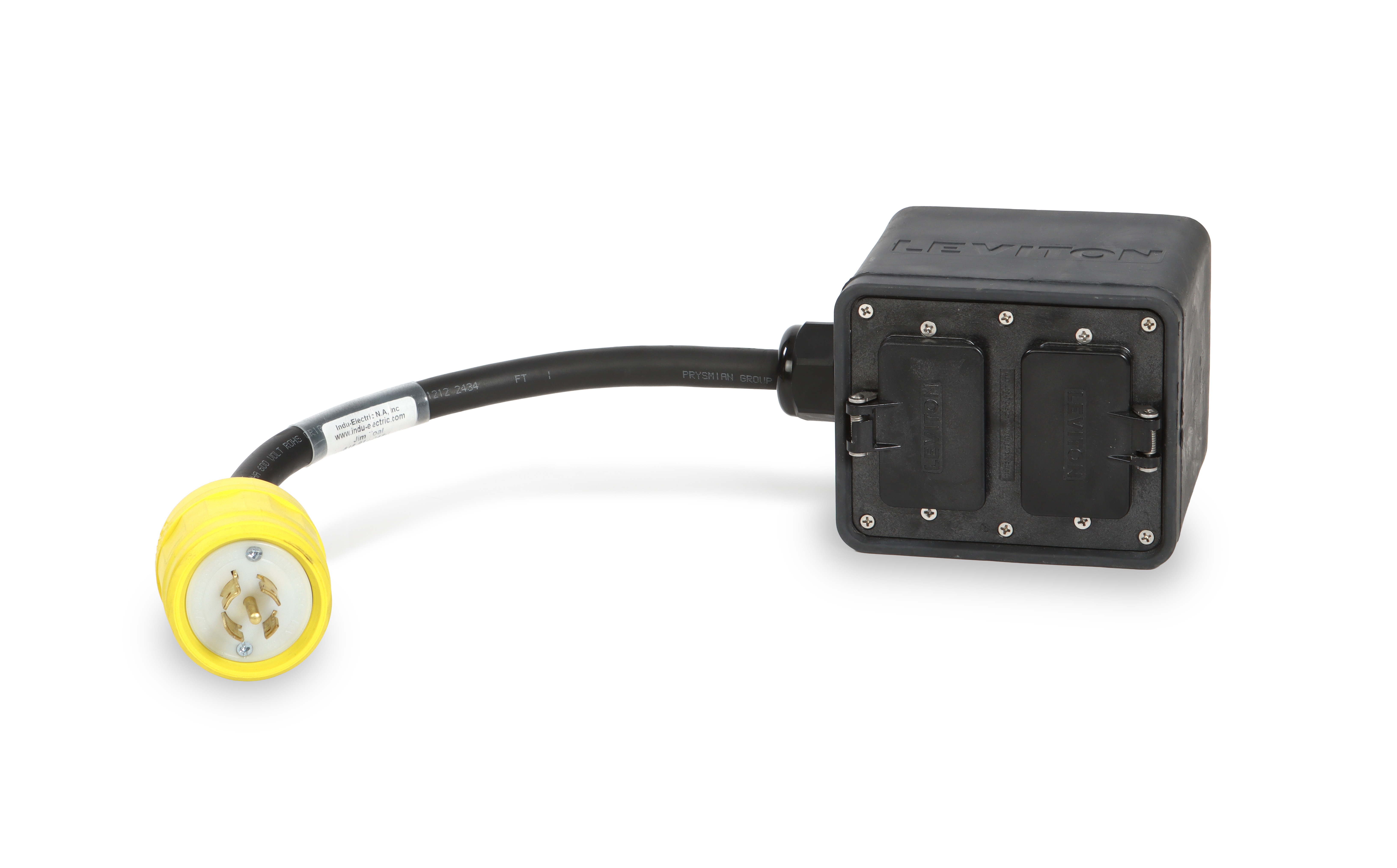

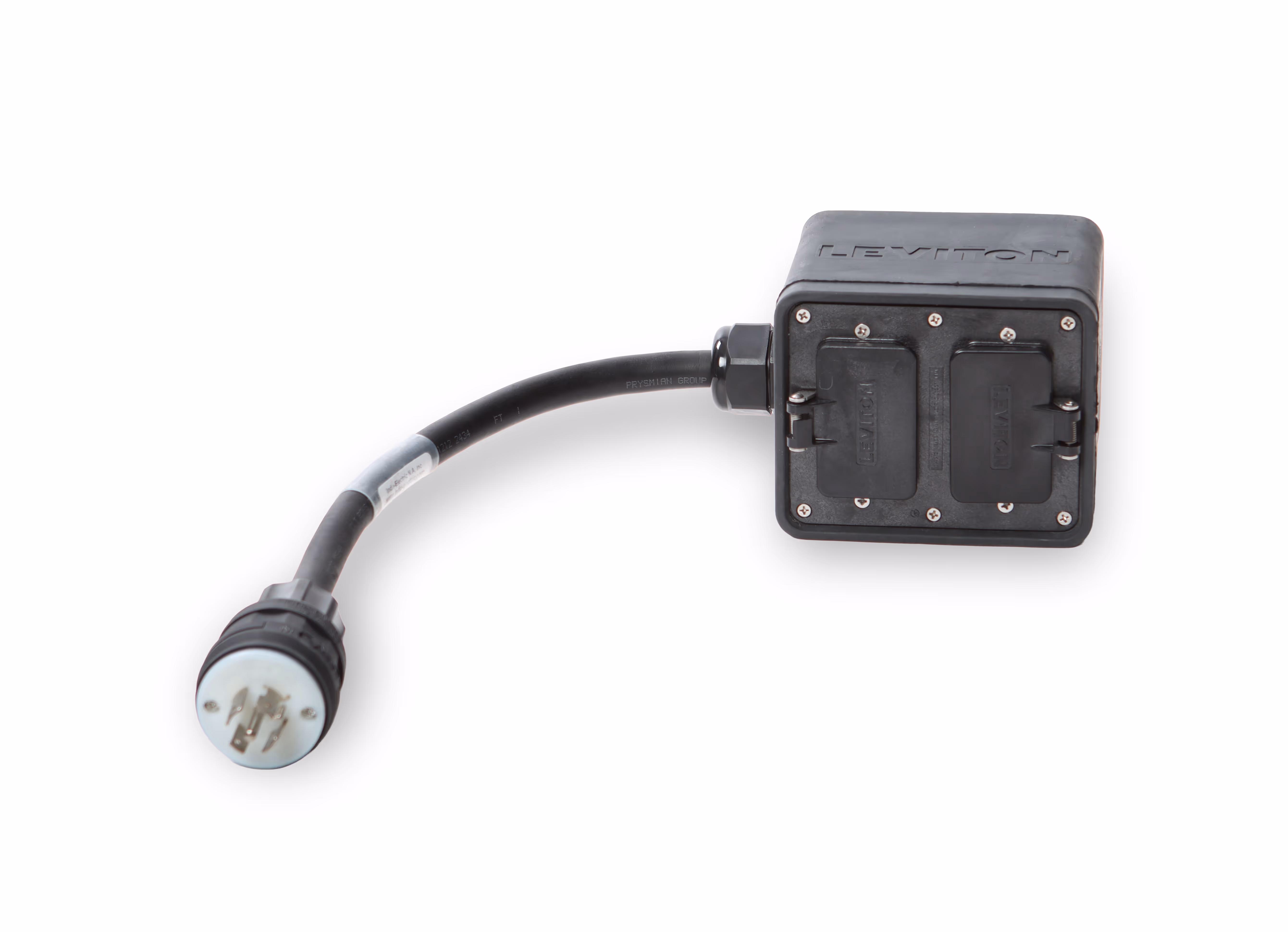

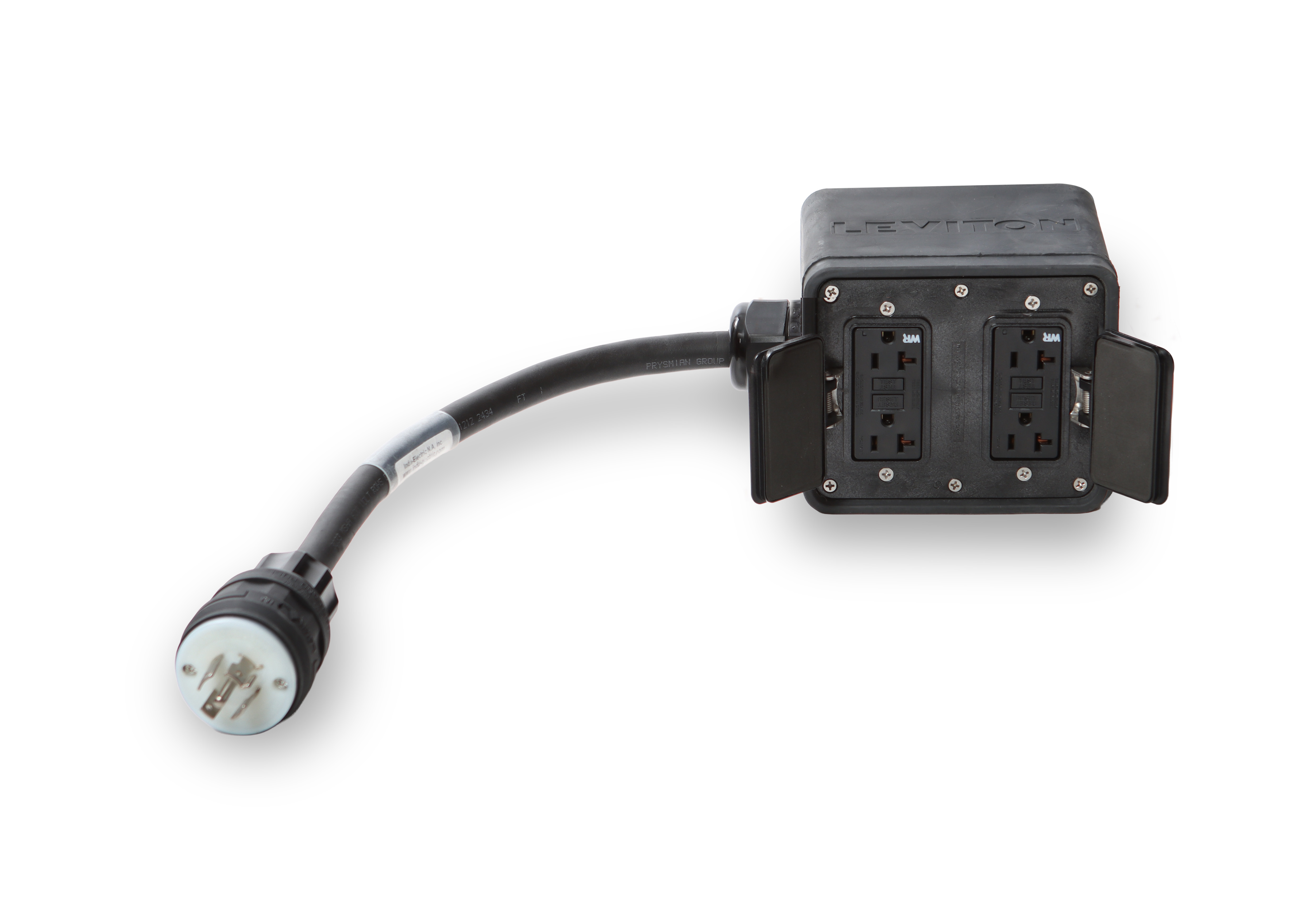

Input Device:
30A 208V L21-30 18’’ 8/5SOOW Tail
Output Device:
3- 20A 120V GFCI Duplex Outlets
Protected By:
3- 20A 1 Pole Breaker
Model-Nr.:
L2130-Quad-3x520GFCI
Dimensions:
6“L x 5“W x 4.75“H
