Reliable power separation for every setup.

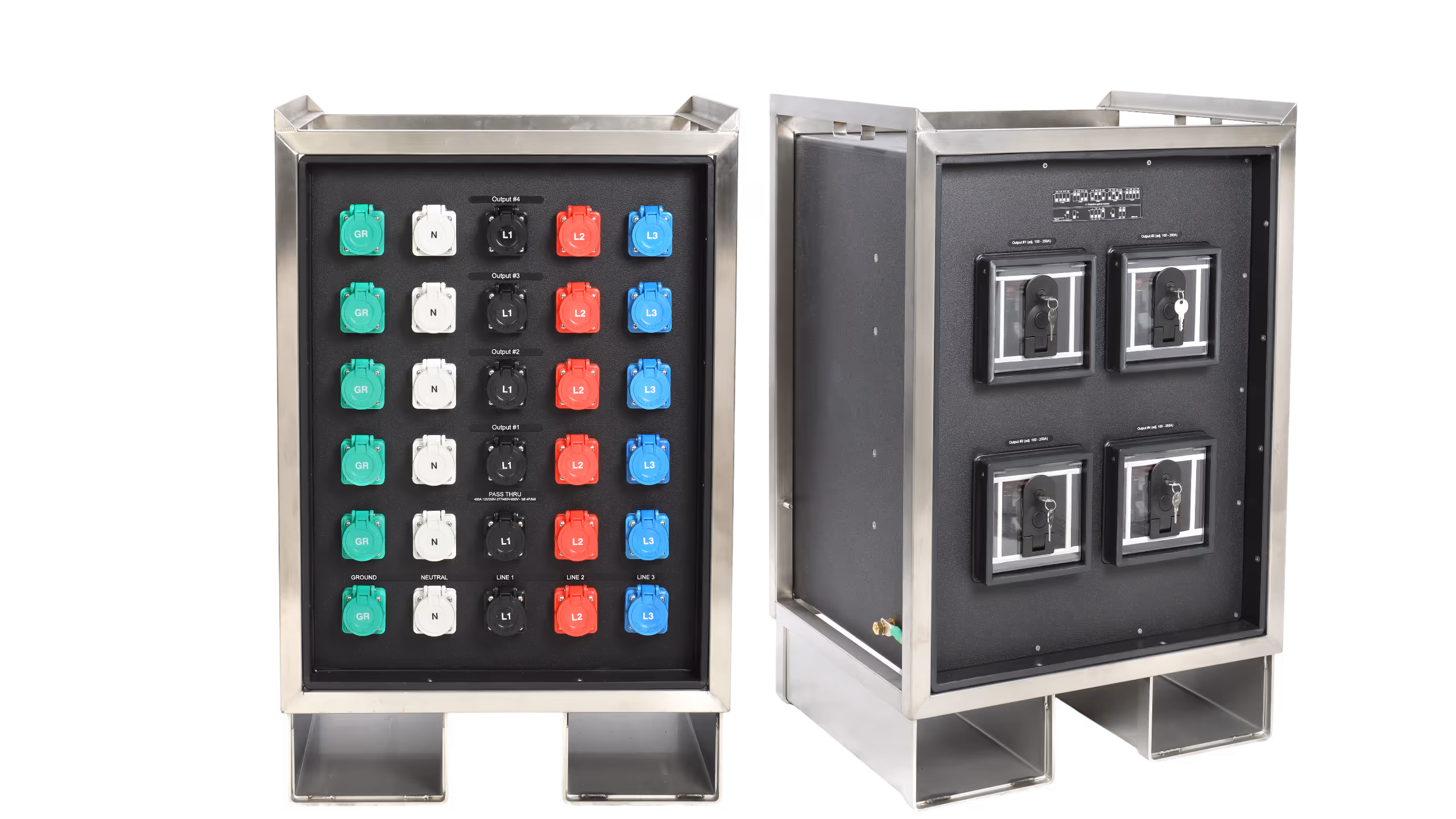

INDU-ELECTRIC’s CAM Disconnects offer a wide range of solutions for professional power distribution systems. The product line includes various configurations – from compact, portable units for mobile use to larger designs built into aluminum or stainless steel frames for stationary or industrial applications.
All models feature Locking-CAM connectors for input and output and cover all common power ratings. Custom solutions are always possible. We tailor the protection setup to your requirements, with configurations that may include single MCCBs, multipole circuit breakers or pass-through functionality.
Our CAM Disconnects are ideal for touring setups, temporary installations for film productions or live events, and industrial applications – wherever safe and reliable power distribution is essential.

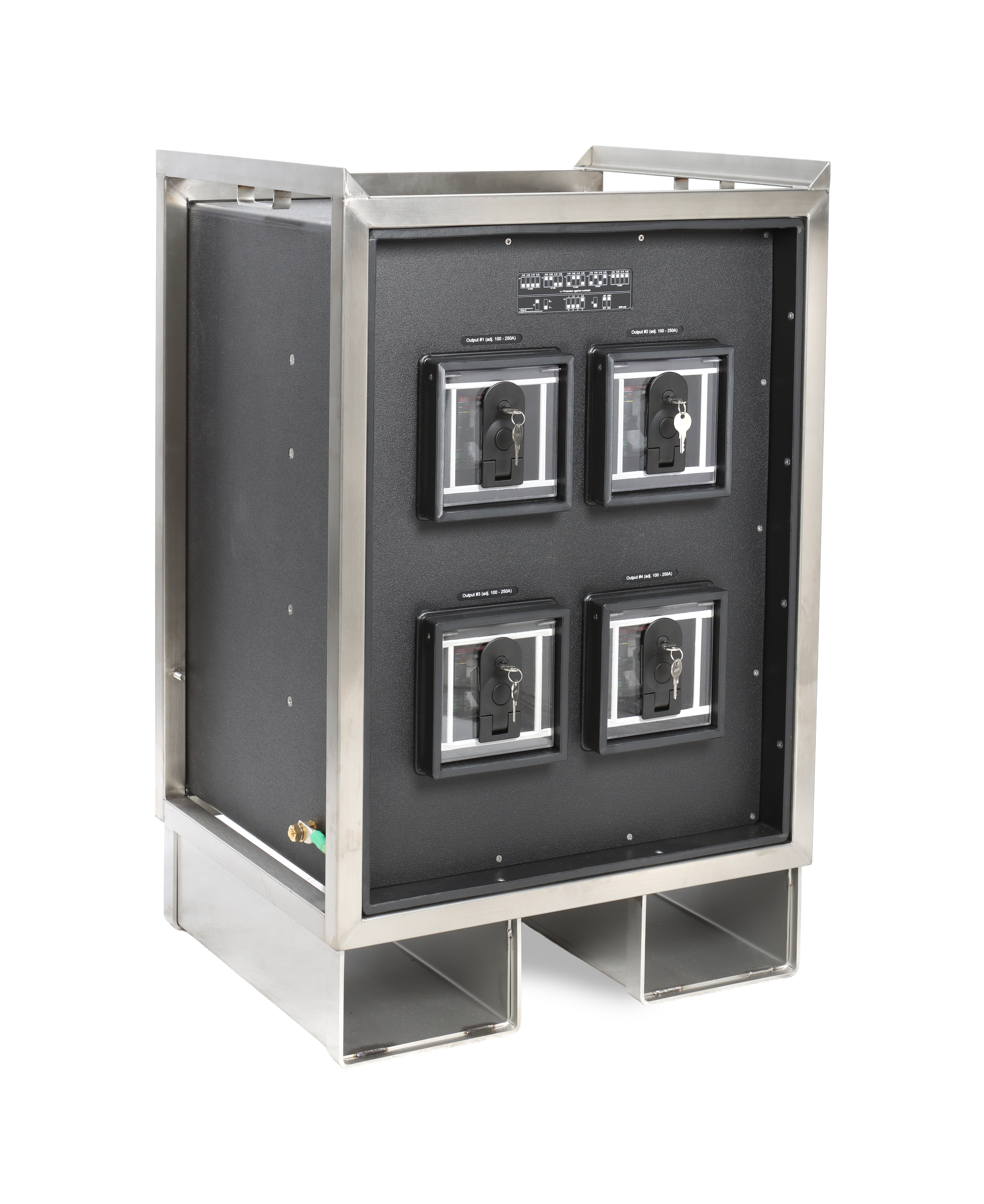

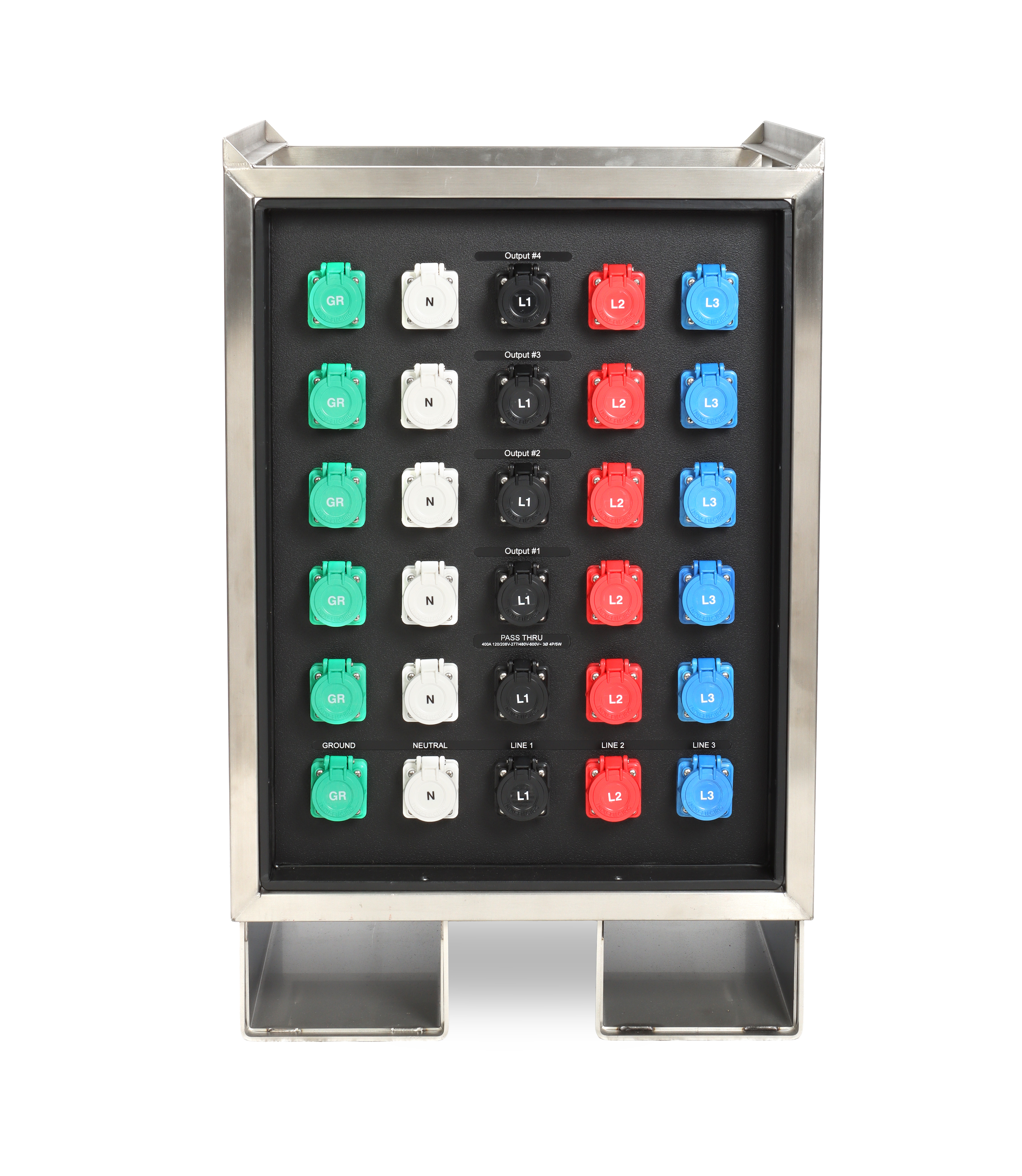

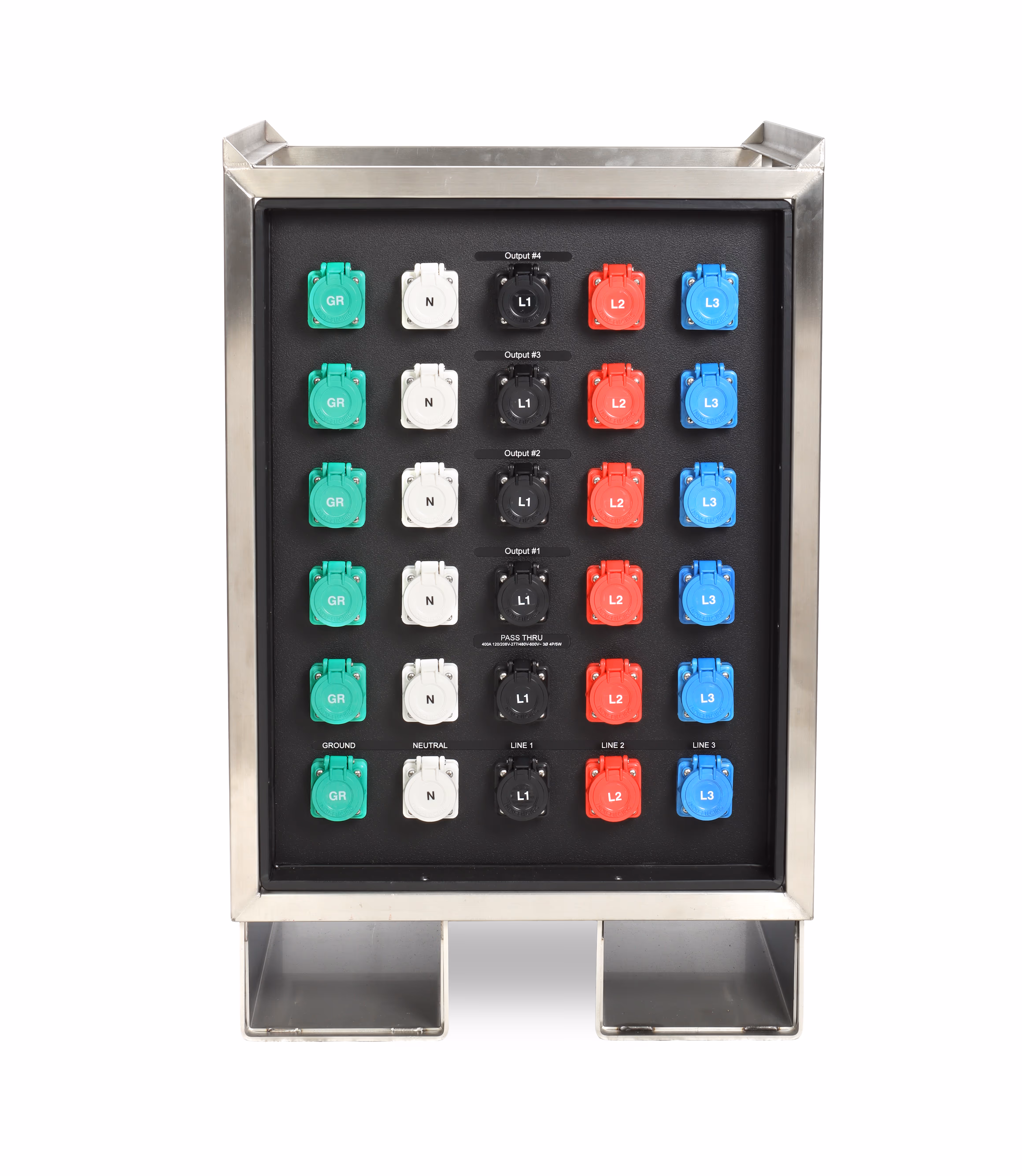

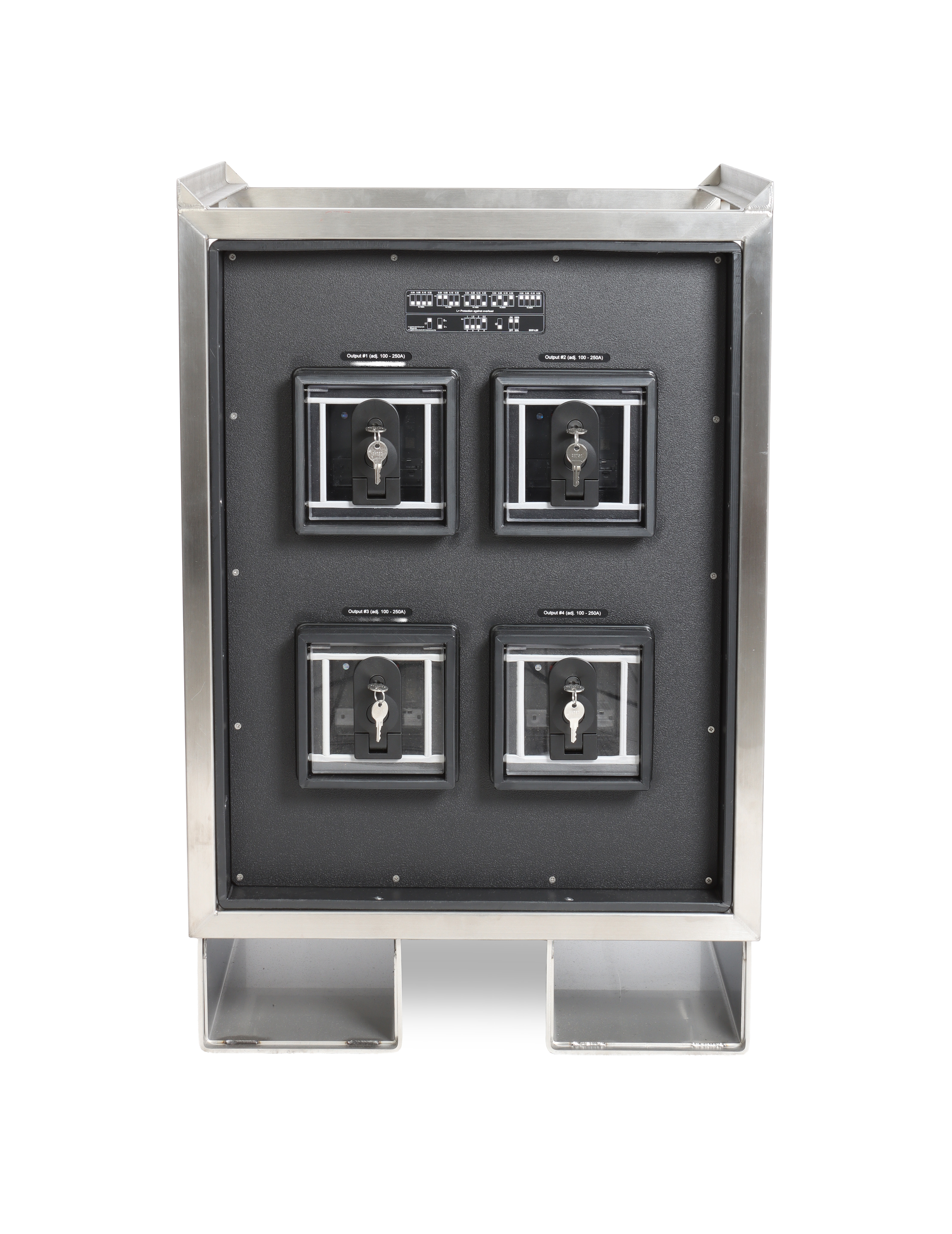

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
4- 250-100A 3Ø Locking Cam
Protected By:
4- 250-100A 3P adjustable Breaker
Breakers are rated up to 600V
Model-Nr.:
AGG-ME-TP-400
Spec #
18000979
Dimensions:
23.75“L x 20“W x 30H
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 100A 3Ø Locking Cam
Protected By:
1- 400A 3P Main Breaker
4- 100A 3P Breaker
Model-Nr.:
4 Way 100A Cam Disconnect
Dimensions:
24"L x 24"W x 28"H

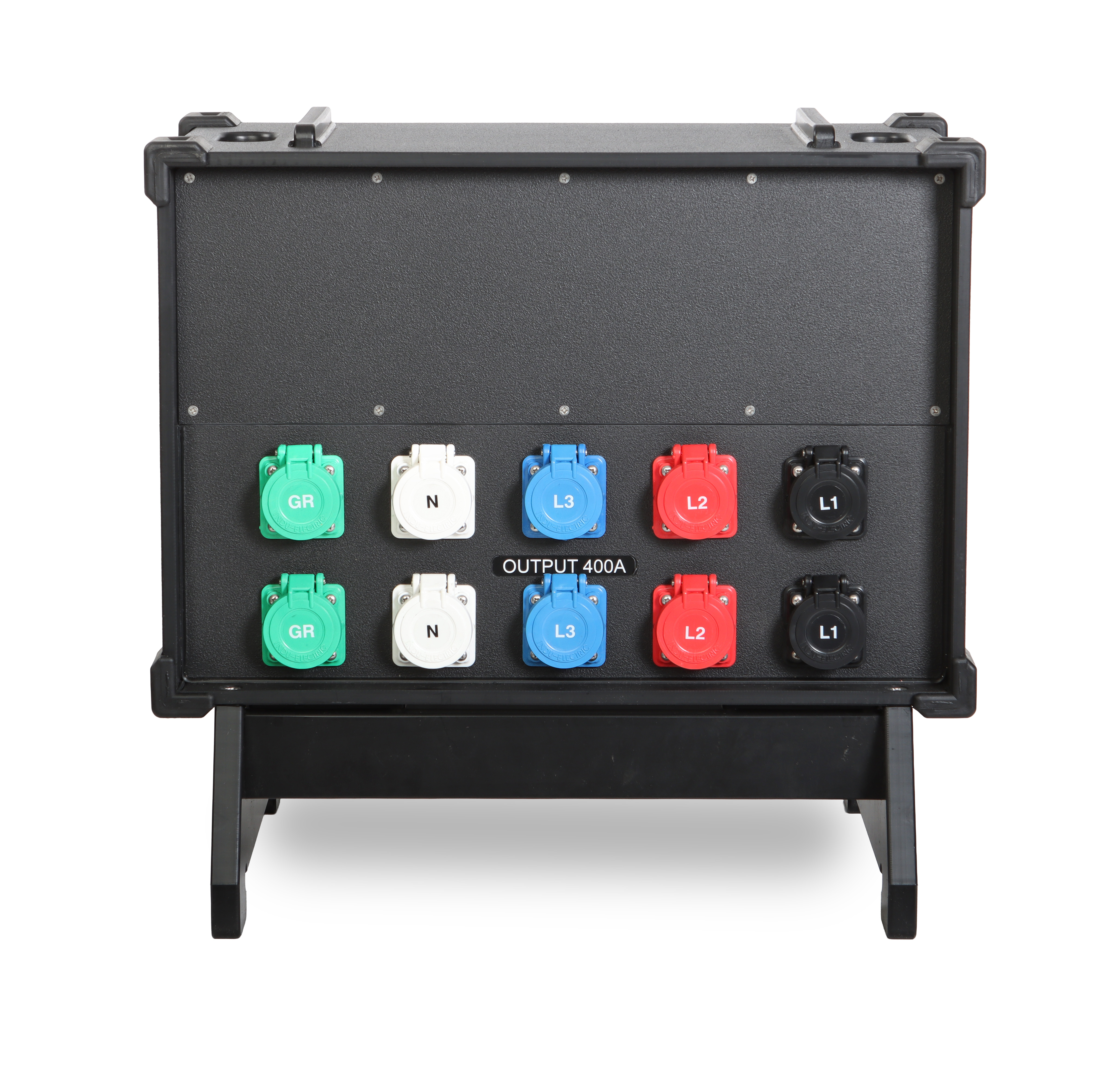

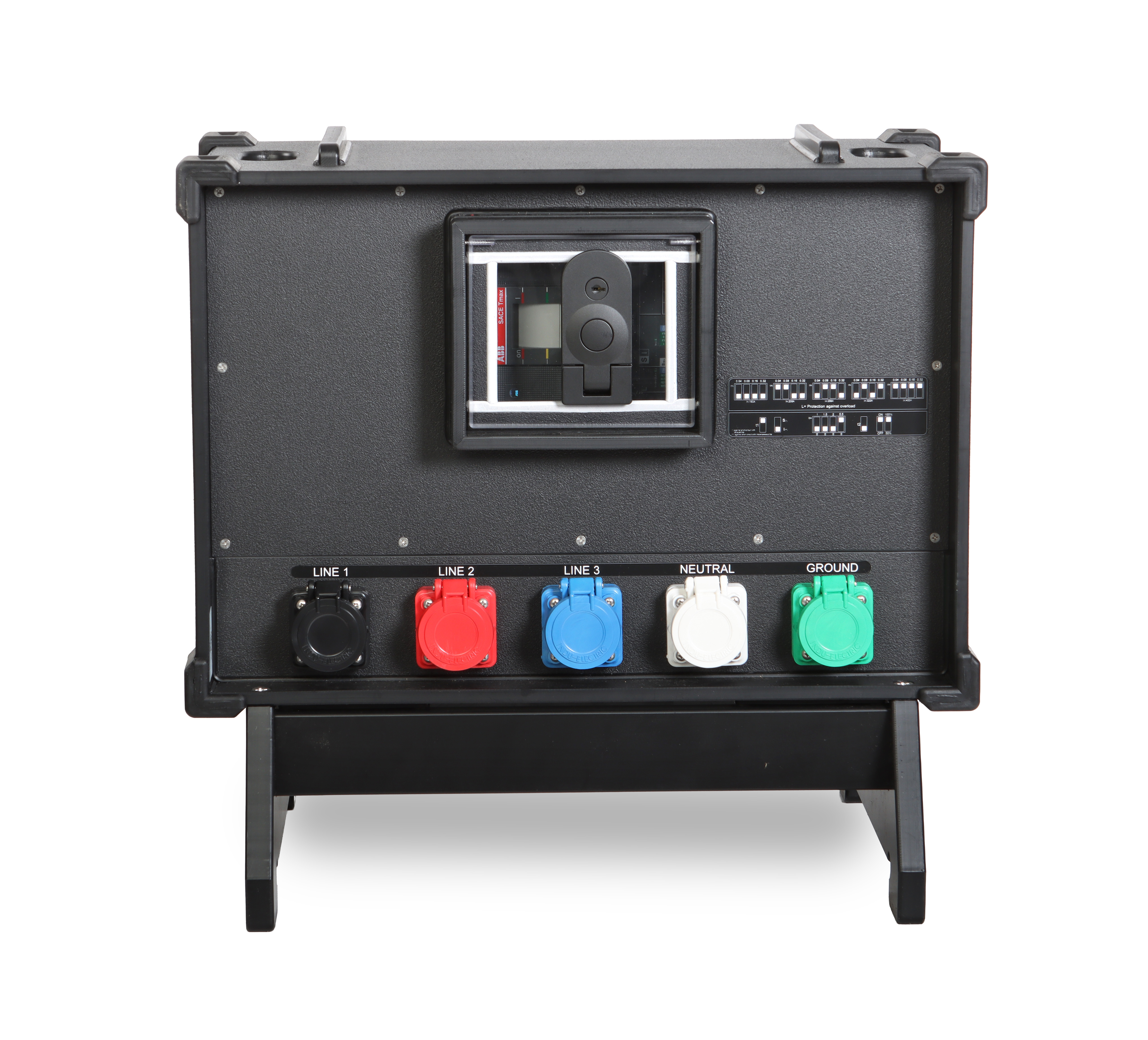

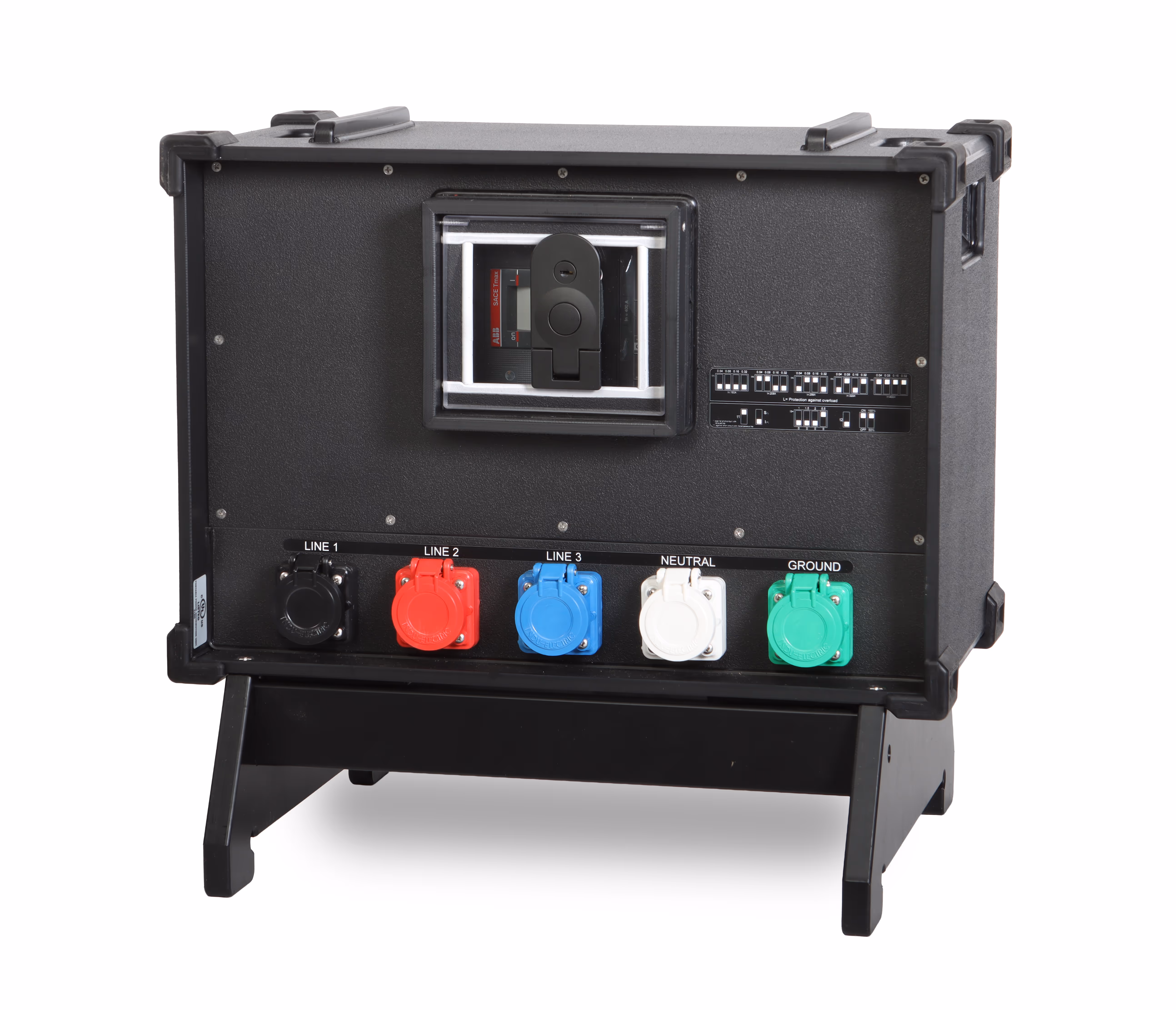

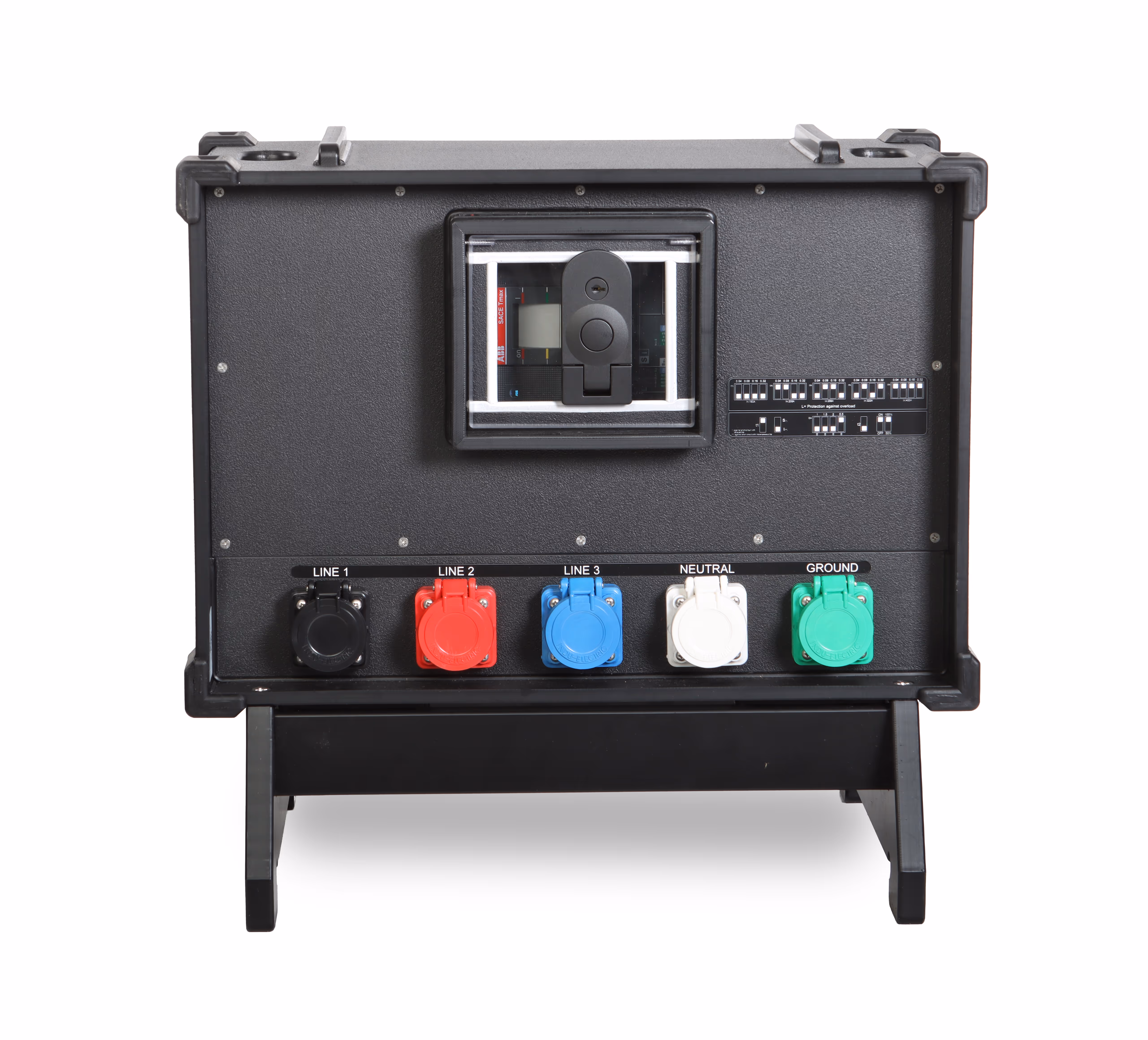

Input Device:
400A 3Ø Locking Cam
Output Device:
2- 400A 3Ø Locking Cam
Protected By:
1- 400A-160A Main Breaker (adjustable)
Model-Nr.:
D400-2
Spec #
18001971(UL3R)
Dimensions:
21.75“L x 11.75“W x 15“H

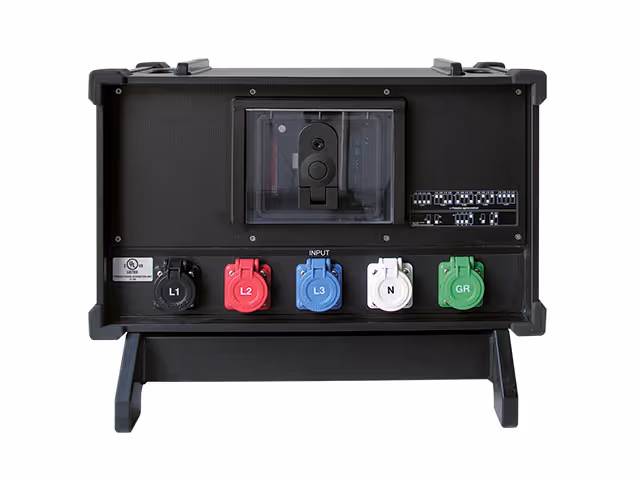

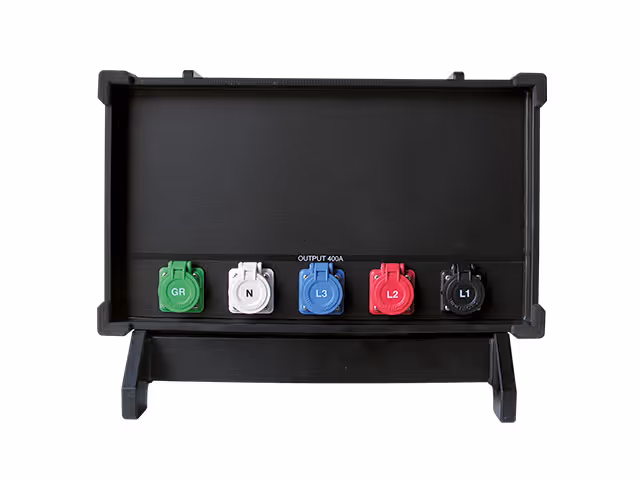

Input Device:
400A 3Ø Locking Cam
Output Device:
400A 3Ø Locking Cam
Protected By:
1- 400A MCCB (400-160A)
Model-Nr.:
D400
Dimensions:
21.75“L x 11.75“W x 12.75“H

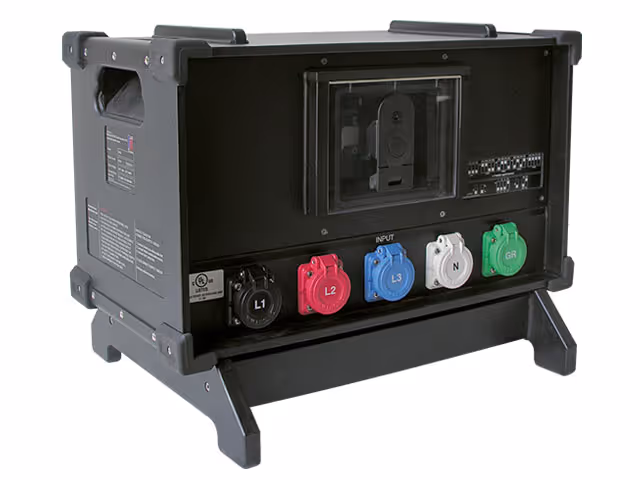

Input Device:
400A 3Ø Locking Cam
Output Device:
400A 3Ø Locking Cam
Protected By:
1- 250A MCCB (250-100A)
Model-Nr.:
D250
Dimensions:
21.75“L x 11.75“W x 12.75“H
Input Device:
400A 3Ø Locking Cam
Output Device:
400A 3Ø Locking Cam
Protected By:
1- 200A MCCB (Fixed Setting)
Model-Nr.:
D200
Dimensions:
21.75“L x 11.75“W x 10.75“H

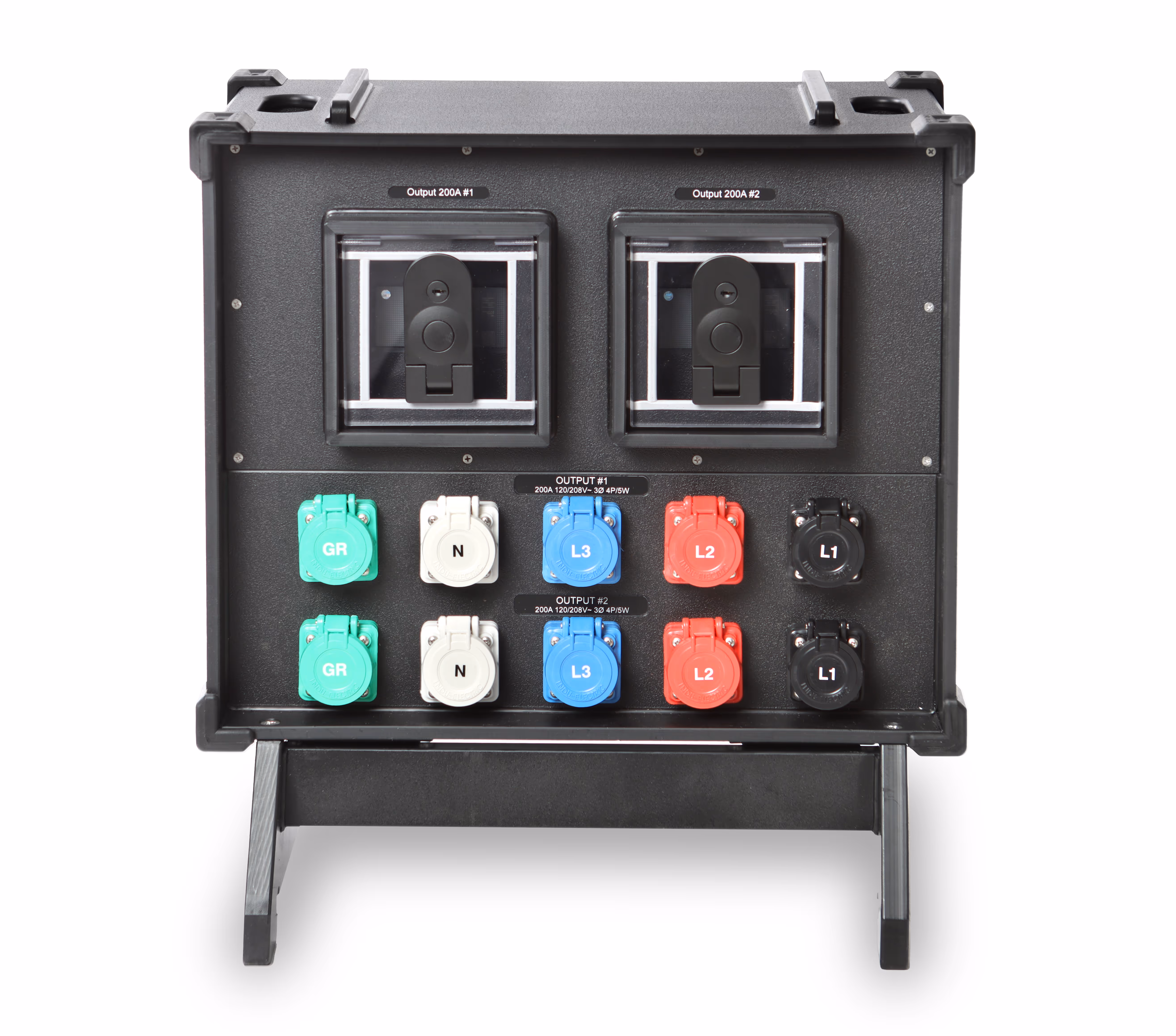

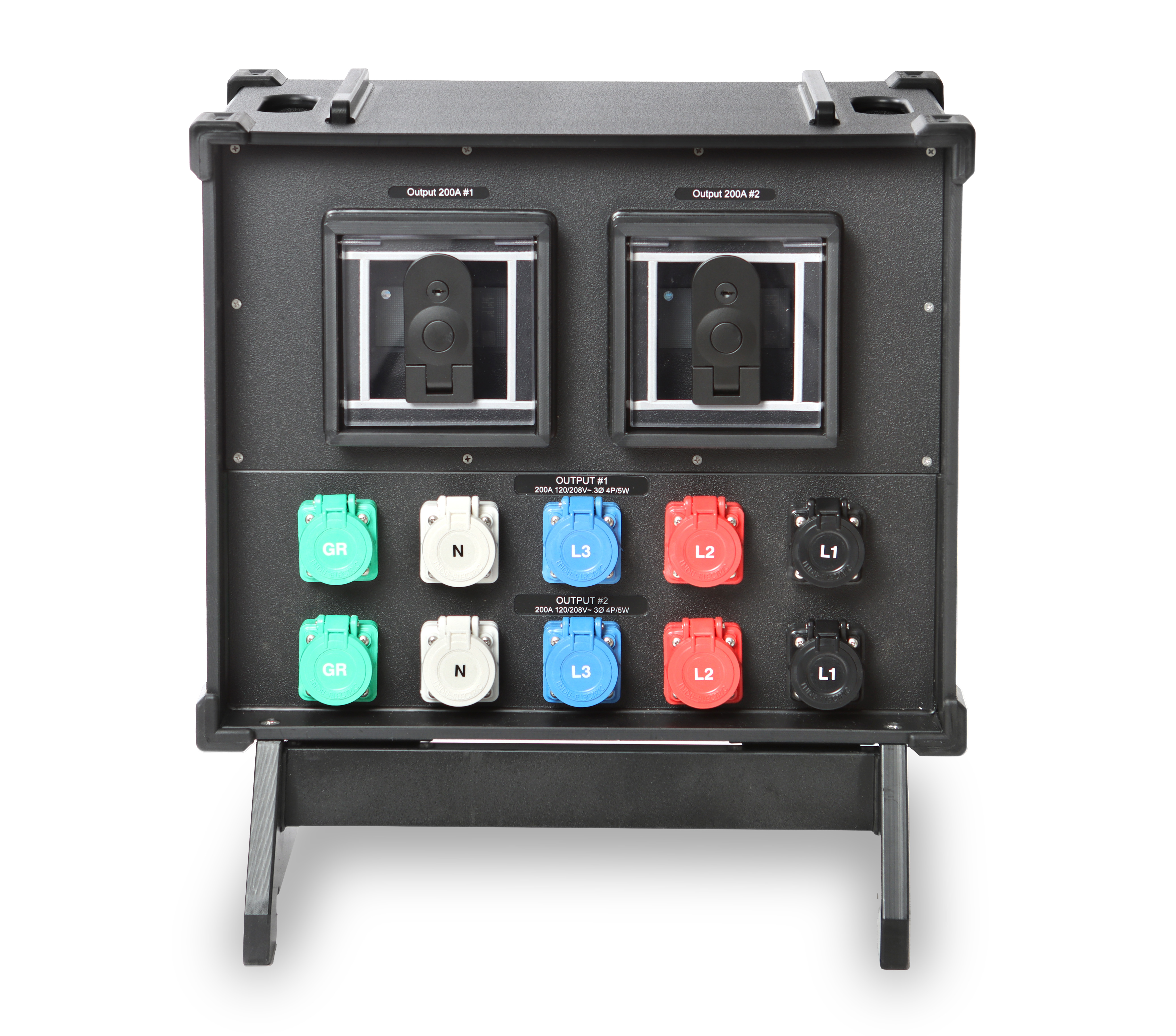

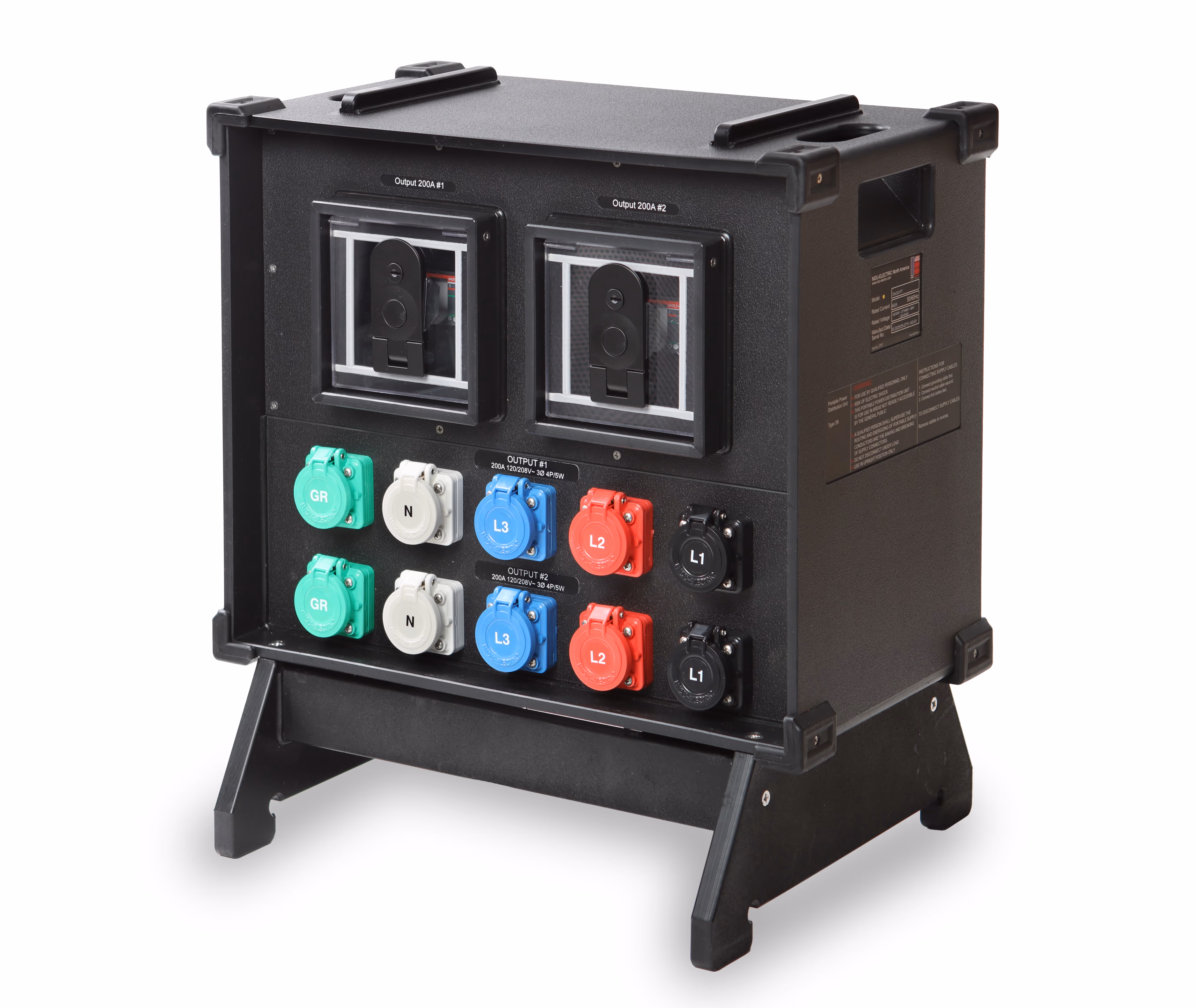

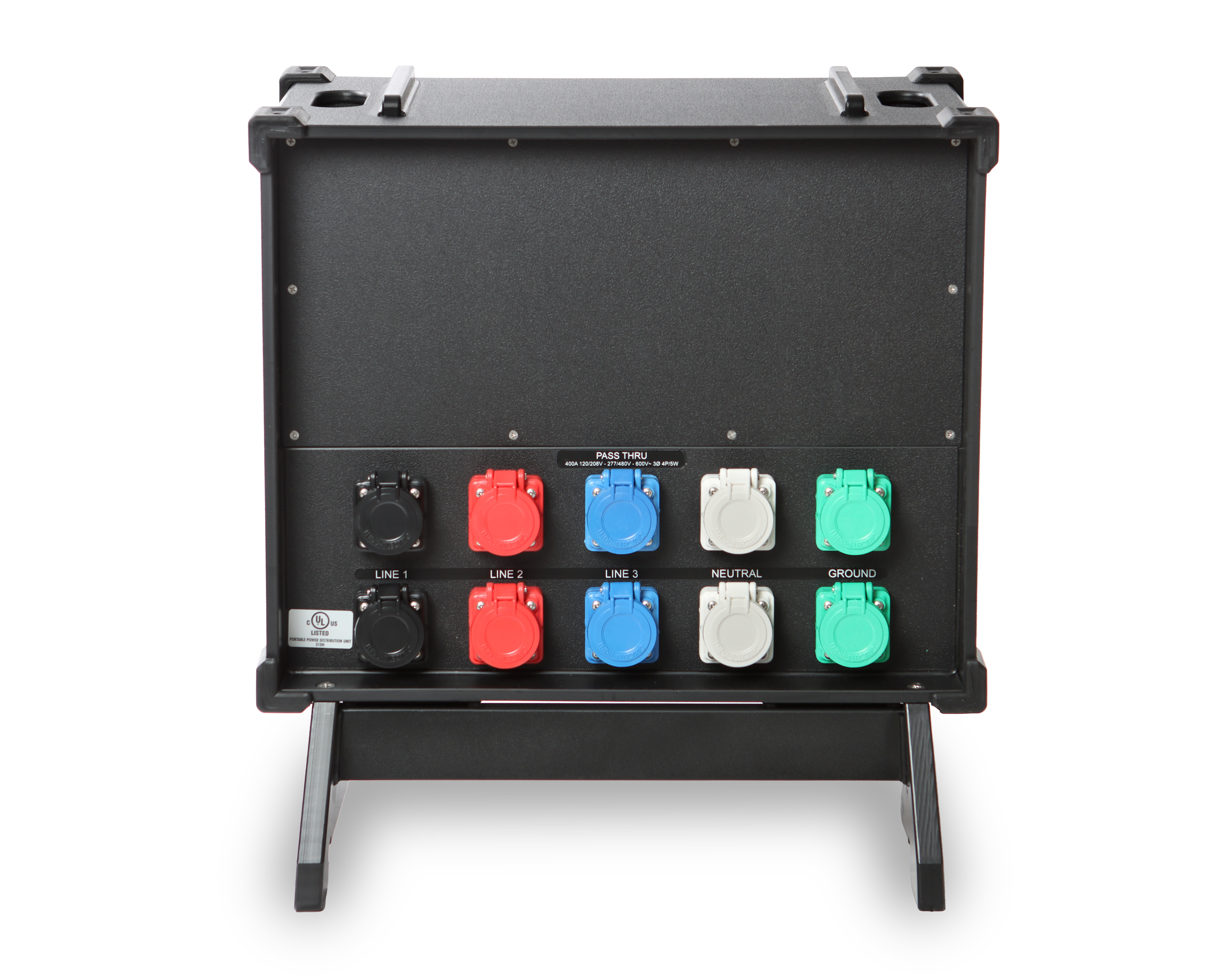

Input Device:
400A 3ØLocking Cam
Output Device:
2- 200A 3Ø Locking Cam
Protected By:
1-200A Main Breaker
Model-Nr.:
D2x200-PT
Spec #
18003143
Dimensions:
21.75“L x11.75“W x 17.75“H
