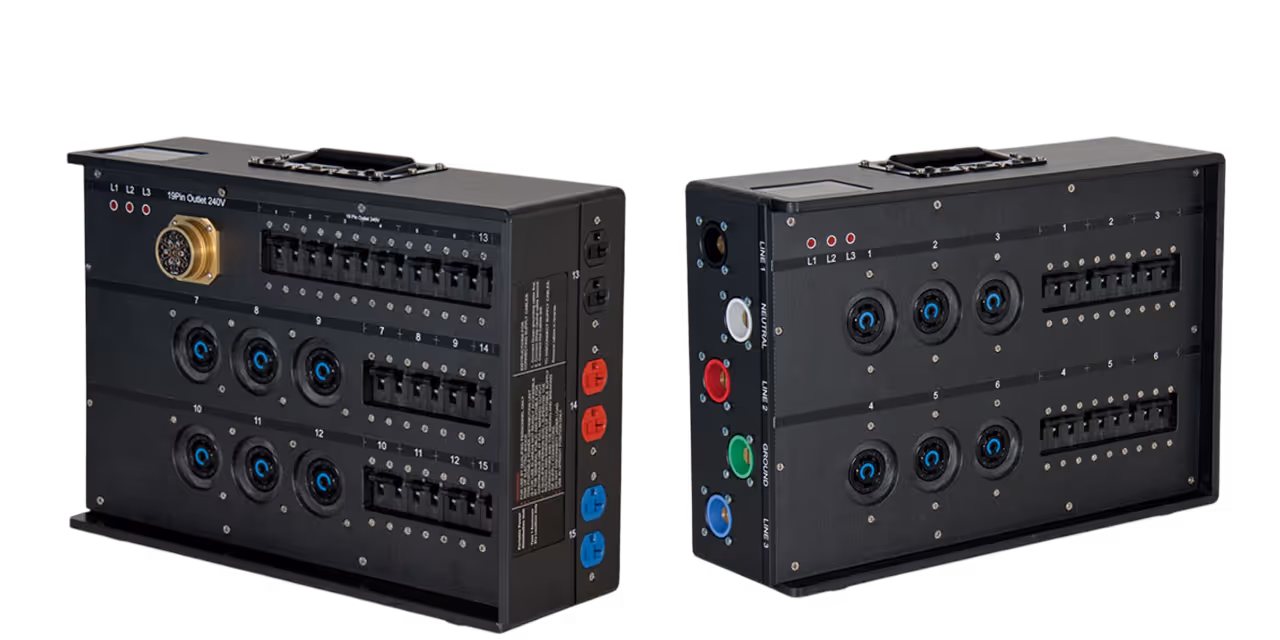

Compact, mobile, and made to fit.
Our briefcase-style Power Distribution Units are the ideal solution for applications that require mobility and a compact design. Thanks to the integrated top handle, they are especially easy to transport and handle. The flat housing shape and low weight provide additional convenience for everyday use. Roof overhangs ensure optimal protection for circuit breakers and sockets.
These units are specifically designed for indoor use and are particularly popular at trade fairs. The configuration options are extremely versatile – in addition to standard types, we quickly and flexibly implement custom configurations based on your requirements.

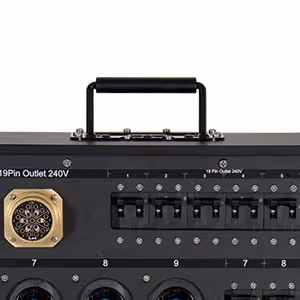

Thanks to the designed swivel handle on top, our Suitcase-style power distribution units are exceptionally easy to carry and maneuver. The smart design, featuring a flat housing and low overall weight, ensures comfortable and effortless handling in any situation—whether on set, backstage, or on the job site.

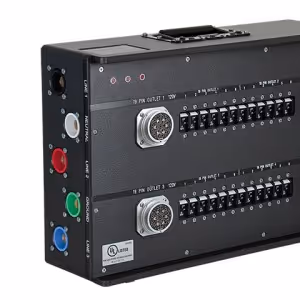

The roof overhang on our briefcase units reliably protects all outlets and circuit breakers from external influences. We tailor the overhang to match the specific outlet types, providing protection not only during transport and use but also during storage.

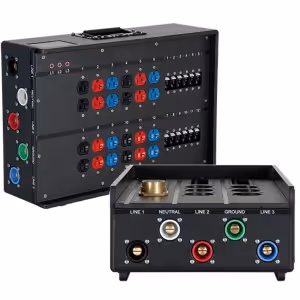

Our briefcase units offer a wide range of configuration options to meet your specific requirements. Whether with supply cable, panel-mounted plug, or other custom features – we implement your desired configuration quickly and efficiently.

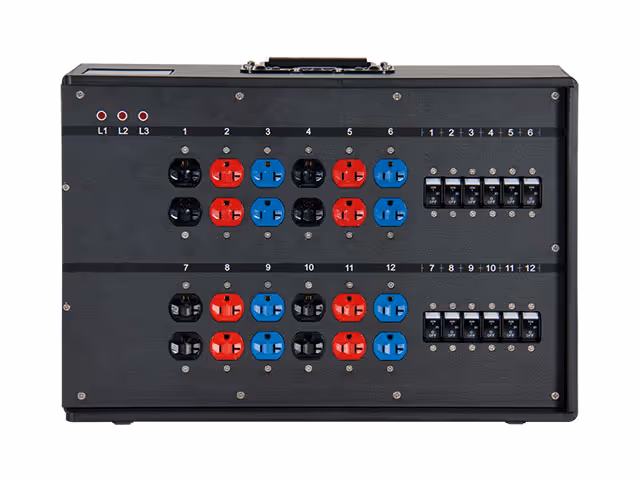

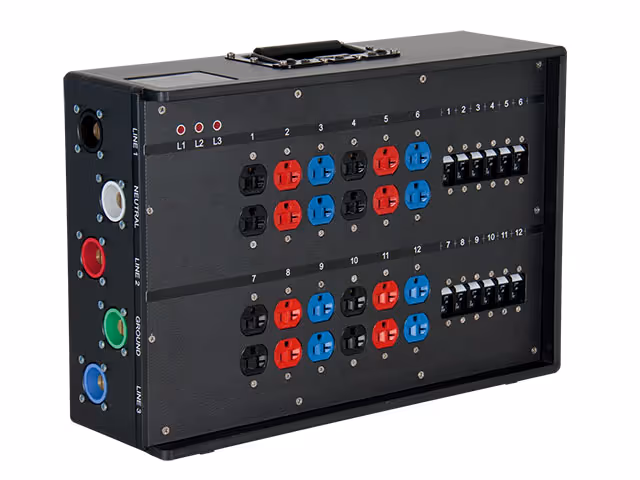

Input Device:
80A 3Ø Locking Cam
Output Device:
12- 20A 120V Duplex Outlets
Protected By:
12- 20A 1P Breaker
Model-Nr.:
702-6x520
Dimensions:
19“L x 6.5“W x 13.5“H

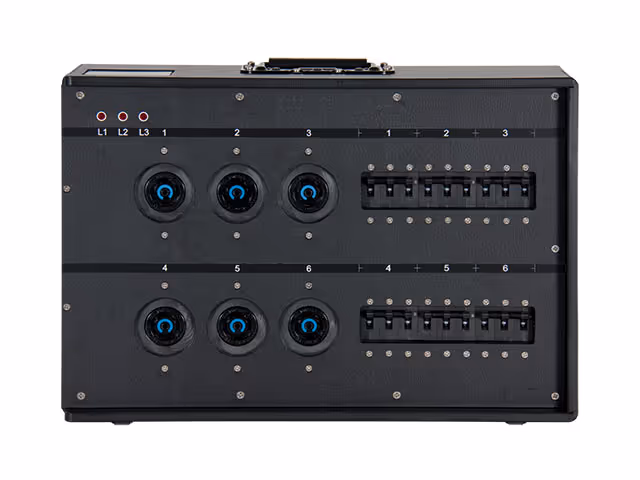

Input Device:
200A 3Ø Locking Cam
Output Device:
6- 30A 120-208V L21-30
Protected By:
6- 30A 3P Breaker
Model-Nr.:
702-6x2130
Dimensions:
19“L x 6.5“W x 13.5“H
Also available with L15-20 / L15-30 / L21-20 / L5-20 / L5-30 / L6-20 / L6-30 / L14-20 / L14-30 Twist-Locks

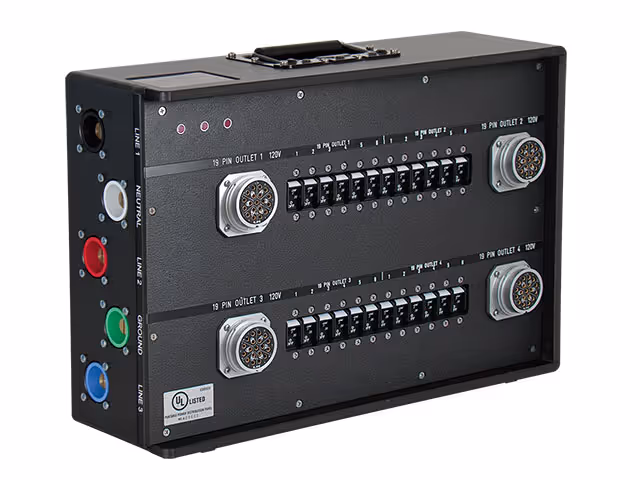

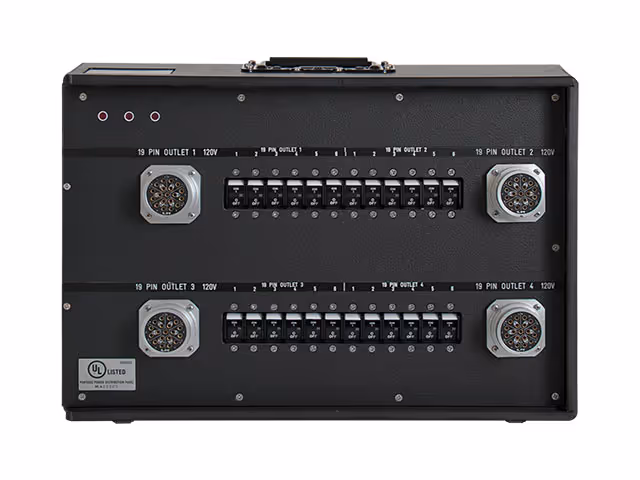

Input Device:
200 3Ø Locking Cam
Output Device:
4- 20A 120V 6 Circuit 19Pin
Protected By:
24- 20A 1P Breaker
Model-Nr.:
702-4x19P120
Dimensions:
19“L x 6.5“W x 13.5“H

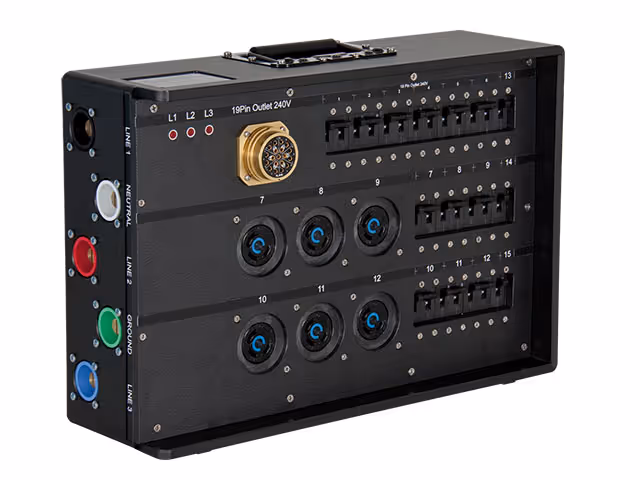

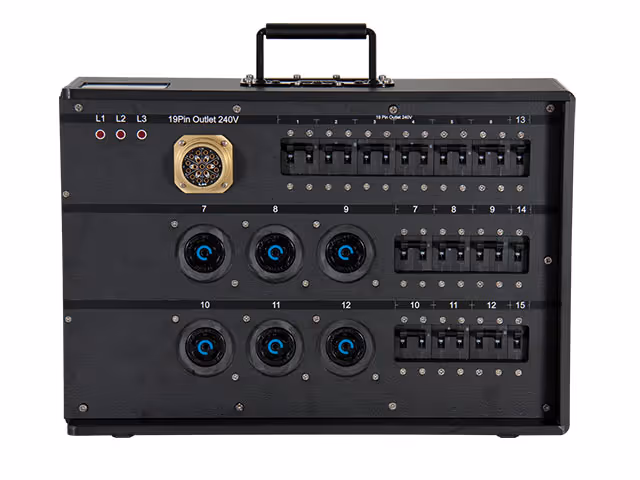

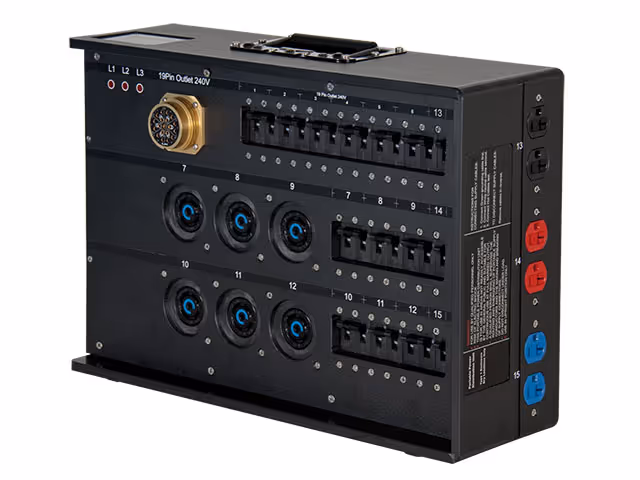

Input Device:
340A 3Ø Locking Cam
Output Device:
1- 20A 240V 6 Circuit 19Pin
6- 20A 240V L6-20
3- 20A 120V Duplex Outlets
Protected By:
24- 20A 2P Breaker
23- 20A 1P Breaker
Model-Nr.:
702-1x19P240-6x620-1x520
Dimensions:
19“L x 6.5“W x 13.5“H
