Flexible Power Distribution in a Standardized Format.
Looking for a power distribution solution in the 19-inch format that doesn’t compromise on safety or durability? INDU-ELECTRIC’s 19-Inch Rack Mount units are the ideal choice. Built with our proven THERMOLENE® technology, they offer high mechanical resilience, electrical safety, and maximum flexibility—custom-tailored to your specific requirements.
Each enclosure is made to order and available in any height unit. Whether you need Powercon, True1, Duplex, or 19-Pin connectors—we configure your rack precisely to your needs and advise you on suitable circuit protection.
And for transport? Upon request, we’ll deliver the matching flightcase along with it.
Talk to us—we’ll find the perfect solution for your 19-inch rack-mounted power distribution needs!

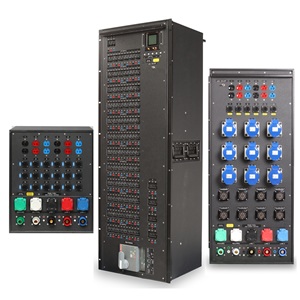

With our 19-inch power distribution units, you not only benefit from the many advantages of the THERMOLENE® housing compared to alternative materials, but also from 100% configurability tailored to your individual requirements.Get in touch with us — we’ll be happy to advise you!

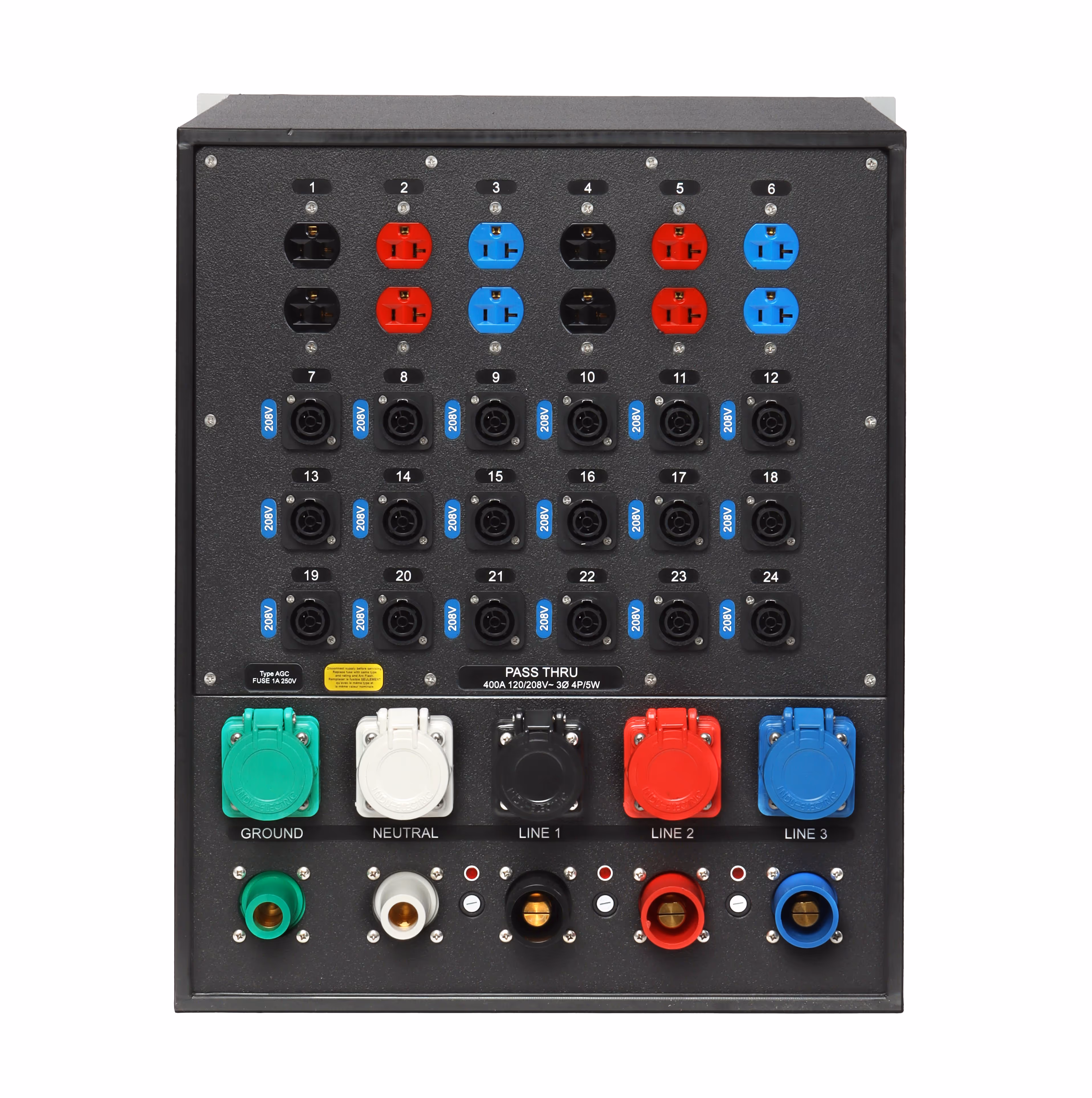

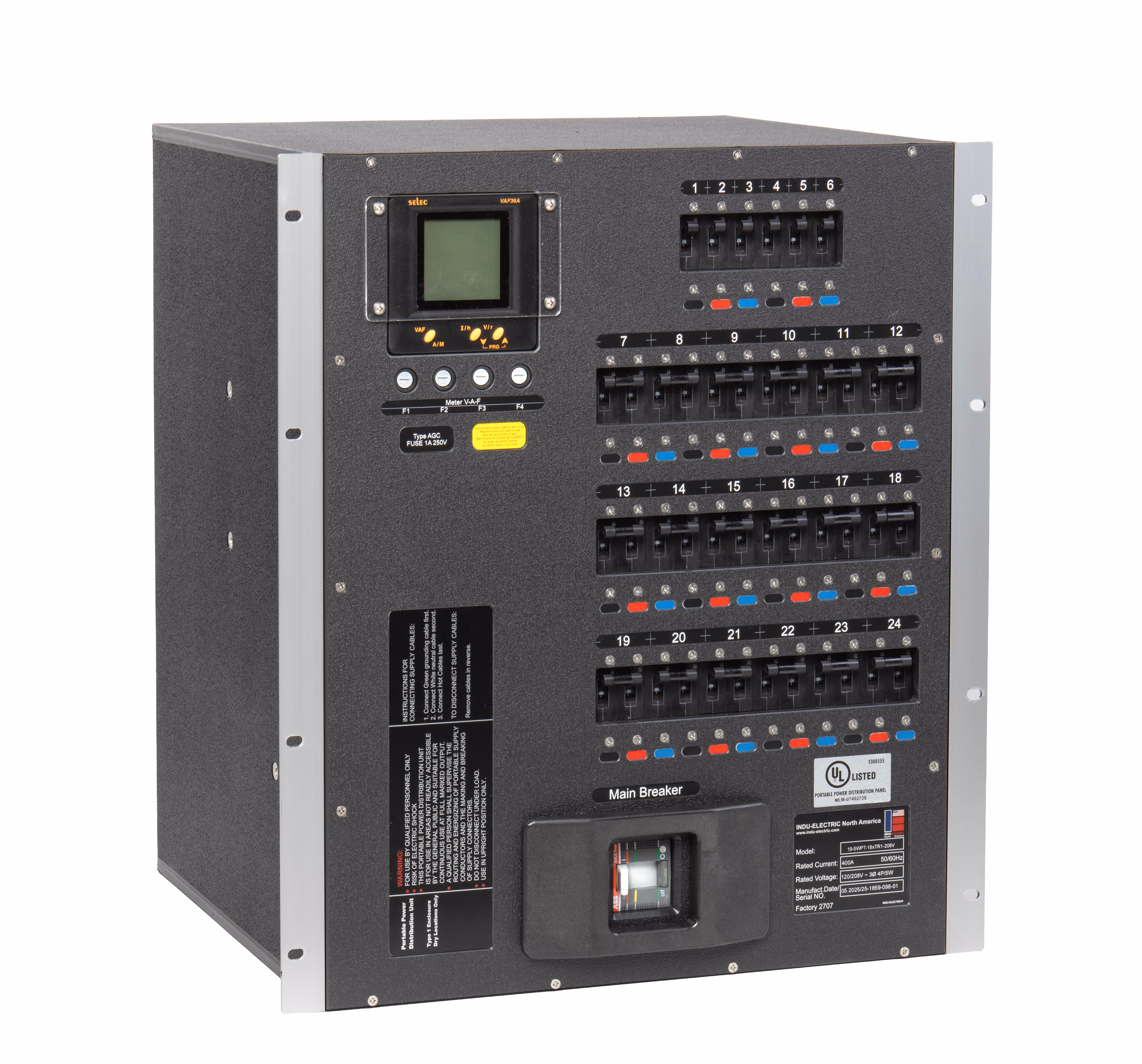

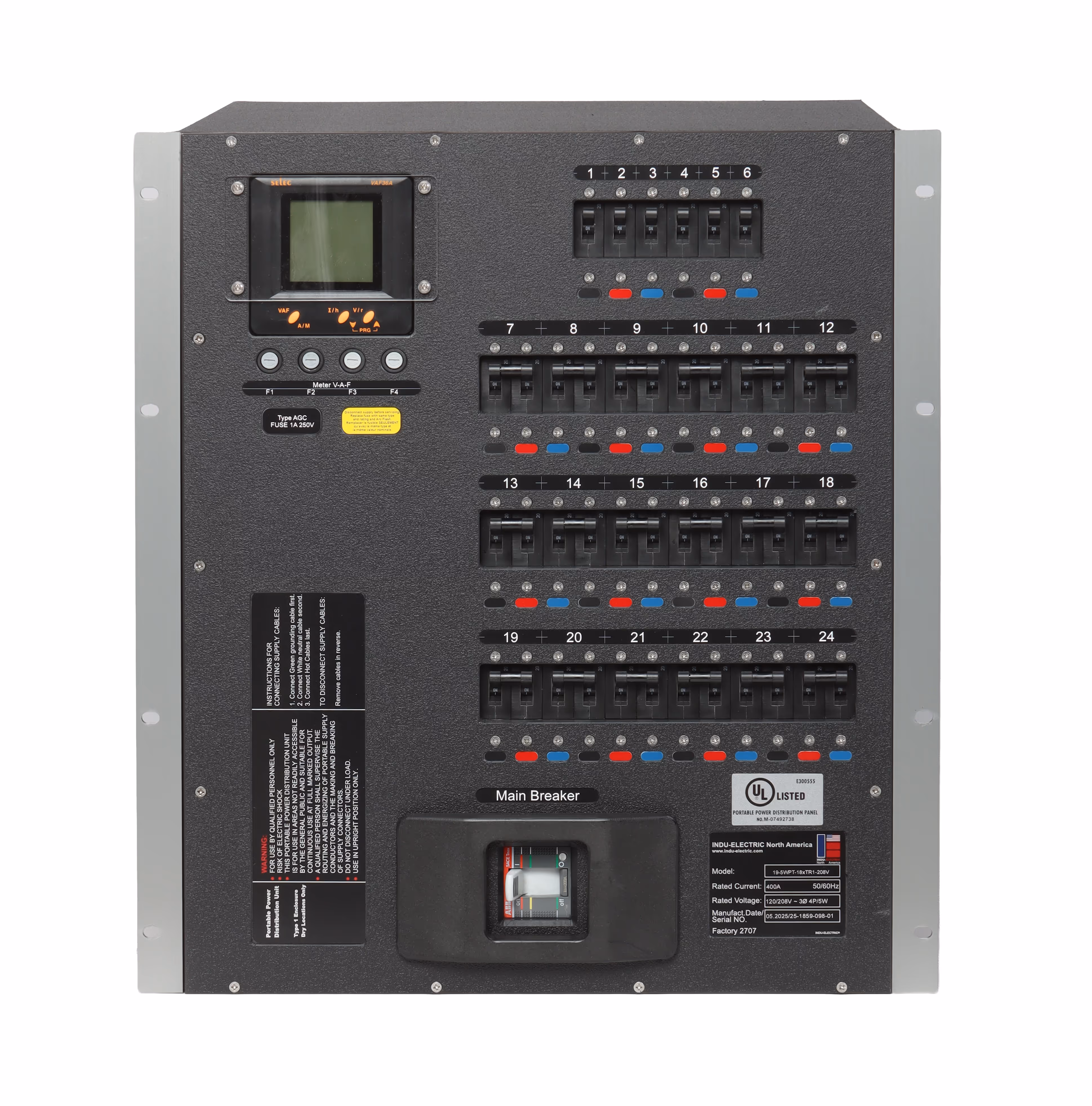

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
18- 20A 208V powerCON® True1
6- 20A 120V Duplex Outlets
Protected By:
18- 20A 2P Breaker
6- 20A 1P Breaker
1- 200A 3P Main Breaker
Model-Nr.:
19-5WPT-18xTR1-208V
Spec #
18003098
Dimensions:
19“L x 15.75“W x 21“H (12RU)

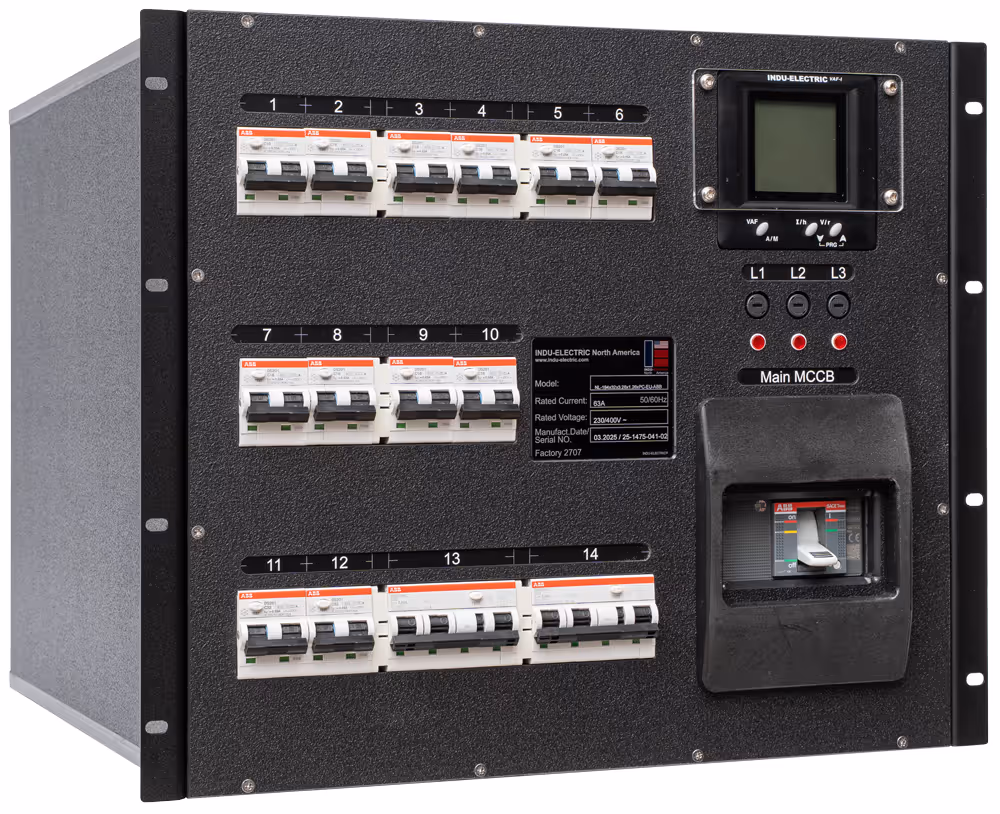

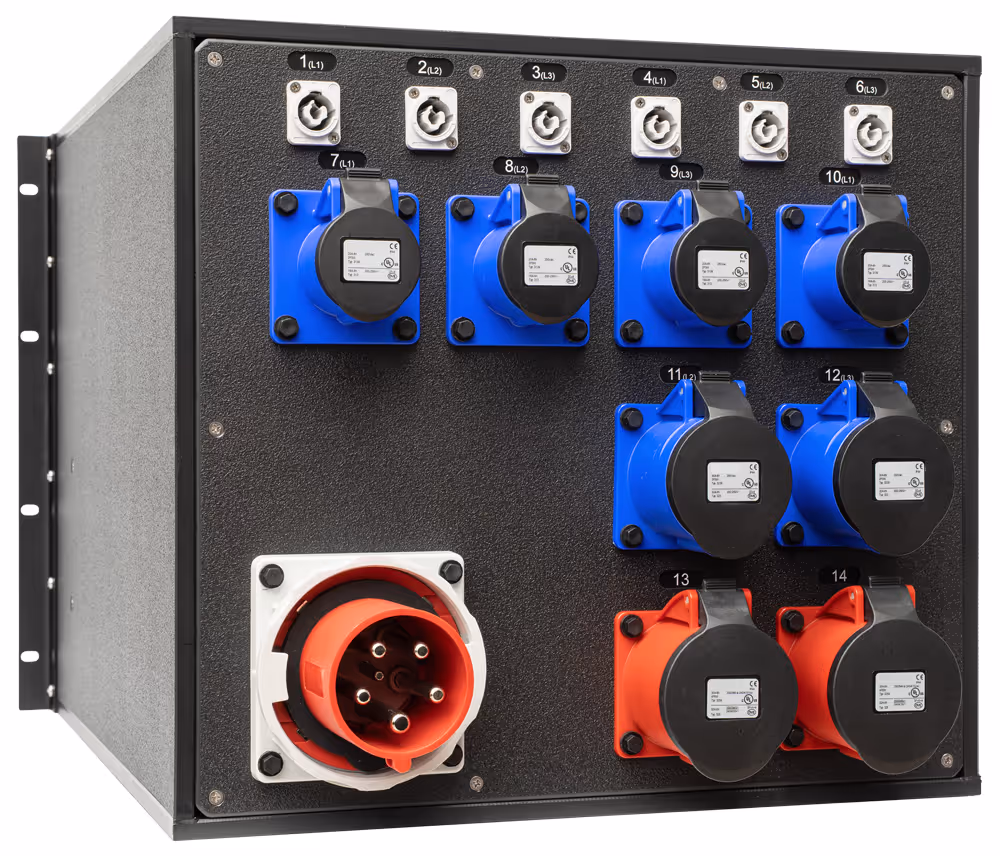

Input Device:
63A 120/208V 4P 5W IEC Pin & Sleeve
Output Device:
2- 30A 208V 4P 5W IEC Pin & Sleeve
2- 30A 208V 2P 3W IEC Pin & Sleeve
4- 20A 208A 2P 3W IEC Pin & Sleeve
6- 20A120V powerCON® grey
Protected By:
3- 30A 3P Breaker
2- 30A 2P Breaker
4- 20A 2P Breaker
6- 20A 1P Breaker
1- 60A 3P Main Breaker
Model-Nr.:
Custom Touring Spec - fully customizable
Spec #
11416041
Dimensions:
19“L x 20“W x 15.75“H (9RU)

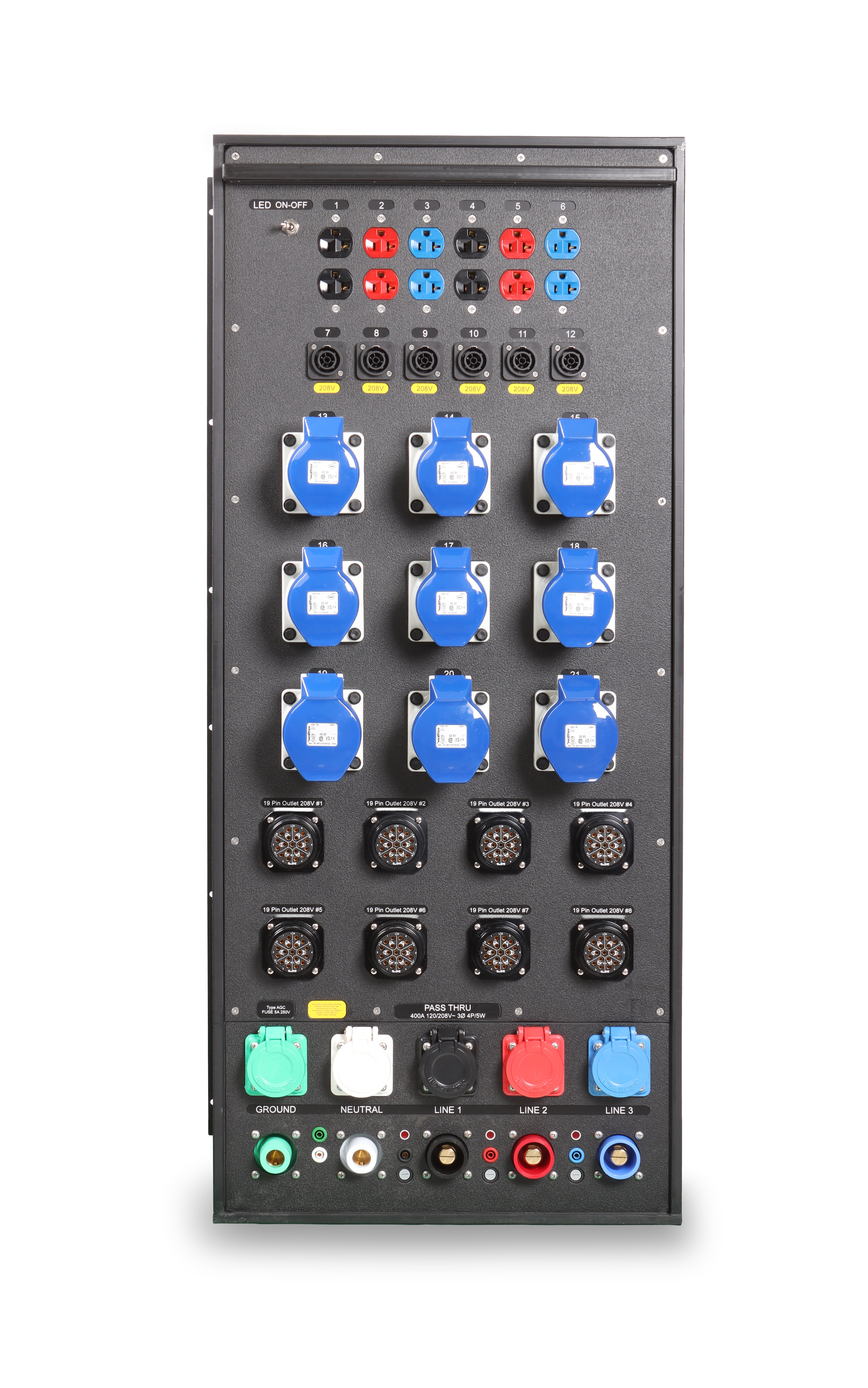

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
48- 20A 208V 19 Pin (8) Circuits
3- 30A 4P 5W Pin & Sleeve
6- 30A 2P 3W Pin & Sleeve
6- 20A 208V powerCON® True1
Protected By:
48- 20A 2P Breaker
3- 30A 3P Breaker
6- 30A 2P Breaker
6- 20A 2P Breaker
1- 400A Main Breaker
Model-Nr.:
Custom-18002413
Spec #
18002413
Dimensions:
19“L x 15.75“W x 40“H (23RU)

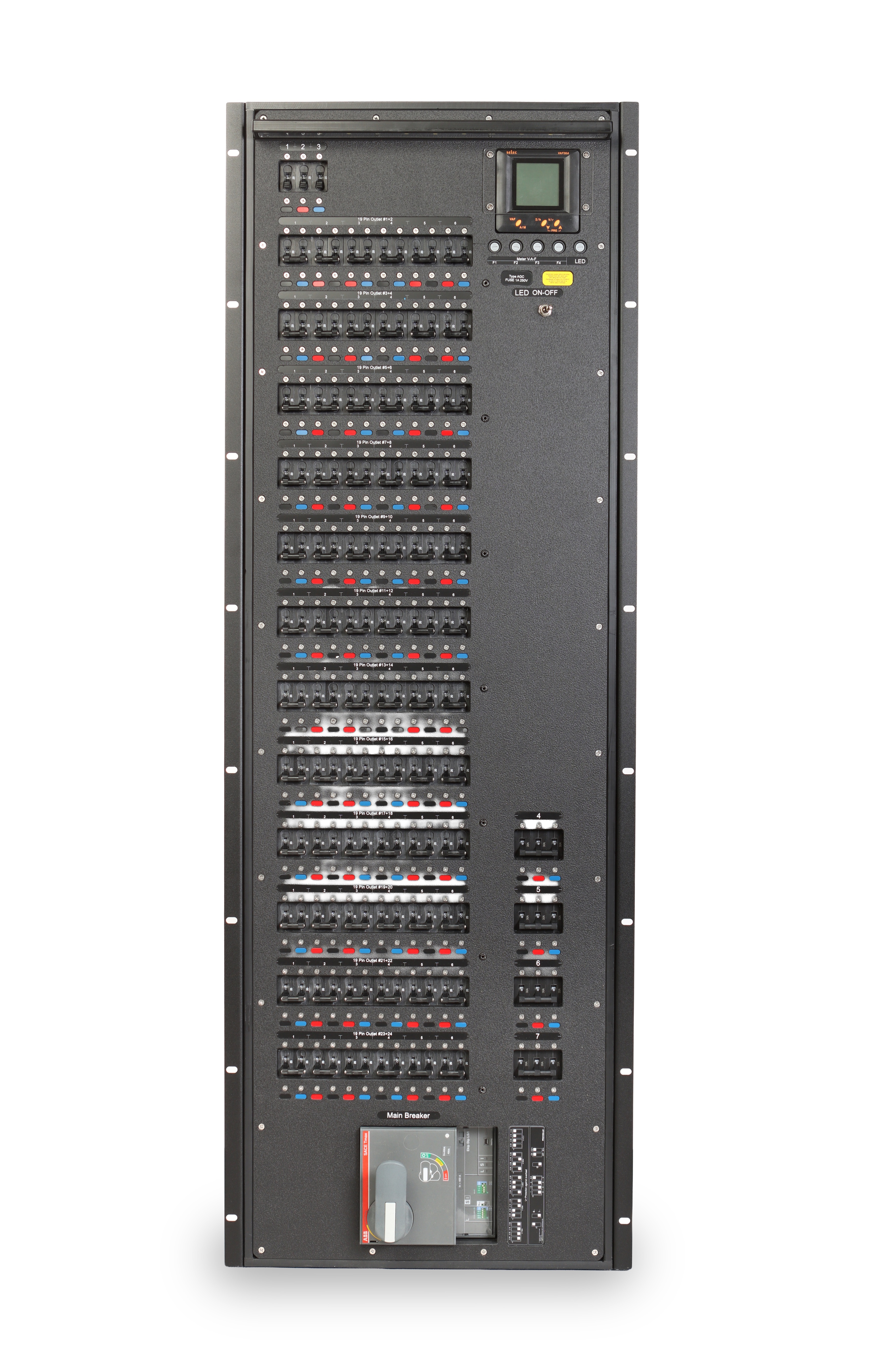

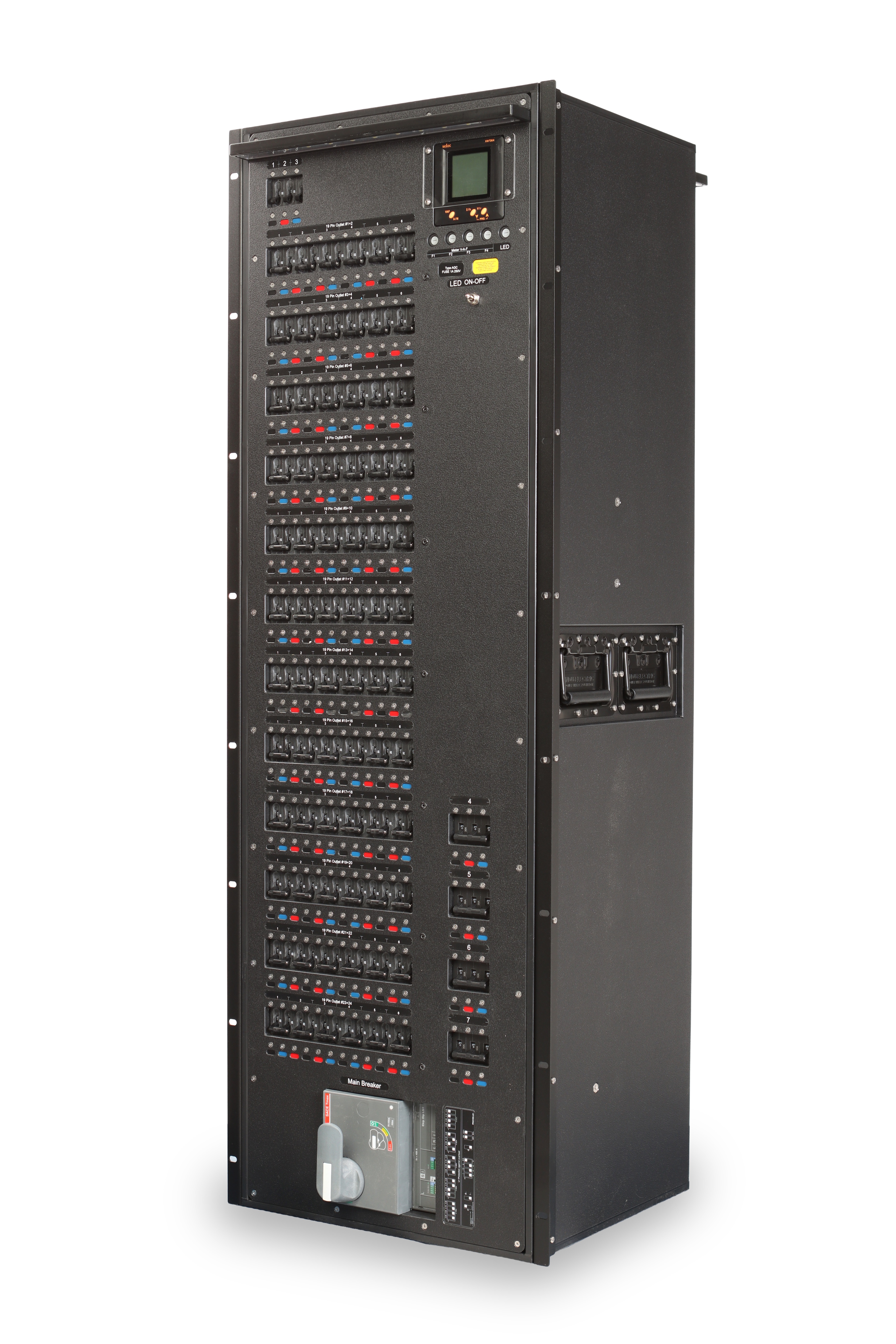

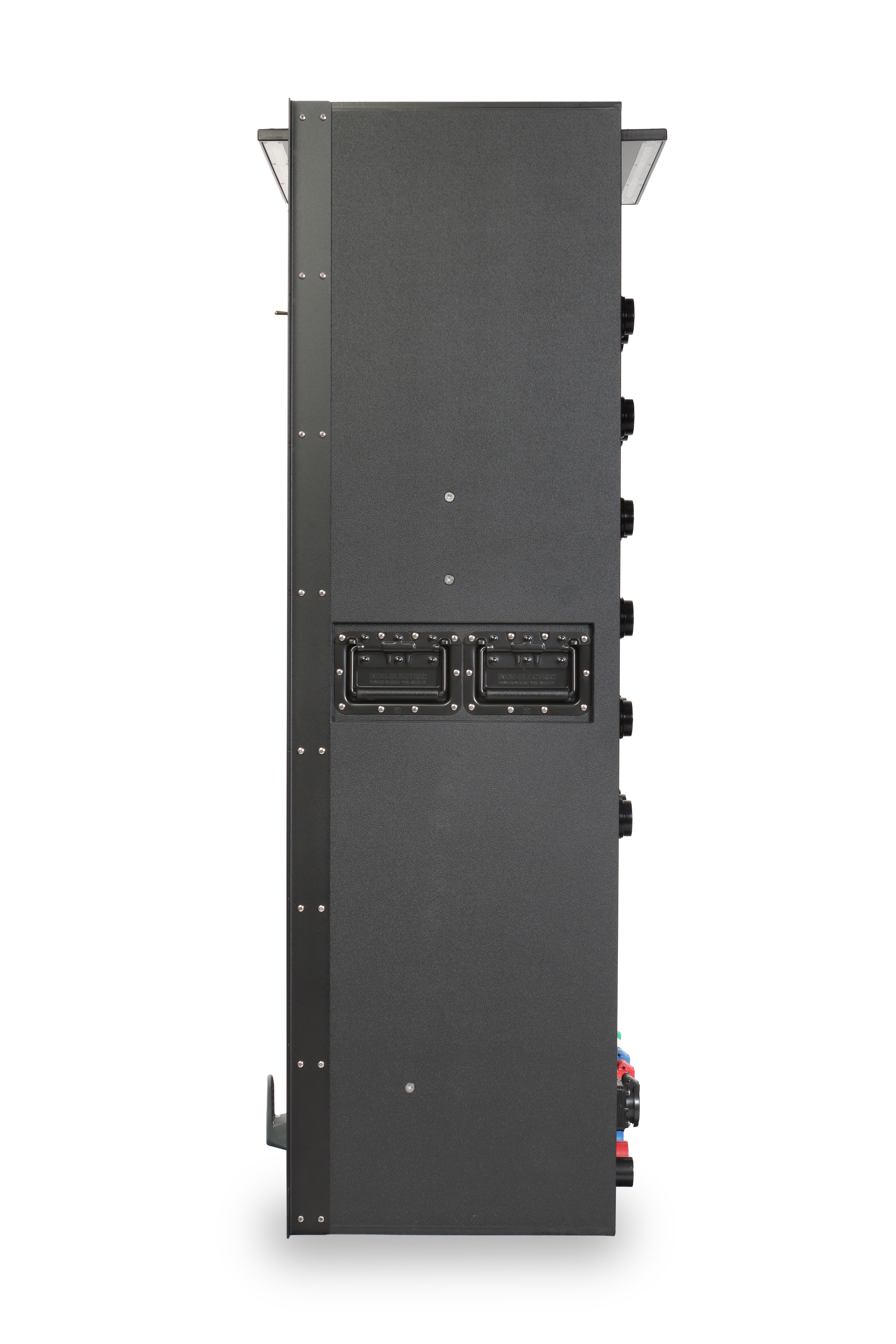

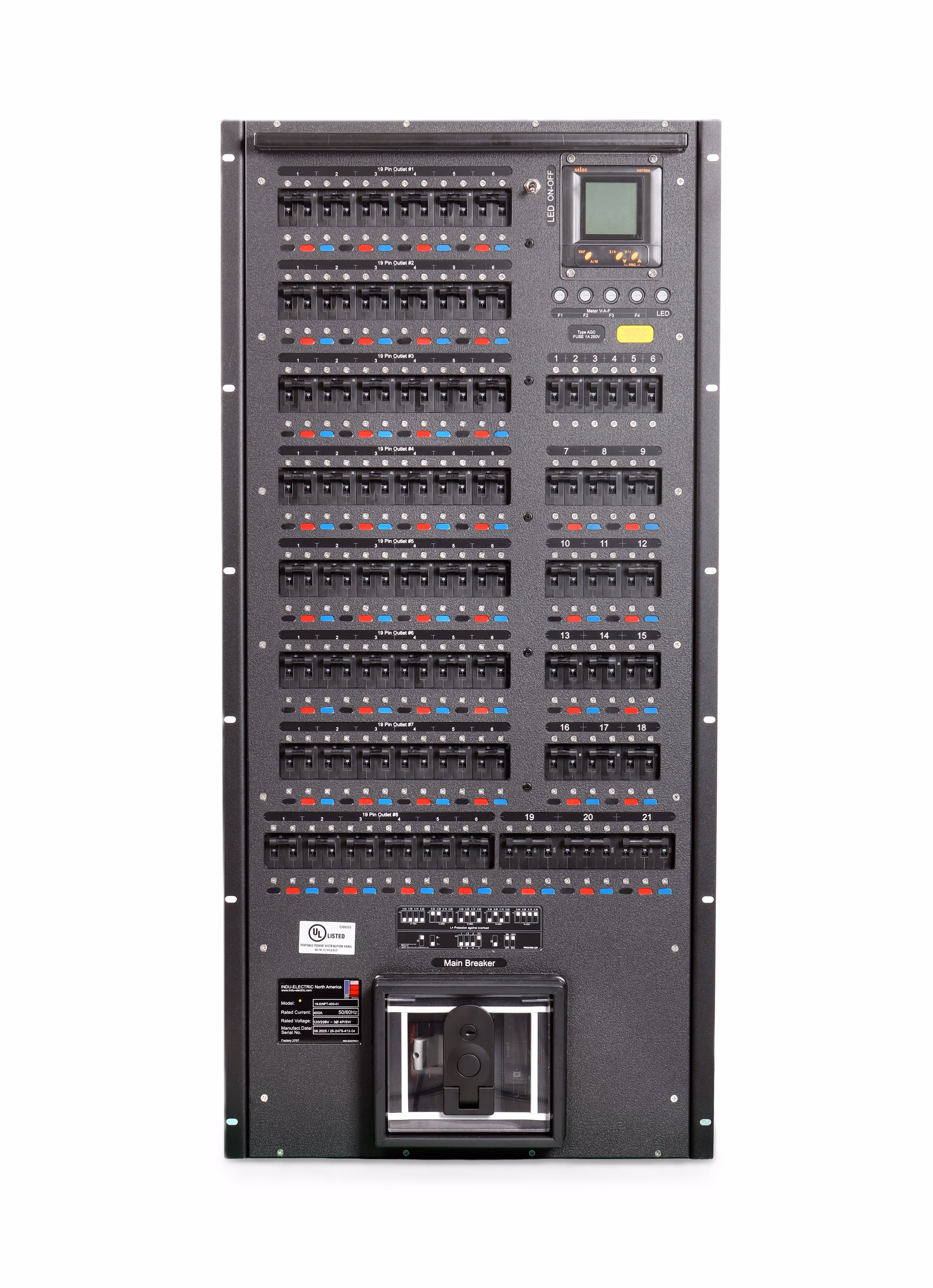

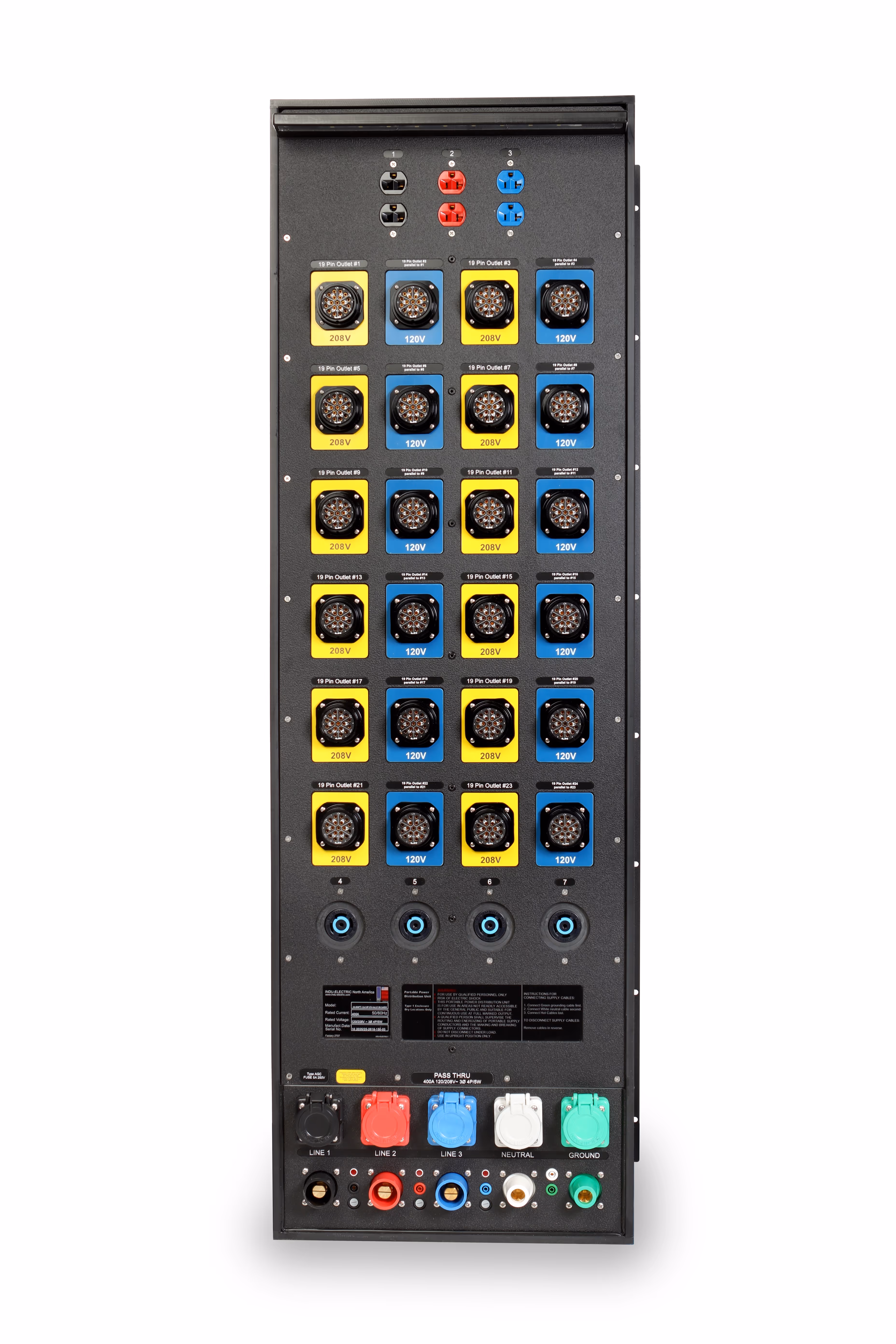

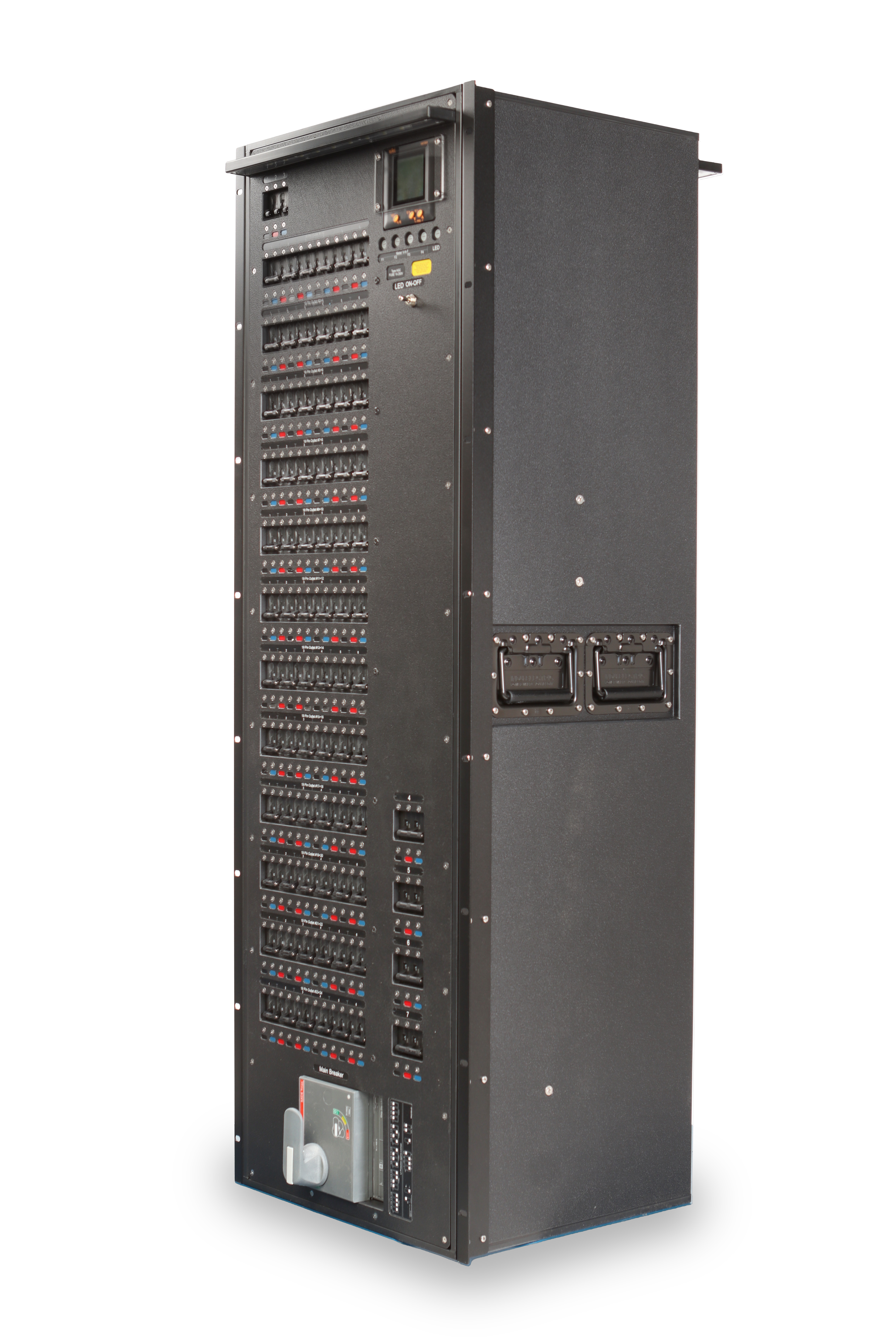

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
12- 20A208V 6 Circuit 19Pin
12- 20A120V 6 Circuit 19Pin parallel to 208V 19Pin circuits
4- 30A 208V 4P 5W L21-30 Twist-locks
3- 20A 120V Duplex Outlets
Protected By:
72- 20A 2P Breaker
4- 30A 3P Breaker
3- 20A 1P Breaker
1- 400A 3P Main Breaker
Model-Nr.:
19-5WPT-72way-120/208V
Spec #
18003150
Dimensions:
19“L x 15.75“Wx 54.2“H (31RU)
