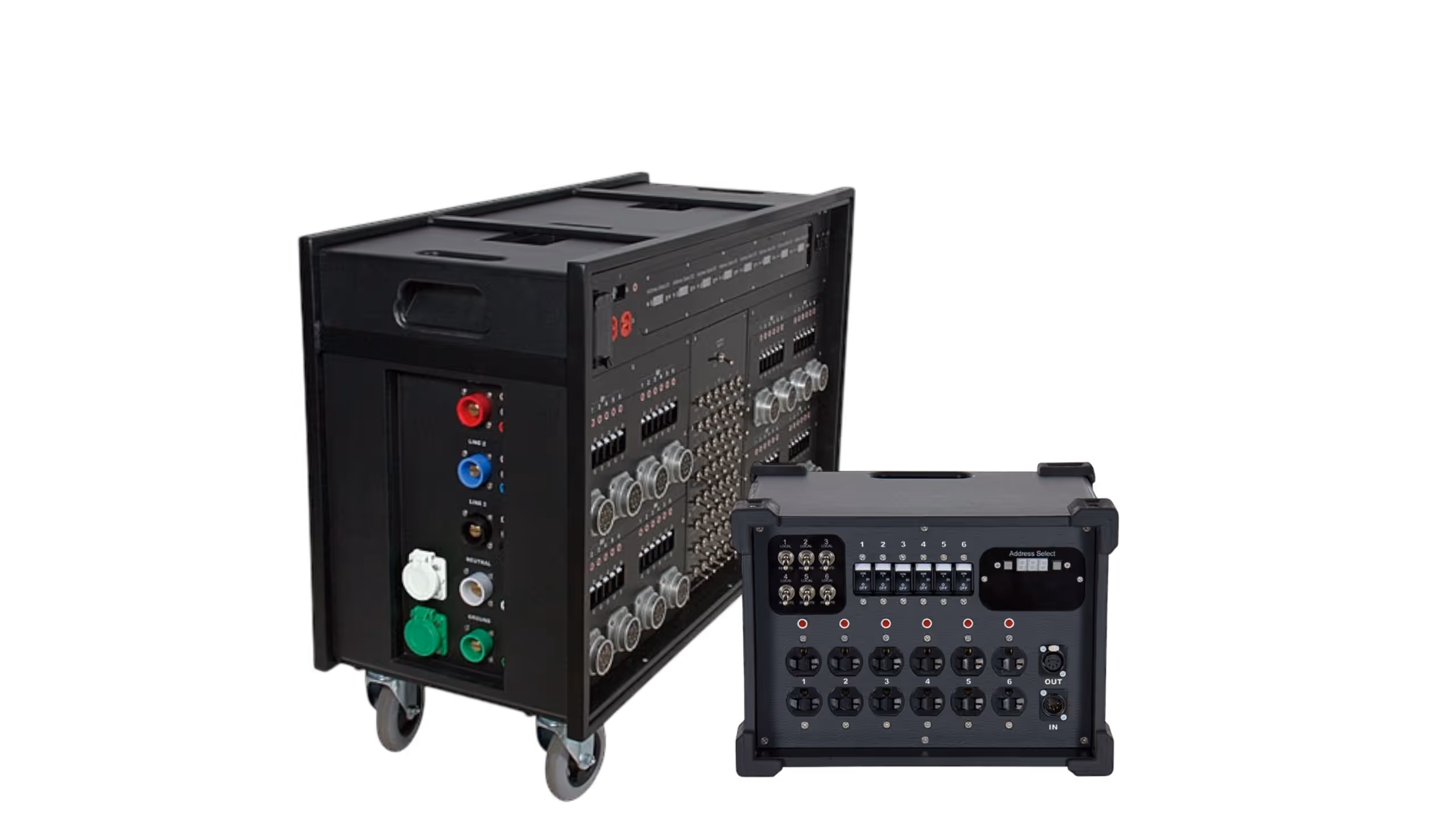

Reliable DMX switching for professional lighting control.
At many events, the focus isn’t on dimming, but on the reliable switching of lighting. That’s exactly where our DMX Series comes in: These products allow you to control spotlights, effects, or other devices directly and precisely via DMX signal—without changing brightness, but with maximum operational reliability.
The DMX Series integrates seamlessly into any professional lighting control system and is compatible with all common DMX protocols. It offers straightforward, stable control and is the ideal solution for theaters, TV productions, events, or permanent installations where precise switching is essential.
With the DMX Series, you’re choosing dependable technology that makes your lighting control simple and secure.
Input Device:
400A 3Ø Locking Cam
Double Neutral and Ground
Voltage Metering Test Jacks
Output Device:
16- 20A 120V 6 Circuit 19Pin
2 Parallel per 6-Channel (48 DMX Controlled Channels Suitable for 2.4kw Loads)
1- 20A 120V Courtesy Duplex Outlet
Protected By:
48- 20A 1P Breakers (19Pin)
1- 20A 1P Breaker (Courtesy Outlet)
Model-Nr.:

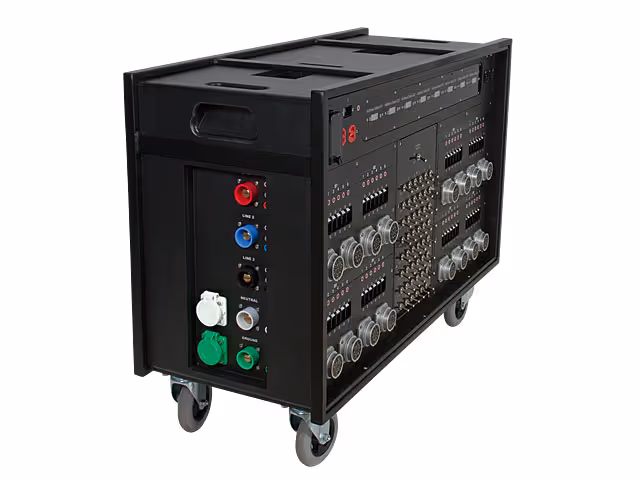

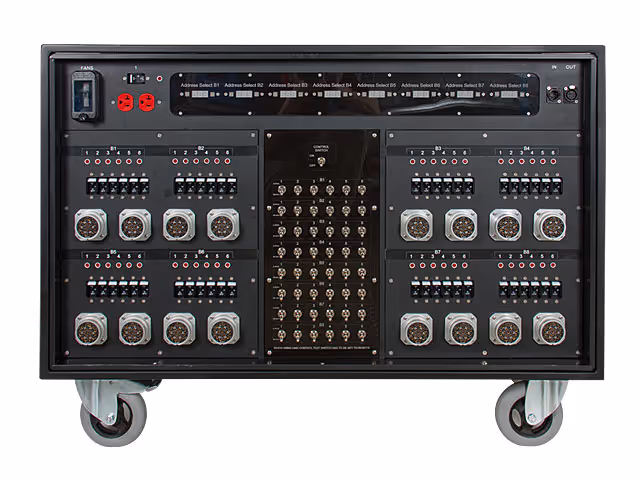

48-Channel Remote DMX Cart
Dimensions:
39.5“L x 17“W x 22“H
Input Device:
100A 120V 1Ø Stage Pin
Output Device:
6- 20A 120V Duplex Outlet
(6 DMX Controlled Channels Suitable for 2.4kw Loads)
Protected By:
6- 20A 1P Rocker Style Breakers
Model-Nr.:

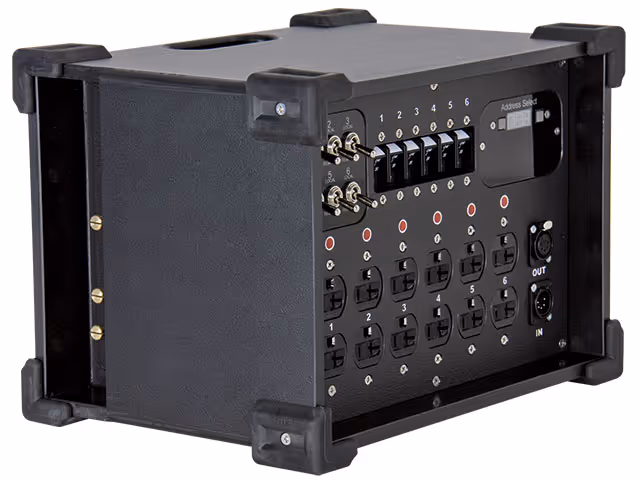

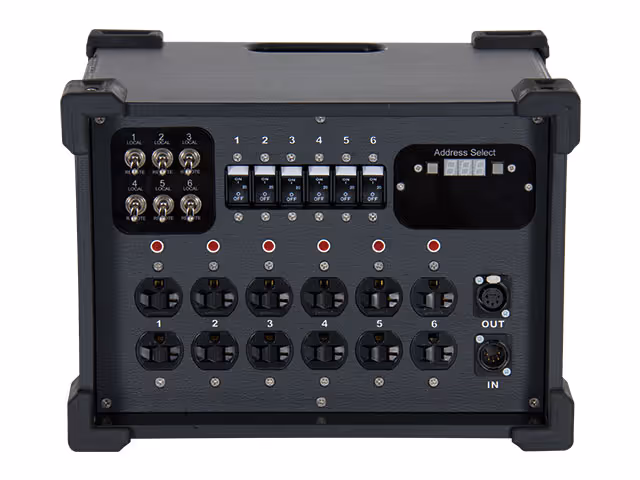

100A DMX Lunch Box
Dimensions:
13.25“L x 10“W x 10“H
