Compact Power. Maximum Safety.

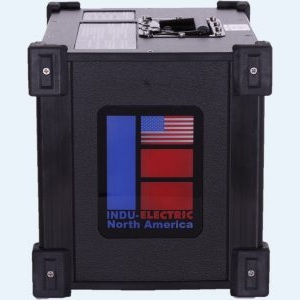

The Cube® - US Patents # 7848085 / # D656,099S

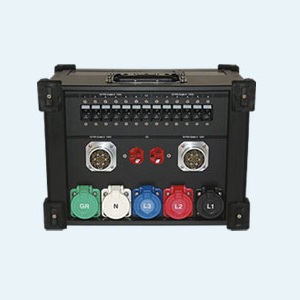

INDU-ELECTRIC proudly presents the Cube® Series—our most compact line of non-conductive power distribution boxes, engineered for professional use in demanding environments like construction sites, stages, film sets, and live events. These units offer long-term durability and reliable performance under tough conditions.
Each Cube® unit features shock-absorbing molded rubber corners, recessed handles and branch devices, and fully enclosed color-coded Cam covers for safe and intuitive operation.
Available in a wide range of standard and custom configurations—including Camlock, Pin & Sleeve, 19-Pin, True1, Schuko, Twistlock, and more—the Cube® Series adapts to your specific needs. All enclosures are UL 94 V0 rated and virtually indestructible.
Need a custom setup? We’ll quote it by the next business day.
Our most Compact line of Non-Conductive Power Distribution Boxes
— Recessed Handle —
— Shock Absorbing Molded Rubber Corners —
— 100% Rated Hydraulic Magnetic Breakers For Continuous Use At Full Rated Output —
— Rugged Non-Conductive Enclosure —
— Recessed Branch Devices & Labeling —
— Fully Enclosed Color Coded Cam Covers —
US Patent #7848085
We are proud to offer an extensive and innovative product line representing state of the art in power distribution equipment.
Multiple configurations such as Cam, Pin & Sleeve, 19 Pin, Straight Blade, Twistlock and GFCI are available in standard or custom configurations. Our enclosures are non-conductive, UL 94 V0 rated and virtually indestructible.

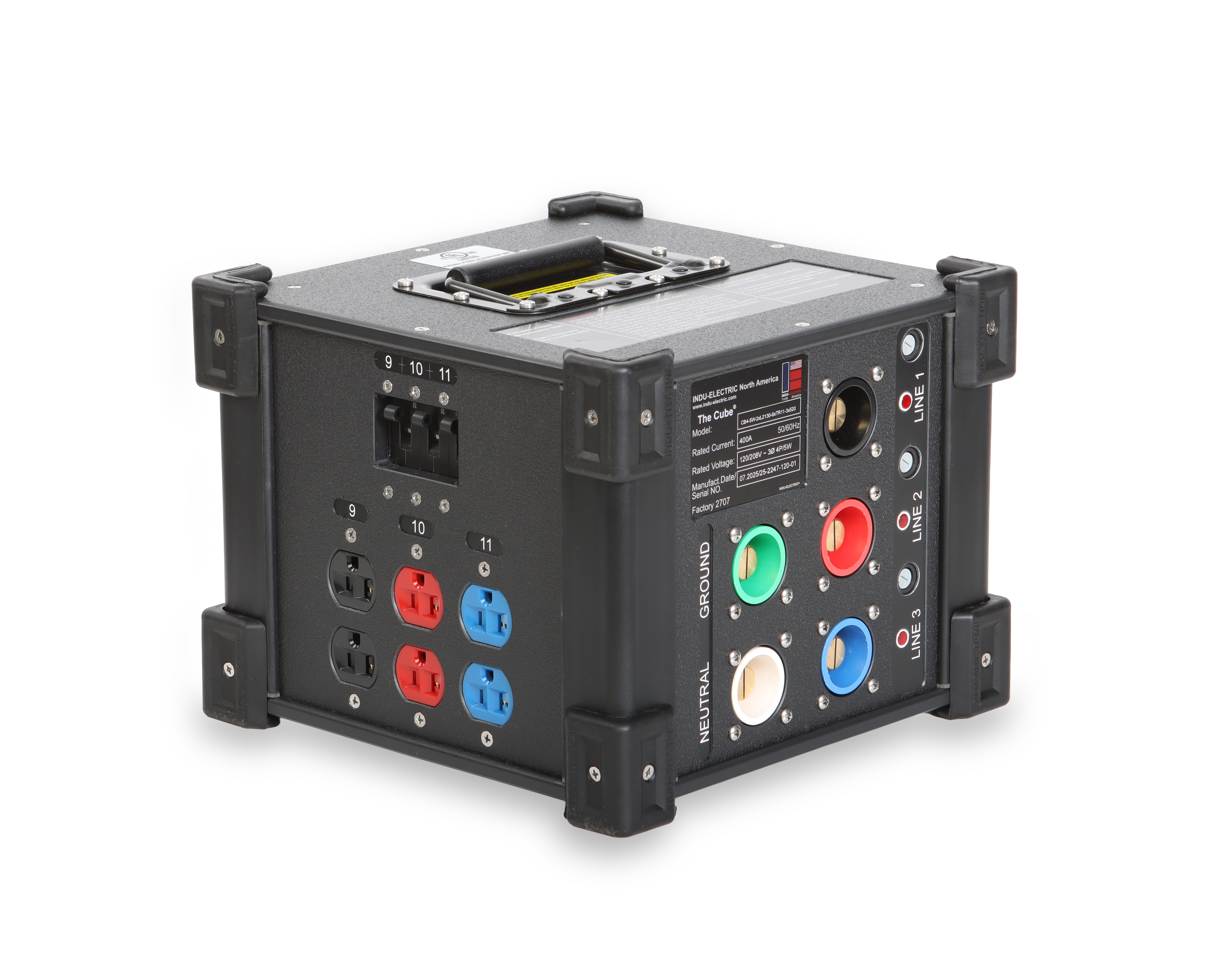

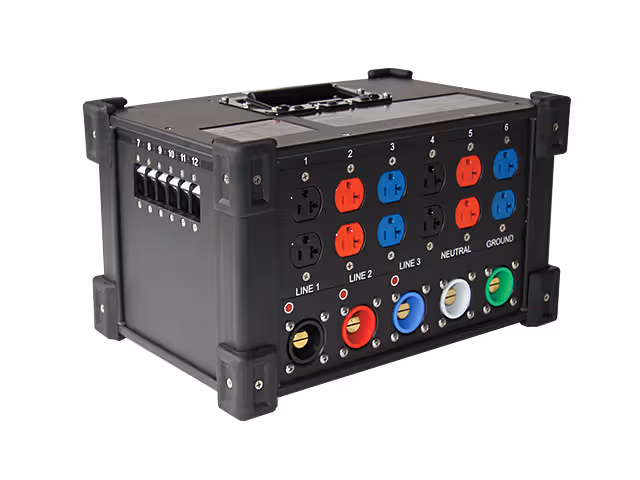

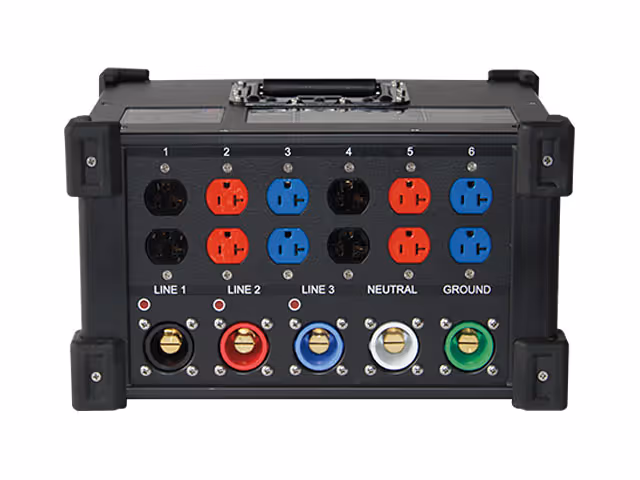

Input Device:
400A 3Ø Locking Cam 1 Pass Through
Output Device:
12- 20A 120V Duplex Outlets
Protected By:
12- 20A 1P Rocker Breaker
Model-Nr.:
CB1-5WPT-12x520
Dimensions:
15“L x 10“W x 8,25“H

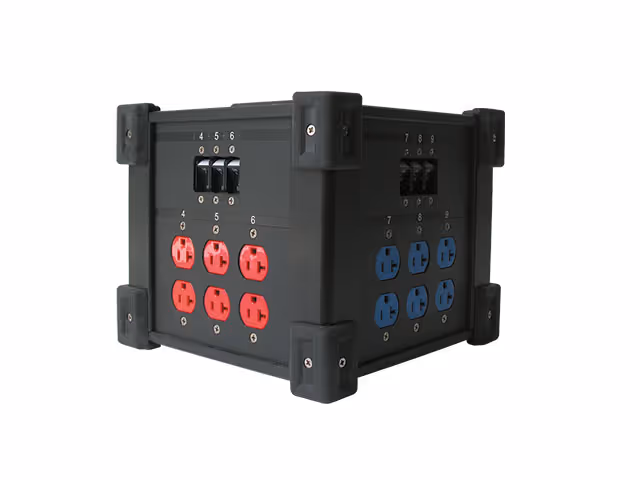

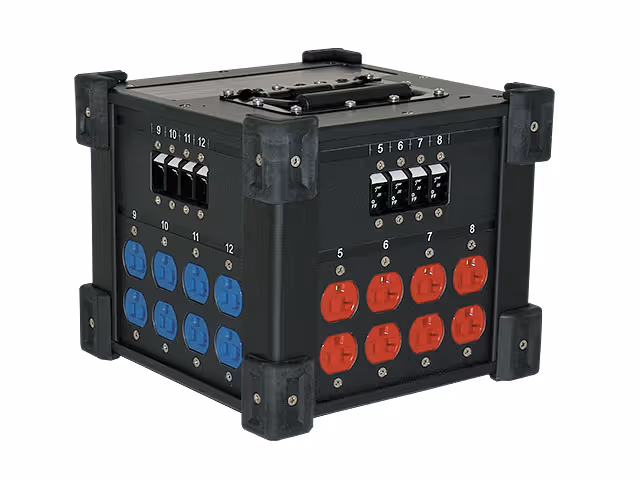

Input Device:
80A 3Ø Locking Cam
Output Device:
12- 20A 120V Duplex Outlets
Protected By:
12- 20A 1P Rocker Breaker
Model-Nr.:
CB4-5W-12x520
Dimensions:
10“L x 10“W x 8,25“H

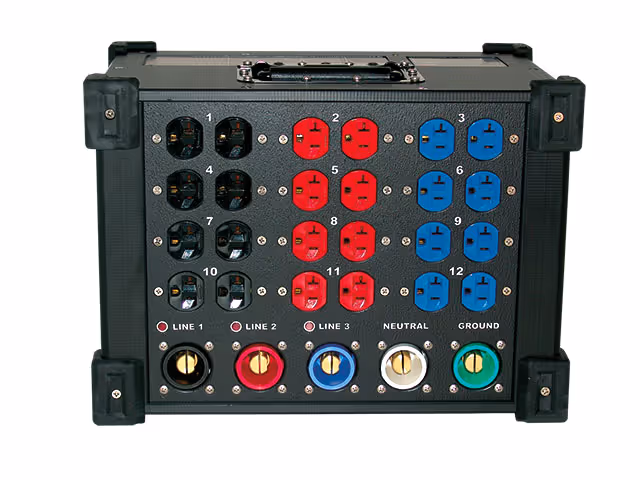

Input Device:
400A 3Ø Locking Cam 1 Pass Through
Output Device:
24- 20A 120V Duplex Outlets
Protected By:
24- 20A 1P Rocker Breaker
Model-Nr.:
CB2-5WPT-24x520
Dimensions:
15“L x 10“W x 10.75“H

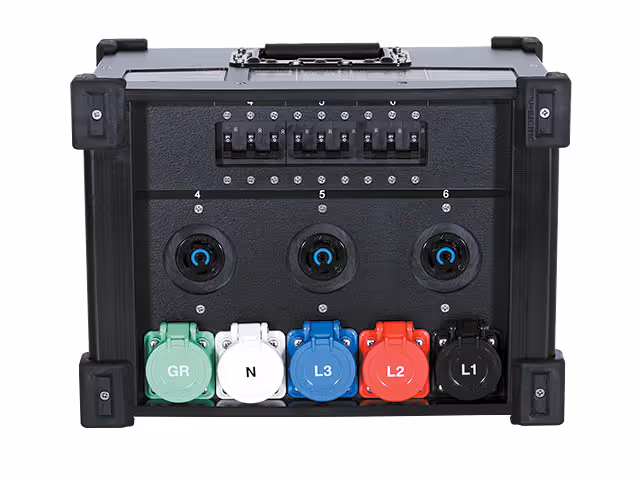

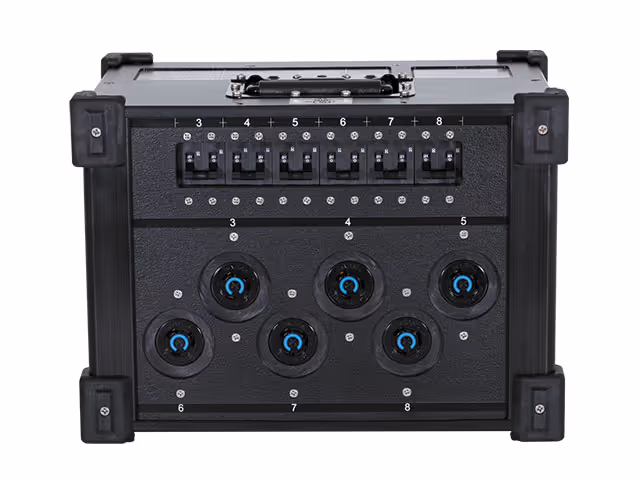

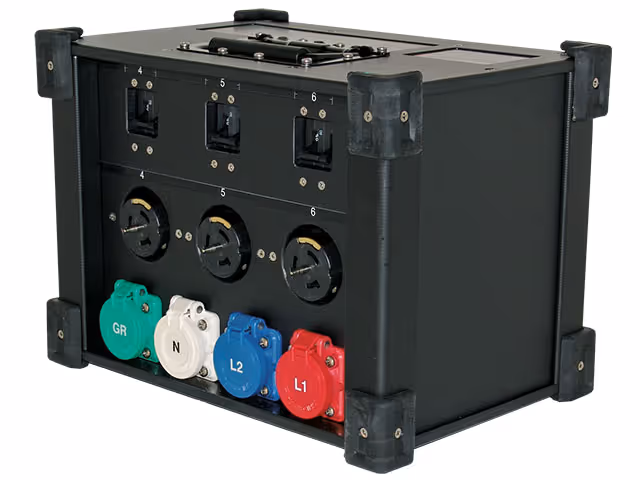

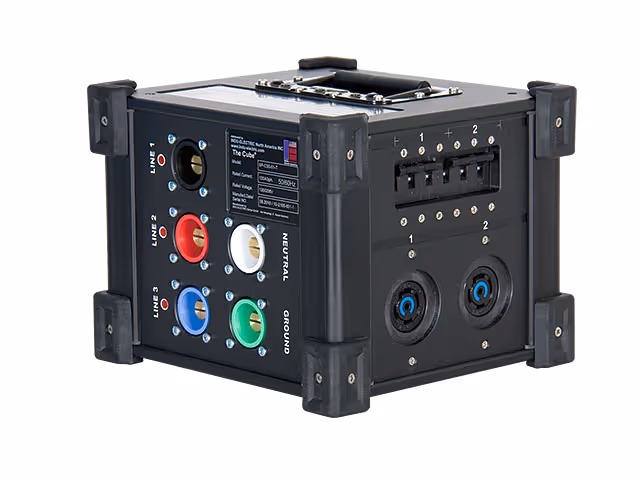

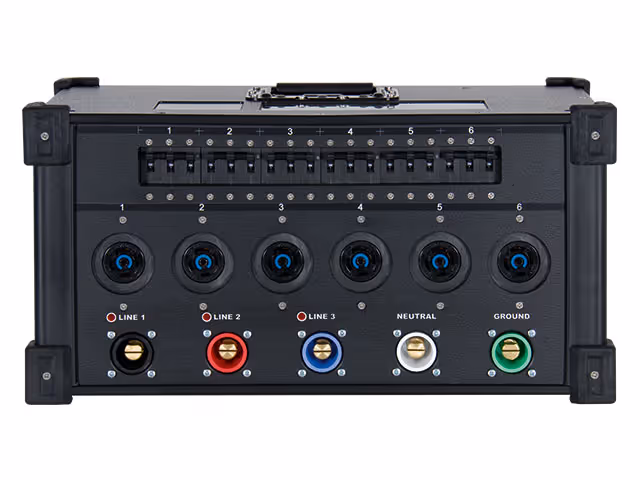

Input Device:
400A 3Ø Locking Cam
Output Device:
6- 30A 120/208V L21-30
Protected By:
6- 30A 3P Breaker
Model-Nr.:
CB4-5W-6xL2130
Dimensions:
10“L x 11“W x 8.25“H
Fully Customizable with L15-20/L15-30/L21-20/L5-20/L5-30/L6-20/L6-30/L14-20/L14-30 Twist-Locks

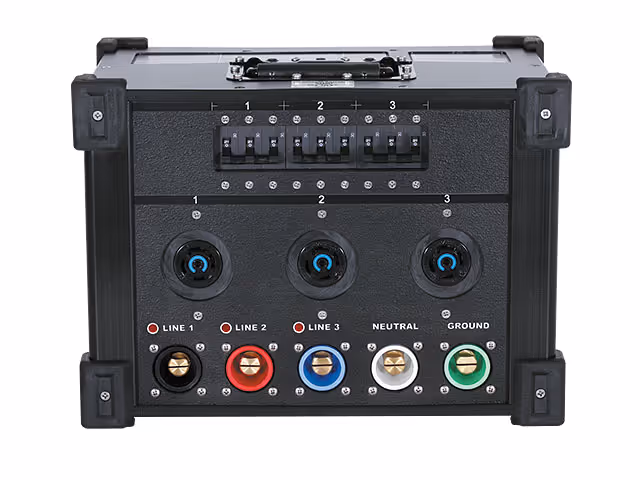

Input Device:
400A 3Ø Locking Cam 1 Pass Through
Output Device:
6- 30A 120/208V L21-30
3- 20A 120V Duplex Outlets*
Protected By:
6- 30A 3P Breaker
3- 20A 1P Breaker*
Model-Nr.:
CB2-5WPT-6xL2130-3x520
Dimensions:
15“L x 10“W x 10.75“H
Fully Customizable with L15-20/L15-30/L21-20/L5-20/L5-30/L6-20/L6-30/L14-20/L14-30 Twist-Locks
Input Device:
400A 3Ø Locking Cam1 Pass Through
Output Device:
4- 20A 120/208V L21-20
4- 30A 120/208V L21-30
3- 20A 120V Duplex Outlets*
Protected By:
4- 20A 3P Breaker
4- 30A 3P Breaker
3- 20A 1P Breaker*
Model-Nr.:
CB2-5WPT-4xL2130-4xL2120-3x520
Dimensions:
15“L x 10“W x 10.75“H
*Optional 3-20A Duplex Courtesy Outlets; Fully Customizable with L15-20/L15-30/L21-20/L5-20/L5-30/L6-20/L6-30/L14-20/L14-30 Twist-Locks

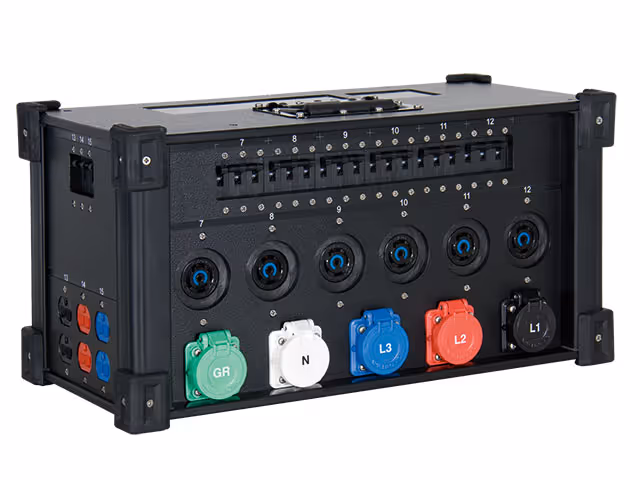

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 30A 120/208V L21-30
3- 20A 120V Duplex Outlets*
Protected By:
12- 30A 3P Breaker
3- 20A 1P Breaker*
Model-Nr.:
CB3-5WPT-12xL2130-3x520
Dimensions:
21.5“L x 10“W x 10.75“H
*Optional 3-20A Duplex Courtesy Outlets; Fully Customizable with L15-20/L15-30/L21-20/L5-20/L5-30/L6-20/L6-30/L14-20/L14-30 Twist-Locks
Input Device:
100A 3Ø Locking Cam
Output Device:
3- 20A 120V Duplex Outlets
4- 20A 120/208V L21-20
Protected By:
3- 20A 1P Breaker
4- 20A 3P Breaker
Model-Nr.:
CB4-5W-4xL2120-3x520
Dimensions:
10“L x 11“W x 8.25“H
Fully Customizable with L15-20/L15-30/L21-20/L5-20/L5-30/L6-20/L6-30/L14-20/L14-30 Twist-Locks

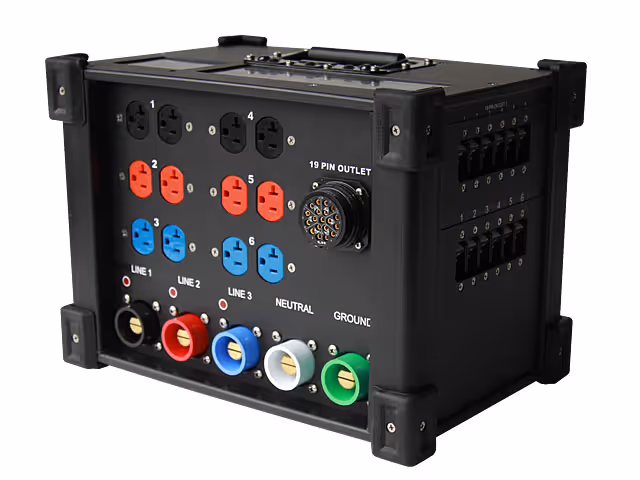

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
4- 20A 120V 6 Circuits 19Pin
Protected By:
26- 20A 1P Rocker Breaker
Model-Nr.:
CB2-5WPT-4x19P120
Dimensions:
15“L x 10“W x 10.75“H

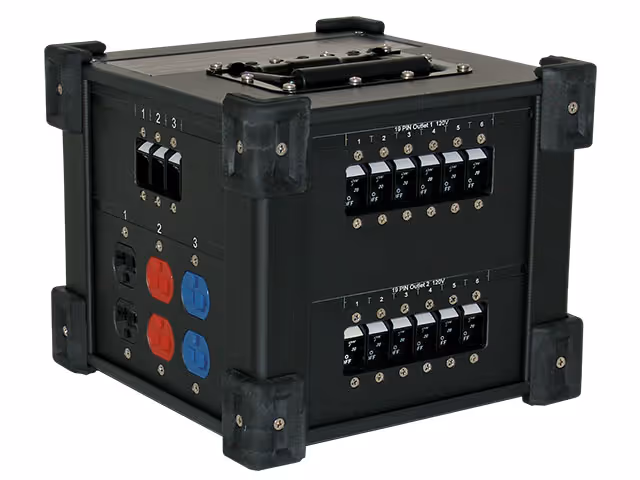

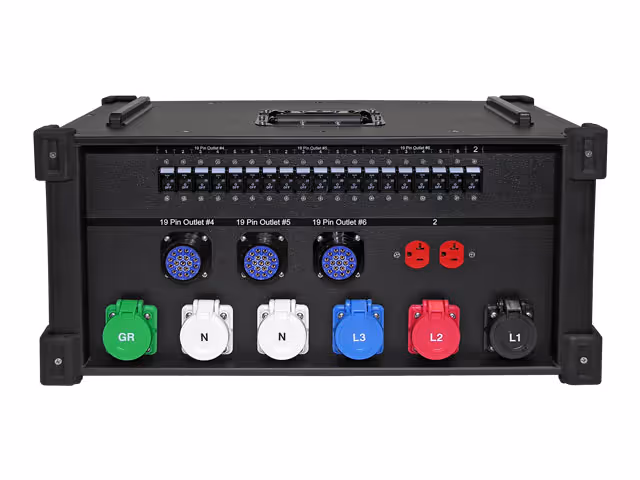

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
6- 20A 120V 6 Circuits 19Pin
Protected By:
38- 20A 1P Rocker Breaker
Model-Nr.:
CB3-5WPT-6x19P120
Dimensions:
24“L x 12“W x 11.75“H

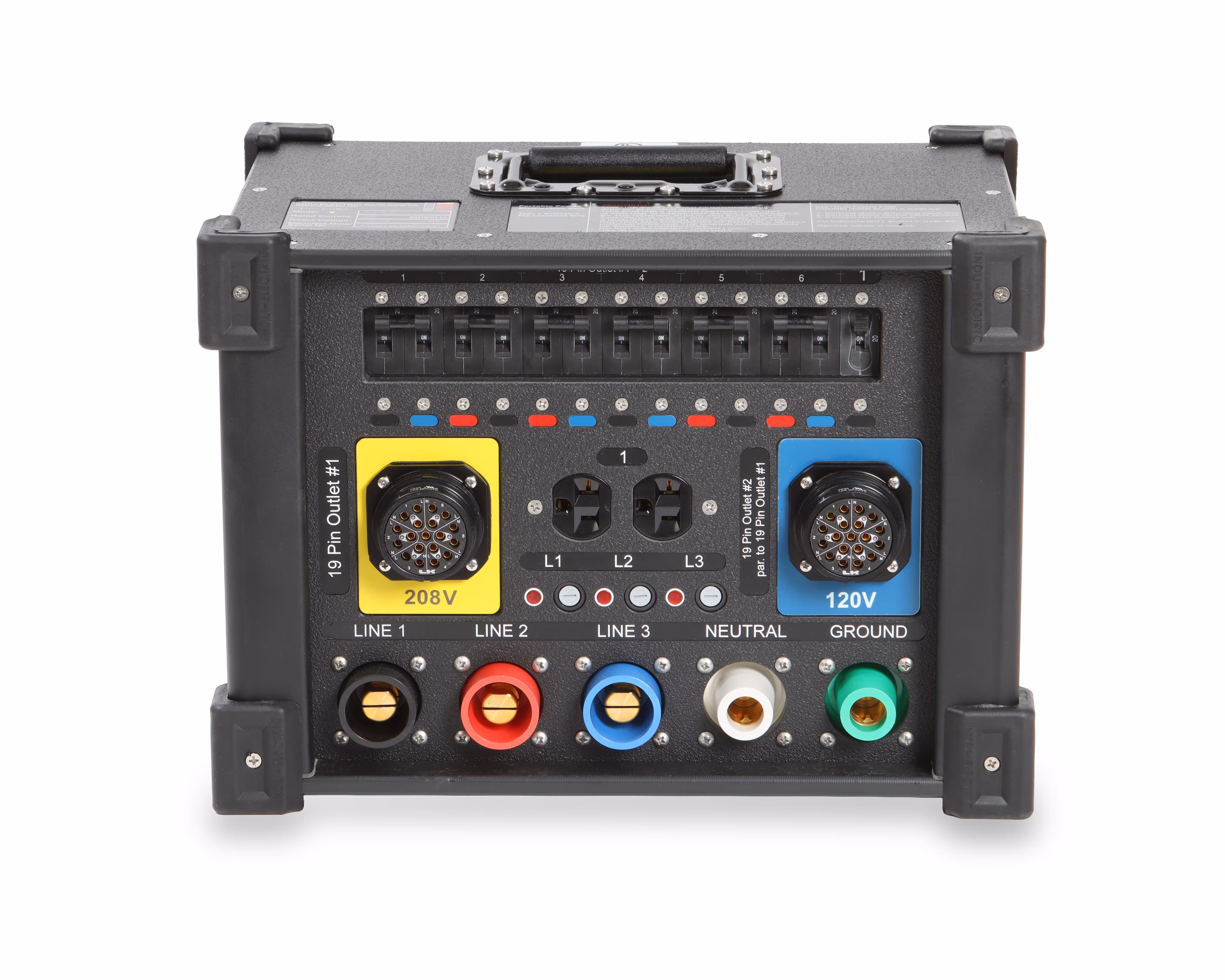

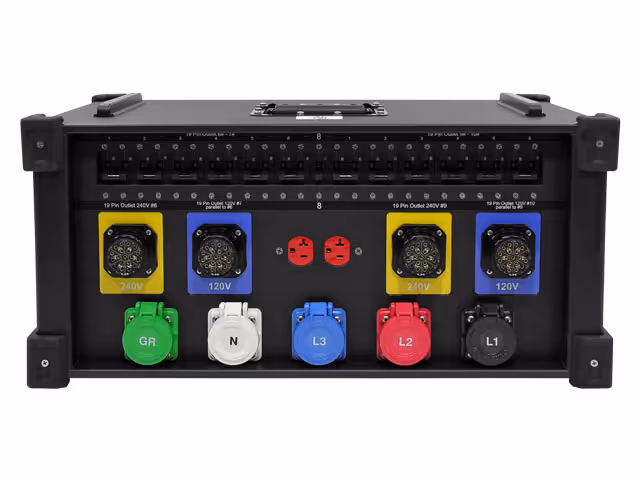

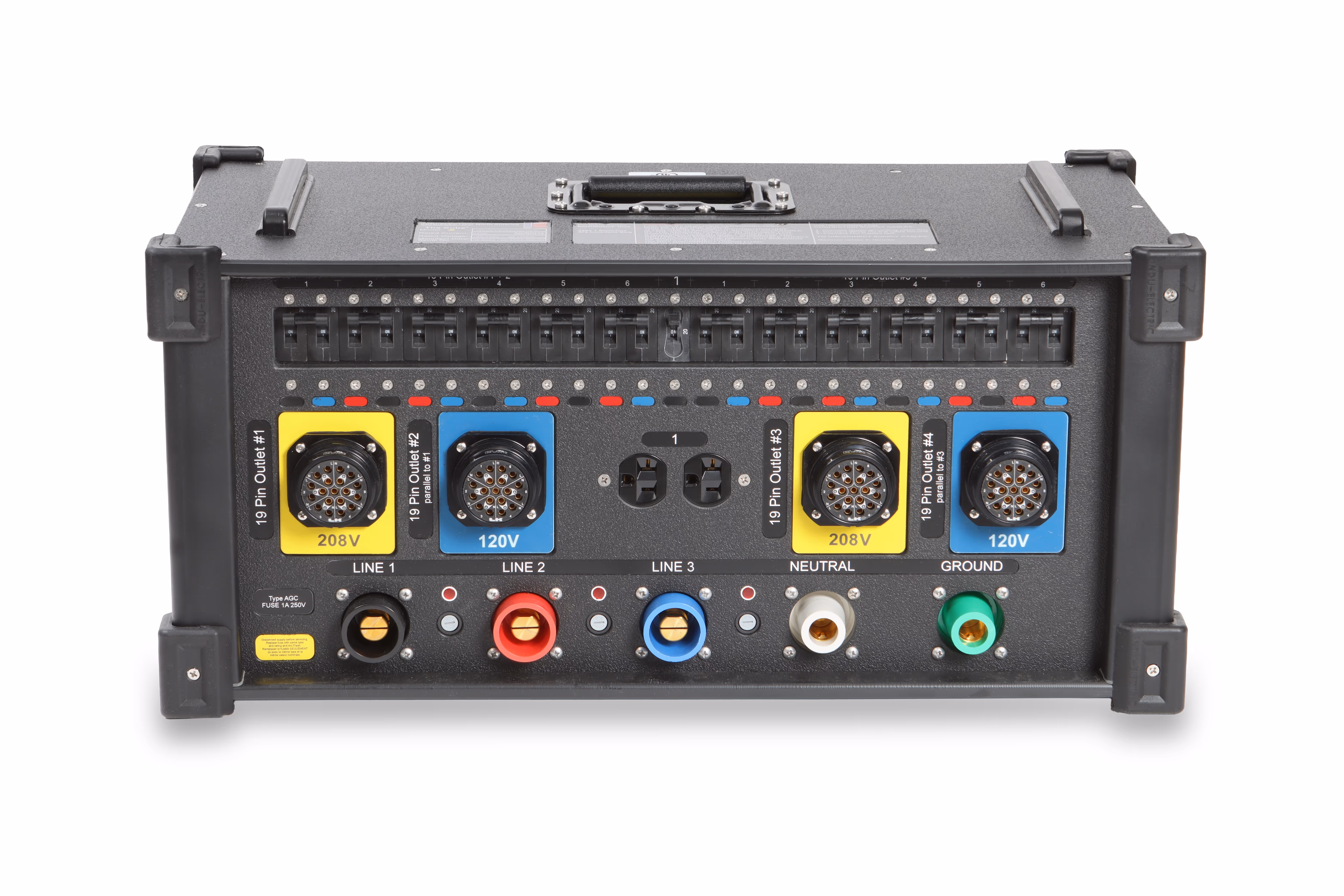

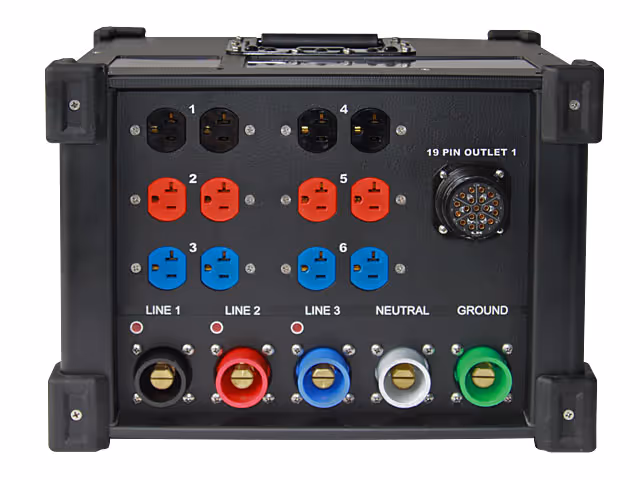

Input Device:

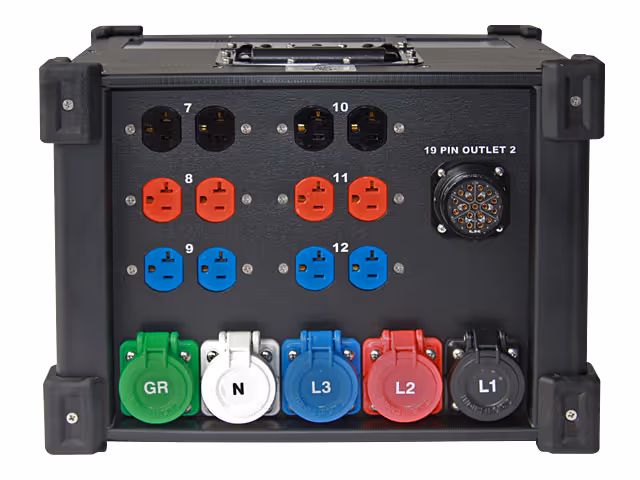

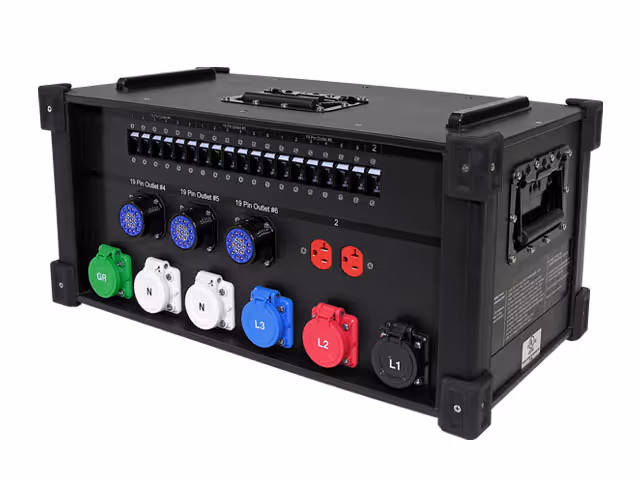

400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 20A 120V Duplex Outlets
2- 20A 120V 6 Circuits 19Pin
Protected By:
24- 20A 1P Rocker Breaker
Model-Nr.:
CB2-5WPT-2x19P120-12x520
Dimensions:
15“L x 10“W x 10.75“H
Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
2- 20A 240V 6 Circuit 19 Pin
Protected By:
2- 20A 1P Breaker
12- 20A 2P Breaker
Model-Nr.:
CB2-5WPT-2x19P240-2x520
Dimensions:
15“L x 10“W x 10.75“H

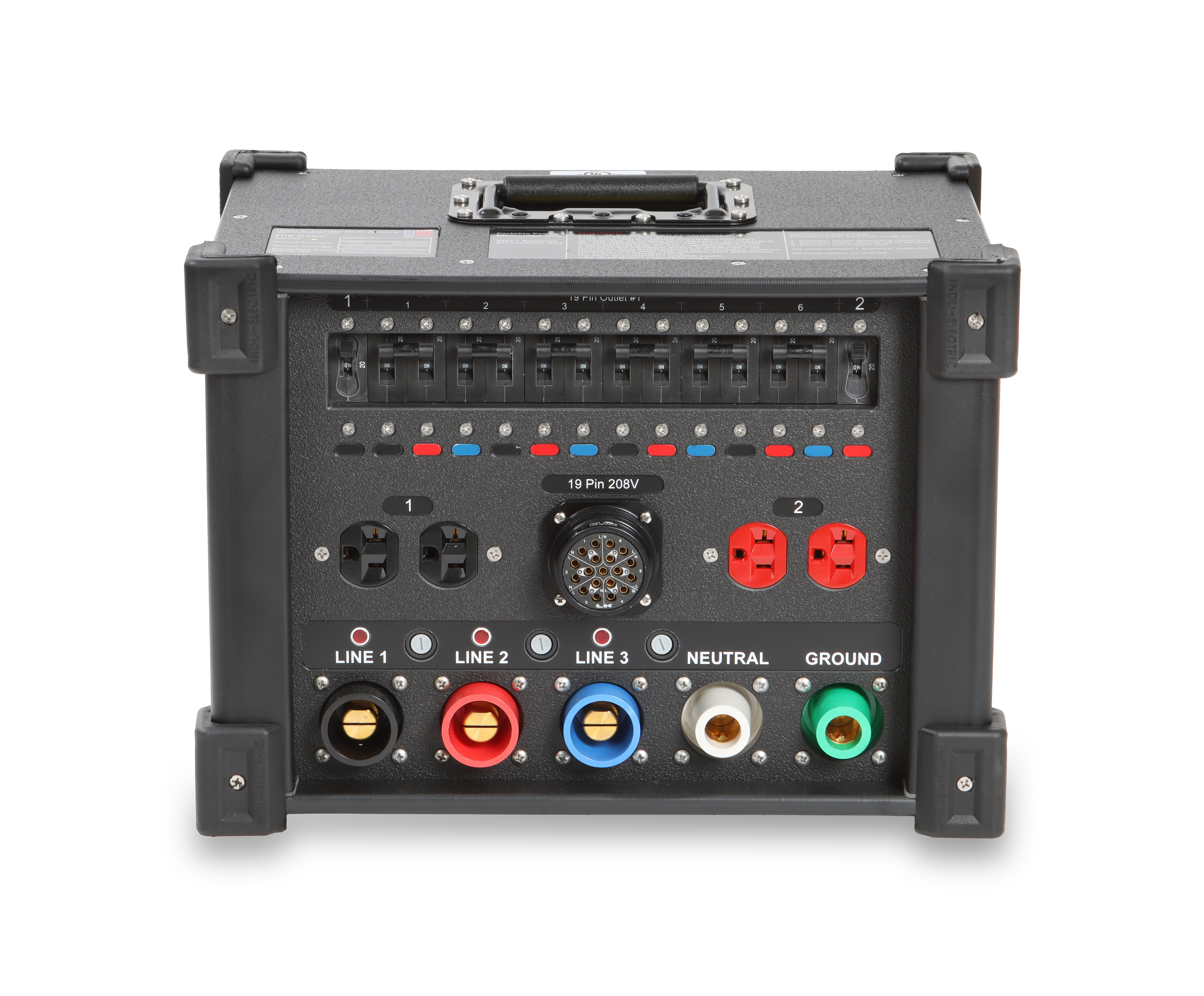

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 240V 6 Circuit 19Pin
4- 20A 250V L6-20
Protected By:
16- 20A 2P Breaker
Model-Nr.:
CB2-5WPT-2x19P240-4xL620
Dimensions:
15“L x 10“W x 10.75“H

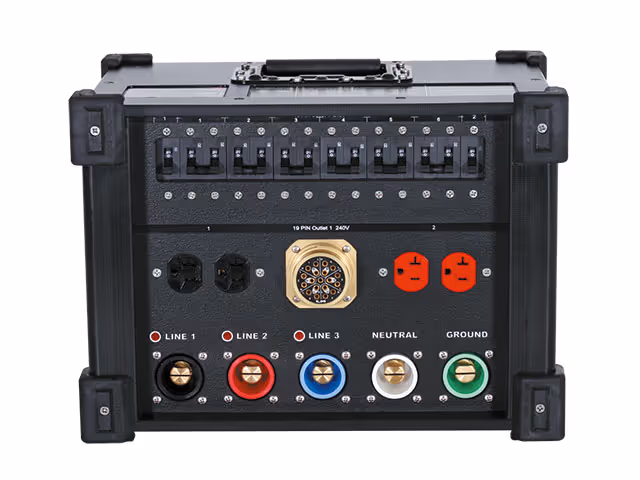

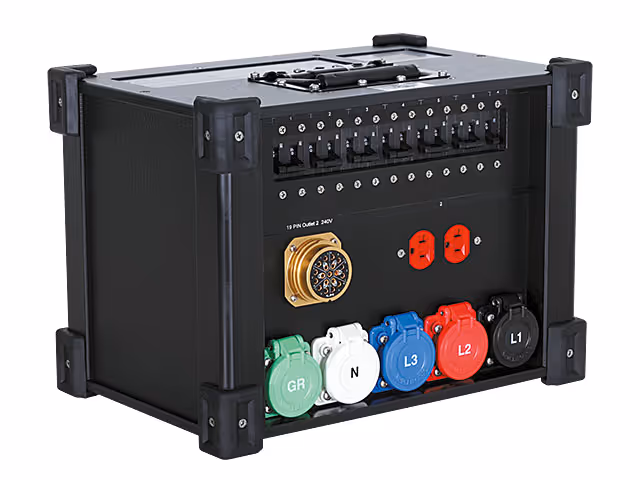

Input Device:
400A 3Ø Locking Cam
Output Device:
2- 20A 120V Duplex Outlets
1- 20A 240V 6 Circuit 19Pin
6- 20A 250V Twistlock
Protected By:
2- 20A 1P Breaker
12- 20A 2P Breaker
Model-Nr.:
CB2-5W-1x19P240-6xL620-2x520
Dimensions:
15“L x 10“W x 10.75“H

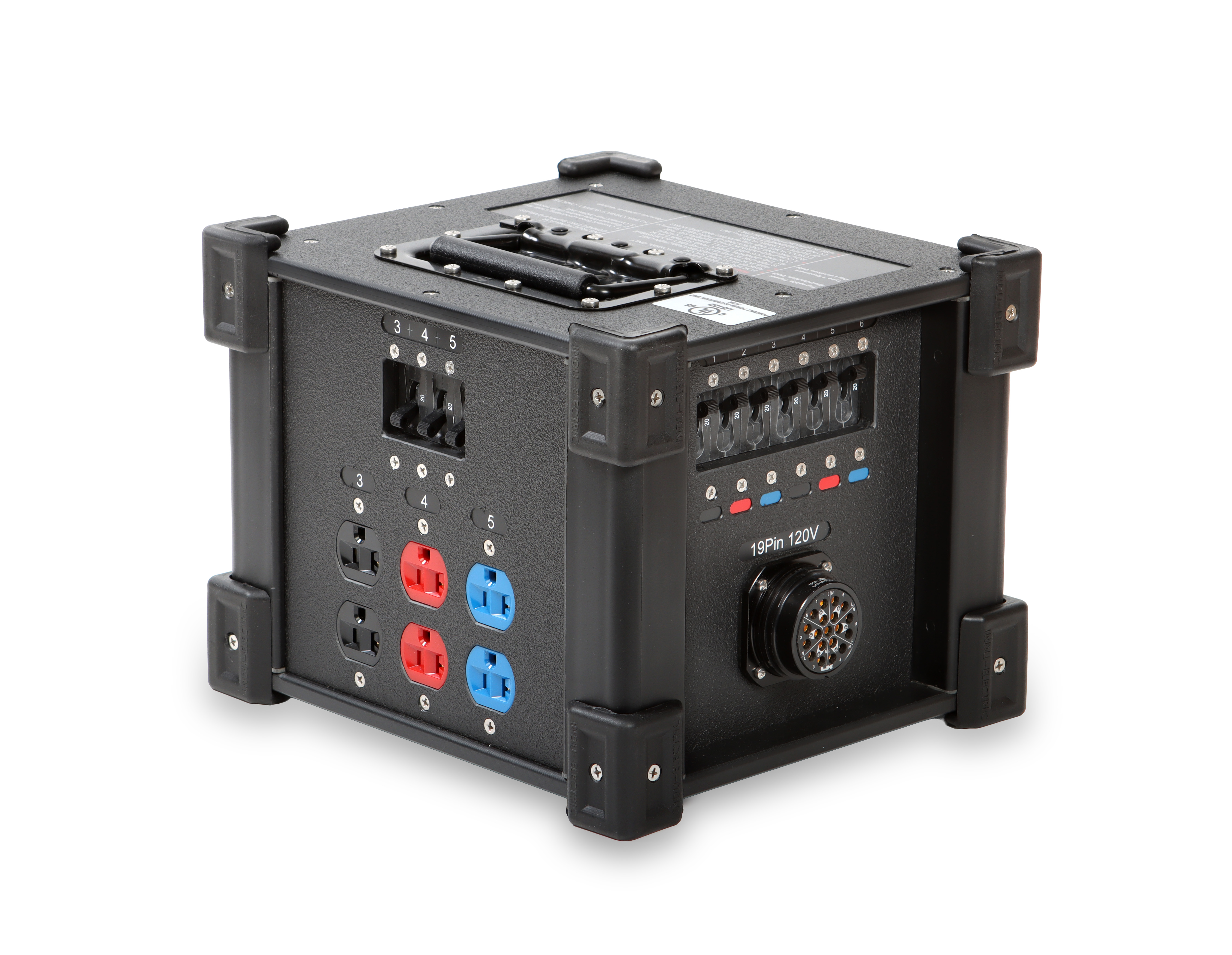

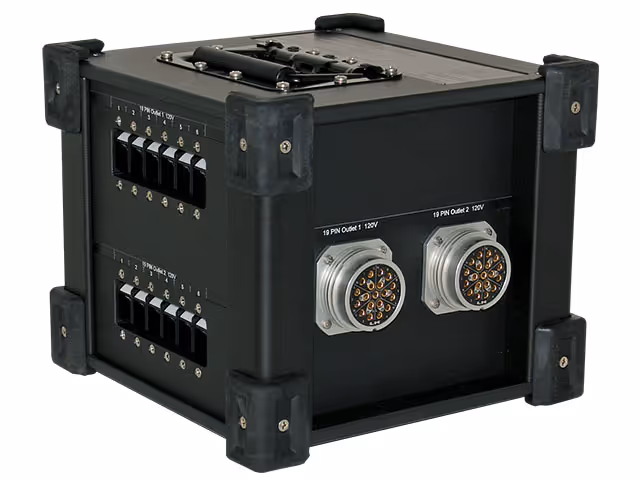

Input Device:
100A 3Ø Locking Cam
Output Device:
3- 20A 120V Duplex Outlets
2- 20A 120V 6 Circuit 19Pin
Protected By:
15- 20A 1P Rocker Breaker
Model-Nr.:
CB4-5W-2x19P120-3x520
Dimensions:
10“L x 10“W x 8.25“H

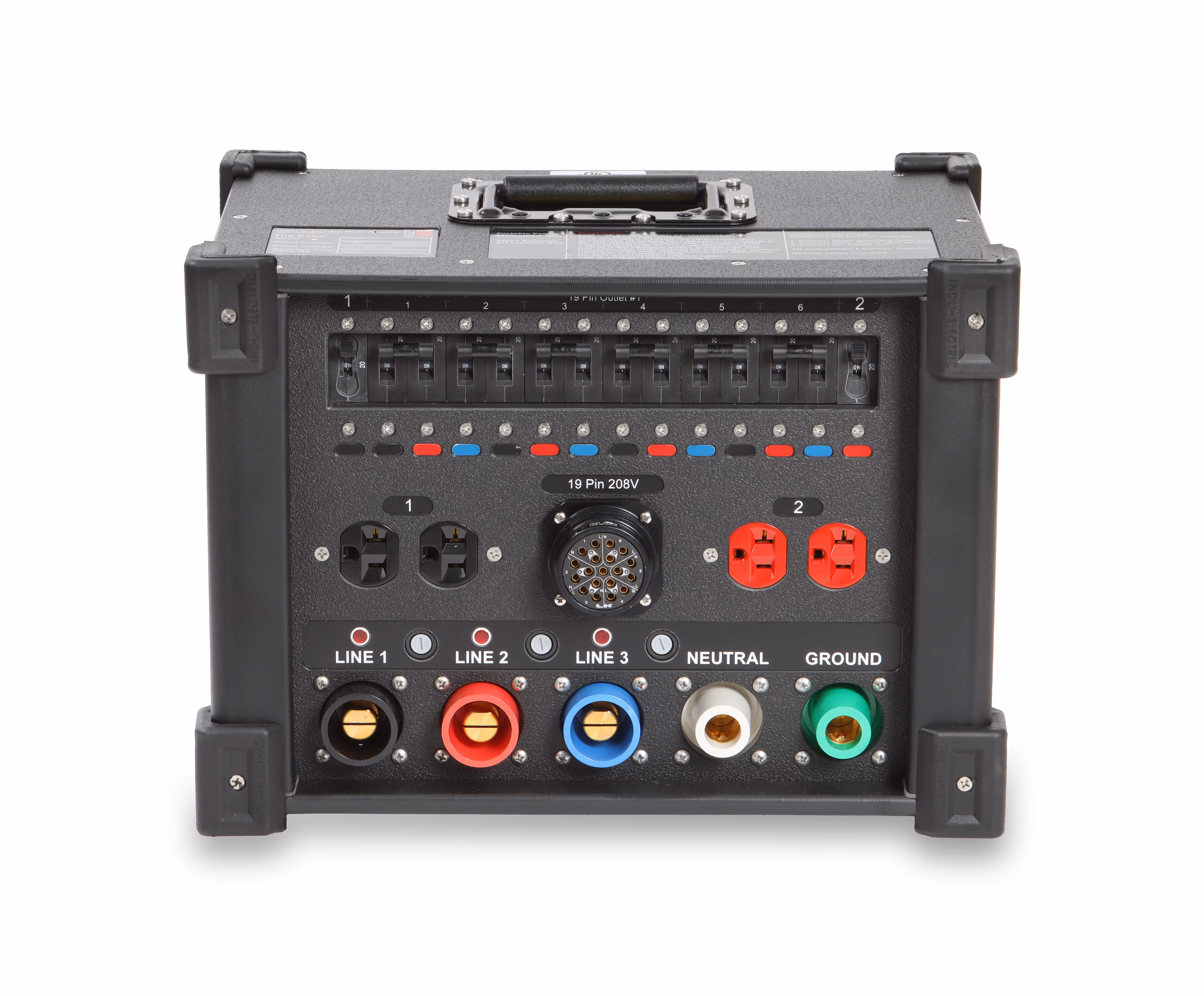

Input Device:
400A 3Ø Locking Cam
Output Device:
3- 20A 120V Duplex Outlets
2- 20A 240V 6 Circuit 19Pin
Protected By:
3- 20A 1P Breaker
12- 20A 2P Breaker
Model-Nr.:
CB1-5W-2x19P240-3x520
Dimensions:
13“L x 10“W x 8.25“H

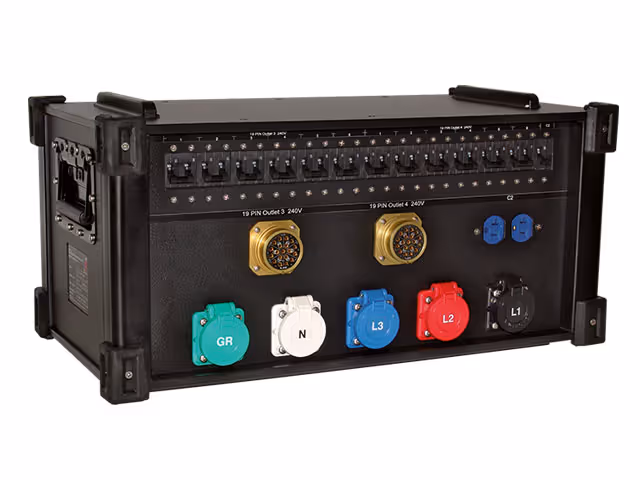

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 20A 240V 6 Circuit 19Pin
2- 20A 120V Duplex Outlets
Protected By:
24- 20A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB3-5WPT-4x19P240-2x520
Dimensions:
24“L x 12“W x 11.75“H

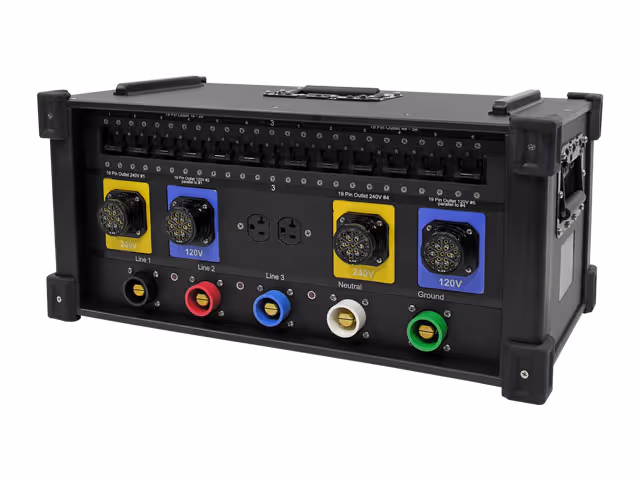

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 20A 240V 6 Circuit 19Pin
4- 20A 120V 6 Circuit 19Pin
2- 20A 120V Duplex Outlets
Protected By:
24- 20A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB3-5WPT-4x19P208_120-Dual
Dimensions:
24“L x 12“W x 11.75“H

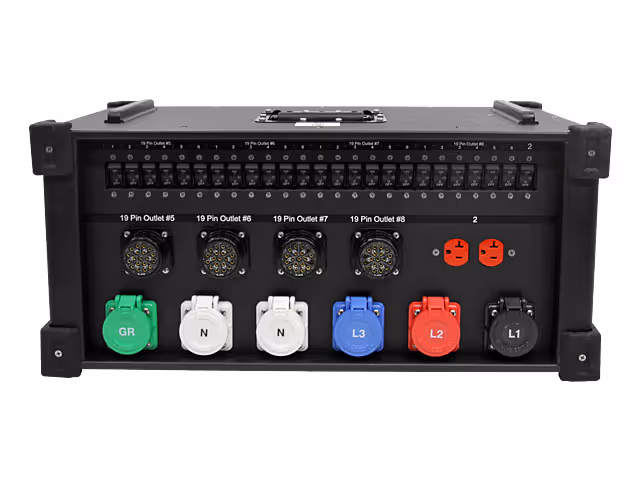

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
8- 20A 120V 6 Circuit 19Pin
2- 20A 120V Duplex Outlets
Protected By:
50- 20A 1P Breaker
Model-Nr.:
CB3-5WPT-8X19P120
Dimensions:
24“L x 12“W x 11.75“H
Input Device:
400A 1Ø Locking Cam
1 Pass Through
Output Device:
6- 50A 120/240V 3P 4W
CS6369 Twistlocks
2- 20A 120V Duplex Outlets
Protected By:
6- 50A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB2-4WPT-6xCS6369-2x520
Dimensions:
15“L x 10“W x 10.75“H
Also available as 5 Wire 3Ø Version
Input Device:
400A 1Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
4- 50A 120/240V 14-50
2- 30A 120V Straight Blades
Protected By:
2- 20A 1P Breaker
4- 50A 2P Breaker
2- 30A 1P Breaker
Model-Nr.:
CB2-4WPT-4x1450-2x30RV
Dimensions:
15“L x 10“W x 10.75“H
Also available as 4x30A / 2x50A RV Combo

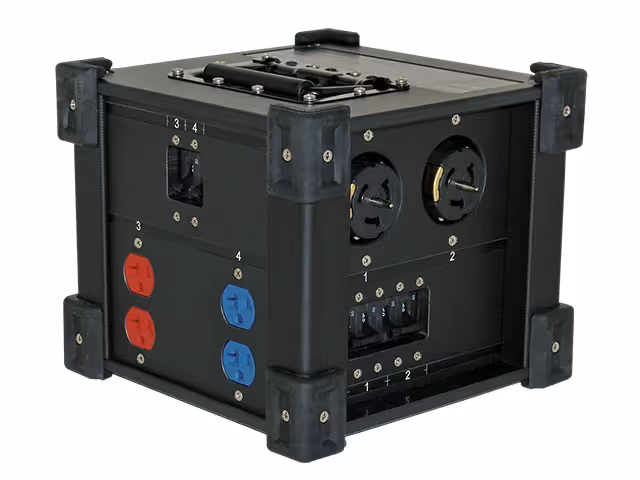

Input Device:
220A 1Ø Locking Cam
Output Device:
4- 20A 120/240V 3P 4W
CS6369 Twistlocks
2- 20A 120V Duplex Outlets
Protected By:
4- 50A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB4-4W-4xCS6369-2x520
Dimensions:
10“L x 10“W x 8.25“H

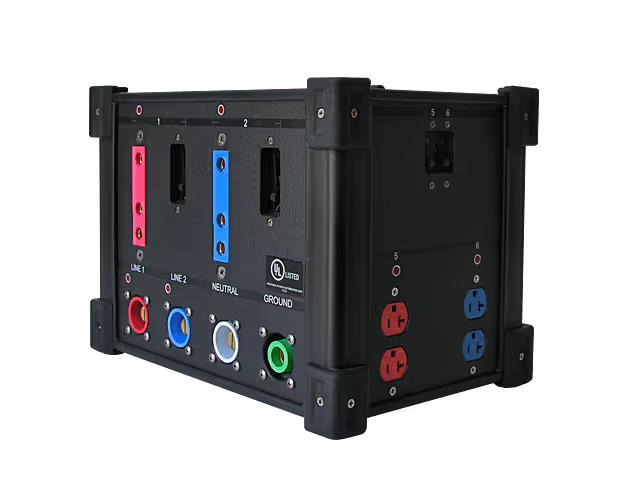

Input Device:
230A 1Ø Locking Cam
Output Device:
4- 50A 120/240V 14-50
2- 30A 120V Straight Blades
Protected By:
4- 50A 2P Breaker
2- 30A 1P Breaker
Model-Nr.:
CB4-4W-4x1450-2x30RV
Dimensions:
10“L x 10“W x 8.25“H

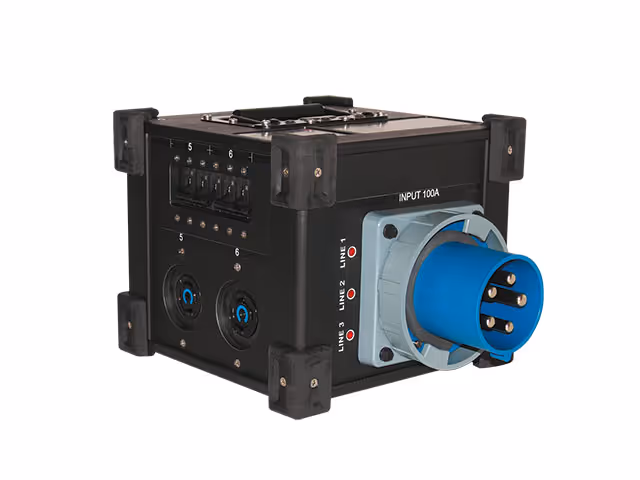

Input Device:
100A 120/208V 4P 5Wire
Pin & Sleeve Male Inlet
Output Device:
1- 20A 120V Duplex Outlets
5- 20A 120/208V L21-20
Protected By:
1- 20A 1P Breaker
5- 20A 3P Breaker
Model-Nr.:
CB4-1PS-5xL2120-1x520
Dimensions:
10“L x 10“W x 8.25“H

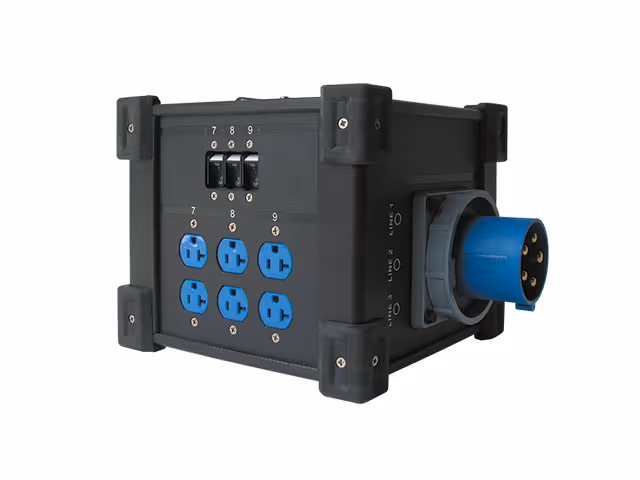

Input Device:
60A 120/208 4P 5Wire
Pin & Sleeve Male Inlet
Output Device:
9- 20A 120V Duplex Outlets
Protected By:
9- 20A 1P Rocker Breaker
Model-Nr.:
CB4-6PS-9x520
Dimensions:
10“L x 10“W x 8.25“H

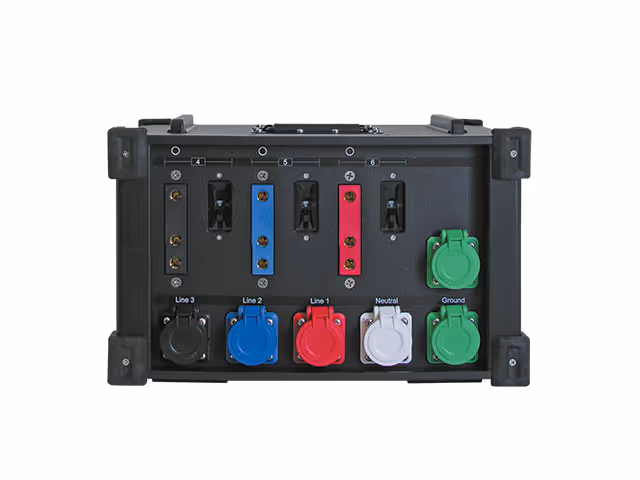

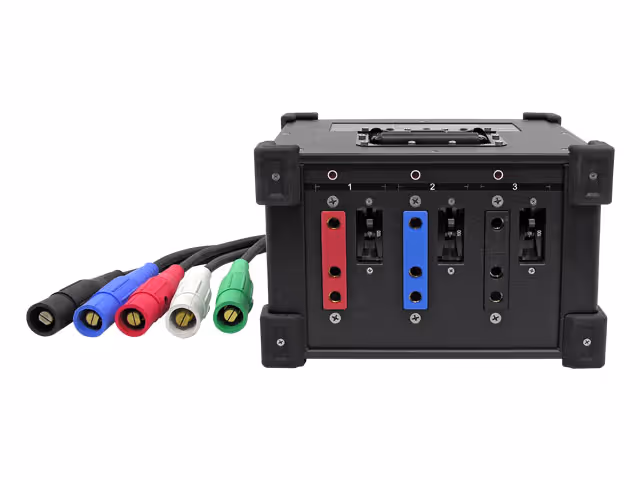

Input Device:
100A 3Ø Locking Cam Tail
Output Device:
2- 20A 120V Duplex Outlets
3- 100A 120V Stage Pin
Protected By:
2- 20A 1P Breaker
3- 100A 120V 1P Breaker
Model-Nr.:
CB-C30-TAIL
Dimensions:
13“L x 10“W x 8.25“H

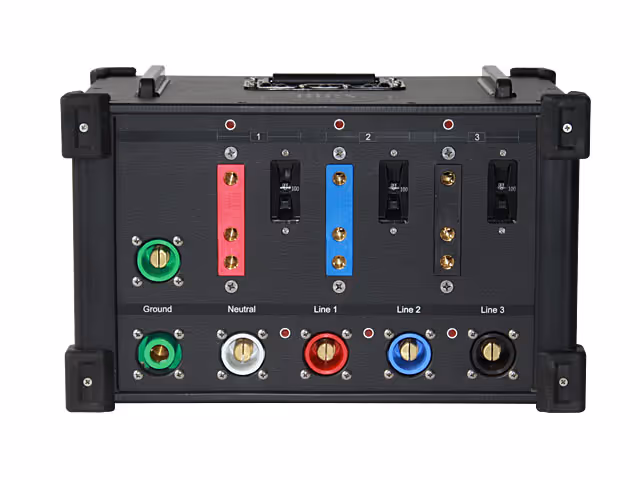

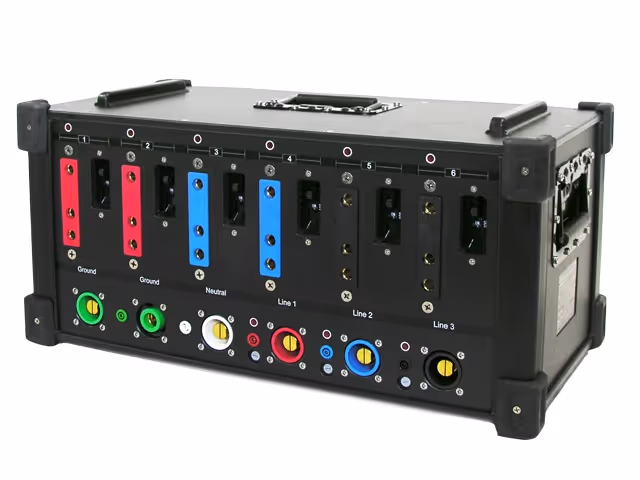

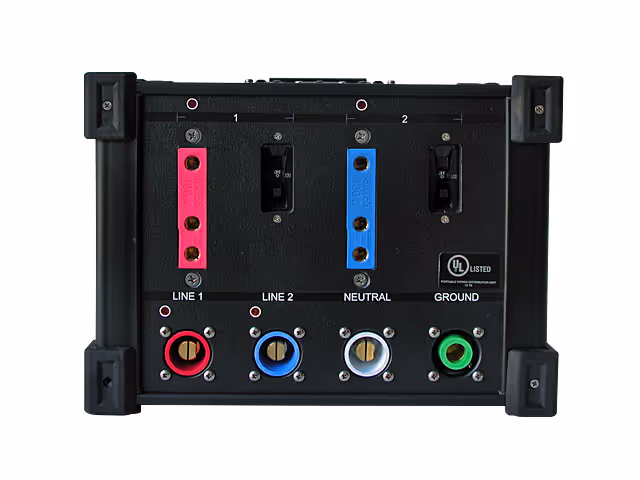

Input Device:
400A 1Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
4- 100A 120V Stage Pin
Protected By:
2- 20A 1P Breaker
4- 100A 120V 1P Breaker
Model-Nr.:
400A Stage Pin Distro
Dimensions:
15“L x 10“W x 10.75“H

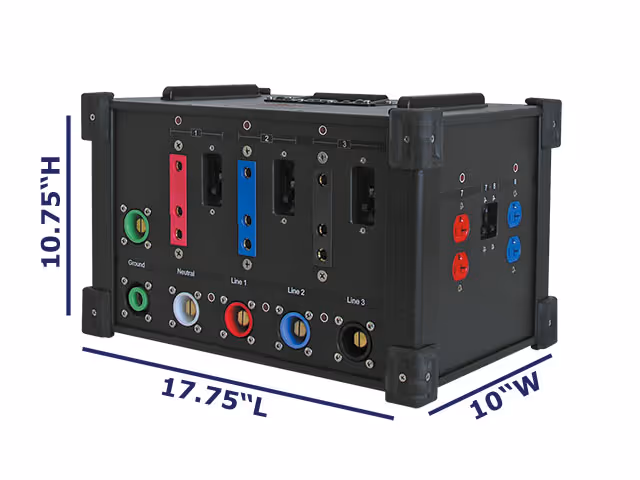

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
6- 100A 120V Stage Pin
Protected By:
2- 20A 1P Breaker
6- 100A 120V 1P Breaker
Model-Nr.:
600A Stage Pin Distro
Dimensions:
17,75“L x 10“W x 10.75“H

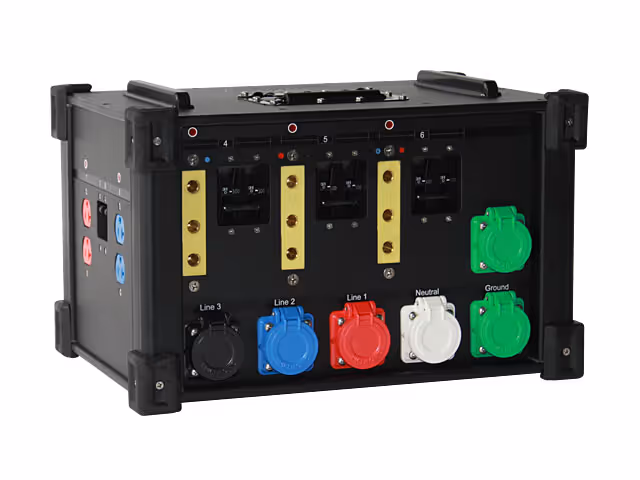

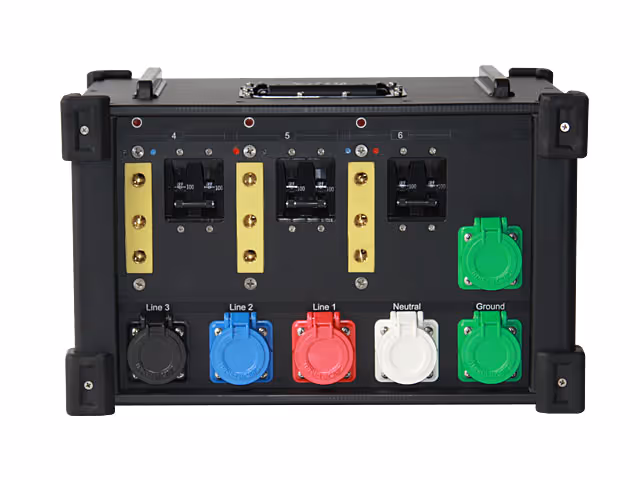

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Input Device:
2- 20A 120V Duplex Outlets
3- 100A 120V Stage Pin
3- 100A 120V Stage Pin
Protected By:
2- 20A 1P Breaker
3- 100A 120V 1P Breaker
3- 100A 120V 2P Breaker
Model-Nr.:
900A Stage Pin Distro
Dimensions:
15“L x 10“W x 10.75“H
Input Device:
400A 3Ø 6Wire Locking Cam
1 Pass Through
Output Device:
2- 20A 120V Duplex Outlets
6- 100A 120V Stage Pin
3- 100A 240V Stage Pin
Protected By:
2- 20A 1P Breaker
6- 100A 2P Breaker
3- 100A 2P Breaker
Model-Nr.:

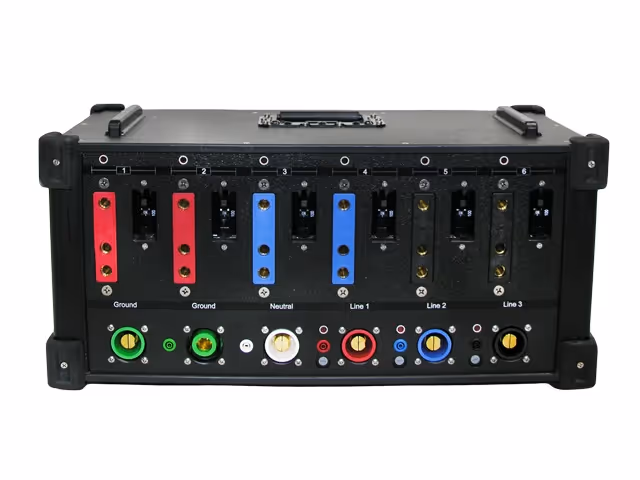

1200A Stage Pin Distro
Dimensions:
24“L x 12“W x 11.75“H
Additional Standard Studio Stage Pin Configurations Available (300A/900A/Pigtail)

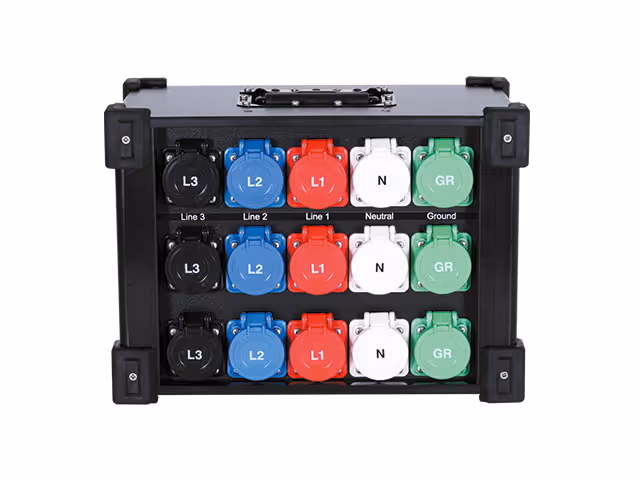

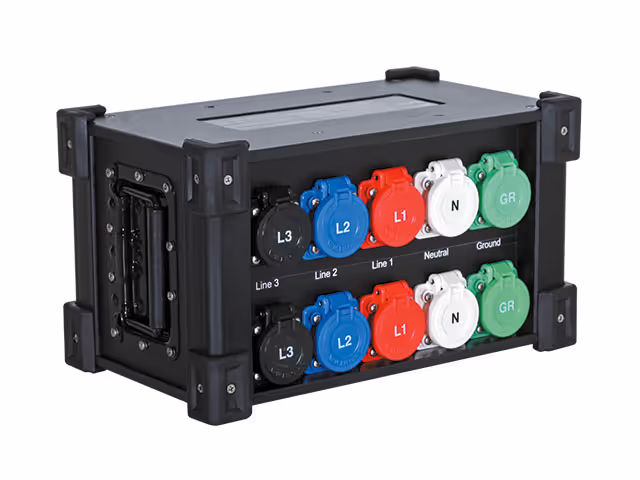

Input Device:
400A 3Ø Locking Cam
Output Device:
3 Rows 400A 3Ø Locking Cam
Protected By:
NA
Model-Nr.:
CB-SPI-1-3
Dimensions:
15“L x 8.5“W x 8.25“H

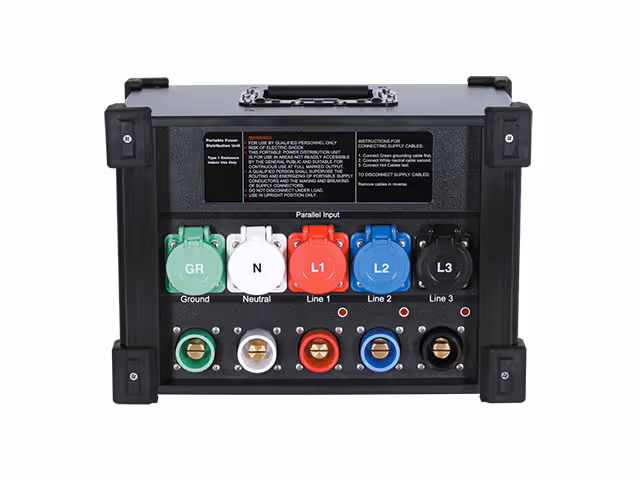

Input Device:
2 Rows of Parallel 400A (2400A Total)
3Ø Locking Cam
Output Device:
3 Rows 400A 3Ø Locking Cam
Protected By:
NA
Model-Nr.:
CB-SPI-2-3
Dimensions:
15“L x 8.5“W x 10.75“H

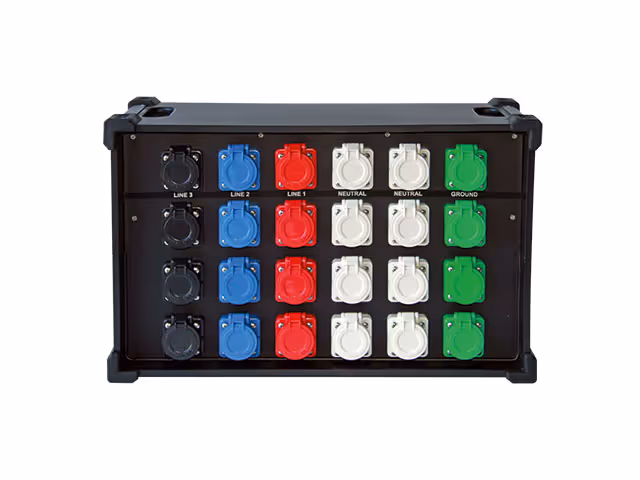

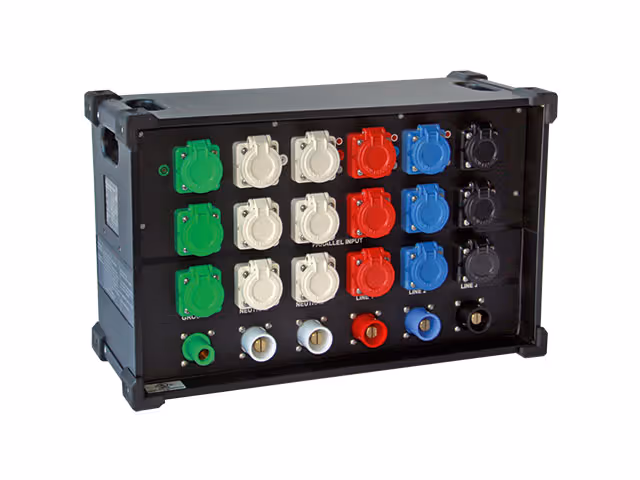

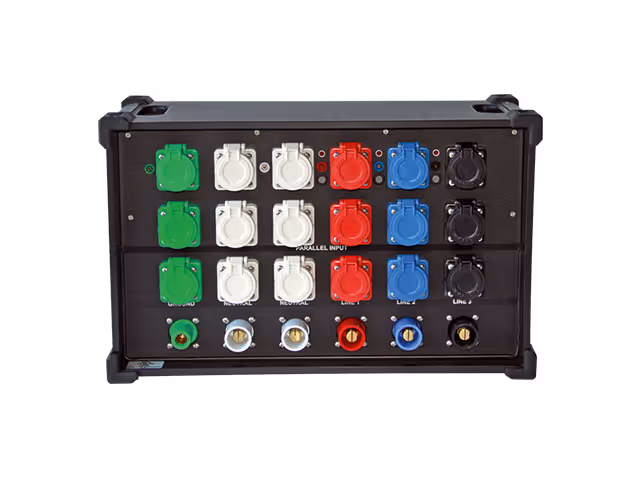

Input Device:
2 Rows of Parallel 400A (2400A Total)
3Ø Locking Cam (Double Neutral)
Output Device:
6- Rows of 5Wire (Double Neutral)
Locking Cam
Protected By:
NA
Model-Nr.:
IND-SPI-2400 (2-6 Spider)
Dimensions:
23“L x 9“W x 14.25“H
Also available as 4-4 (4800A) Spider

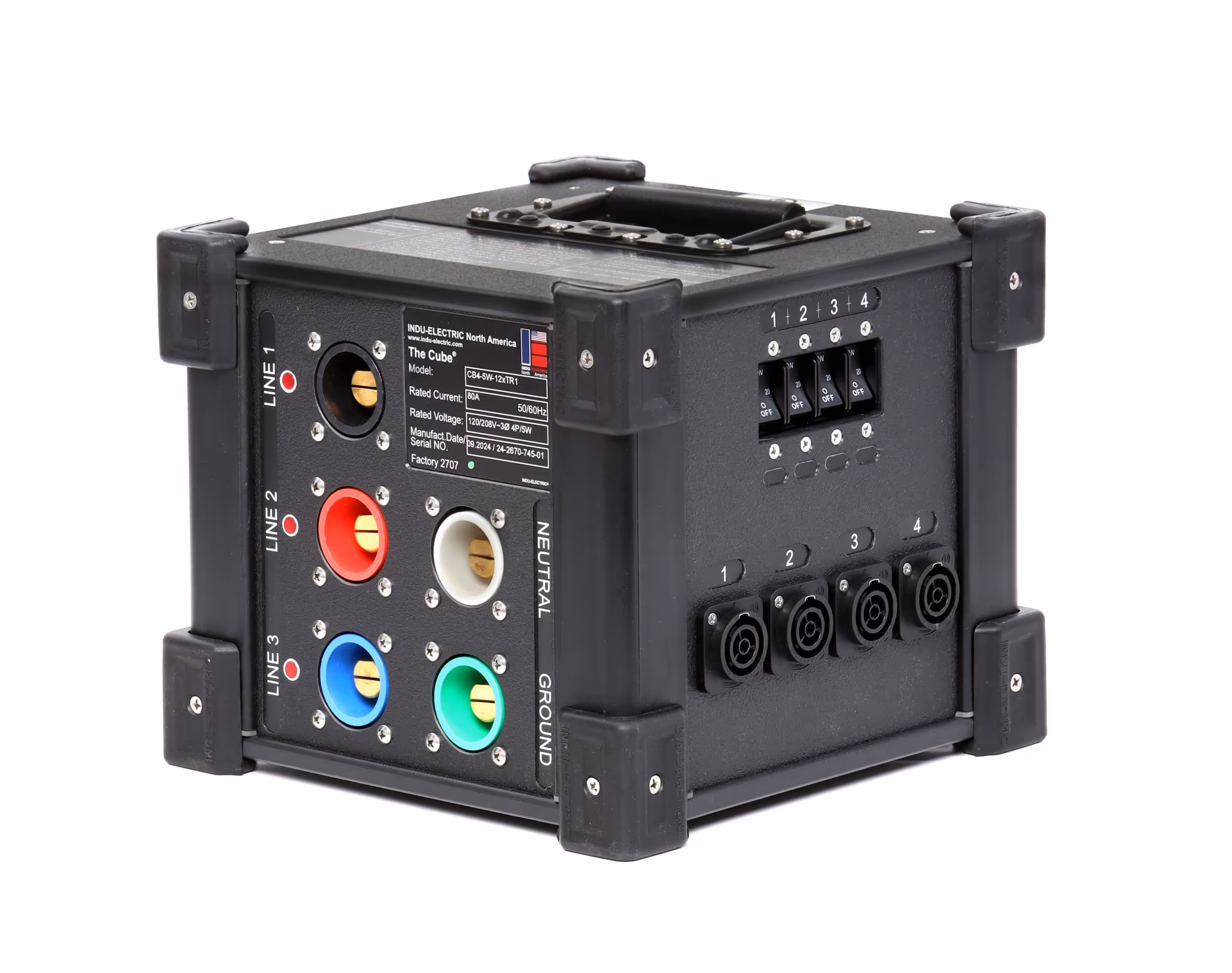

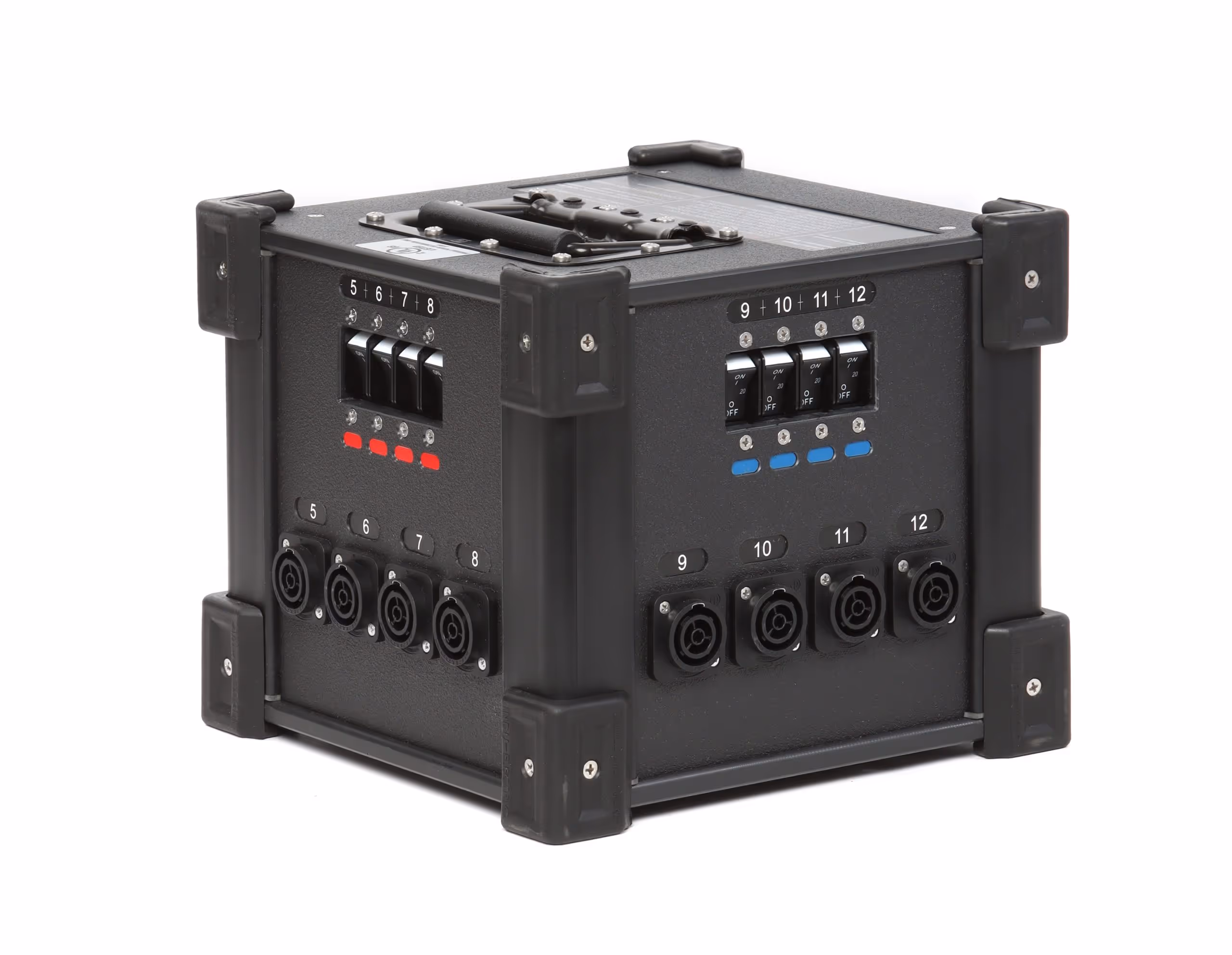

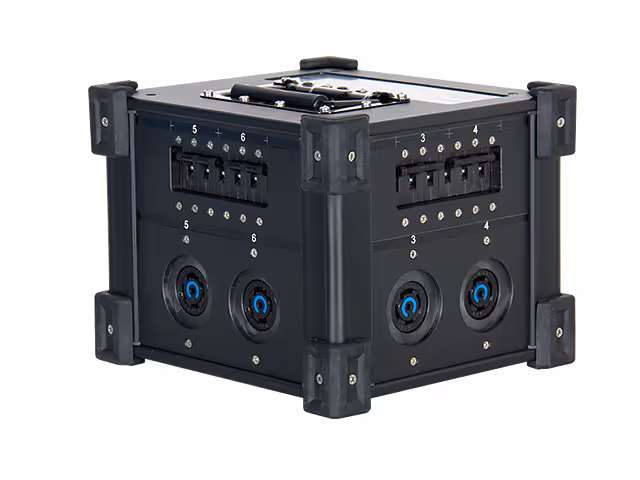

Input Device:
80A 3Ø Locking Cam
Output Device:
12- 20A 120V powerCON® True1
Protected By:
12- 20A 1P Breaker
Model-Nr.:
CB4-5W-12xTR1
Spec #
18002745
Dimensions:
10“L x 10“W x 8,25“H

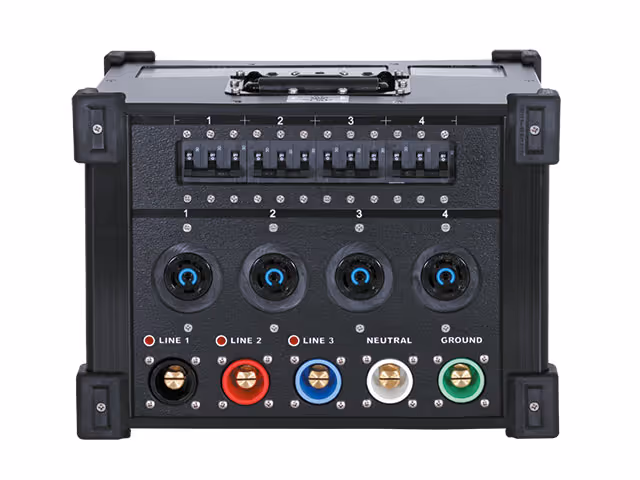

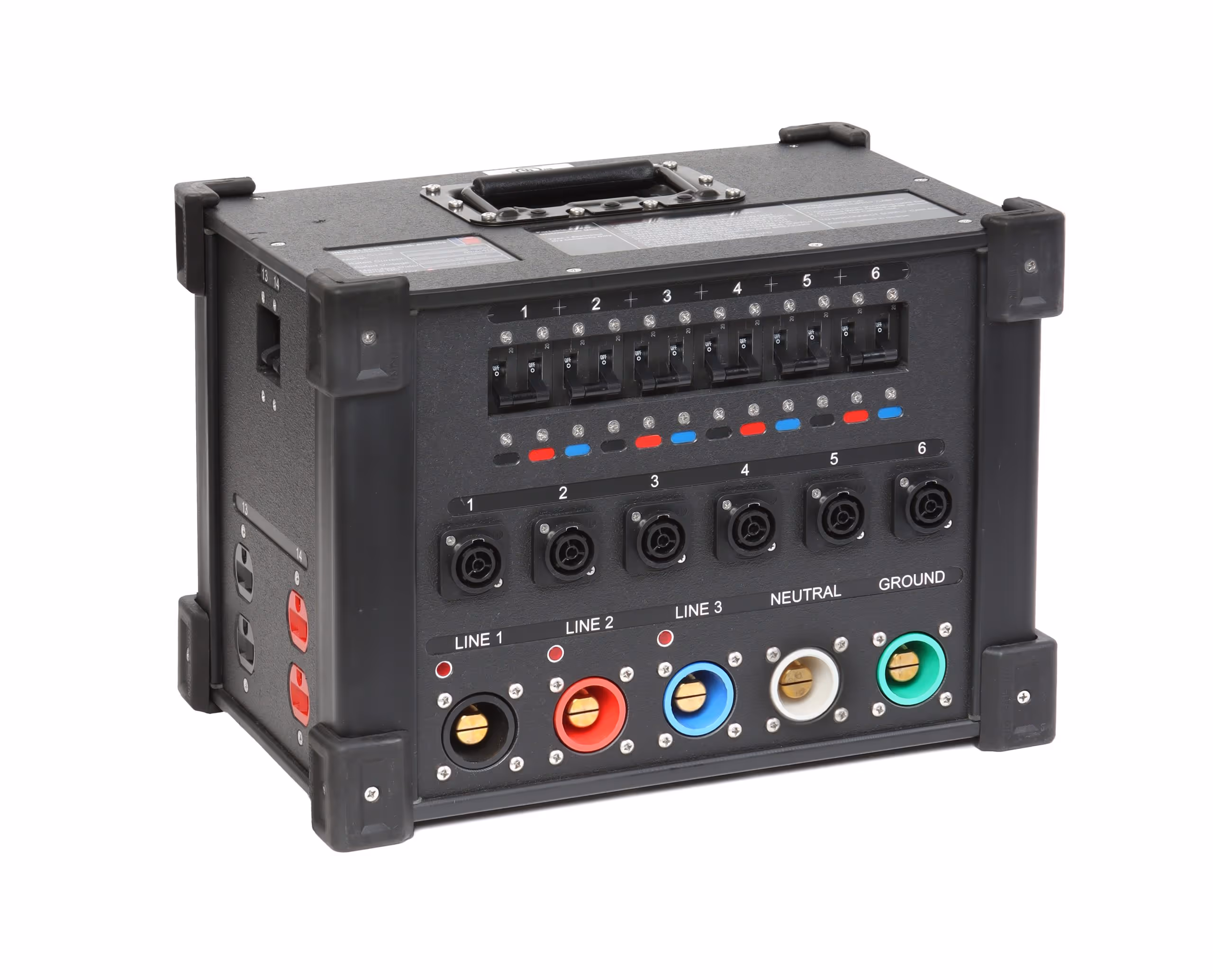

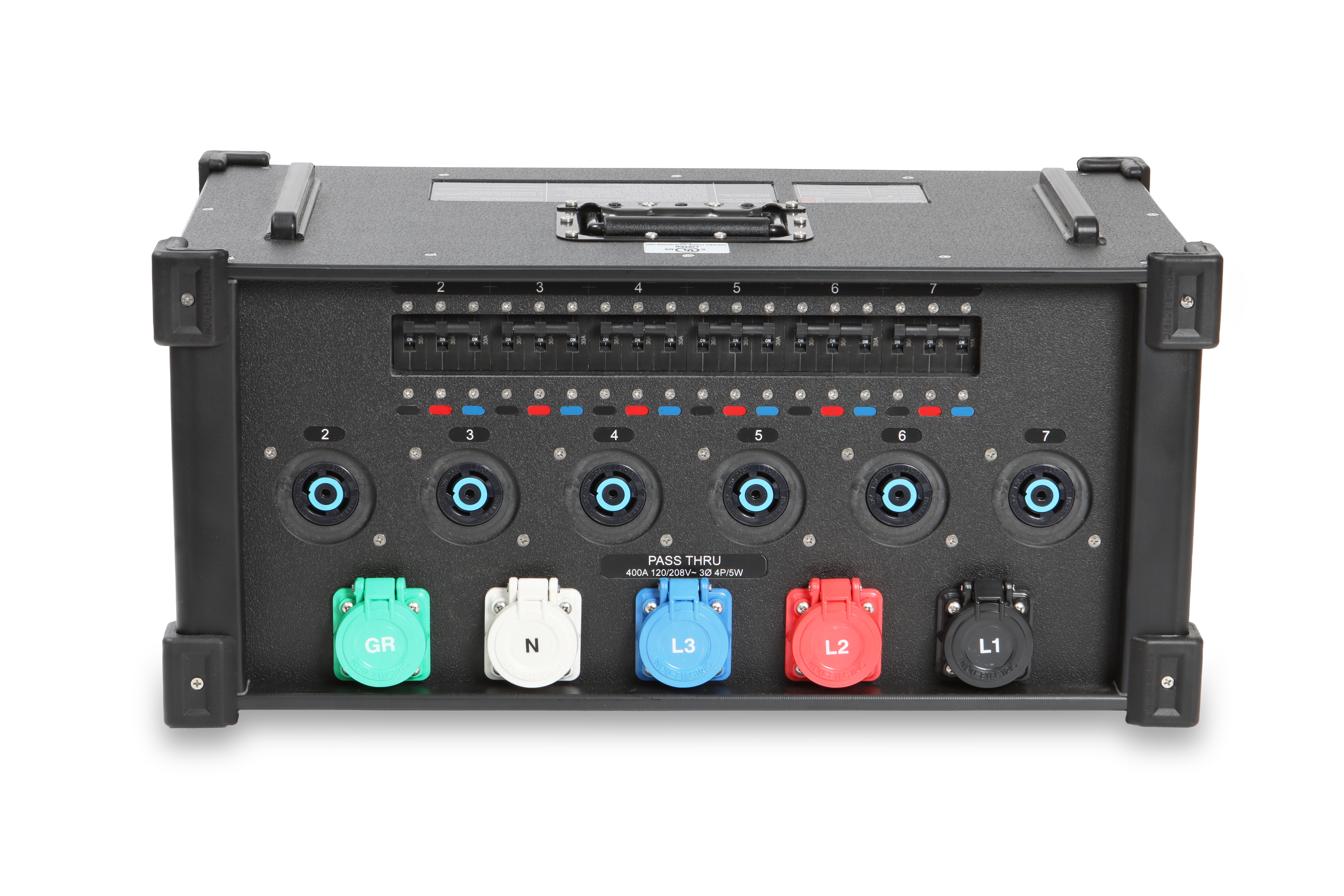

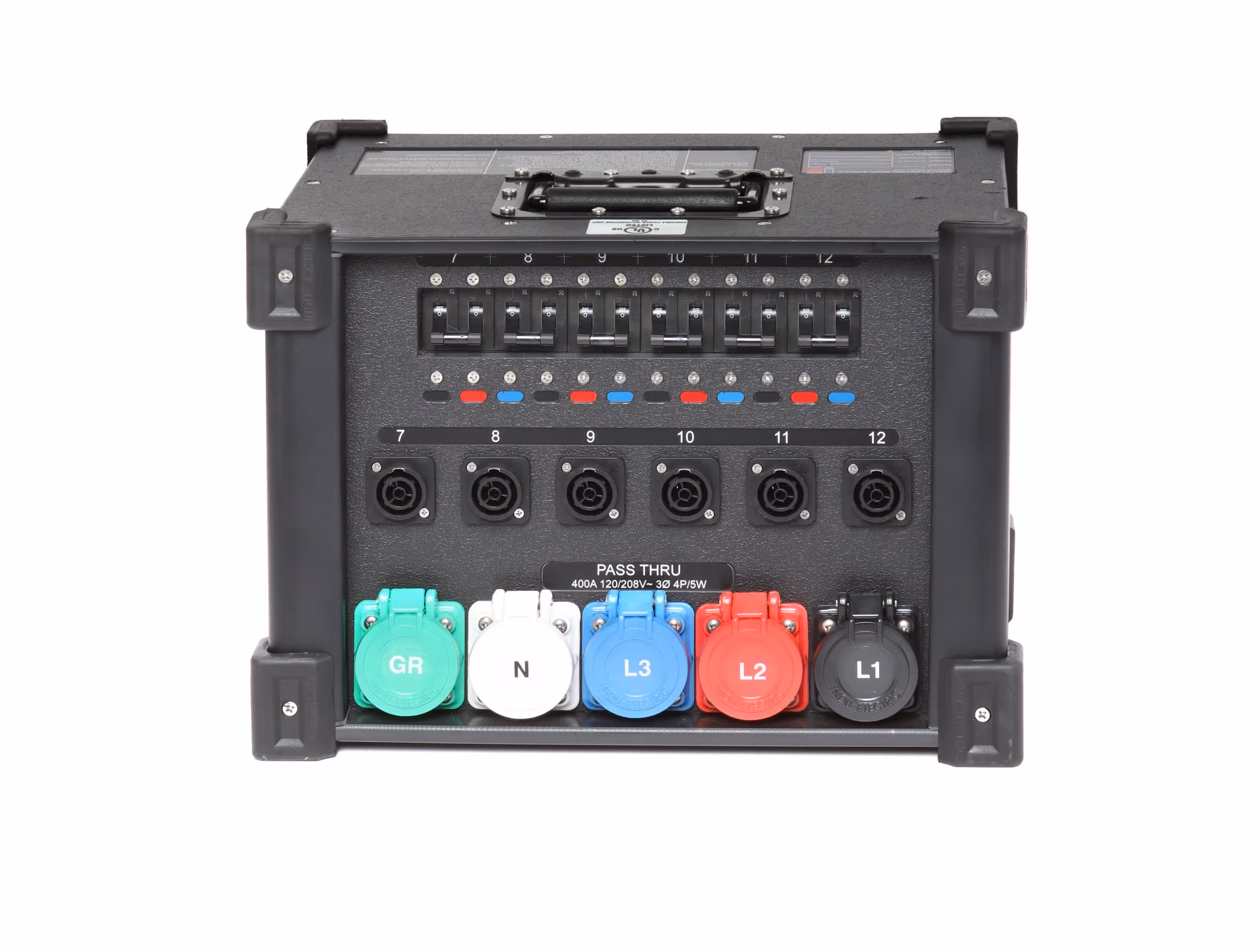

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
12- 20A 208V powerCON® True1
2- 20A 120V Duplex Outlets
Protected By:
12- 20A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB2-5WPT-12xTR1-208V-2x520
Spec #
18002695
Dimensions:
15“L x 10“W x 10.75“H

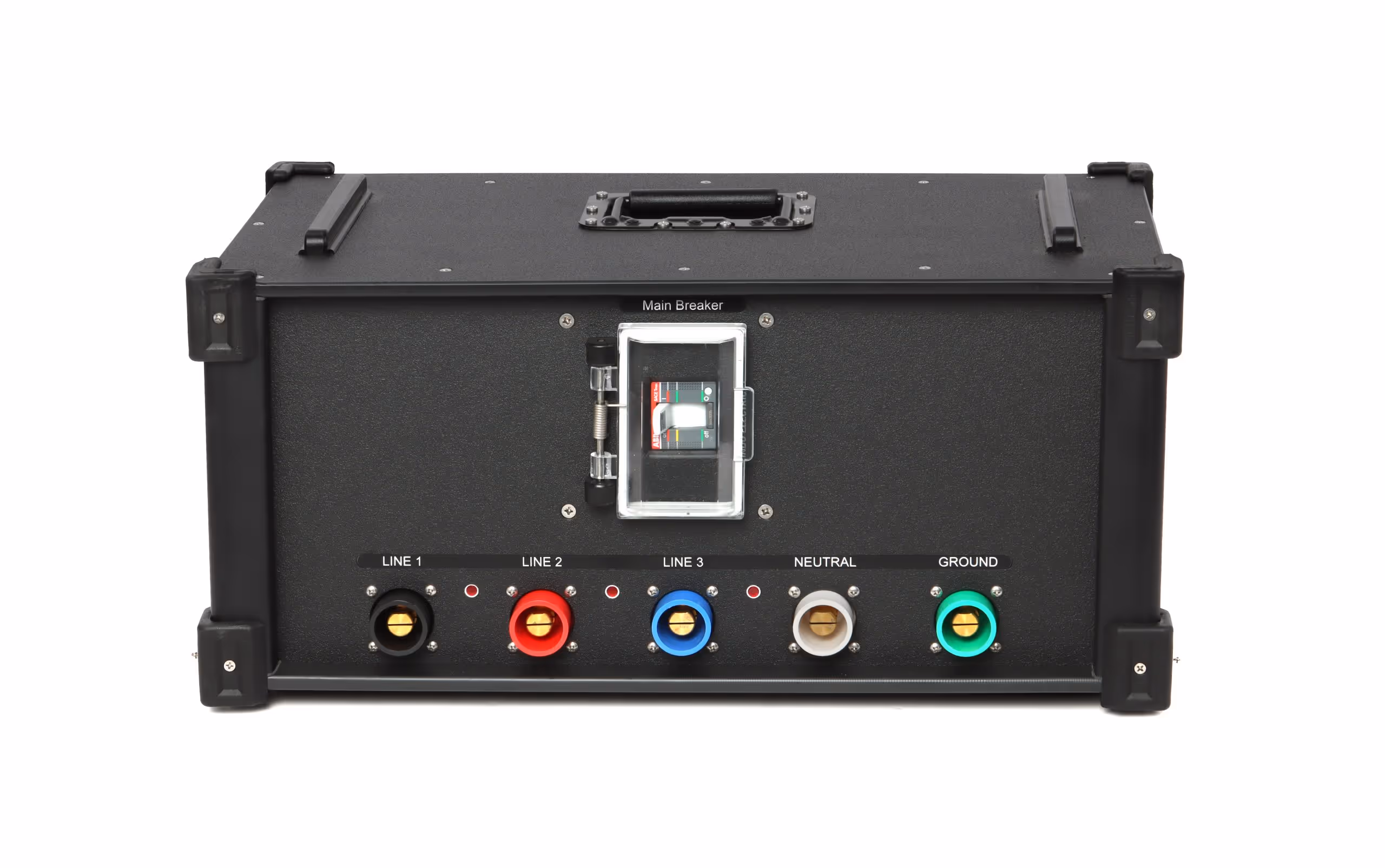

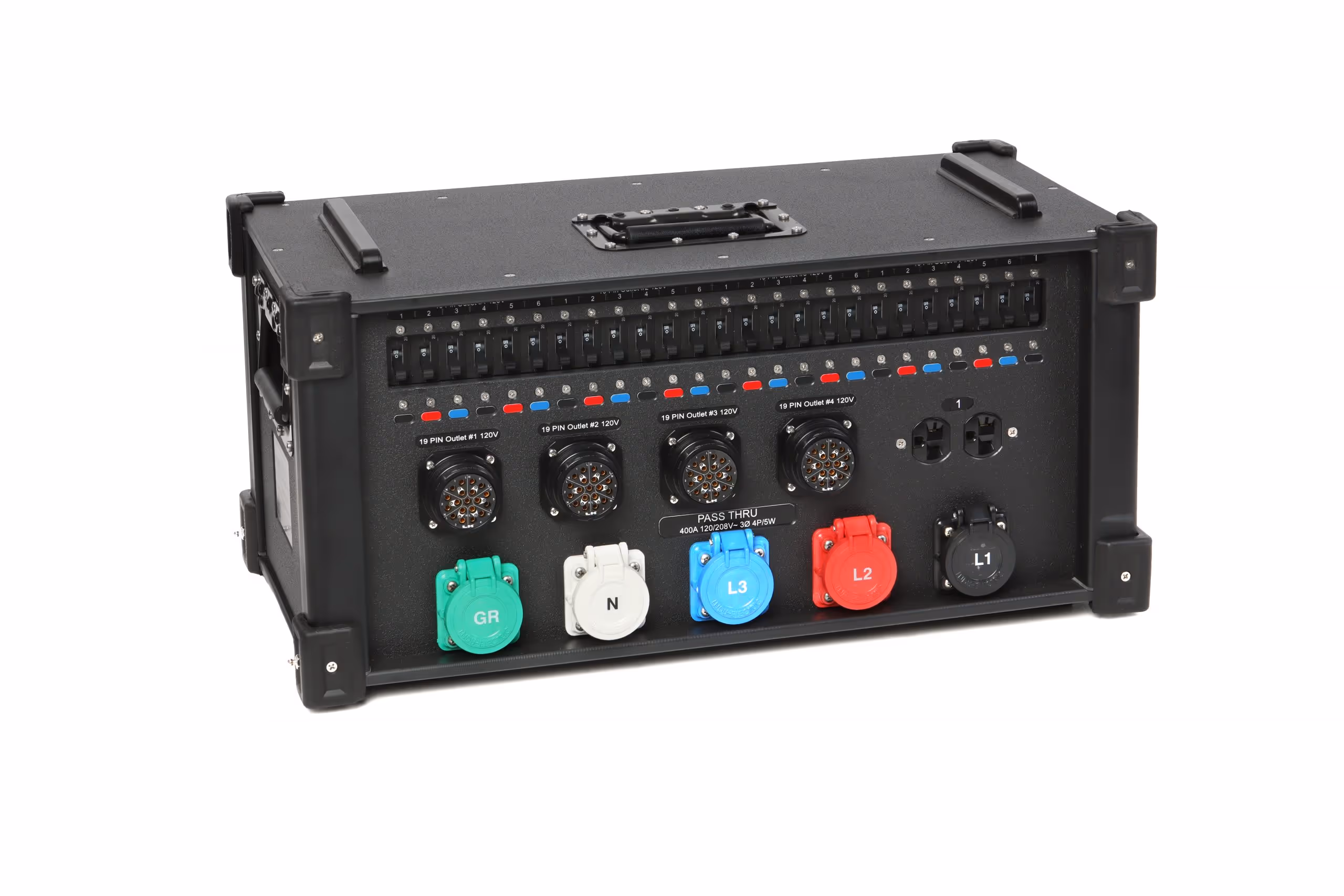

Input Device:
400A 3Ø Locking Cam
1 Pass Through
Output Device:
4- 20A 120V 6 Circuit 19Pin
1- 20A 120V Duplex Outlets
Protected By:
1- 200A 3P Main Breaker
25- 20A 1P Breaker
Model-Nr.:
CB3-5WPT-4x19P1-1x520-MB
Spec #
18002095
Dimensions:
24“L x 12“W x 11.75“H

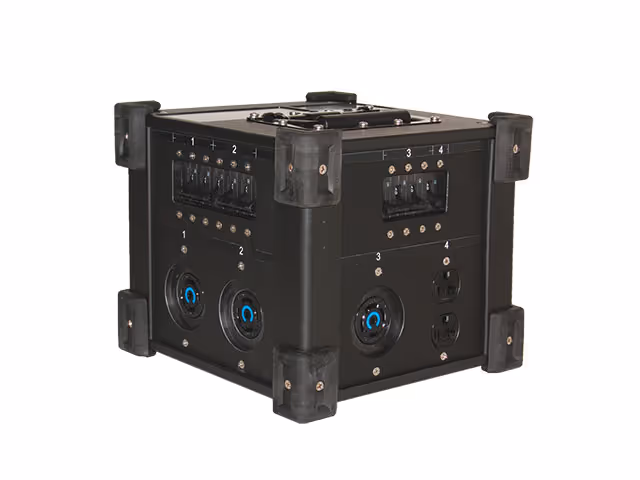

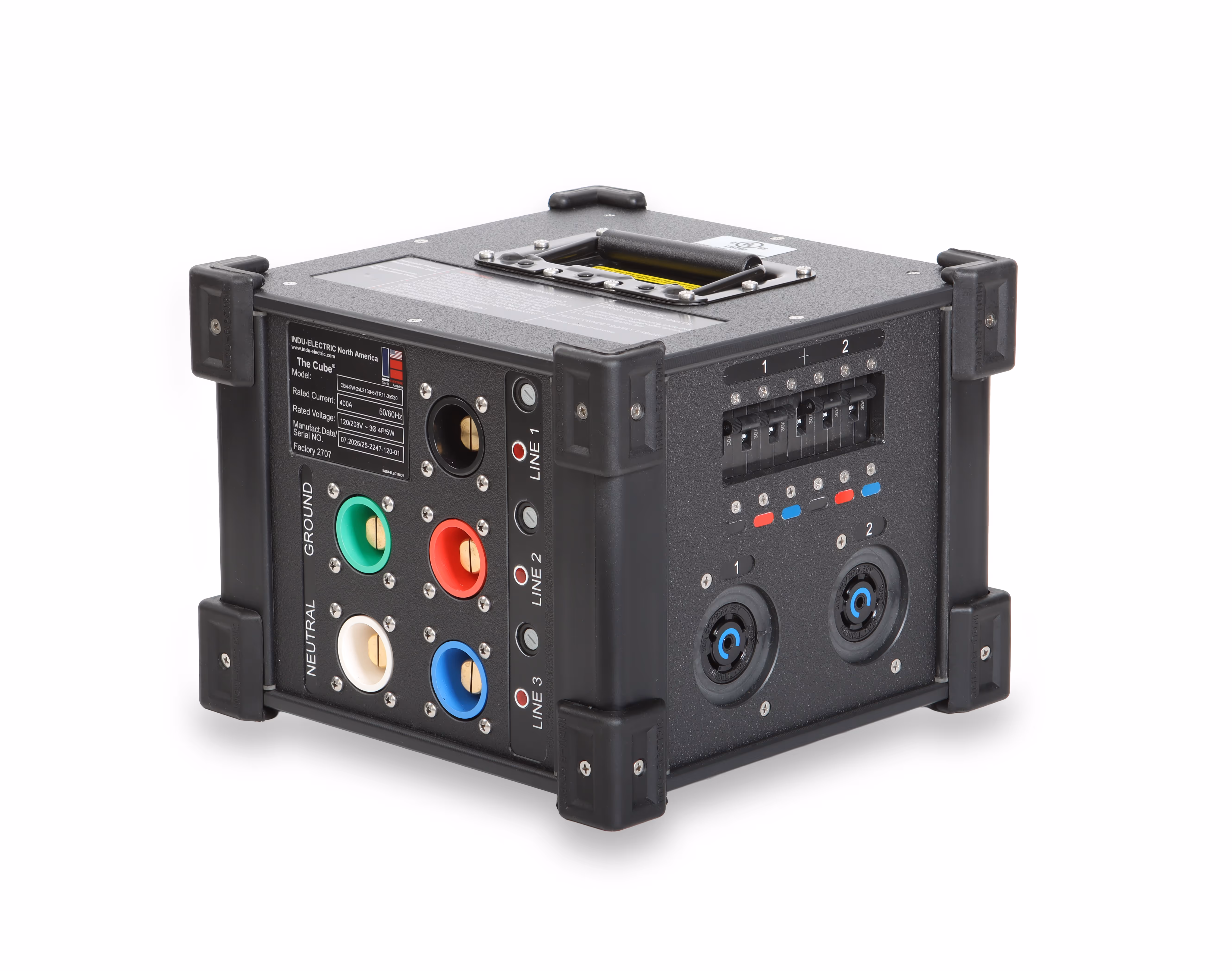

Input Device:
120A 3Ø Locking Cam
Output Device:
6-20A 120V powerCON® True1
2-30A 4P 5W L21-30 Twist-locks
3-20A 120V DuplexOutlets
Protected By:
6-20A 1P Breaker
2-30A 3P Breaker
3-20A 1P Breaker
Model-Nr.:
CB4-5W-2xL2130-6xTR1-3x520
Spec #
18003120
Dimensions:
10.75“L x10.75“W x 8.25“H

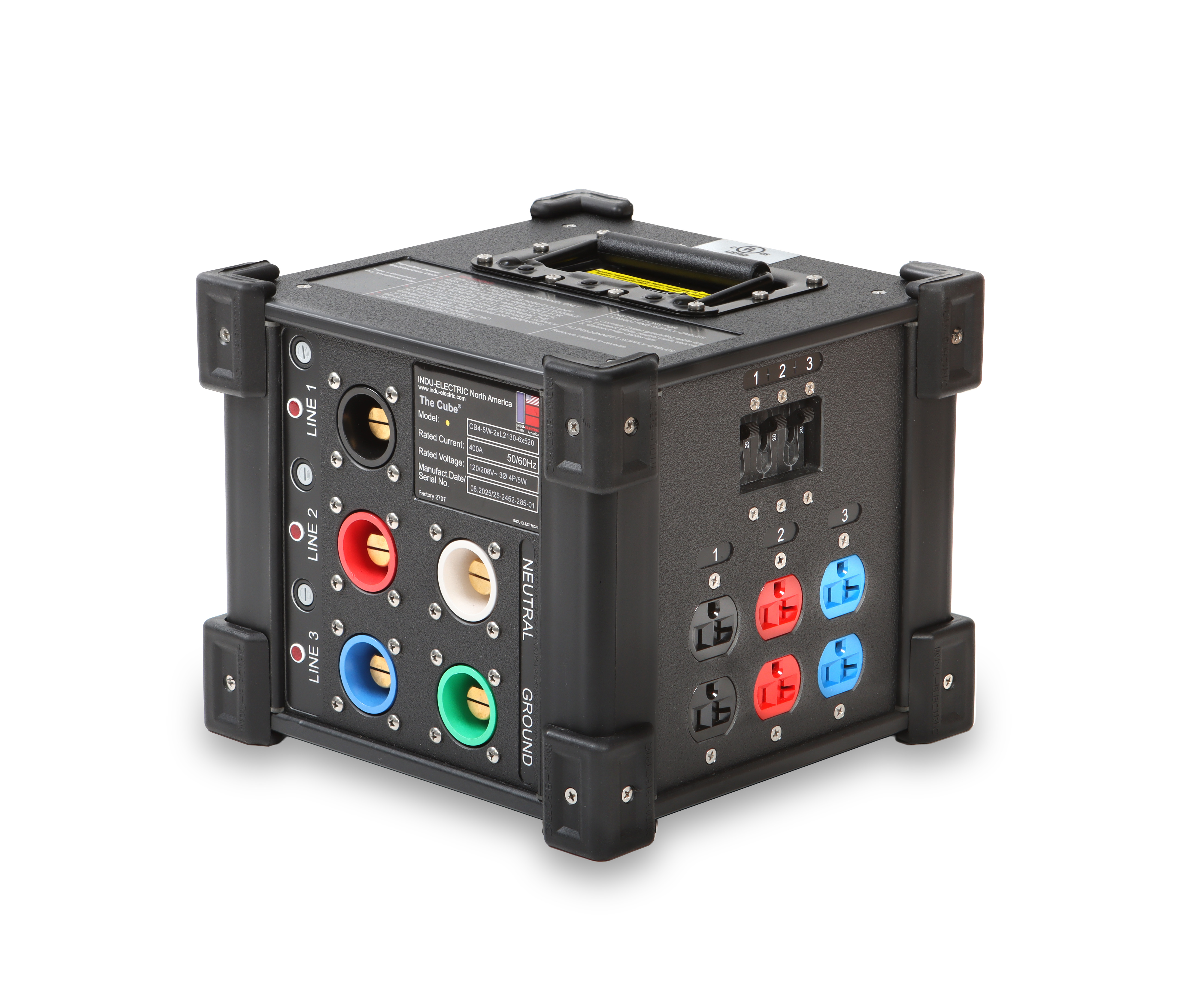

Input Device:
100A 3Ø Locking Cam
Output Device:
6- 20A 120V Duplex Outlets
2- 30A 4P 5W L21-30
Protected By:
6- 20A 1P Breaker
2- 30A 3P breaker
Model-Nr.:
CB4-5W-2xL2130-6x520
Spec #
18002285
Dimensions:
10“L x 10“W x 8.25“H
Input Device:
120A 3Ø Locking Cam
Output Device:
2- 30A 4P 5W L21-30 Twist-locks
3- 20A 120V Duplex Outlets
1- 20A 120V 6 Circuit 19Pin
Protected By:
2- 30A 3P Breaker
3- 20A 1P Breaker
3- 20A 1P Breaker
Model-Nr.:
CB4-5W-1x19P1-2xL2130-3x520
Spec #
18002981
Dimensions:
10.75“L x 10“W x 8.25“H
Input Device:
400A 3ØLocking Cam 1 Pass-through
Output Device:
6- 30A 4P 5W L21-30 Twist-locks
6- 20A 120V Duplex Outlets
6- parallel 20A 120VpowerCON® True1
Protected By:
6- 30A 3P Breaker
6- 20A 1P Breaker
Model-Nr.:
CB2-5WPT-6xL2130-6x520-TR1
Spec #
18002484
Dimensions:
15“L x10“W x 10.75“H

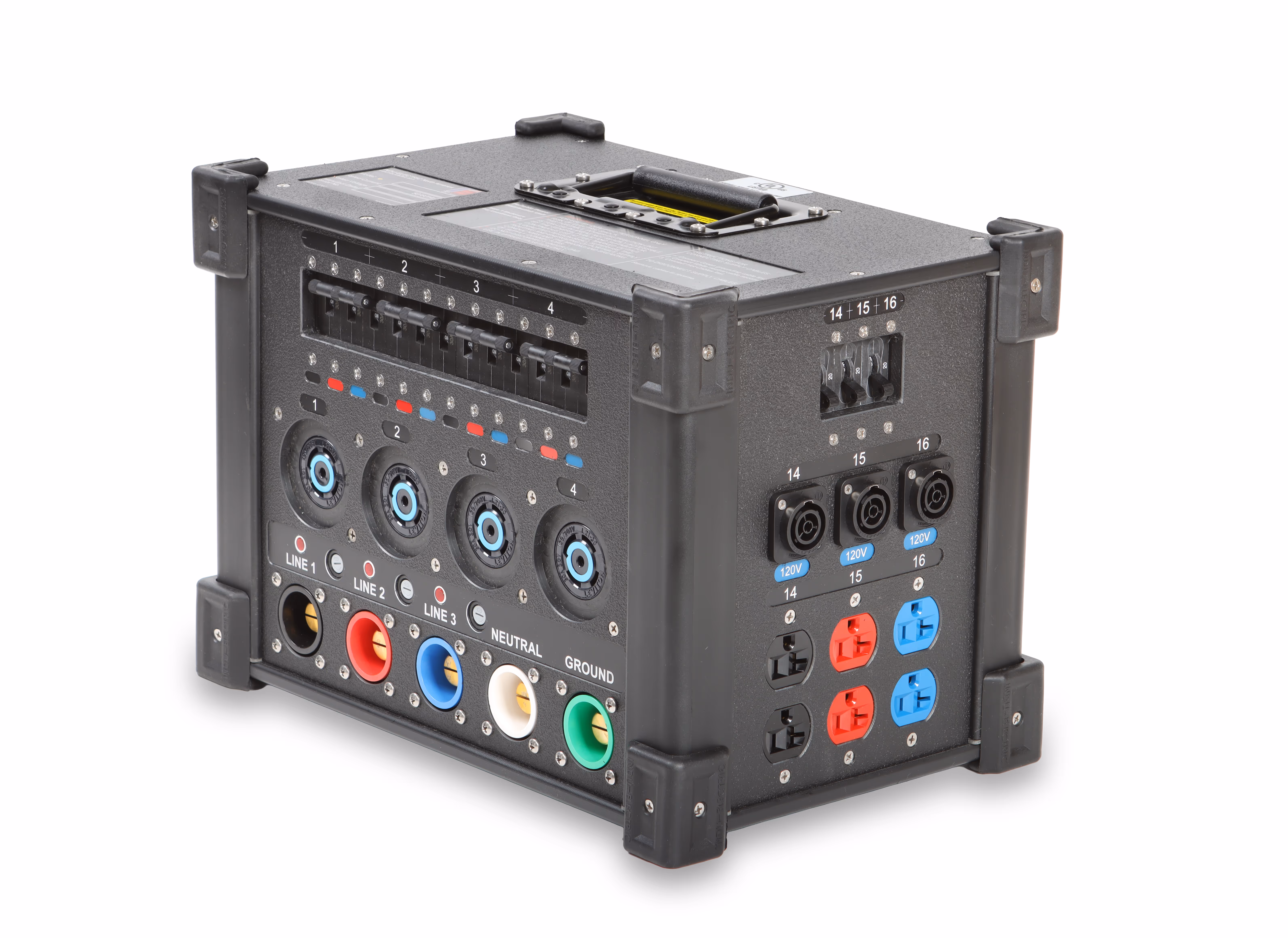

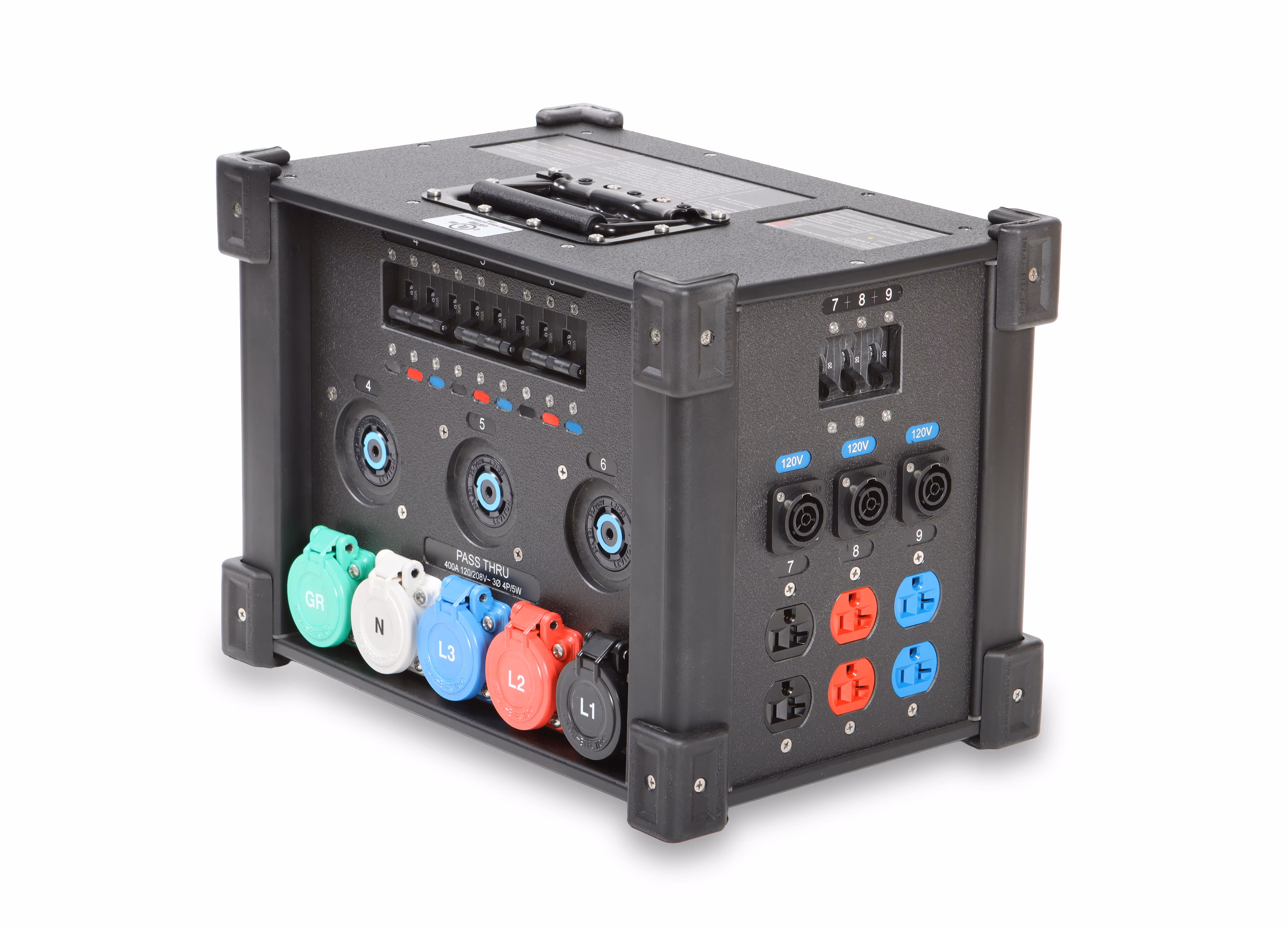

Input Device:
400A 3ØLocking Cam 1 Pass-through
Output Device:
4- 30A 4P 5W L21-30 Twist-locks
6- 20A 120V Duplex Outlets
6- 20A 120V Duplex Outlets
6- parallel 20A 120V powerCON® True1
Protected By:
4- 30A 3P Breaker
12- 20A 1P Breaker
Model-Nr.:
CB2-5WPT-4xL2130-12x520-6xTR1
Spec #
18003133
Dimensions:
15“L x10“W x 10.75“H
Input Device:
400A 3ØLocking Cam 1 Pass-through
Output Device:
4- 30A 4P 5W L21-30 Twist-locks
3- 20A 120V Duplex Outlets
2- 20A 120V 6 Circuit 19Pin
Protected By:
4- 30A 3P Breaker
3- 20A 1P Breaker
6- 20A 1P Breaker
Model-Nr.:
CB2-5WPT-4xL2130-2x19P1-3x520
Spec#
18002462
Dimensions:
15“L x10“W x 10.75“H

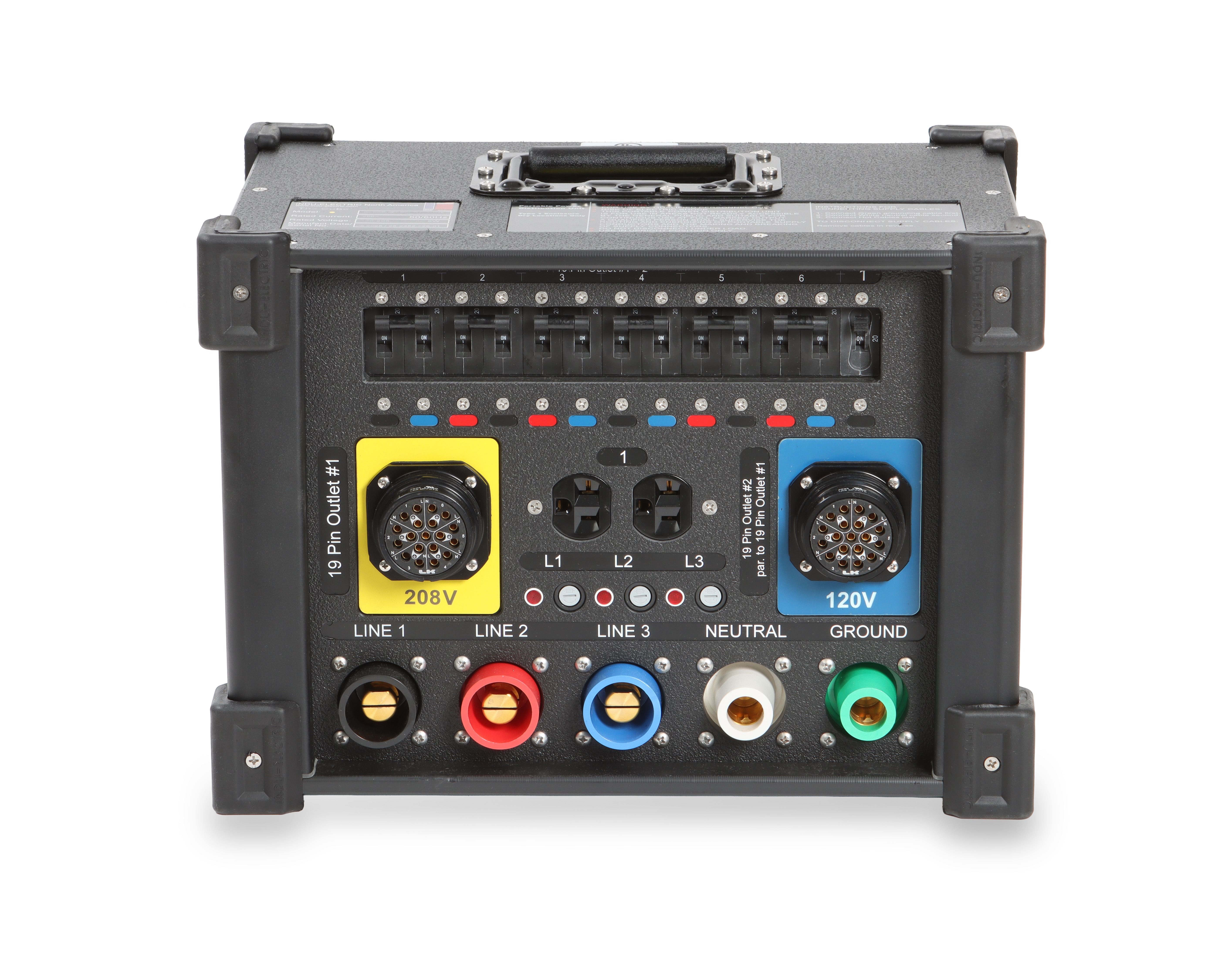

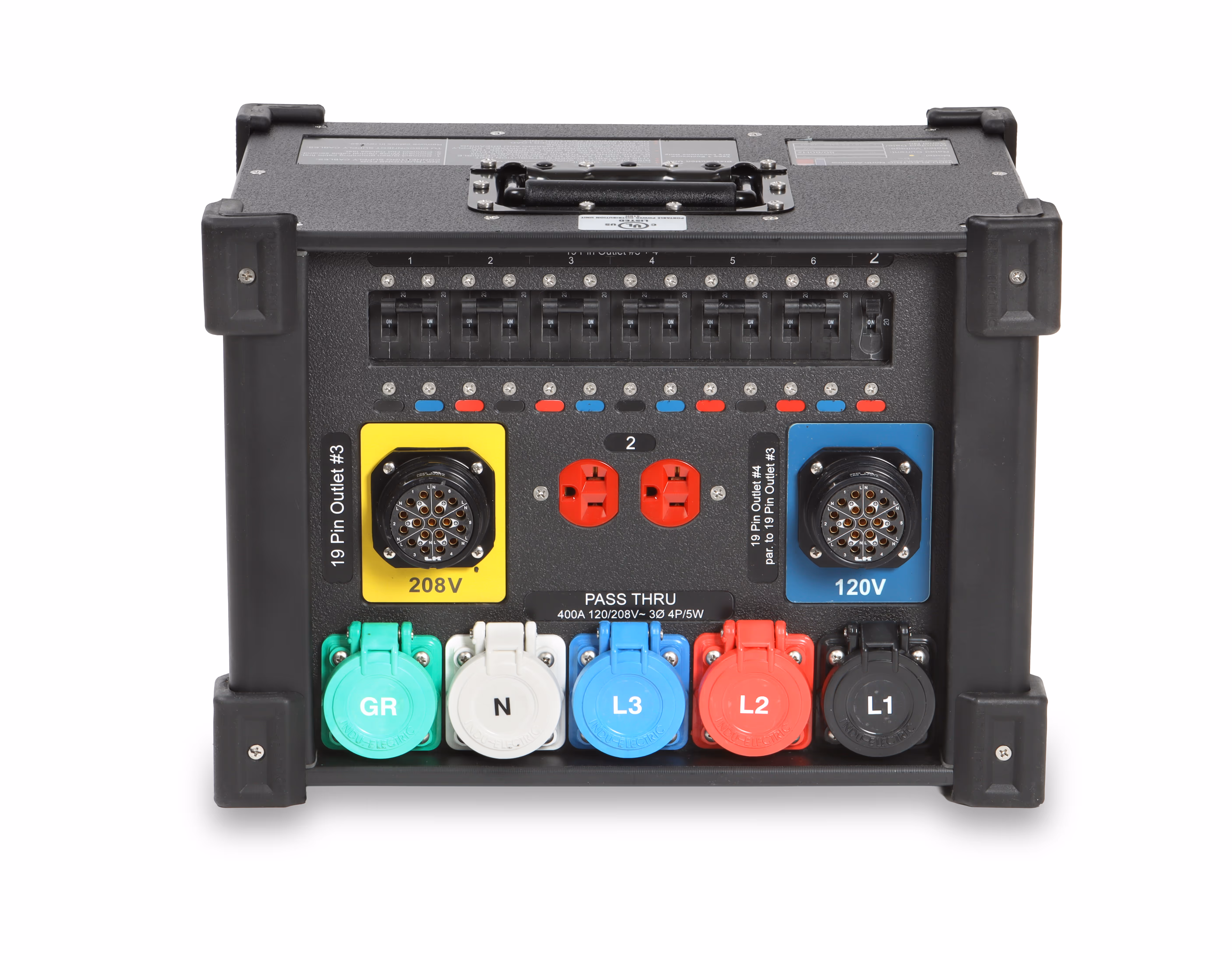

Input Device:
400A 3ØLocking Cam 1 Pass-through
Output Device:
2- 20A208V 6 Circuit 19Pin
2- 20A120V 6 Circuit 19Pin parallel to 208V 19Pin circuits
2- 20A 120V Duplex Outlets
Protected By:
12- 20A 2P Breaker
2- 20A 1P Breaker
Model-Nr.:
CB2-5WPT-2x19P120/208V
Spec #
18002226
Dimensions:
15“L x10“W x 10.75“H

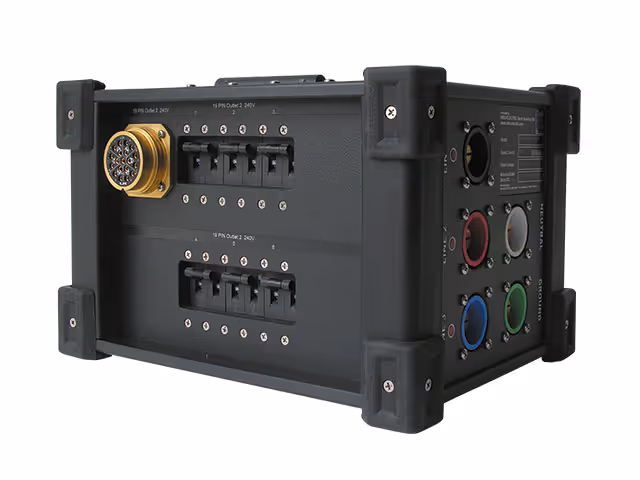

Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
1- 20A208V 6 Circuit 19Pin
4- 20A 2P3W L6-20 Twist-locks
2- 20A120V Duplex Outlets
Protected By:
6- 20A 2P Breaker
4- 20A 2P Breaker
2- 20A1P Breaker
Model-Nr.:
CB2-5WPT-1x192-4xL620-2x520
Spec #
18001394
Dimensions:
15“L x10“W x 10.75“H

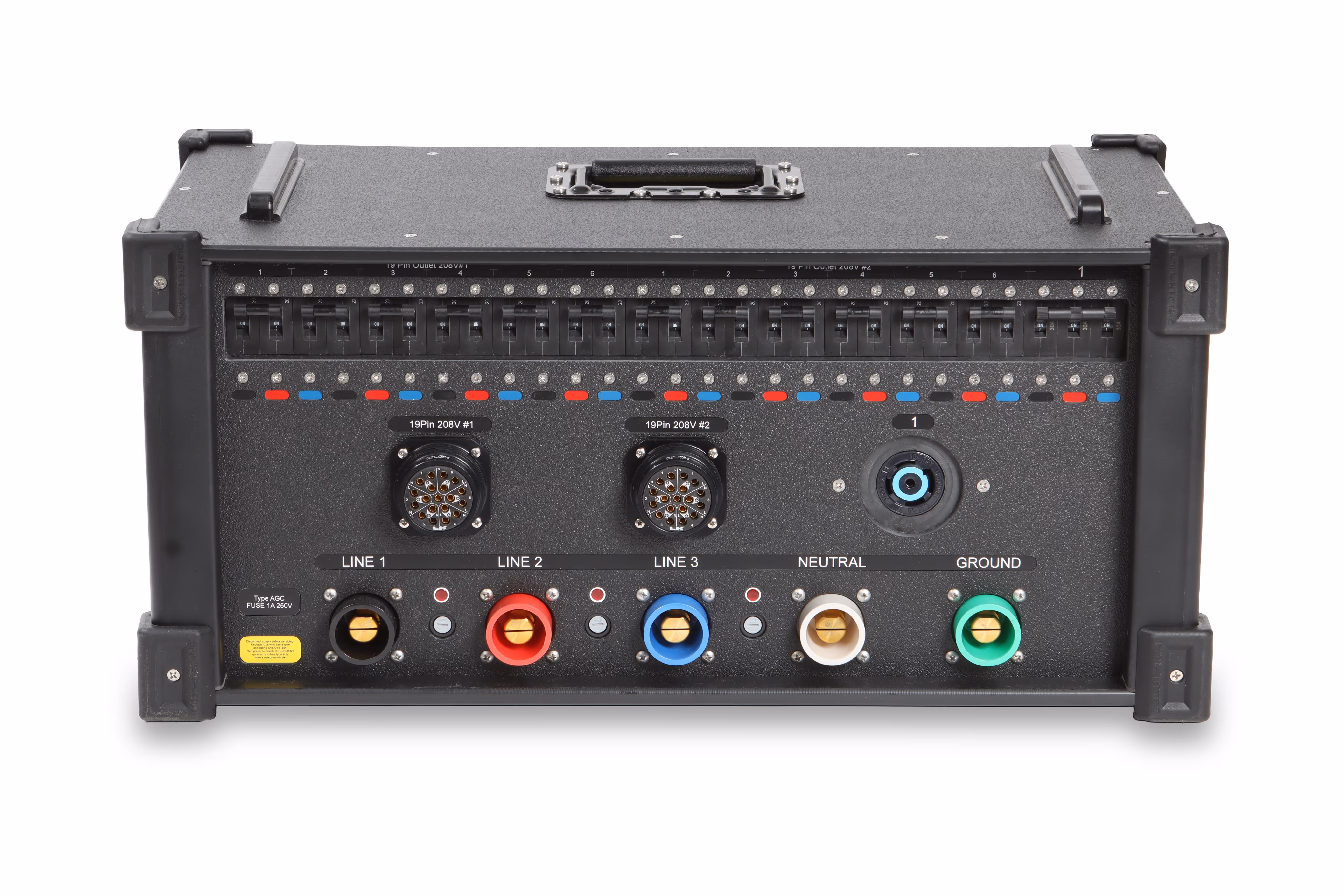

InputDevice:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
4- 20A208V 6 Circuit 19Pin
1- 30A 4P5W L21-30 Twist-lock
2- 20A120V Duplex Outlets
Protected By:
24- 20A 2P Breaker
1- 30A 3P Breaker
1- 20A1P Breaker
Model-Nr.:
CB3-5WPT-4x19P2-1xL2130-1x520
Spec #
18001807
Dimensions:
24“Lx 12“W x 11.75“H
Input Device:
400A 3Ø Locking Cam 1 Pass-through
Output Device:
2- 20A 208V 6 Circuit 19Pin
2- 20A 120V 6 Circuit 19Pin parallel to 208V 19Pin circuits
6- 30A 4P 5W L21-30 Twist-locks
1- 20A 120V Duplex Outlet
Protected By:
12- 20A 2P breaker
6- 30A 3P Breaker
1- 20A 1P Breaker
Model-Nr.:
CB3-5WPT-4x19PDV-6xL2130
Spec #
18002666
Dimensions:
24“L x12“W x 11.75“H
Feel free to send us an email. We will get back to you as soon as possible.
Contact us directly by phone for quick assistance:
Contáctanos directamente por teléfono para recibir asistencia rápida:
Horas de oficina: 7:30 a. m. – 4:00 p. m. (hora del Pacífico, California)
Visit us at our offices for a personal consultation.
Please use our contact form to send us your request so that we can respond promptly and effectively.
