Reliable, safe and customizable power solutions for your event needs.

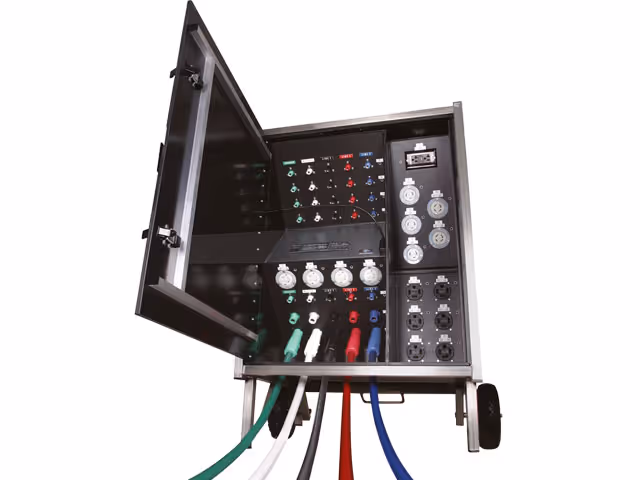

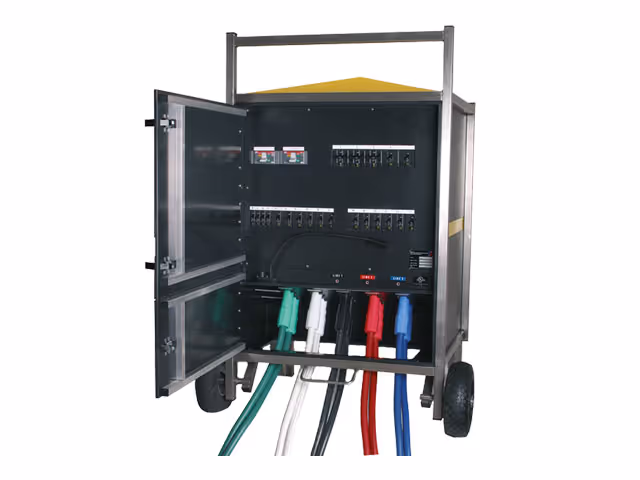

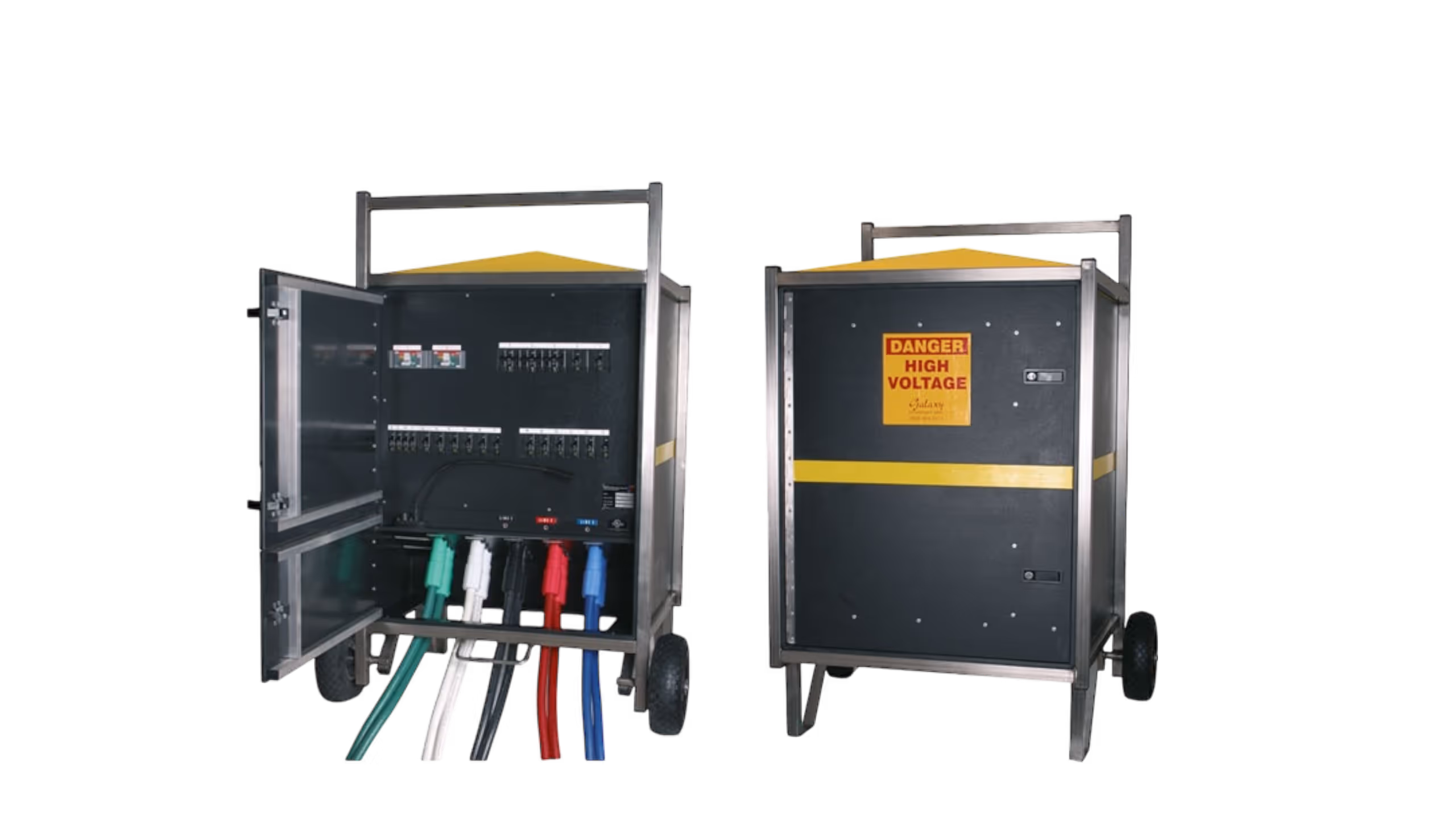

INDU-ELECTRIC’s Carnival & Special Events Series Power Distribution Units are built to meet the unique demands of outdoor and temporary event setups. With a 45-degree sloped design for effortless cable routing and setup, these units offer intuitive handling and clear separation between input/breaker and branch device sides.

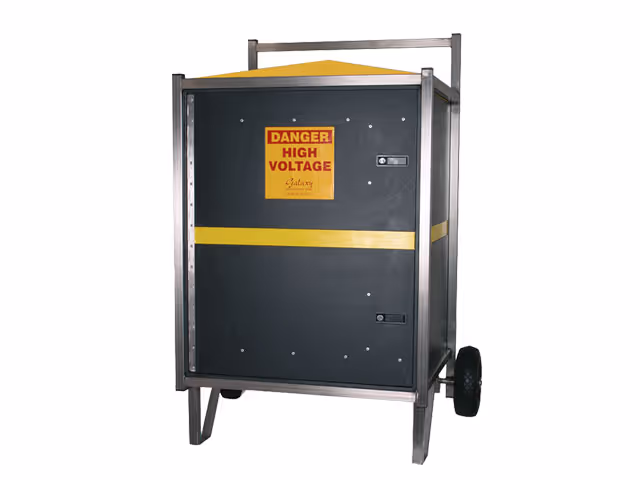

The non-conductive enclosure and powder-coated public lock-out door ensure maximum safety, while the stainless steel frame and dome provide long-lasting durability—even in challenging environments. Fully enclosed construction, foam-filled pneumatic tires, and bottom-entry cable management make these units highly mobile and weather-resistant.
Equipped with courtesy LED work lights and available in custom configurations, this series is the perfect choice for carnivals, festivals, and special events.
Custom quotes available next business day—call us today!
Input Device:
400A 3Ø Locking Cam
Pass Through
Output Device:
2 Sets 150A 120/208V Cams
3 Sets 100A 120/208V Minicam
2 Sets 60A 120/208V Minicam
6- 60A 120/208V 14-60 Straight Blade
6- 30A 120/208V L14-30 Twist-Locks
3- 30A 120V L5-30 Twistlocks
1- 20A 120V GFCI Duplex Outlet
Protected By:
2- 150A 3Pole MCCB Main
3- 100A 3Pole/ 2- 60A 3Pole
6- 60A 2Pole/ 6- 30A 2Pole
Model-Nr.:
GAL-DB400
Dimensions:
30“L x 27.5“W x 44“H
This is a Sample Custom Configuration.
