The Perfect Power Solution for Arenas, Convention Centers and Studios.

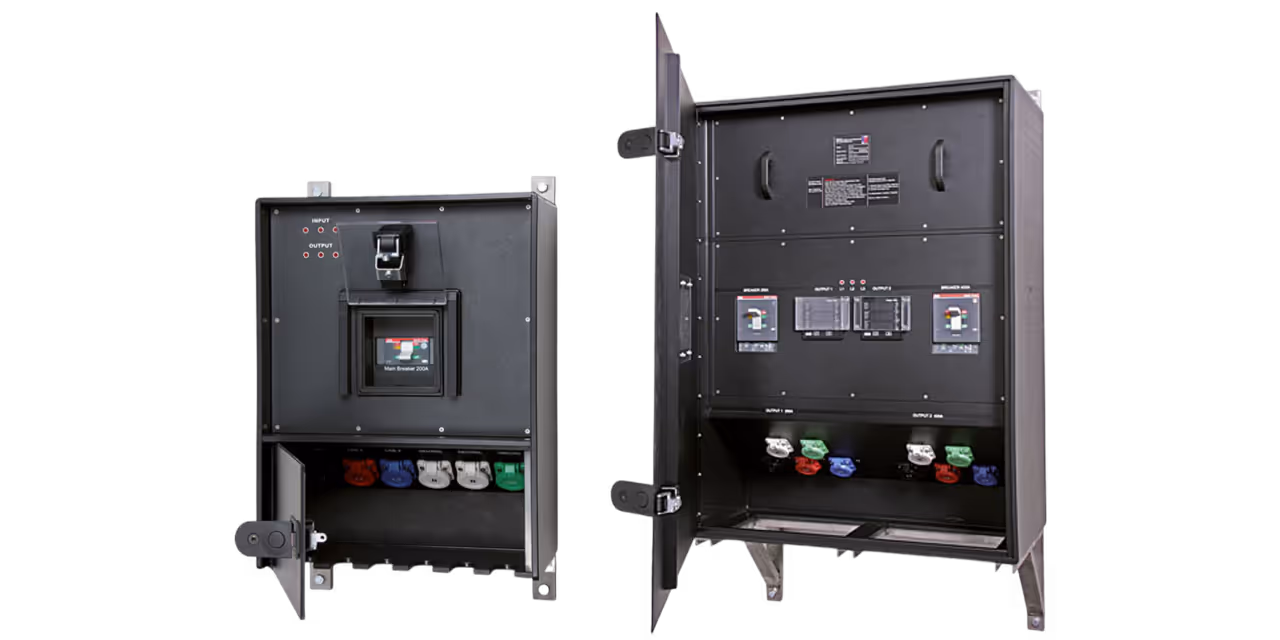

INDU-ELECTRIC’s Wall-Mounting Distribution Units are built for fixed installations where safety, durability, and functionality are essential. Designed with a designated contractor conduit connection chamber and a powder-coated public lock-out door, these units ensure secure and professional integration into any venue.
Continuous power monitoring is provided via a 3-phase digital multi-meter, while adjustable MCCB main breakers (400A: 400–160A / 200A: 250–100A) offer flexible protection tailored to your setup. The non-conductive enclosure and 45-degree slope allow for easy cable routing and setup — even in tight spaces.
Fully enclosed color-coded Cam covers and stainless steel mounting hardware round out the system, making it a reliable and efficient choice for permanent power distribution.
Need a custom configuration? We’ll quote it by the next business day — contact us today!
Our wall-mounted units with robust THERMOLENE® housings can be adapted with millimeter precision to existing site conditions. This enables flexible installation, whether within structural frames or with top-entry cable routing, ensuring a perfect fit for your specific requirements.
The customizable design of our wall-mounted units allows not only the front panel but also the sides to be used for additional outputs or other features, depending on the installation environment. This maximizes functionality and adaptability to complex on-site requirements.
We manufacture wall-mounted units in any desired size, including extremely large formats. These can be integrated into custom metal frames if needed, providing a stable and tailored solution even for the most demanding projects.
Input Device:
400A 3Ø Conduit
Output Device:
400A 3Ø Locking Cam
Protected By:
1- 400A MCCB (400-160A)
Model-Nr.:
D400-87
Dimensions:
17.75“L x 11.75“W x 29.25“H
Input Device:
250A 3Ø Conduit
Output Device:
250A 3Ø Locking Cam
Protected By:
1- 250A MCCB (250-100A)
Model-Nr.:
D250-87
Dimensions:
17.75“L x 11.75“W x 29.25“H
Input Device:
200A 3Ø Conduit
Output Device:
200A 3Ø Locking Cam
Protected By:
1- 200A MCCB (Fixed Setting)
Model-Nr.:
D200-87
Dimensions:
17.75“L x 11.75“W x 23.25“H
