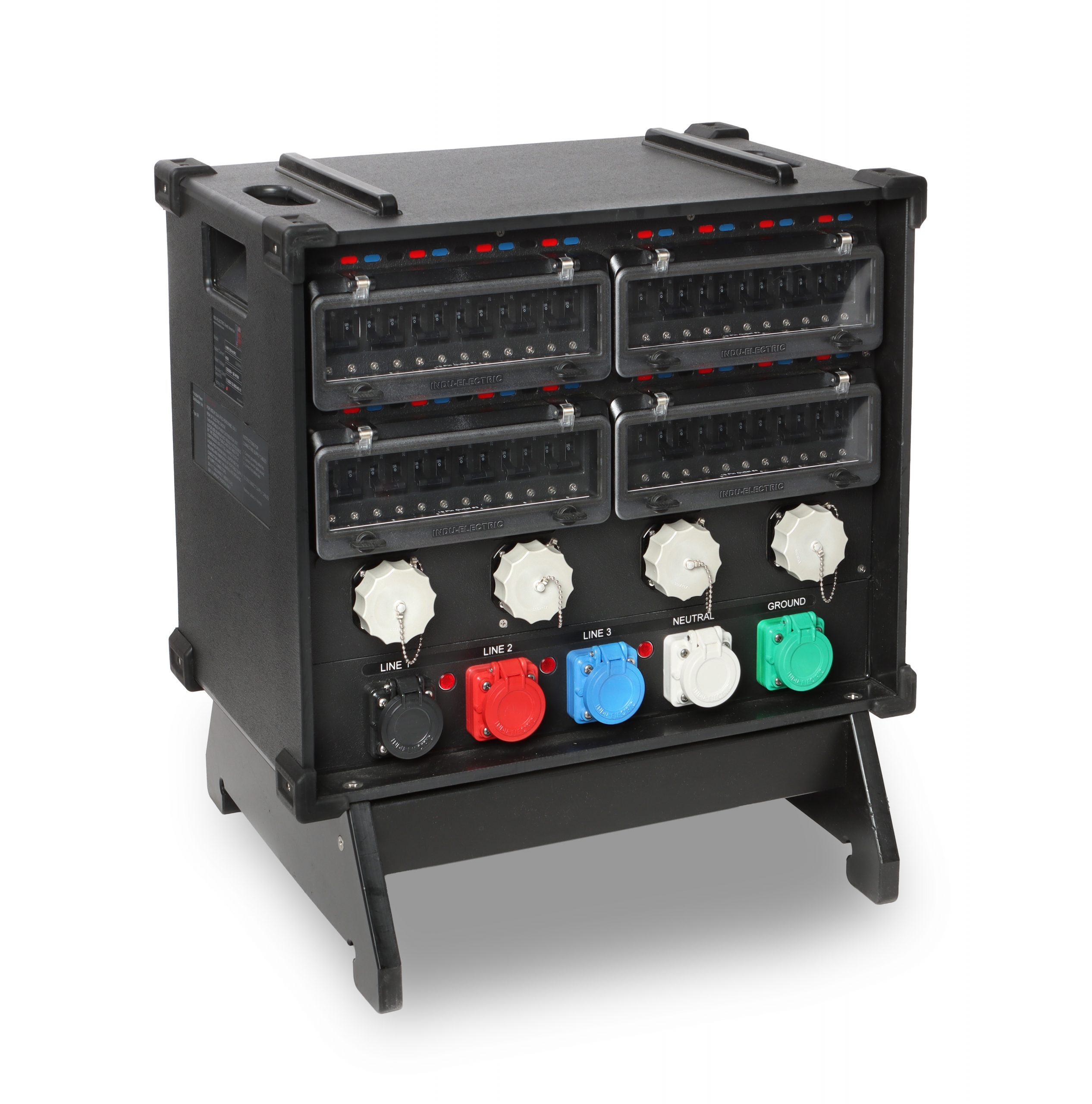

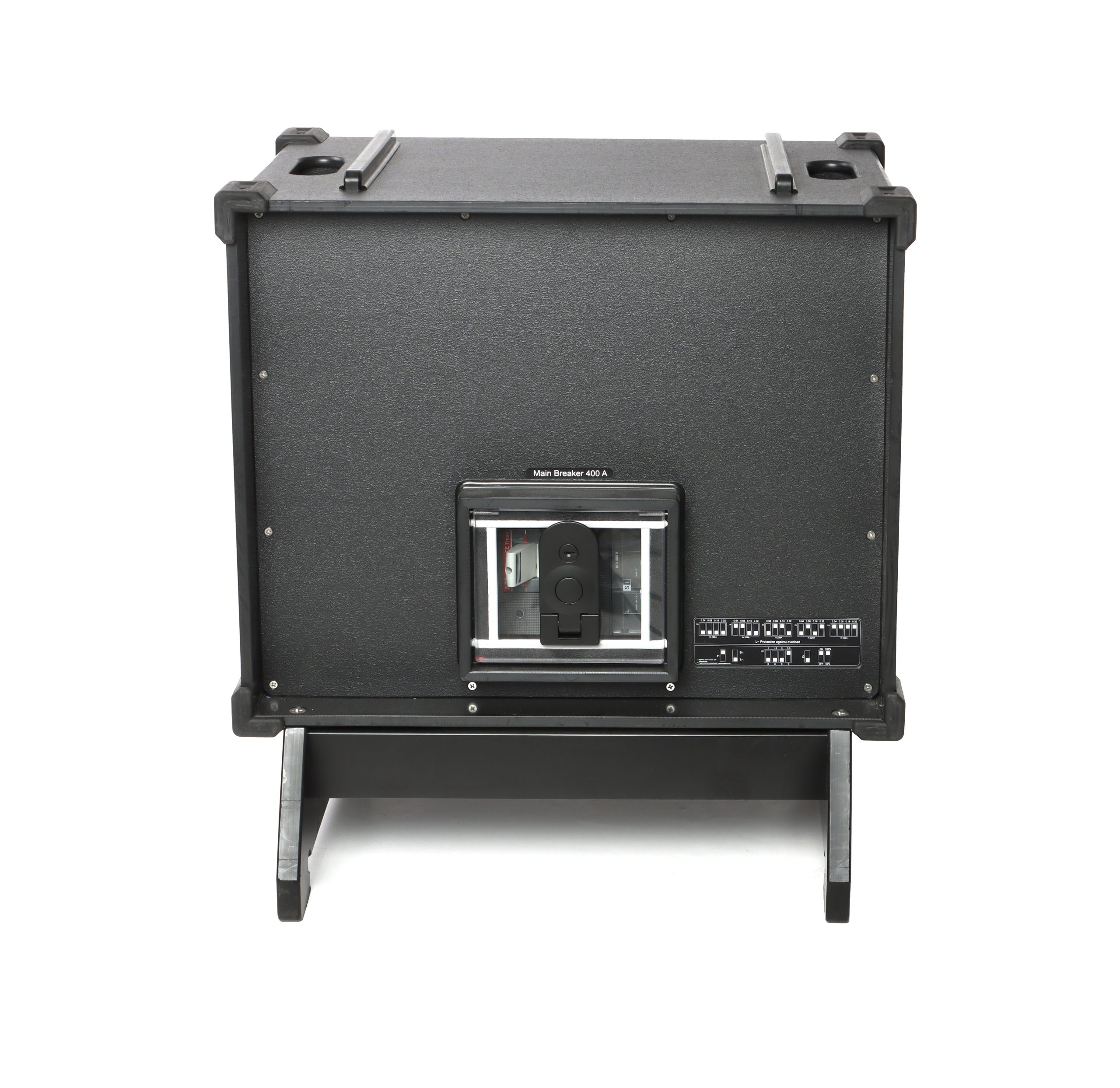

Armor-Tech Series

The Ultimate Rugged Enclosure System Designed for Extra-Hard Usage



  • Integrated Handles
  • Stacking Rails
  • Shock Absorbing Molded Rubber Corners
  • Rugged Non-Conductive Enclosure
  • Easy Panel Access – Great Serviceability
  • Recessed Branch Devices & Labeling
  • Fully Enclosed Color Coded Cam Covers
  • 6“ Ground Clearance Stand


Multiple configurations such as Cam, Pin & Sleeve, 19 Pin, Stage Pin, Straight Blade, Twistlock and GFCI are available in standard or custom configurations.

Custom Configurations Quotes Next Business Day – Call us today!

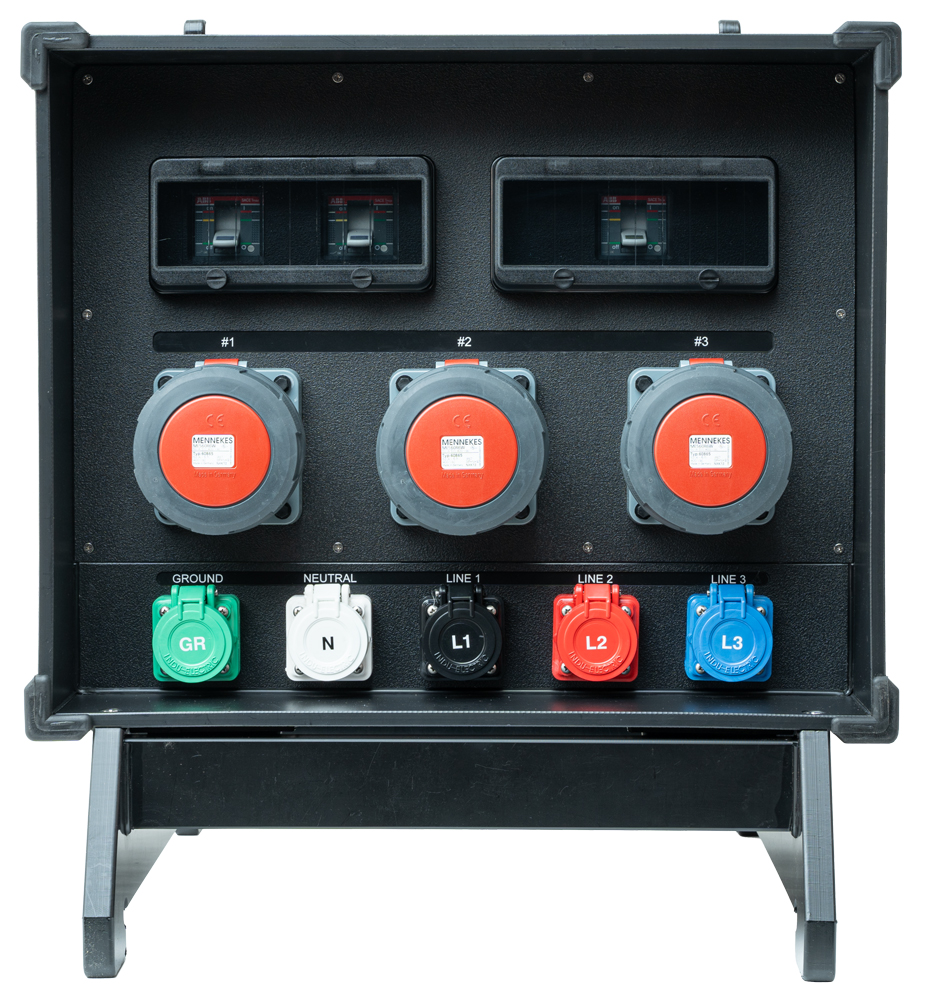

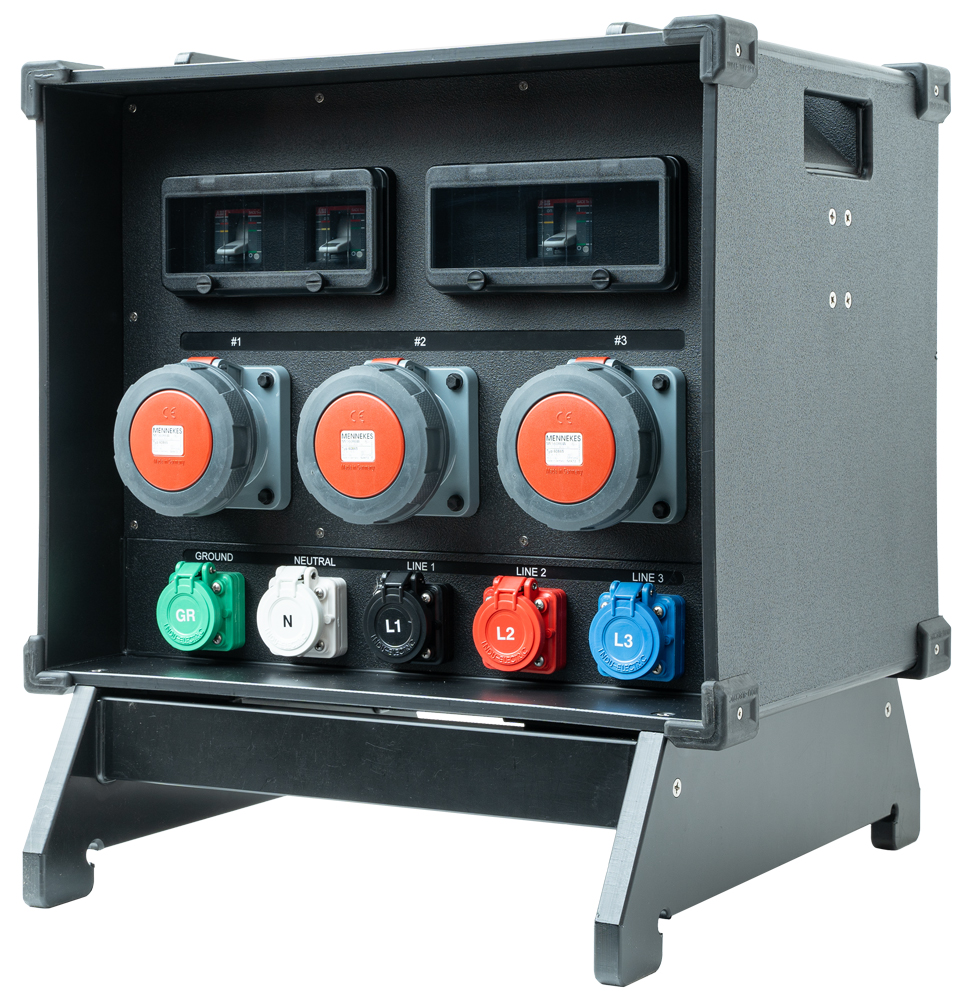

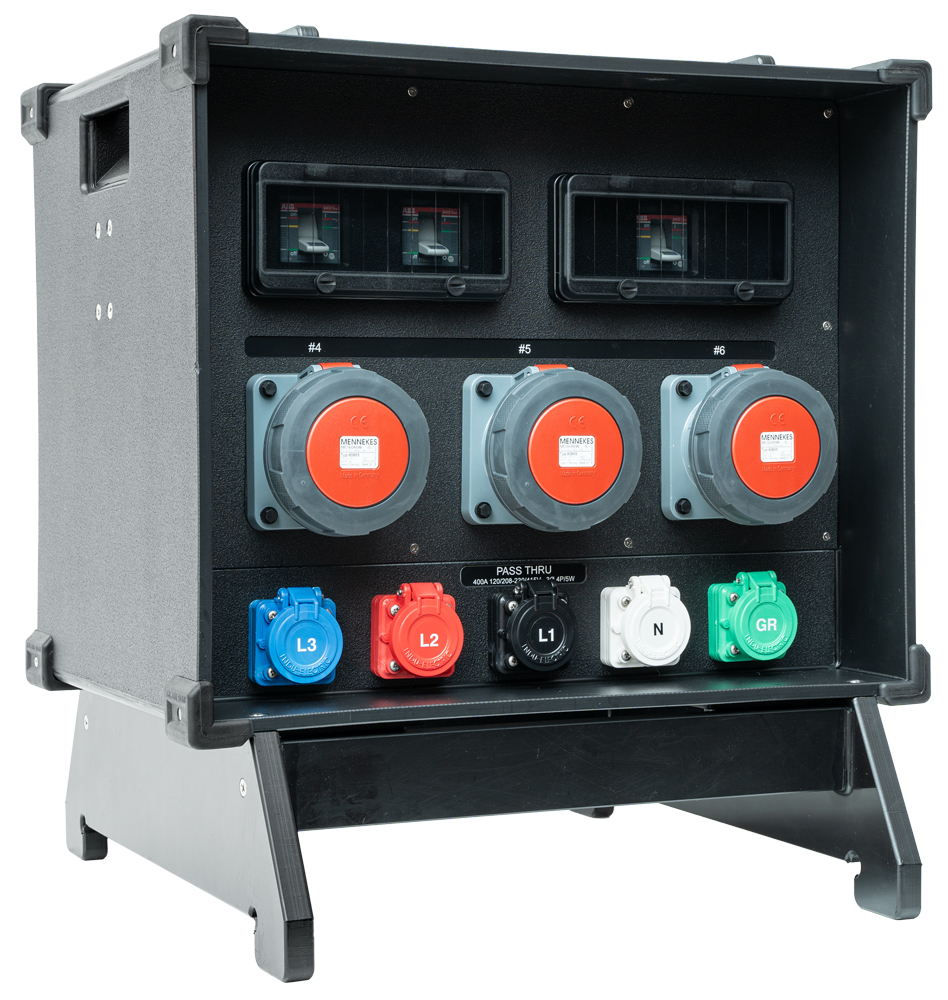

D400



Input Device: 400A 3Ø Locking Cam
Output Device: 400A 3Ø Locking Cam
Protected By: 1- 400A MCCB (400-160A)
Model-Nr.: D400
Dimensions: 21.75“L x 11.75“W x 12.75“H




D250



Input Device: 400A 3Ø Locking Cam
Output Device: 400A 3Ø Locking Cam
Protected By: 1- 250A MCCB (250-100A)
Model-Nr.: D250
Dimensions: 21.75“L x 11.75“W x 12.75“H




D200



Input Device: 400A 3Ø Locking Cam
Output Device: 400A 3Ø Locking Cam
Protected By: 1- 200A MCCB (Fixed Setting)
Model-Nr.: D200
Dimensions: 21.75“L x 11.75“W x 10.75“H




12 WAY L21-30 NEMA 3R



Input Device: 400A 3Ø Locking Cam 1 Pass Through
Output Device: 12- 30A 120/208V L21-30
Protected By: 12- 30A 3P Breaker
Model-Nr.: 12 Way L21-30 NEMA 3R
Dimensions: 21.75“L x 11.75“W x 17“H




6 WAY L21-30 NEMA 3R



Input Device: 400A 3Ø Locking Cam 1 Pass Through
Output Device: 6- L21-30 6- 30A 120/208V L21-30
Protected By: 6- 30A 3P Breaker
Model-Nr.: 6 Way L21-30 NEMA 3R
Dimensions: 21.75“L x 11.75“W x 10.75“H

Multiple configurations such as Cam, Pin & Sleeve, 19 Pin, Stage Pin, Straight Blade, Twistlock and GFCI are available in standard or custom configurations




AT-2SP-4WPT-3R-246-246



Input Device: 400A 1Ø Locking Cam 1 Pass Through
Output Device: 6- 50A 120/240V 3P 4W CS6369 Twist-Locks
Protected By: 6- 50A 2P Breaker
Model-Nr.: AT-2SP-4WPT-3R-246-246
Dimensions: 21.75“L x 11.75“W x 10.75“H

Also available with 4 Wire Cam In/Out




FB-F5-PT-03-3R



Input Device: 50A 125/250V 3Pole 4Wire 1 Pass Through
Output Device: 6- 20A 120V Duplex Outlets 6- 20A 5mA GFCI Reset Modules
Protected By: 6- 20A 1P Breaker
Model-Nr.: FB-F5-PT-03-3R
Dimensions: 17.75“L x 10“W x 11.75“H
