Maximum performance in a mobile format – tailored to your requirements.

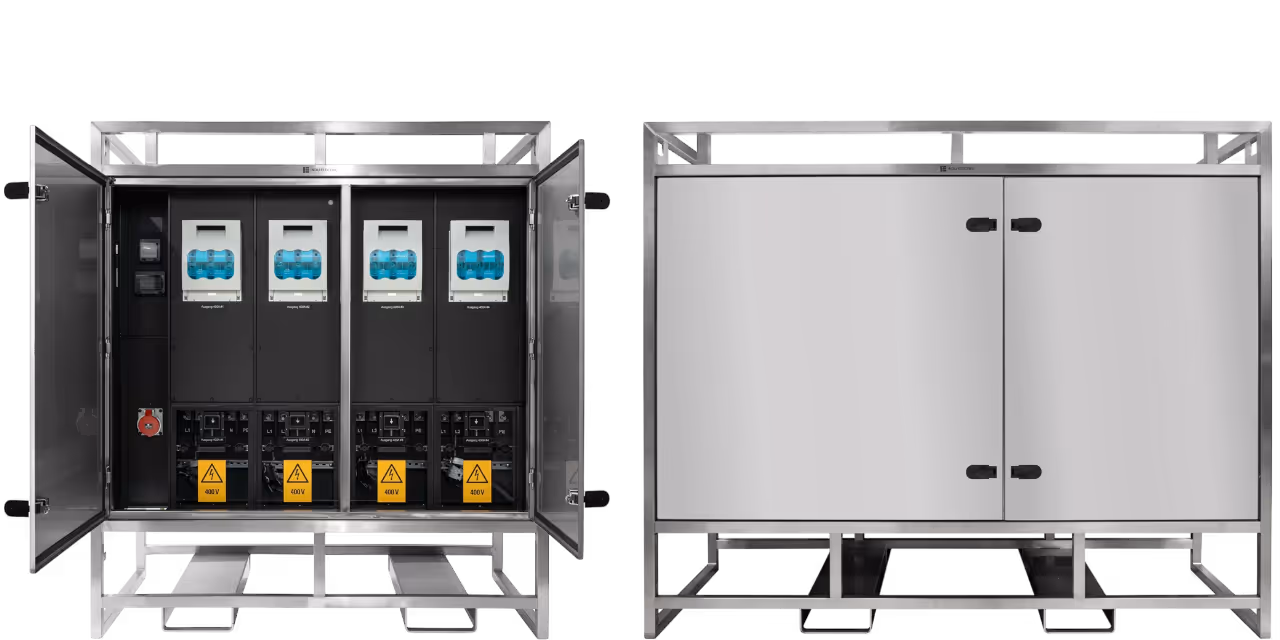

Energy Distribution Boards from INDU-ELECTRIC offer a powerful and flexible solution for reliable power distribution, even under demanding conditions. Whether 800 A, 1,600 A, 2,000 A or more – our boards are custom-built to meet your specific requirements. They are typically used as the first distribution point after the power source to ensure safe and efficient energy delivery.
Whether protection is provided via NH disconnectors or high-capacity circuit breakers – we always deliver the perfect solution. Thanks to our in-house enclosure manufacturing and metalworking capabilities, we can implement mechanical customizations quickly and precisely, resulting in robust, mobile energy distribution boards that meet the highest standards.

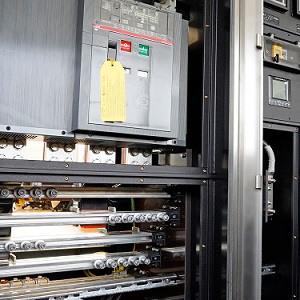

Scalable Performance – Compact & Mobile
Energy Distribution Boards from INDU-ELECTRIC are custom-designed – from 1,600 A with NH disconnectors or MCCBs to complex systems with 2,000 A or even 3,200 A. Thanks to decades of experience, we ensure safe and reliable handling of even the highest load ranges in a compact and mobile format.

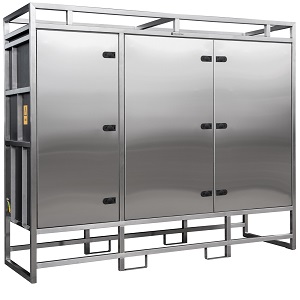

Robust Enclosures with Stainless Steel Frames
Our distribution cabinets are typically built with corrosion-resistant V2A or V4A stainless steel frames, combined with the durable THERMOLENE® material. Lockable doors, forklift pockets, or crane lugs – each construction is precisely tailored to its intended application.
Custom Manufacturing Starting from Quantity One
Thanks to our in-house enclosure production and metalworking shop, even special solutions can be implemented quickly starting from a single unit. Both the internal electrical setup and the housing itself are flexibly adapted to meet customer-specific requirements.
Input:
1x CU system 400A 5P with M12 bolts (for feed-in: 2x 185mm² each)
Output:
1x Terminal outlet 30x10 M12
1x CEE 125A 400V 5P, pilot contact
1x CEE 32A 400V 5P
2x Schuko
Additional protection for CEE 32A 400V 5P & Schuko:
Item no.:
11504370
Input:
1x CU system 40x10mm with M12 bolts
Output:
1x CU terminal outlet with M12 bolts
2x CU terminal outlet with M8 bolts
1x CEE 125A 400V 5P
2x CEE 63A 400V 5P
2x CEE 32A 400V 5P
2x CEE 16A 400V 5P
Pre-fuse for RCD for CEE 32A + 16A 400V 5P:
2x CEE 16A 230V 3P
4x CEE 16A 230V 3P
1x PE bar with 10x M12 bolts, side-mounted (for external customer connection)
5x RJ45 double sockets with cable outlet
Item no.:
11503256
Input:
1x CU system 630A 5P with M12 bolts (for feed-in: 2x 185mm² each)
Output:
1x Terminal output 30x10 M12
2x CEE 125A 400V 5P, pilot contact
2x CEE 63A 400V 5P, pilot contact
4x CEE 32A 400V 5P
4x Schuko
As additional protection for CEE 32A 400V 5P & Schuko
Item no.:
11504368
Input:
1x CU system 800A 5P with M12 bolts
Output:
1x CU terminal output 40x10 with M12 bolts
2x CU terminal outputs 40x10 with M12 bolts
8x CU terminal outputs 30x10 with M12 bolts
1x CEE 32A 400V 5P
Item no.:
11503680
Input:
1x CU system 1600A with M12 bolts
Output:
4x CU terminal outputs 40x10 with M12 bolts
1x CEE 32A 400V 5P
Item no.:
11503708
Input:
1x CU system 2000A with M12 bolts
Output:
6x CU terminal outputs with M12 bolts
Item no.:
11503382
